GAR1426 - Burndy - Fits 1/2" to 3/4" Pipe Bright Dipped Mechanical Grounding Connector

GAR1426 - Burndy - Fits 1/2" to 3/4" Pipe Bright Dipped Mechanical Grounding Connector

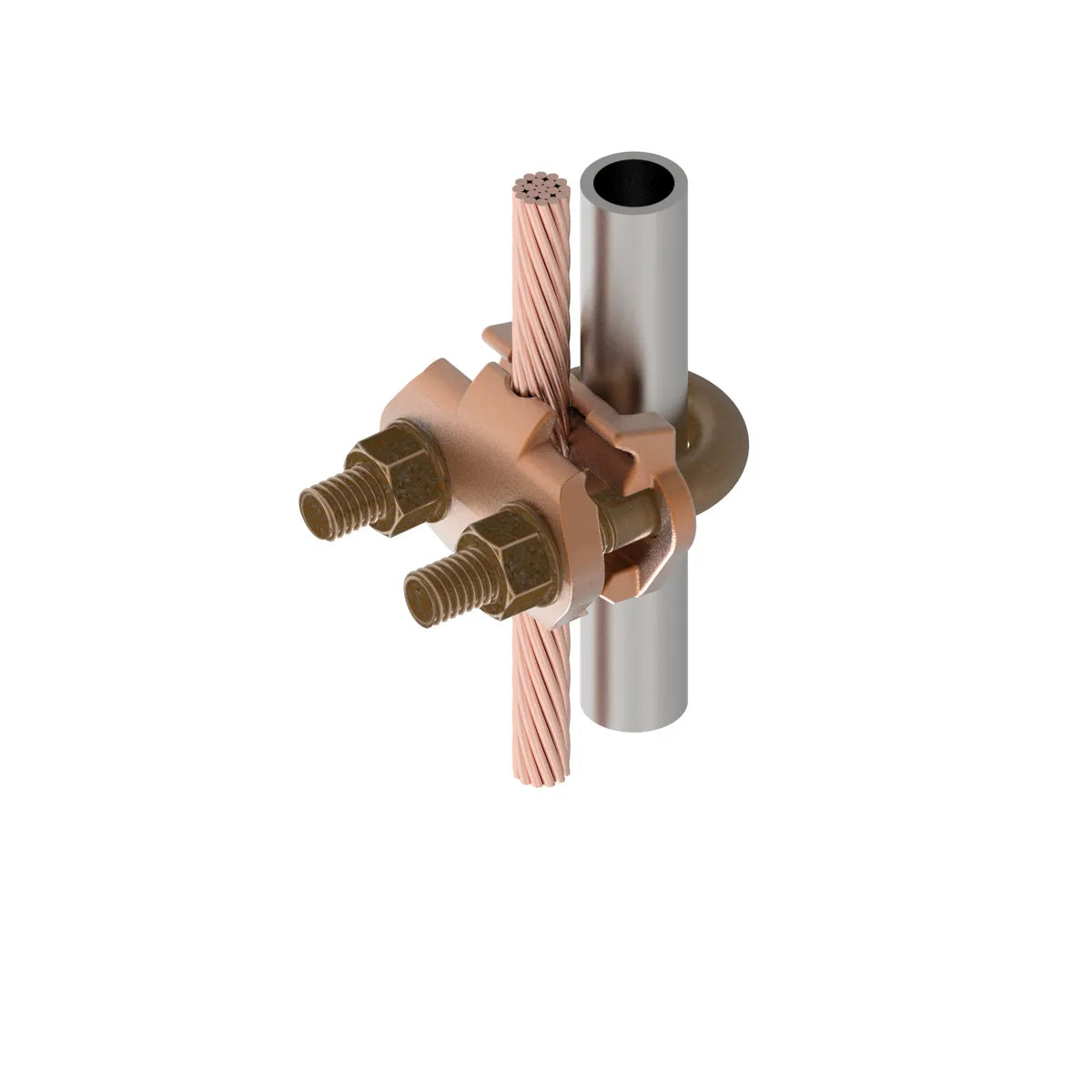

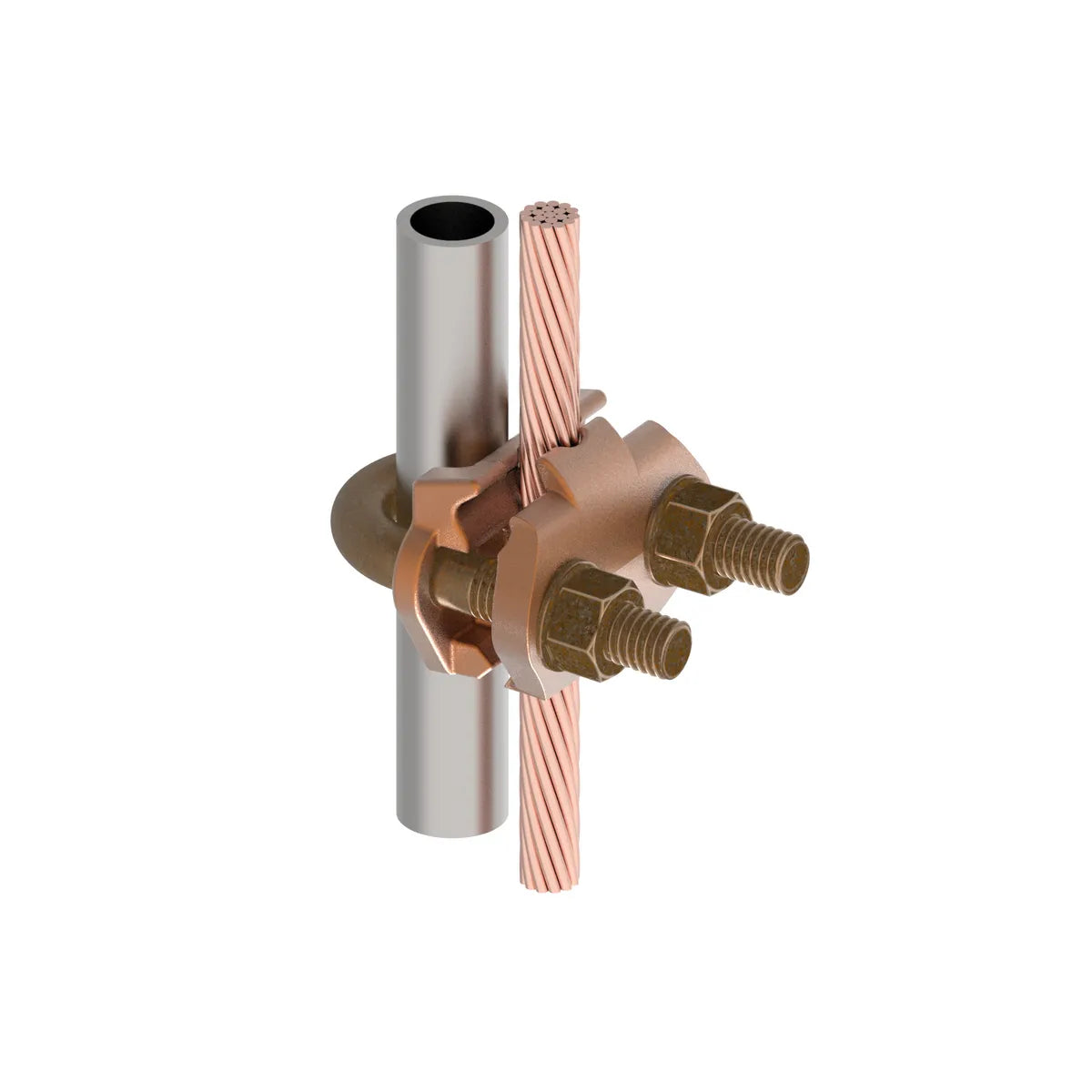

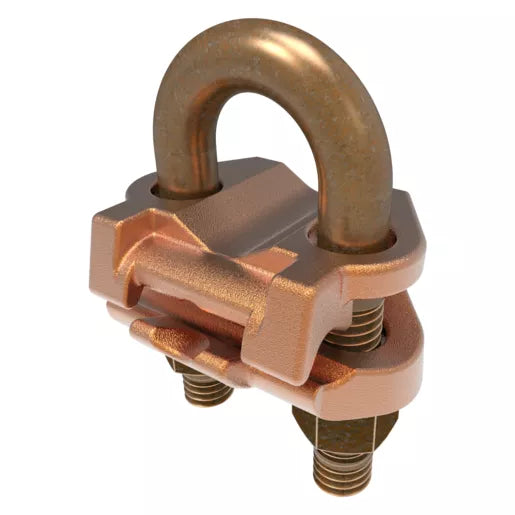

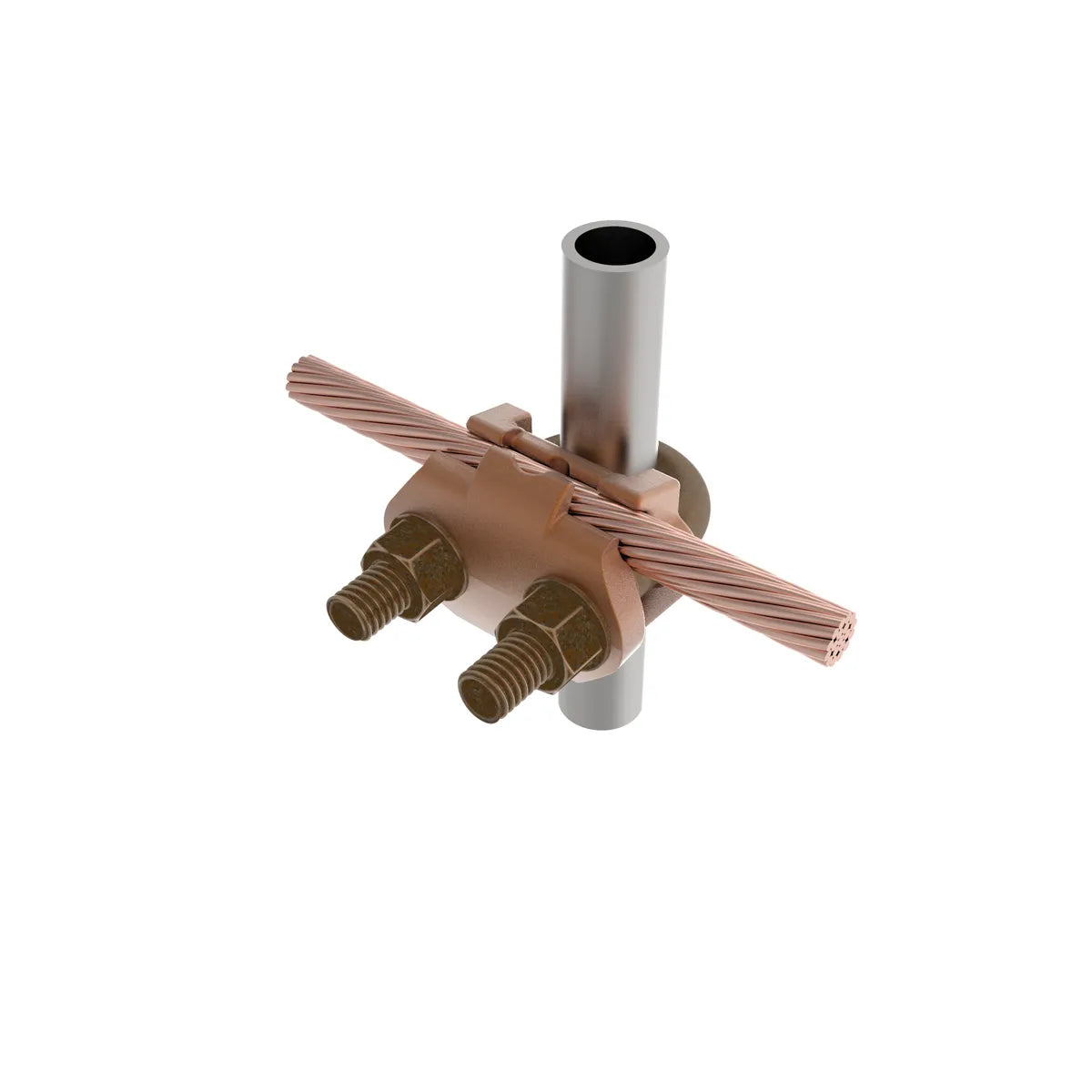

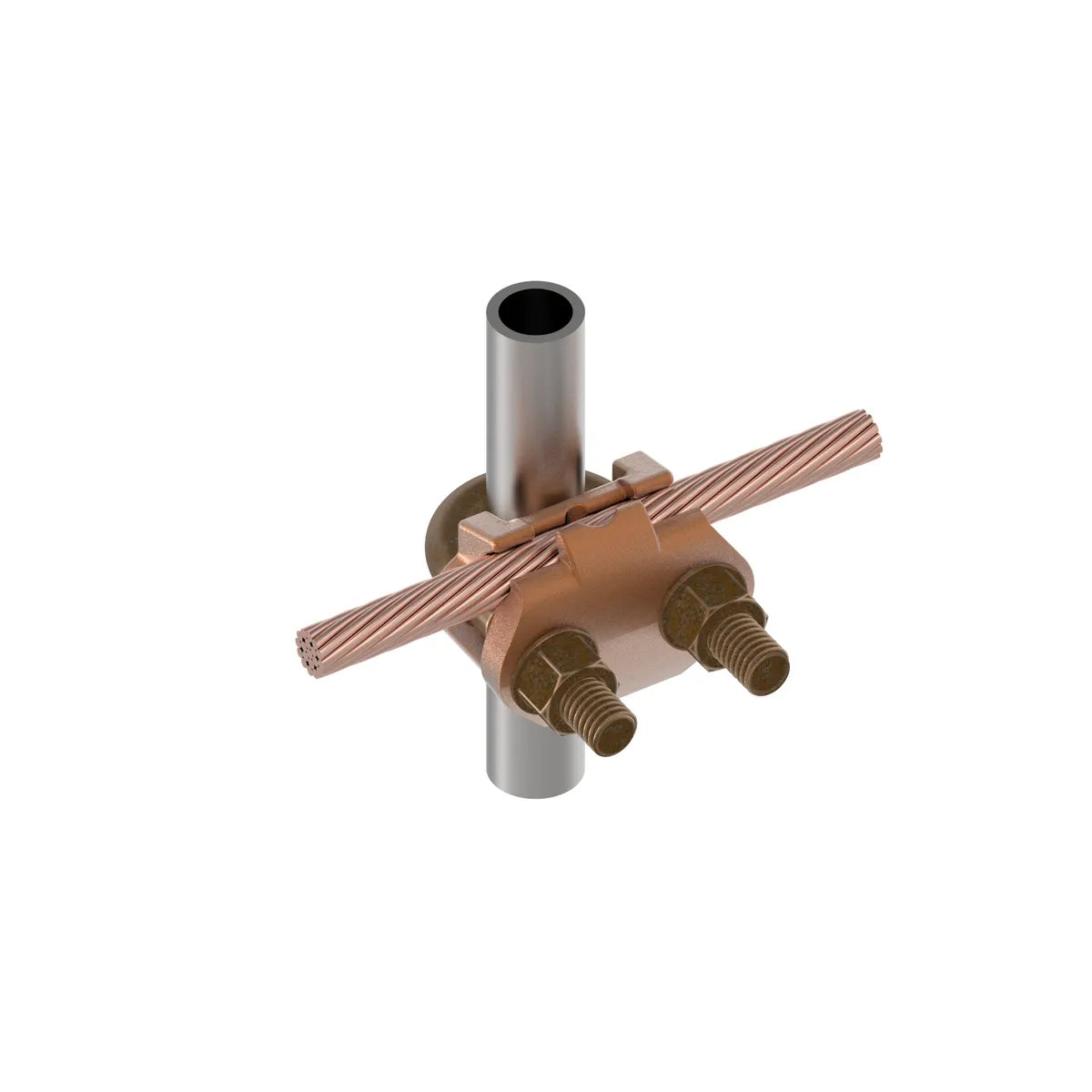

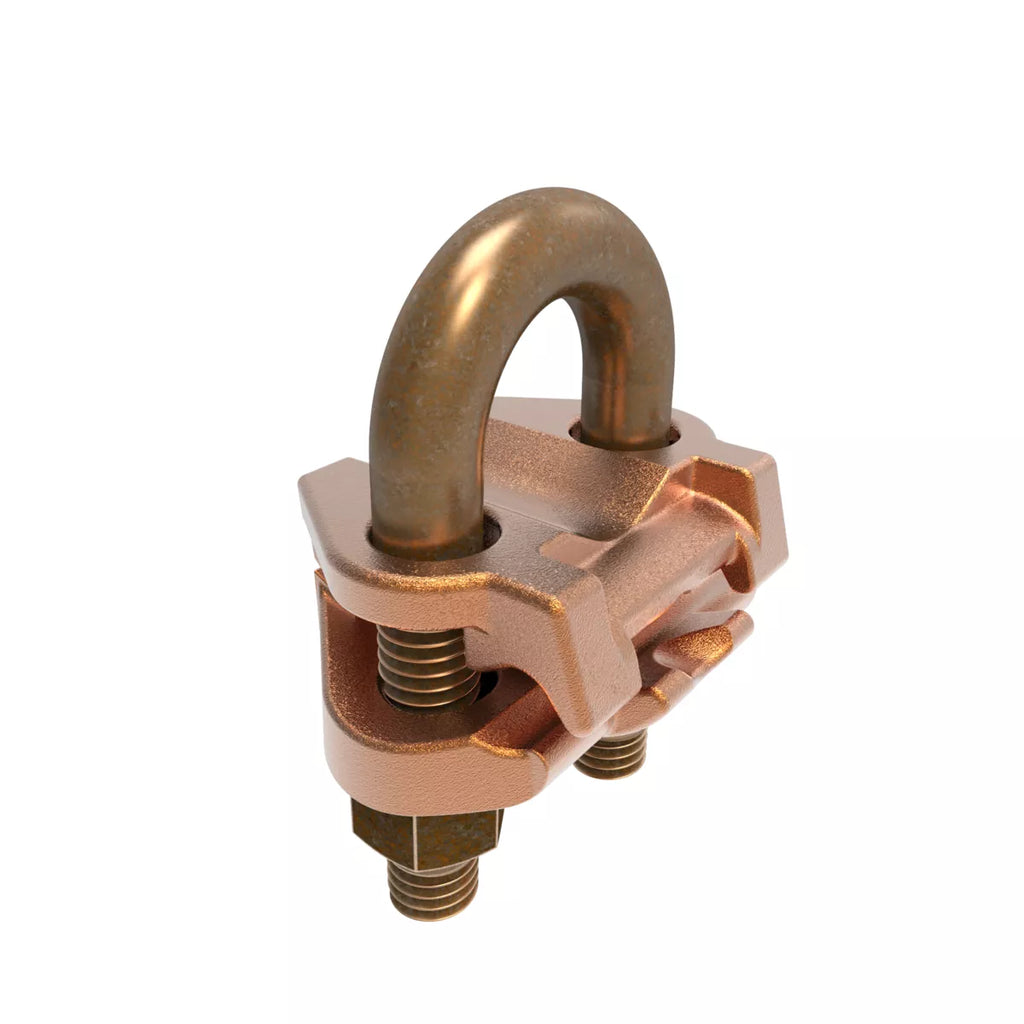

Mechanical Grounding Connector, Cable to Rod or Pipe, 4 AWG (Sol.) - 2/0 AWG (Str.), #7 - #8 Rebar, 7/8" to 1 " Rod, 1/2" - 3/4" Pipe, Bright Dipped.

GENERAL SPECIFICATIONS

General

Application

For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube Fence Posts, Direct Burial Applications

Catalog Number

GAR1426

EU RoHS Indicator

Yes

Installation Torque Recommended in-lb

240 LBS/in

Installation Torque Recommended Run in-lb

240 Lb in

Material

Copper

Material - Hardware

DURIUM™ Silicon Bronze

Plated

N

Plating Type

Bright Dipped

Sub Brand

MECHANICAL CONNECTOR

Type

GAR

U Bolt Type

249

UPC	781810231807

UPC 14 Digit GTIN

00781810231807

Dimensions

Dimension - B Length inch

1.50 in

Dimension - Height fraction

3 in

Dimension - Height inch

3.00 in

Dimension - Height mm

76.2 mm

Dimension - L Length Overall mm

40 mm

Dimension - Length Overall inch

1.56 in

Dimension - Outside Diameter inch

1.05 in

Dimension - Width fraction

2-3/8 in

Dimension - Width inch

2.38 in

Dimension - Width mm

60 mm



Conductor Related

Conductor - Copper Solid Size

4 AWG

Conductor - Copper Solid Size Range

4 AWG – 3/0 AWG

Conductor - Copper Str Size

2/0 AWG

Conductor - Copper Str Size Range

5 AWG – 2/0 AWG

Conductor - Copper Tube Std Size

1/2 IPS IPS; 3/4 IPS IPS

Conductor - Copper Tube Std Size Range

1/2 IPS IPS – 3/4 IPS IPS

Conductor - Pipe or Round Tube Size Range

1/2 – 3/4 in

Conductor - Rebar Size

7 ; 8

Conductor - Rebar Size Range

7 – 8

Conductor - Rod Size

1 in

Conductor - Rod Size Range

7/8 in – 1 in

Conductor Type

CU C Solid-Size CU C Str-Size CU Tube Std-Size Rod-Size



PRODUCT DATASHEET

GAR1426
