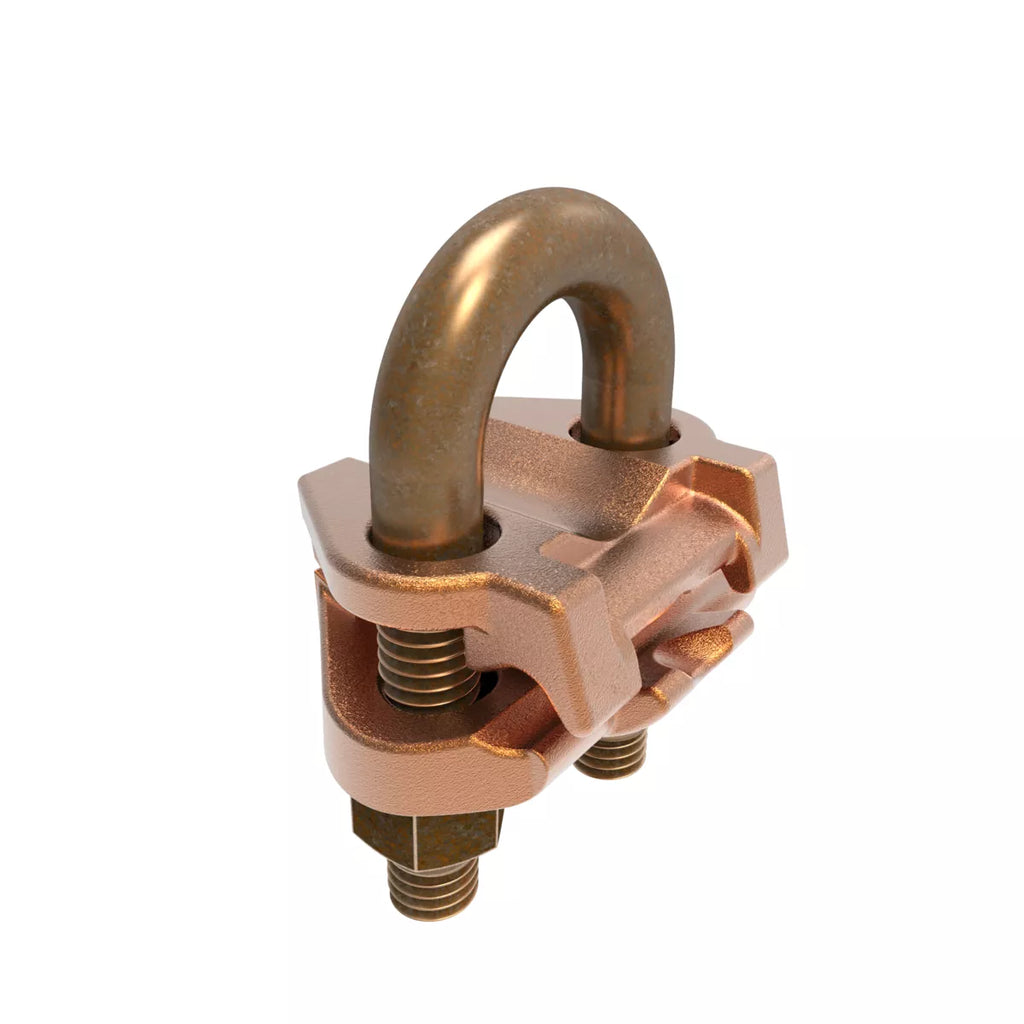

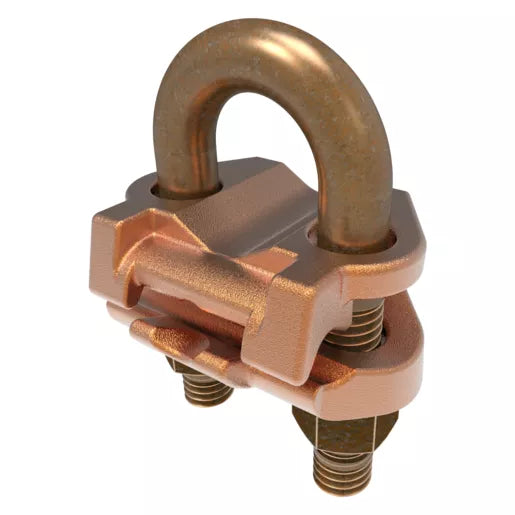

GAR1429 - Burndy - Fits 1/2" to 3/4" Pipe Bright Dipped Mechanical Grounding Connector
Mechanical Grounding Connector, Cable to Rod or Pipe, 2/0 AWG (Sol) -250 kcmil, 1/2"-3/4" Pipe, 7/8"-1" Rod, #7-#8 Rebar, Bright Dipped.

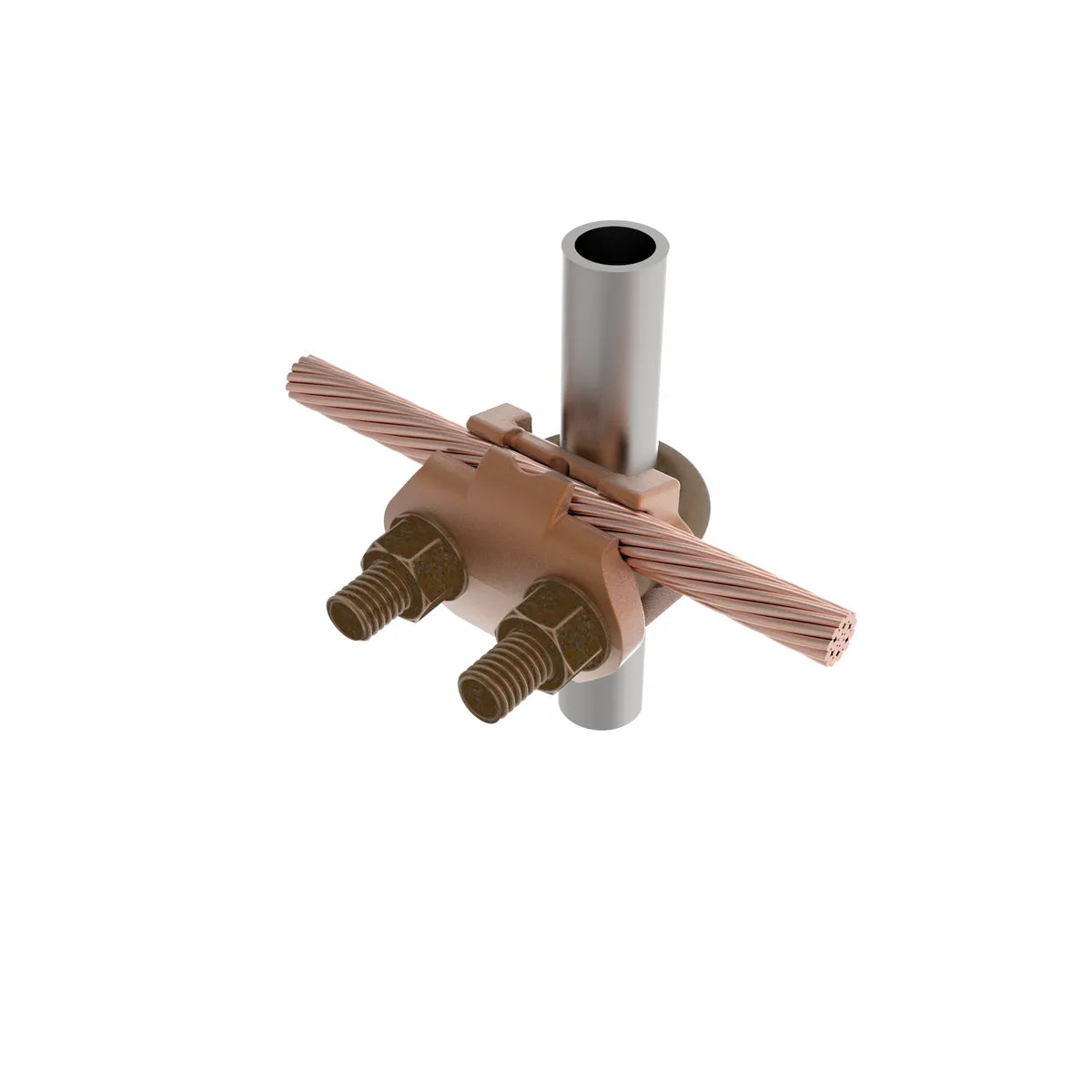

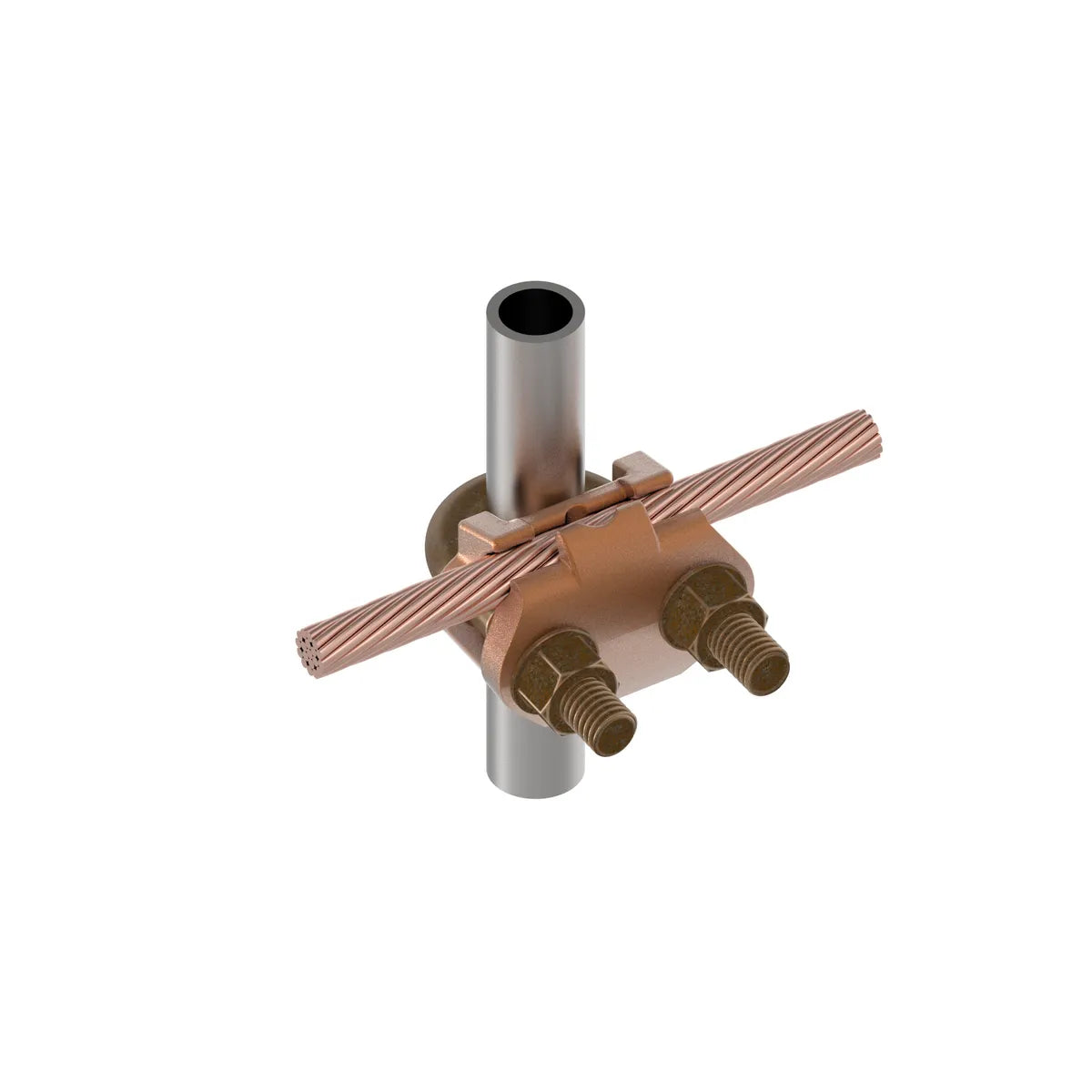

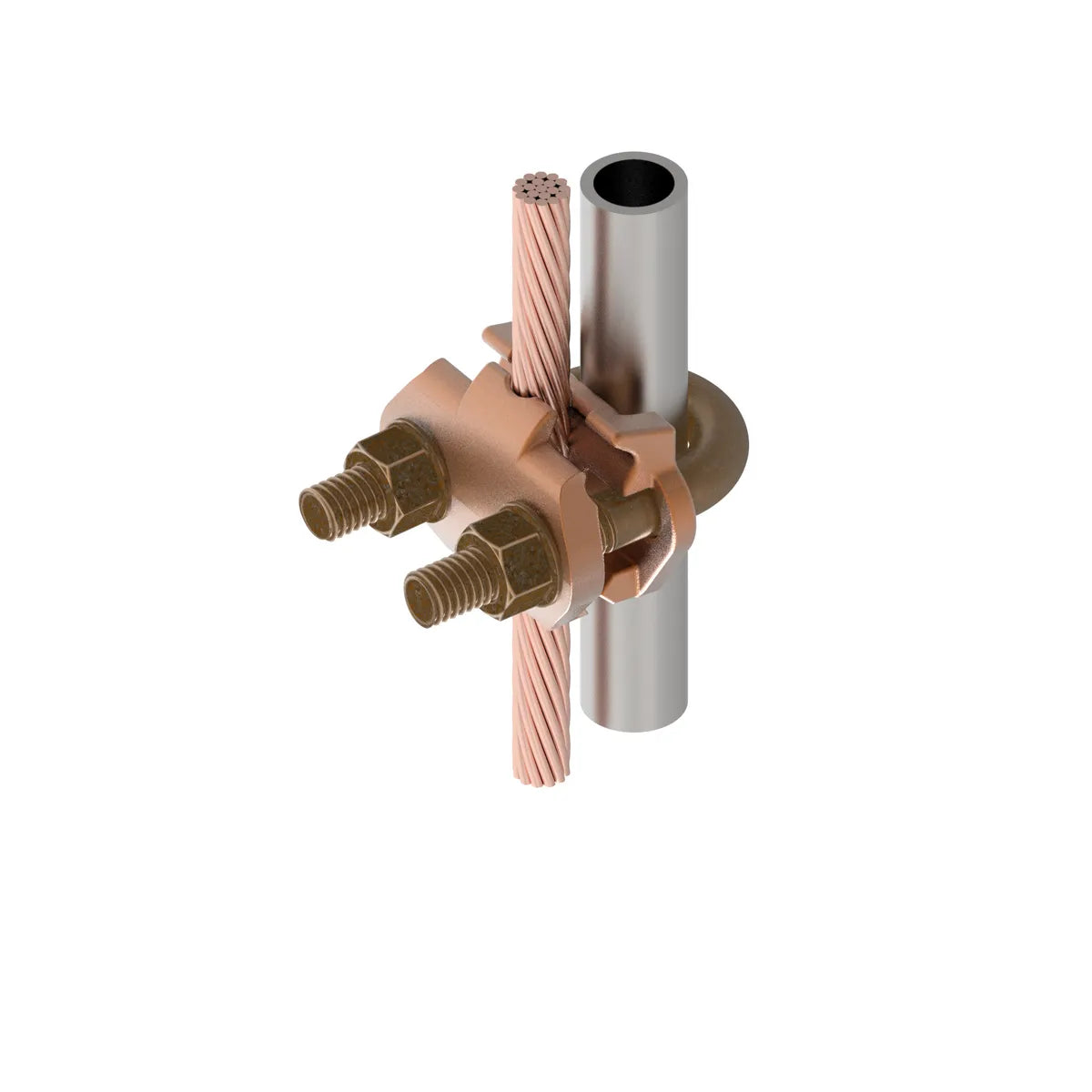

- Parallel or 90 deg Copper Cable Connection
- One-wrench installation
- Rated for Direct Burial in earth or concrete
GENERAL SPECIFICATIONS
| Application |
For joining a range of cables, parallel or at right angles to rod or tube fence posts, direct burial applications |
| Catalog Number |
GAR1429 |
| EU RoHS Indicator |
Yes |
| Installation Torque Recommended |
240 lb-in |
| Installation Torque Recommended Run |
240 lb-in |
| Material |
Copper |
| Material - Hardware |
DURIUM(TM) Silicon Bronze |
| Plated |
N |
| Plating Type |
Bright Dipped |
| Sub Brand |
Mechanical Connector |
| Type |
GAR |
| U Bolt Type |
249 |
| UPC |
781810232002 |
| UPC 14 Digit GTIN |
00781810232002 |
Dimensions
| Dimension - B Length |
1.75 in |
| Dimension - Height (fraction) |
3 in |
| Dimension - Height |
3.00 in |
| Dimension - Height |
76.2 mm |
| Dimension - L Length Overall |
46 mm |
| Dimension - Length Overall |
1.81 in |
| Dimension - Outside Diameter |
1.05 in |
| Dimension - Width (fraction) |
2-3/8 in |
| Dimension - Width |
2.38 in |
| Dimension - Width |
60 mm |
Conductor Related
| Copper Solid Size |
2/0 AWG |
| Copper Solid Size Range |
2/0 AWG - 4/0 AWG |
| Copper Stranded Size |
250 Kcmil |
| Copper Stranded Size Range |
2/0 AWG - 250 kcmil |
| Copper Tube Standard Size |
1/2 IPS; 3/4 IPS |
| Copper Tube Size Range |
1/2 IPS - 3/4 IPS |
| Pipe / Round Tube Size Range |
1/2 - 3/4 in |
| Rebar Size |
7 ; 8 |
| Rebar Size Range |
7 - 8 |
| Rod Size |
1 in |
| Rod Size Range |
7/8 in - 1 in |
| Conductor Type |
- CU C Solid-Size
- CU C Str-Size
- CU Tube Std-Size
- Rod-Size
|
Force Related
| Installation Torque Recommended |
240 lb-in |
| Installation Torque Recommended Run |
240 lb-in |
Logistics
| Carton Quantity |
25 |
| Minimum Pack Quantity |
1 |
| Pallet Quantity |
1875 |
PRODUCT DATASHEET
GAR1429
