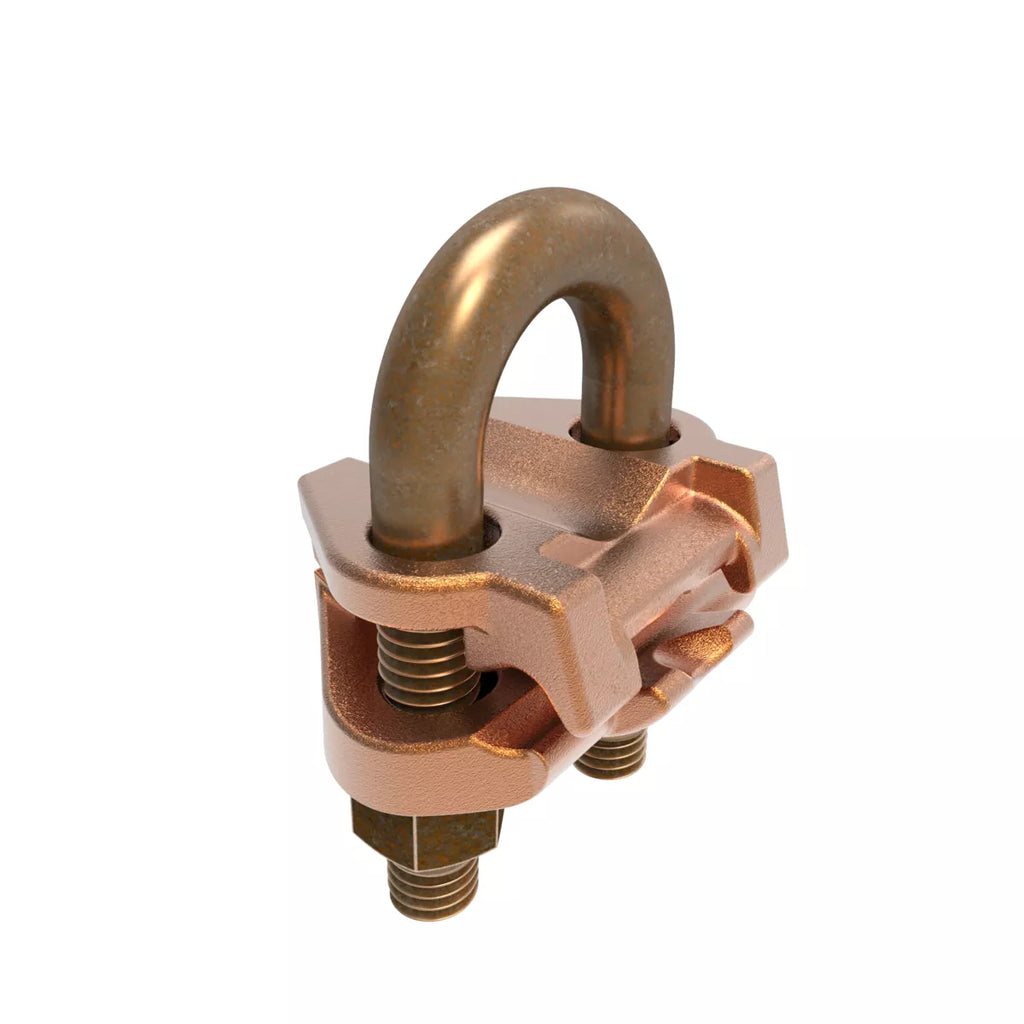

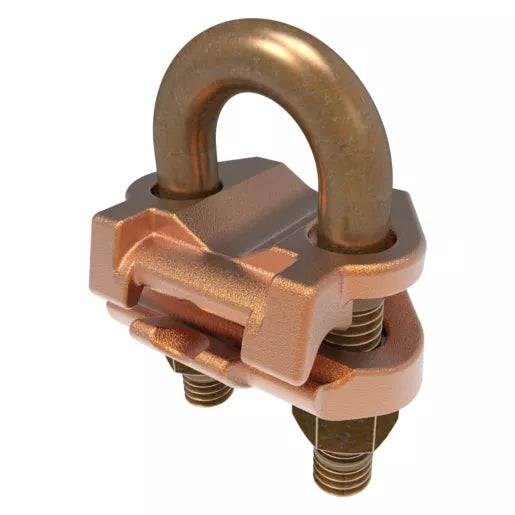

GAR1526 - Burndy - Cable to Rod or Pipe Mechanical Grounding Connector
Mechanical Grounding Connector, Cable to Rod or Pipe, 4 AWG (Sol.) - 2/0 AWG (Str.), #9 - #10 Rebar, 1-1 /8" to 1-1/4" Rod, 1" Pipe, Bright Dipped.

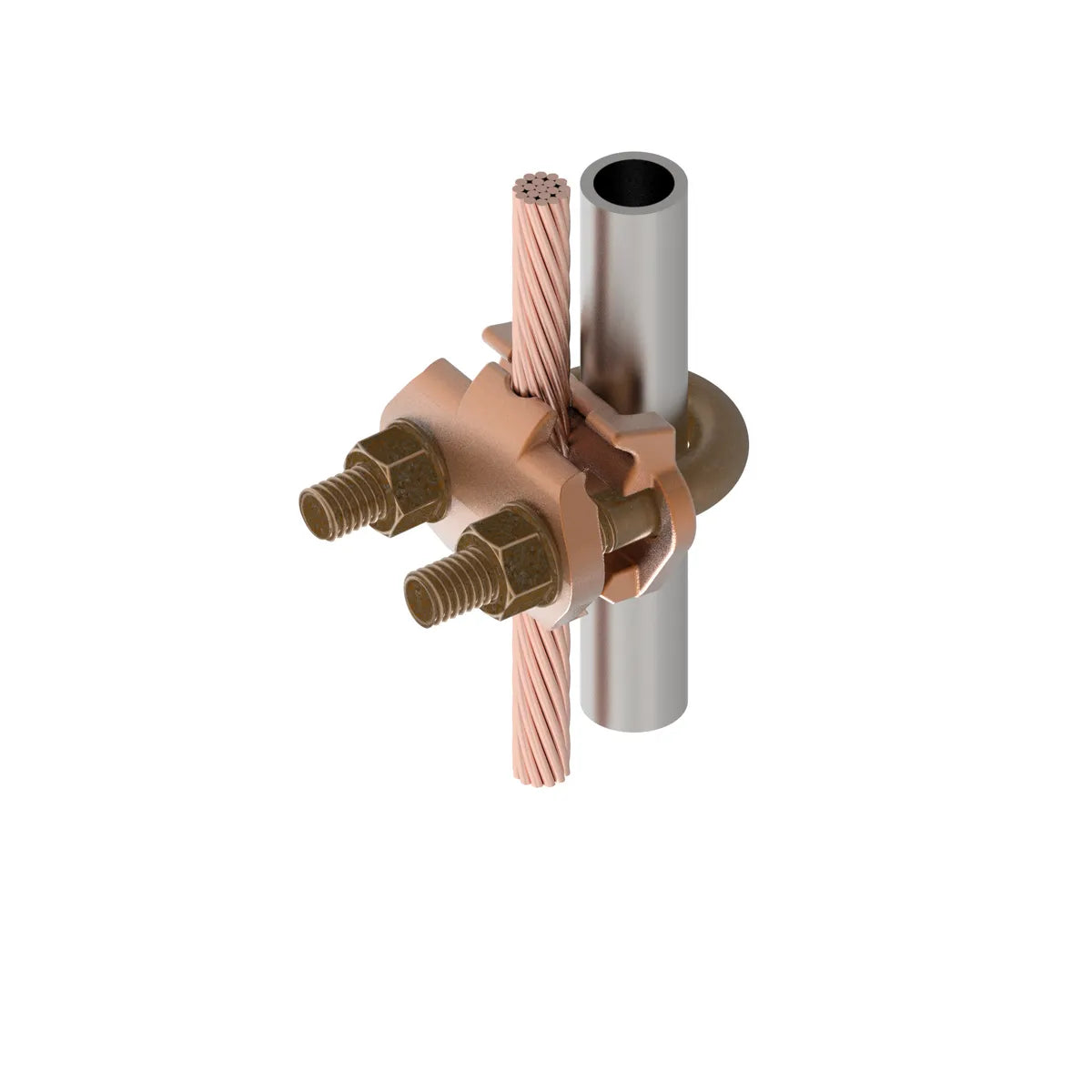

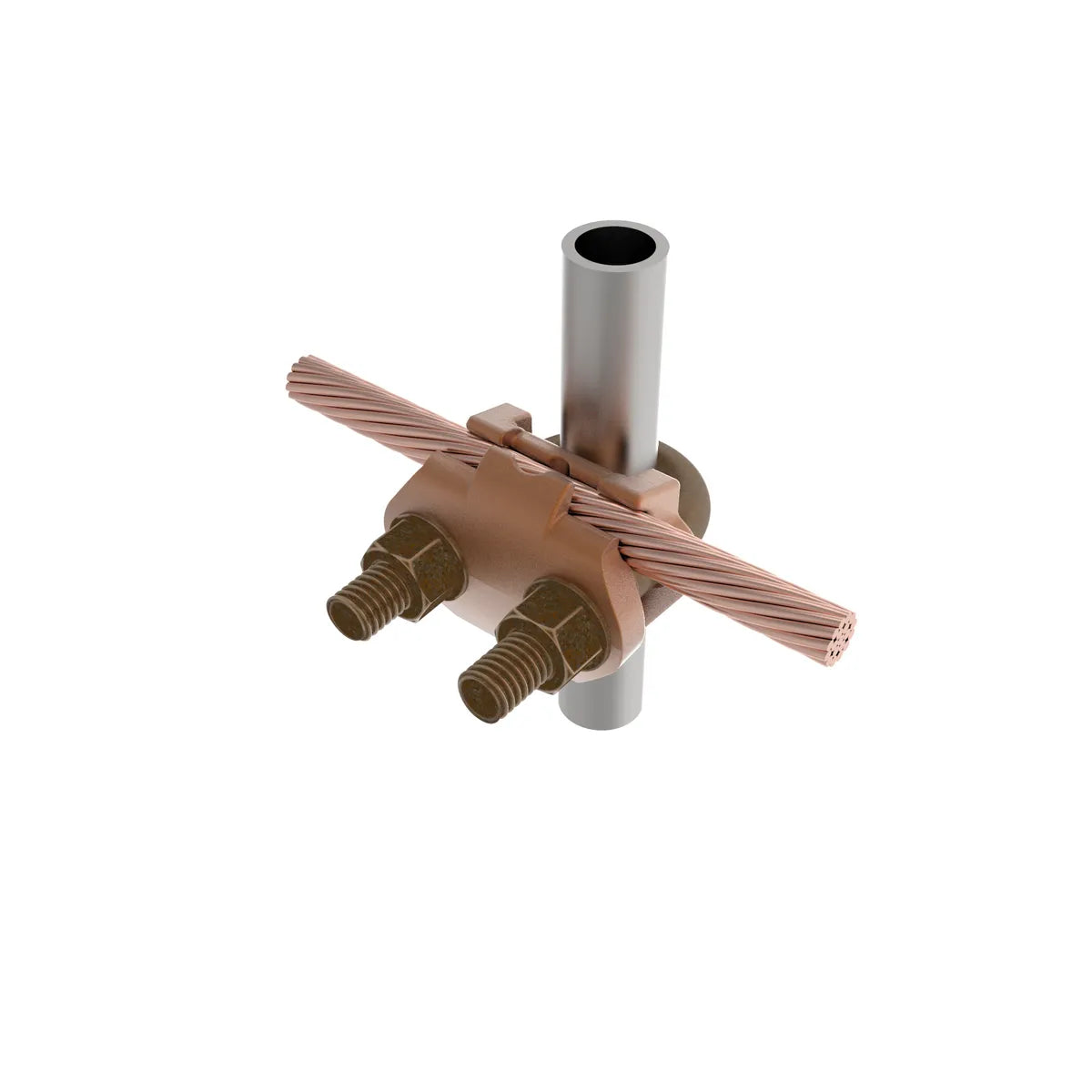

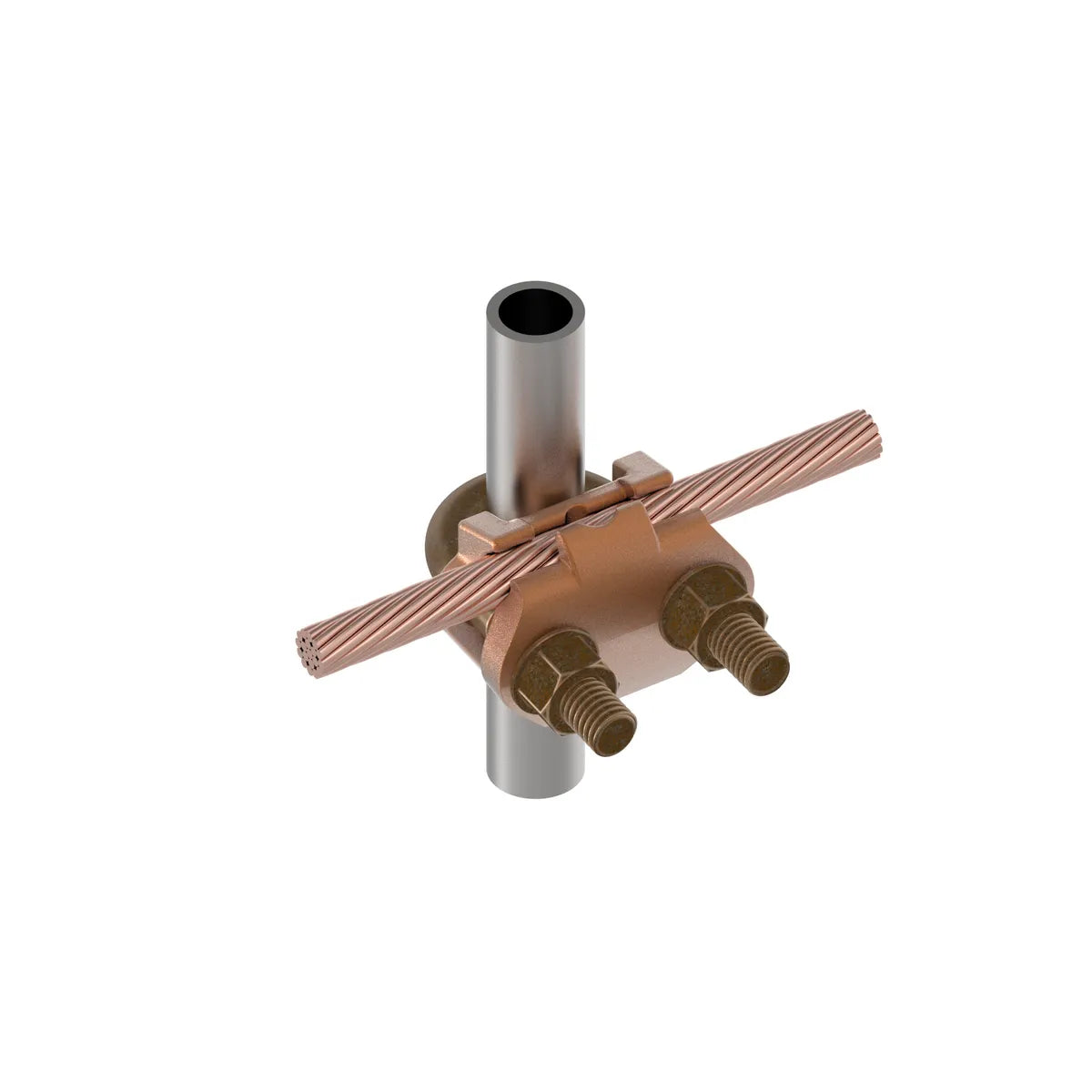

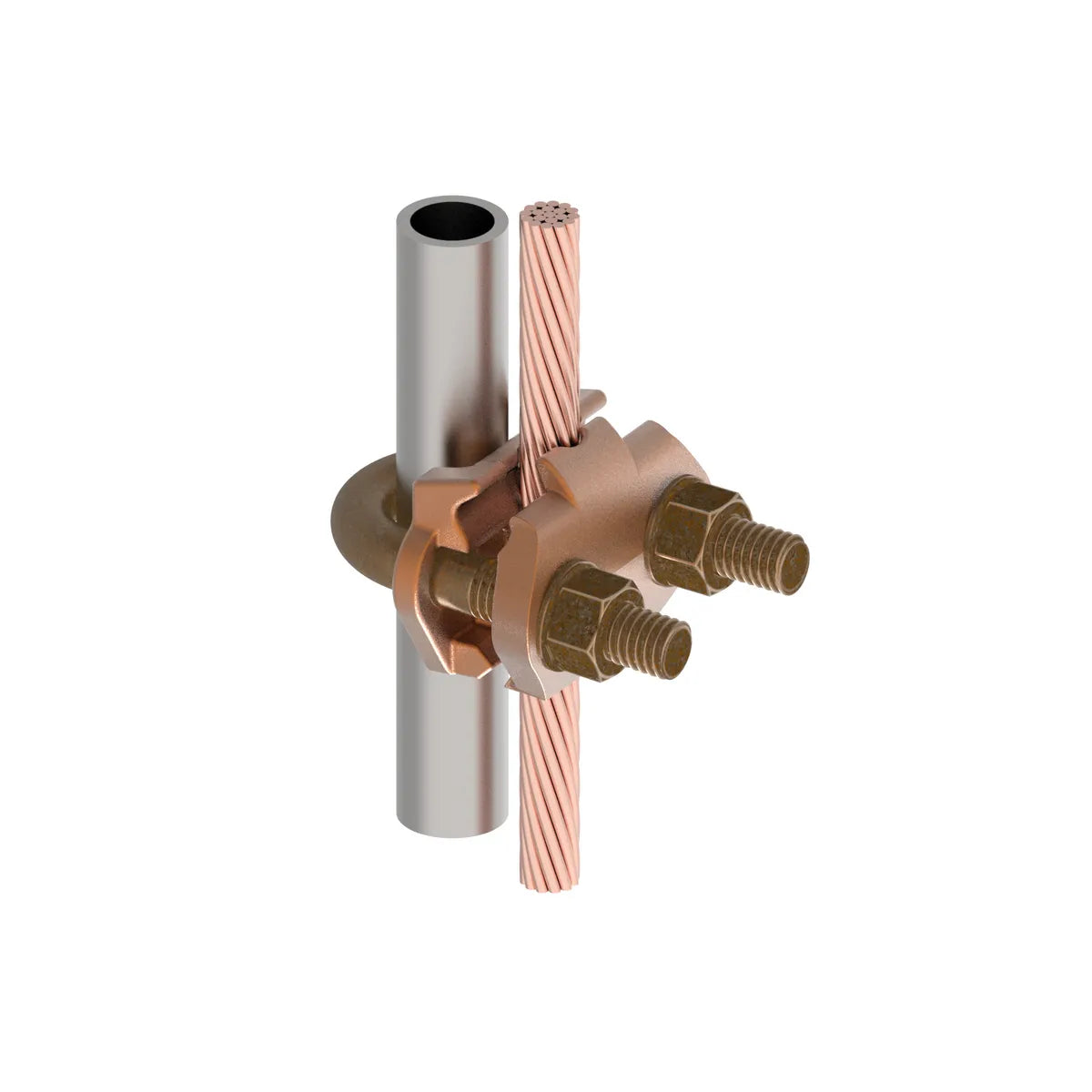

- Parallel or 90° Copper Cable Connection
- One-wrench installation
- Rated for Direct Burial in earth or concrete
GENERAL SPECIFICATIONS
General
| Application | For joining a range of cable, parallel or at right angles to rod or tube fence posts, direct burial applications |
| Catalog Number | GAR1526 |
| EU RoHS Indicator | Yes |
| Installation Torque Recommended in-lb | 240 LBS/in |
| Installation Torque Recommended Run in-lb | 240 Lb in |
| Material | Copper |
| Material - Hardware | DURIUM™ Silicon Bronze |
| Plated | N |
| Plating Type | Bright Dipped |
| Sub Brand | Mechanical Connector |
| Type | GAR |
| U Bolt Type | 244 |
| UPC | 781810232606 |
| UPC 14 Digit GTIN | 00781810232606 |
Dimensions
|
Dimension - B Length inch |
1.75 in |
|
Dimension - Height fraction |
2-7/8 in |
|
Dimension - Height inch |
2.88 in |
|
Dimension - Height mm |
73.2 mm |
|
Dimension - L Length Overall mm |
40 mm |
|
Dimension - Length Overall inch |
1.56 in |
|
Dimension - Outside Diameter inch |
1.31 in |
|
Dimension - Width fraction |
2-5/8 in |
|
Dimension - Width inch |
2.62 in |
|
Dimension - Width mm |
67 mm |
| Package Height | 0 in |
| Package Length | 0 in |
| Package Weight | 0 lb |
| Package Width | 0 in |
Conductor Related
| Copper Solid Size | 4 AWG |
| Copper Solid Size Range | 4 AWG – 2/0 AWG |
| Copper Stranded Size | 2/0 AWG |
| Copper Stranded Size Range | 4 AWG – 2/0 AWG |
| Copper Tube Standard Size | 1 IPS IPS |
| Copper Tube Standard Size Range | 1 IPS IPS |
| Pipe or Round Tube Size Range | 1 in |
| Rebar Size | 9 ; 10 |
| Rebar Size Range | 9 – 10 |
| Rod Size | 1.120 – 1.31 in |
| Rod Size Range | 1 1/8 in – 1 1/4 in |
| Conductor Type |
|
Force Related
| Installation Torque Recommended in-lb | 240 LBS/in |
| Installation Torque Recommended Run in-lb | 240 Lb in |
Logistics
| Carton Quantity | 20 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 1800 |
