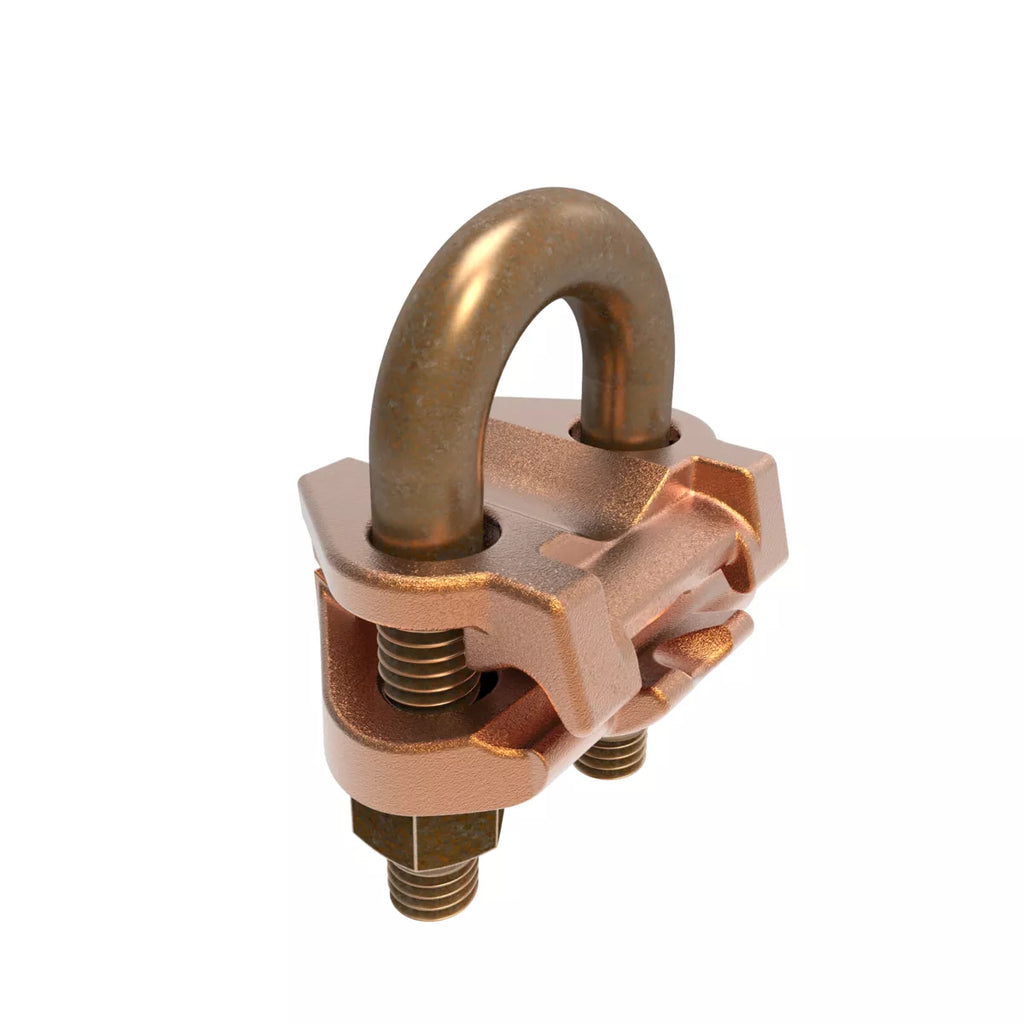

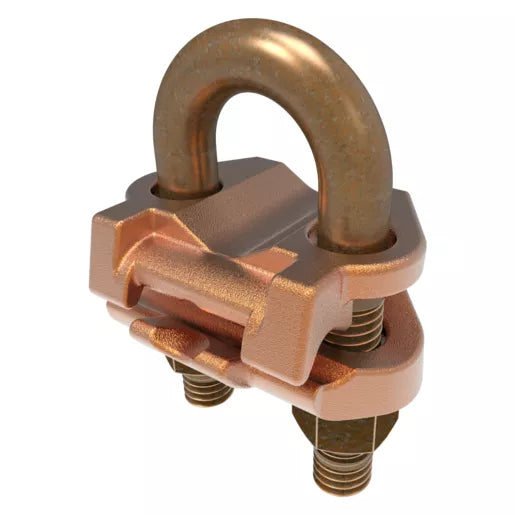

GAR1529 - Burndy - 1-1/8" to 1-1/4" Rod Bright Dipped Mechanical Grounding Connector

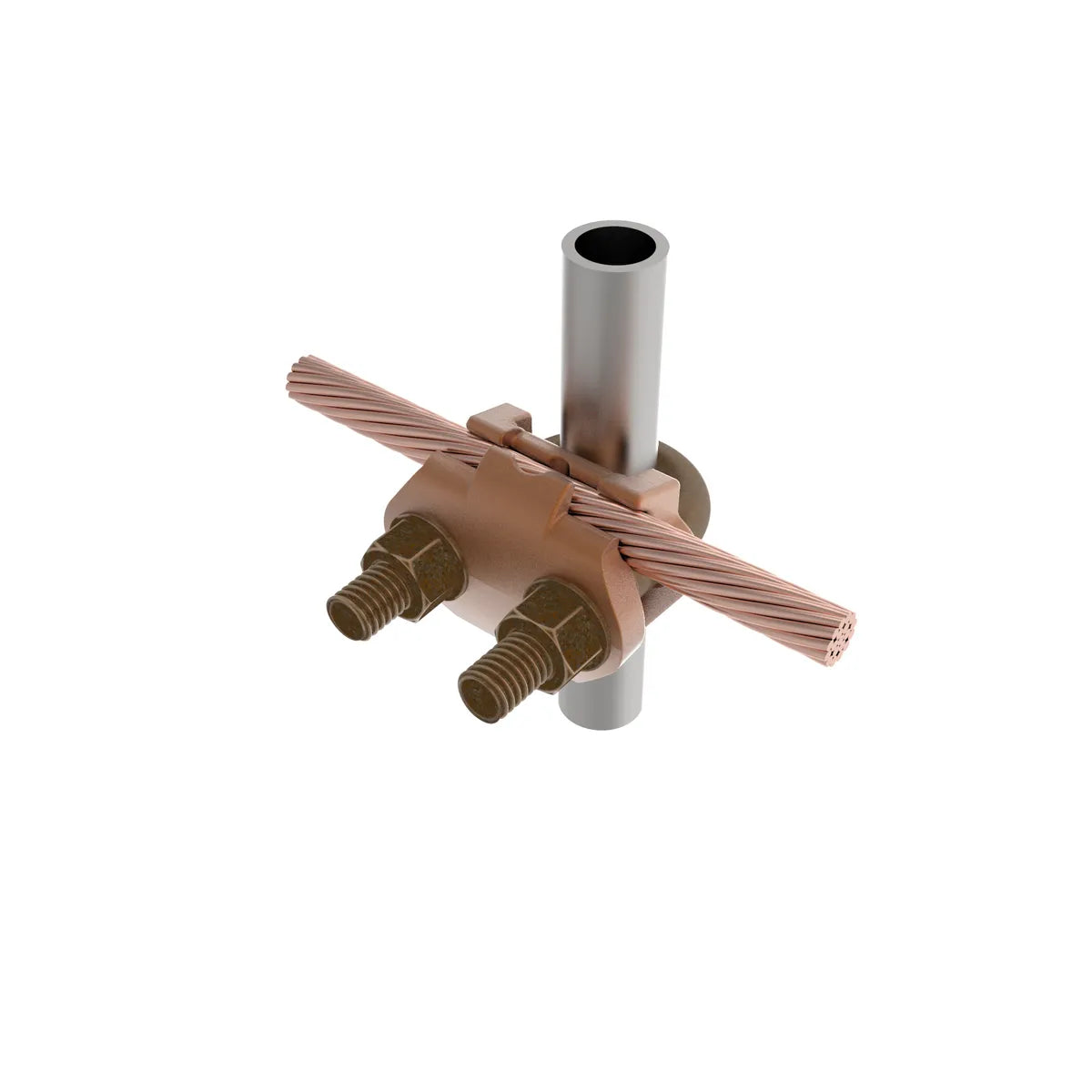

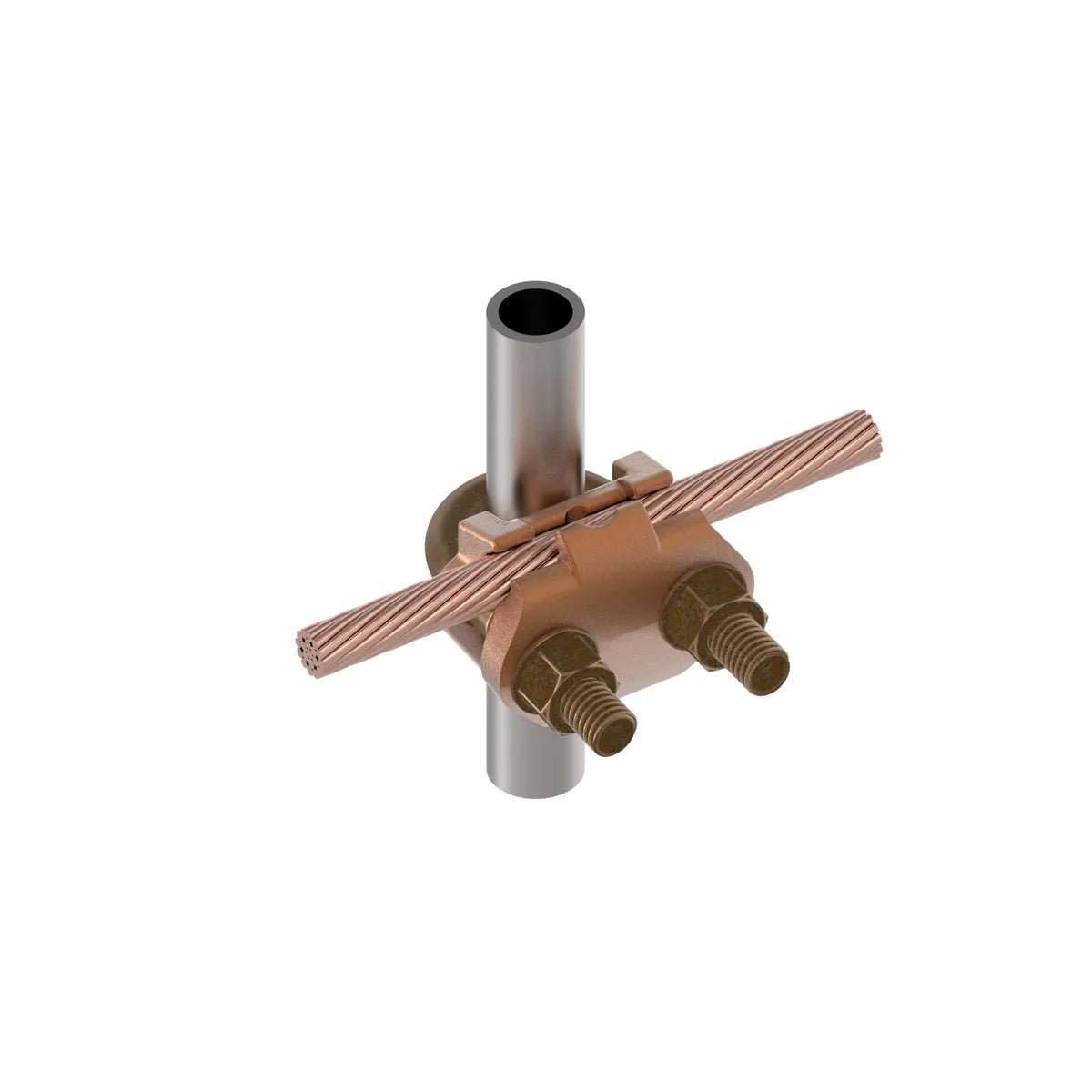

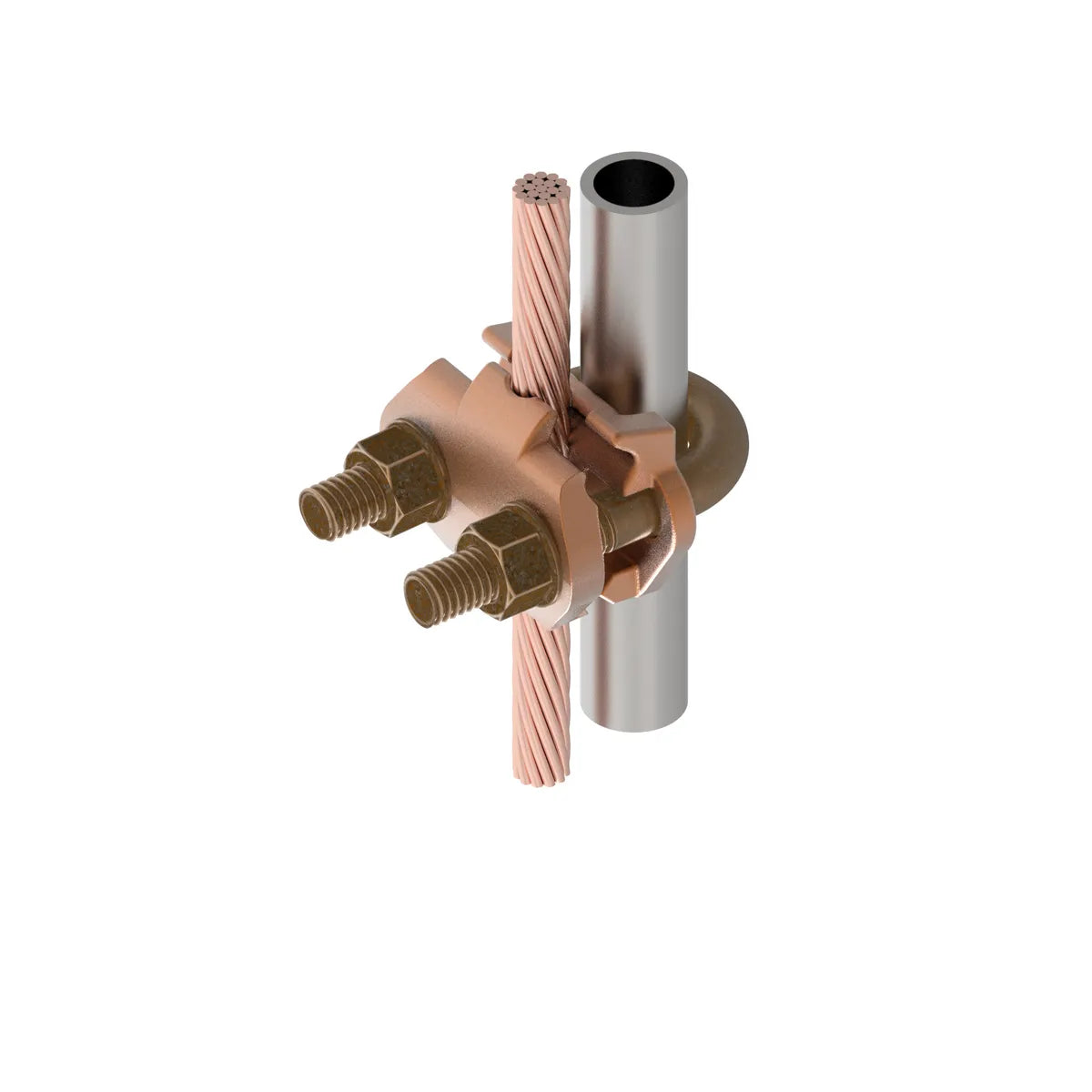

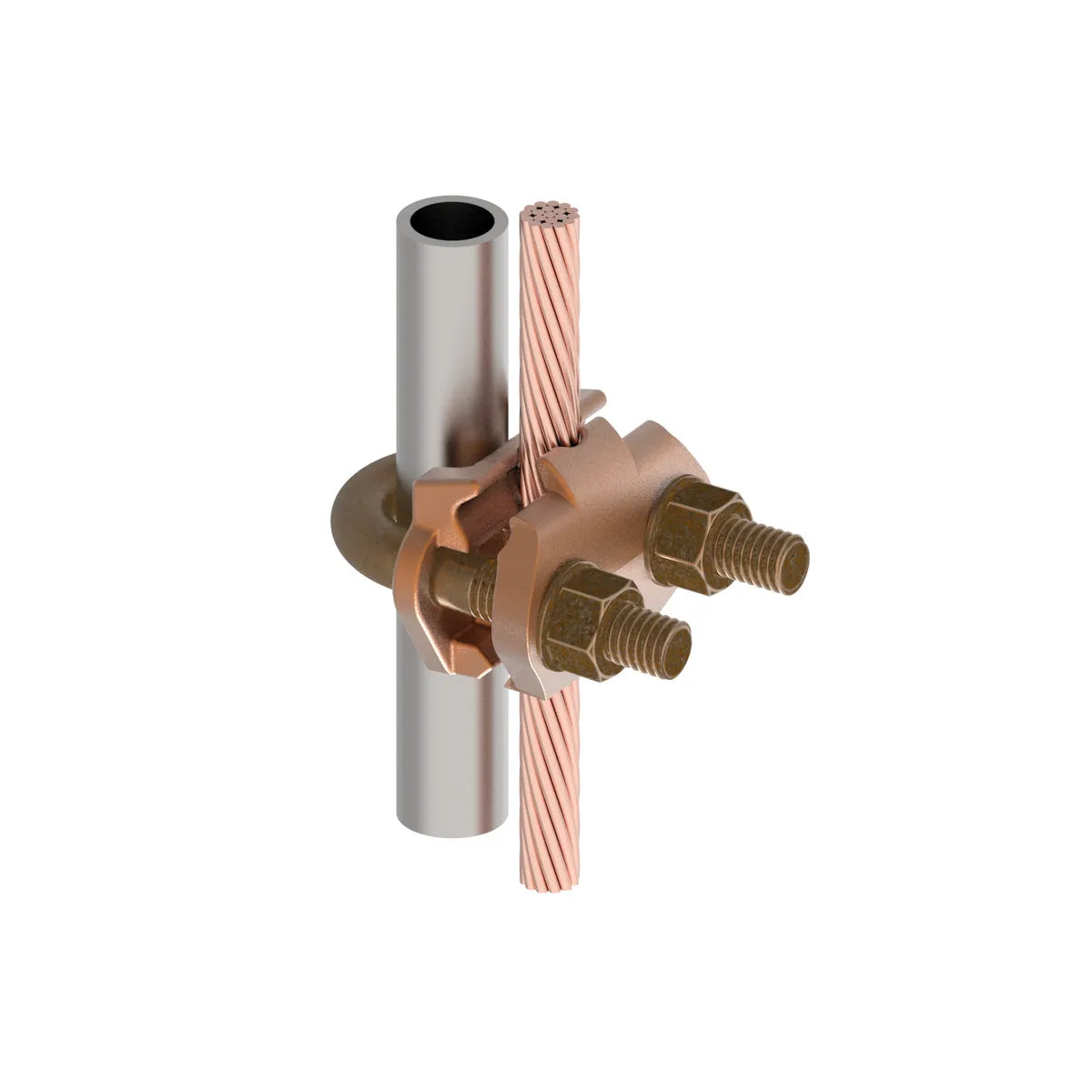

Mechanical Grounding Connector, Cable to Rod or Pipe, 2/0 AWG (Sol) -250 kcmil, 1" Pipe, 1-1/8"-1-1/4" Rod, #9-#10 Rebar, Bright Dipped.

  • Parallel or 90° Copper Cable Connection
  • One-wrench installation
  • Rated for Direct Burial in earth or concrete

GENERAL SPECIFICATIONS

General

Application For joining a range of cable, parallel or at right angles to rod or tube, direct burial cable, fence post
Catalog Number GAR1529
EU RoHS Indicator Yes
Installation Torque Recommended in-lb 240 LBS/in
Installation Torque Recommended Run in-lb 240 Lb in
Material Copper
Material - Hardware DURIUM™ Silicon Bronze
Plated N
Plating Type Bright Dipped
Sub Brand Mechanical Connector
Type GAR
U Bolt Type 244
UPC 781810232804
UPC 14 Digit GTIN 00781810232804

Dimensions

Dimension - B Length inch 1.75 in
Dimension - Height fraction 3-3/8 in
Dimension - Height inch 3.38 in
Dimension - Height mm 85.9 mm
Dimension - L Length Overall mm 46 mm
Dimension - Length Overall inch 1.81 in
Dimension - Outside Diameter inch 1.31 in
Dimension - Width fraction 2-5/8 in
Dimension - Width inch 2.62 in
Dimension - Width mm 67 mm


Conductor Related

Conductor - Copper Solid Size 2/0 AWG
Conductor - Copper Solid Size Range 2/0 AWG – 4/0 AWG
Conductor - Copper Str Size 250 Kcmil
Conductor - Copper Str Size Range 1/0 AWG – 250 kcmil
Conductor - Copper Tube Std Size 1 IPS IPS
Conductor - Copper Tube Std Size Range 1 IPS IPS
Conductor - Pipe or Round Tube Size Range 1 in
Conductor - Rebar Size 9–10
Conductor - Rebar Size Range 9–10
Conductor - Rod Size 1.120 – 1.31 in
Conductor - Rod Size Range 1 1/8 in – 1 1/4 in
Conductor Type
  • CU C Solid-Size
  •  CU C Str-Size
  • CU Tube Std-Size
  •  Rod-Size



Force Related

Specification Details
Installation Torque Recommended in-lb 240 LBS/in
Installation Torque Recommended Run in-lb 240 Lb in


Logistics

Specification Details
Carton Quantity 25
Minimum Pack Quantity 1
Pallet Quantity 1275
