GAR1626 - Burndy - 1-1/4" Pipe 1-3/8" to 1-1/2" Rod Bright Dipped Mechanical Grounding Connector

BurndySKU: BURGAR1626
Price:
$79.13
Stock:
Sold out

Description

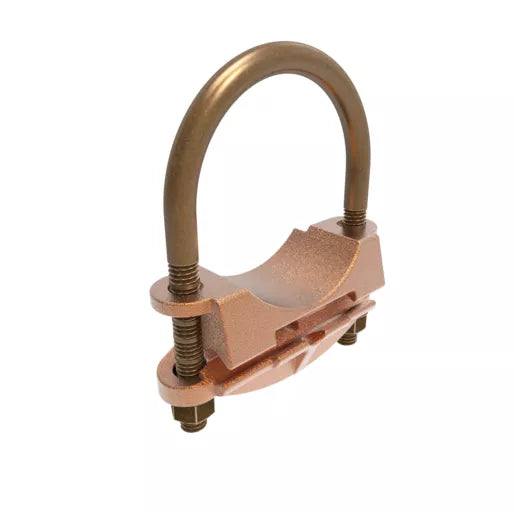

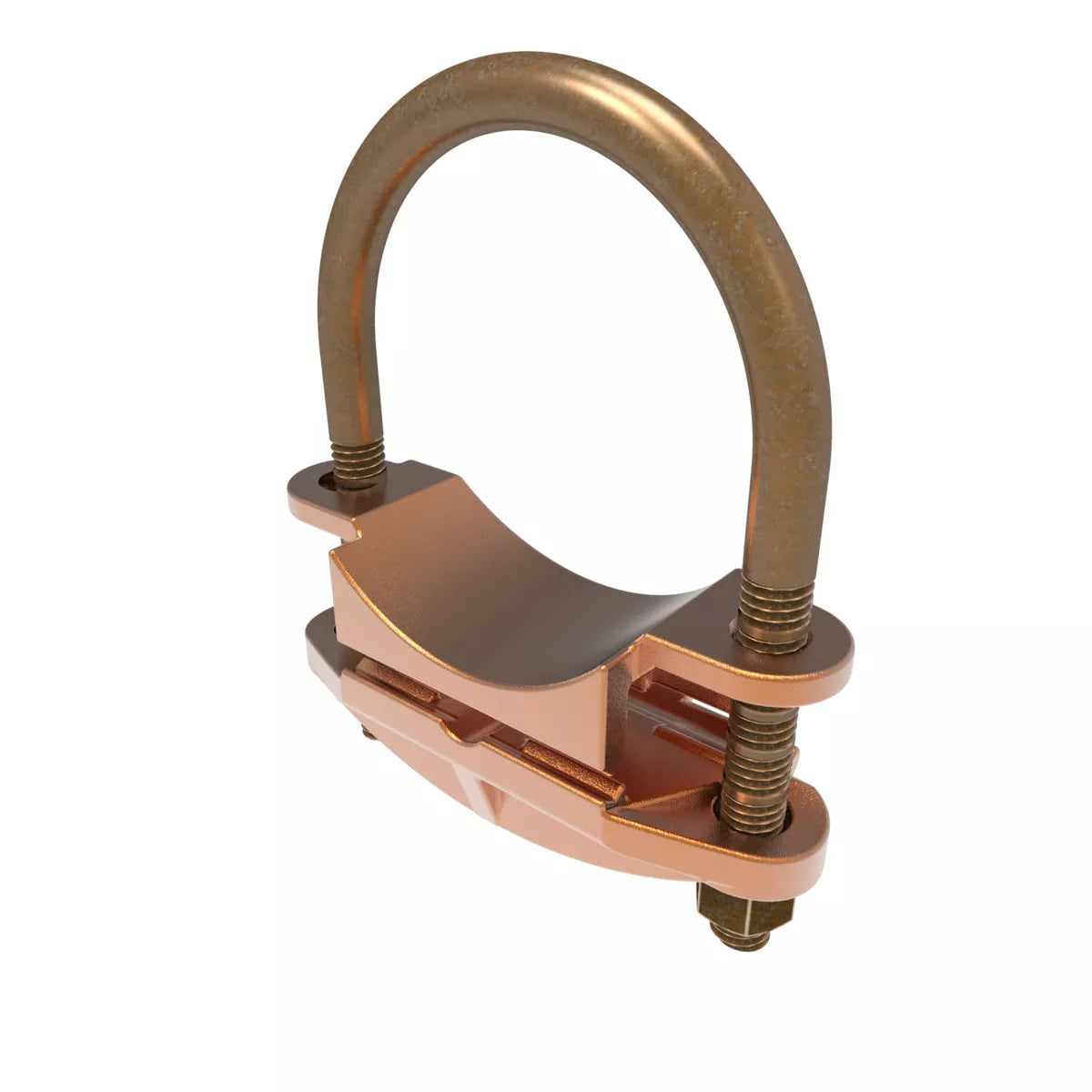

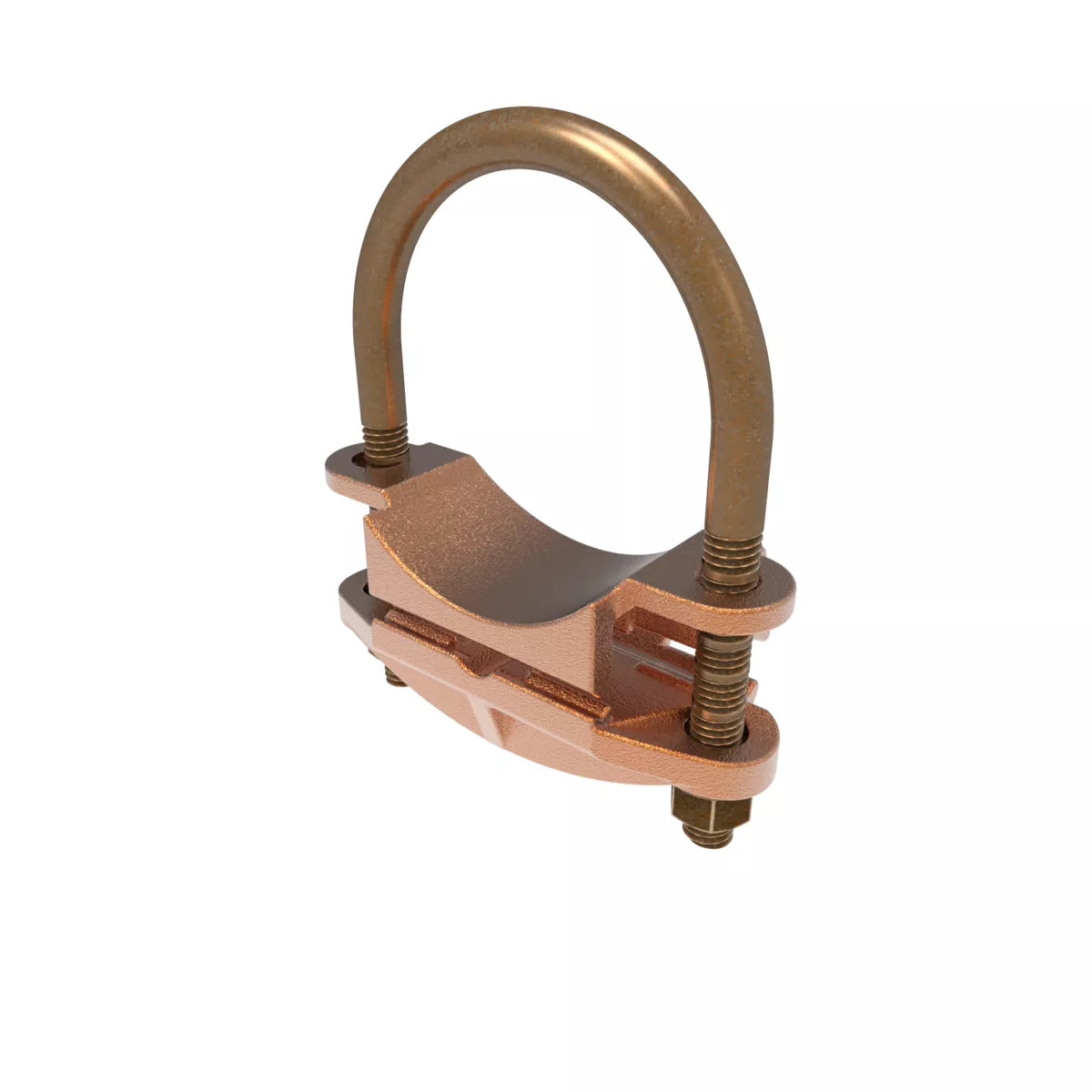

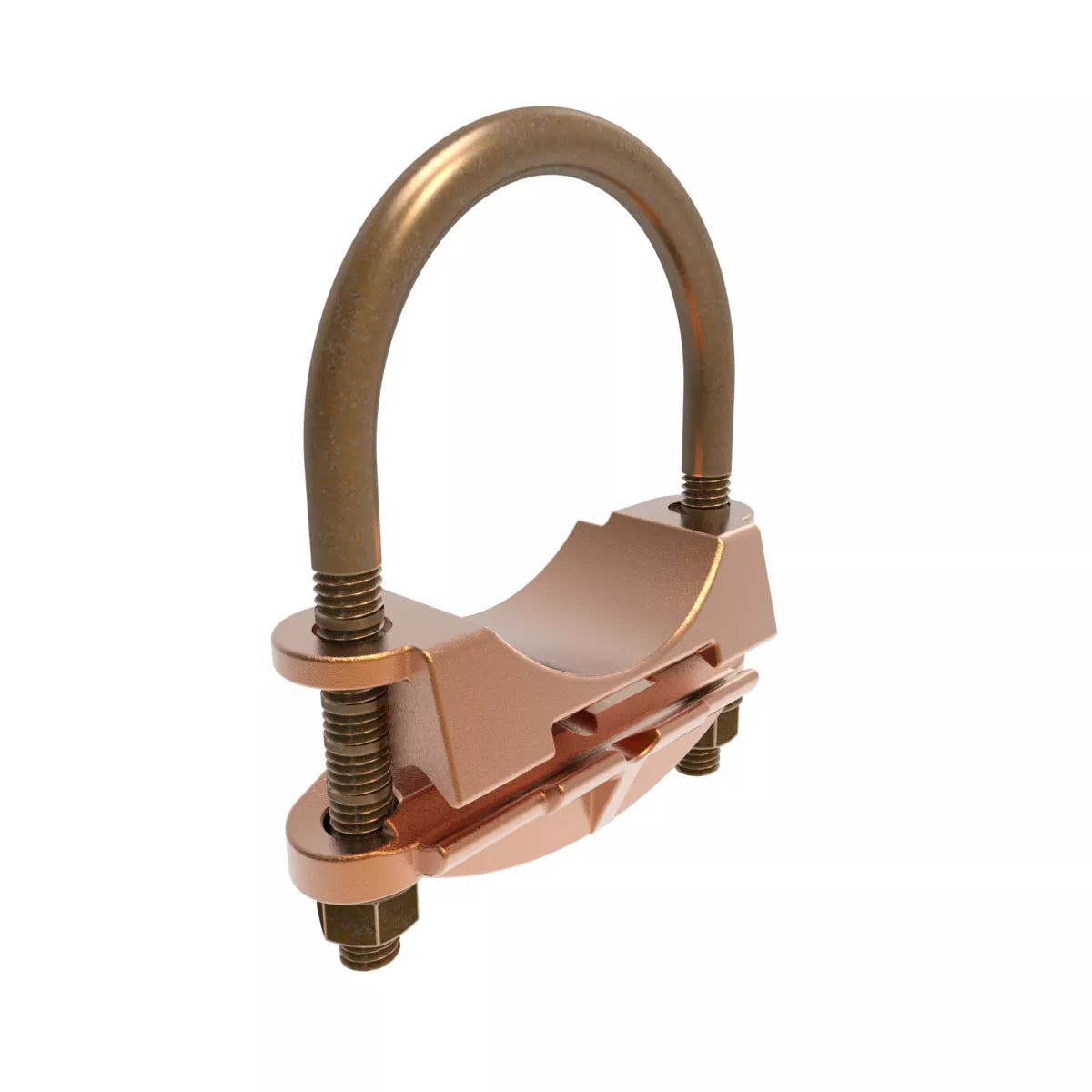

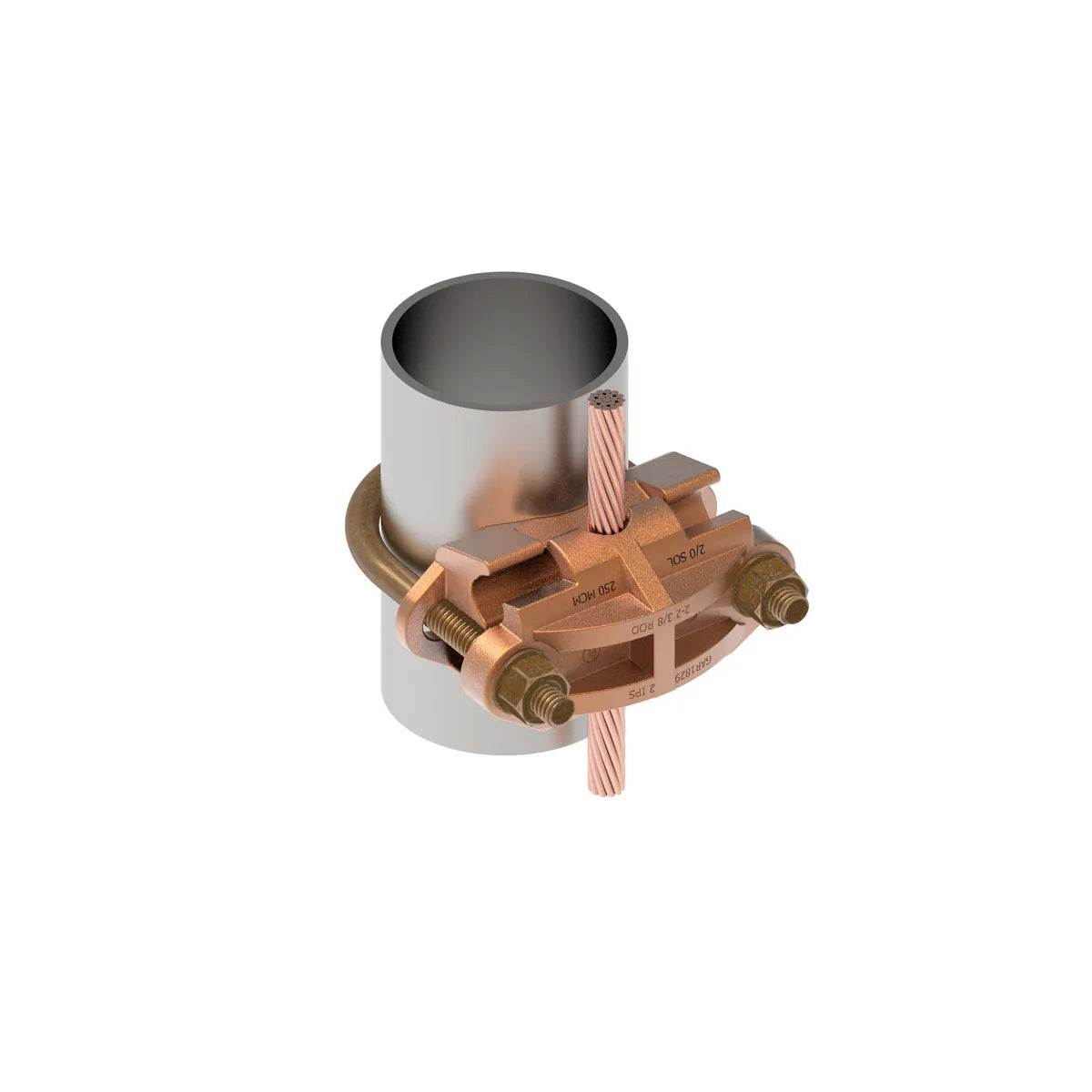

GAR1626 - Burndy - 1-1/4" Pipe 1-3/8" to 1-1/2" Rod Bright Dipped Mechanical Grounding Connector

Mechanical Grounding Connector, Cable to Rod or Pipe, 4 AWG (Sol)-2/0 AWG (Str), 1-1/4" Pipe, 1-3/8"-1-1/2" Rod, #11 Rebar, Bright Dipped.

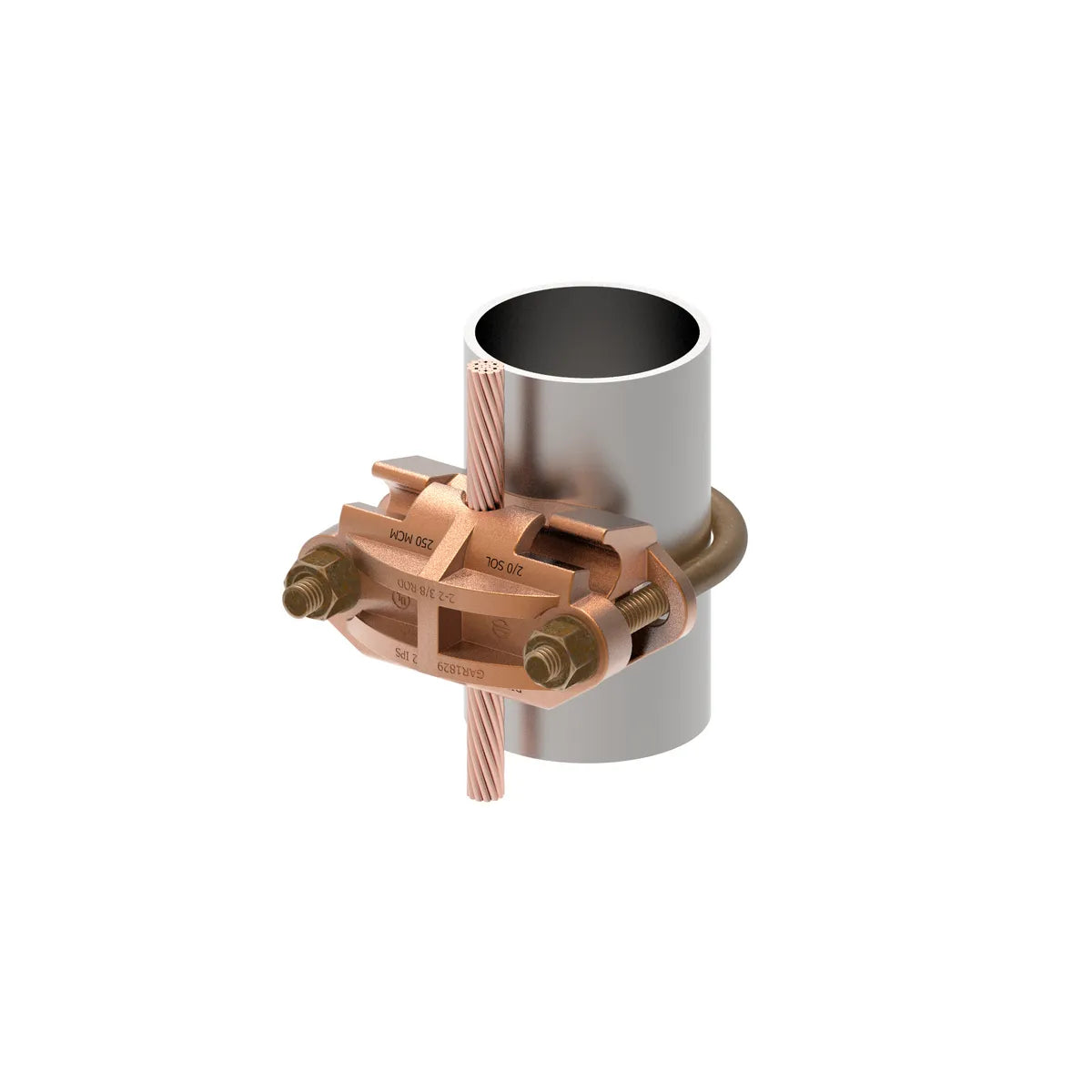

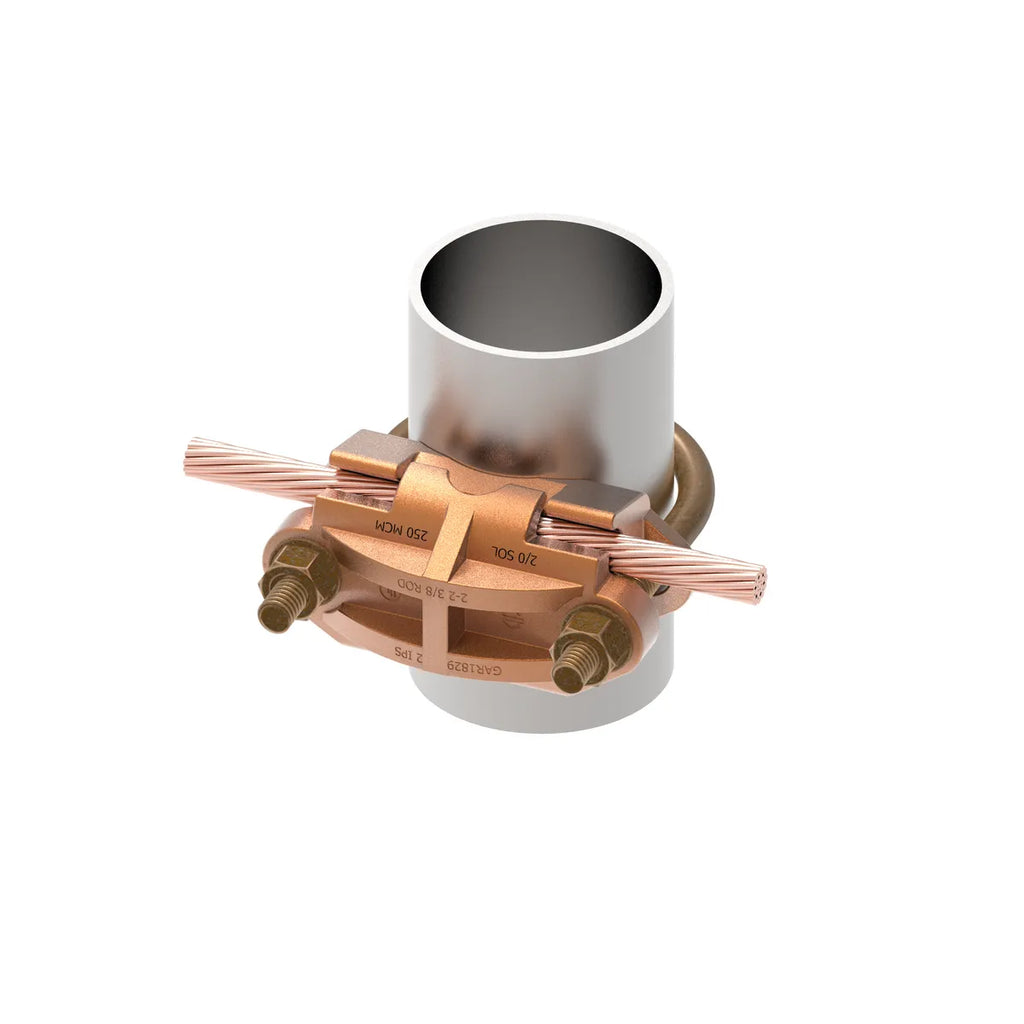

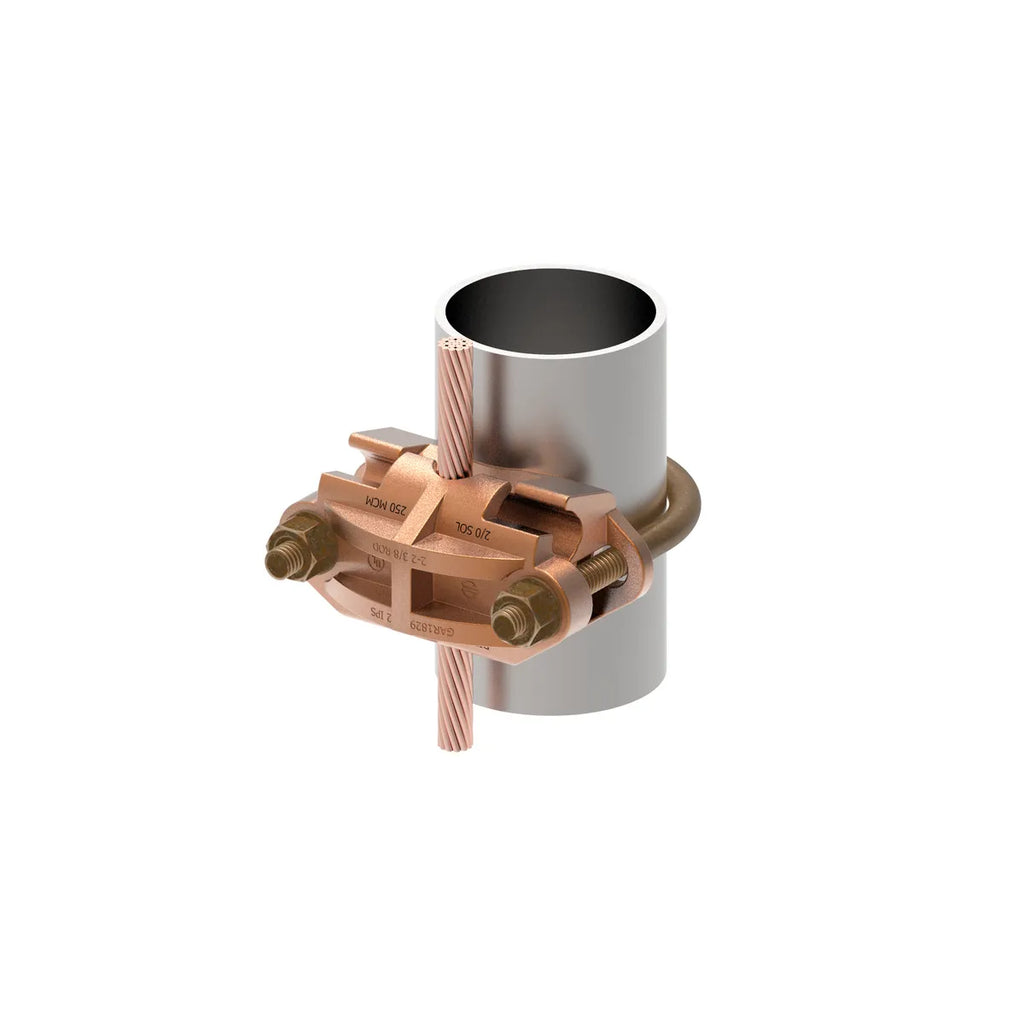

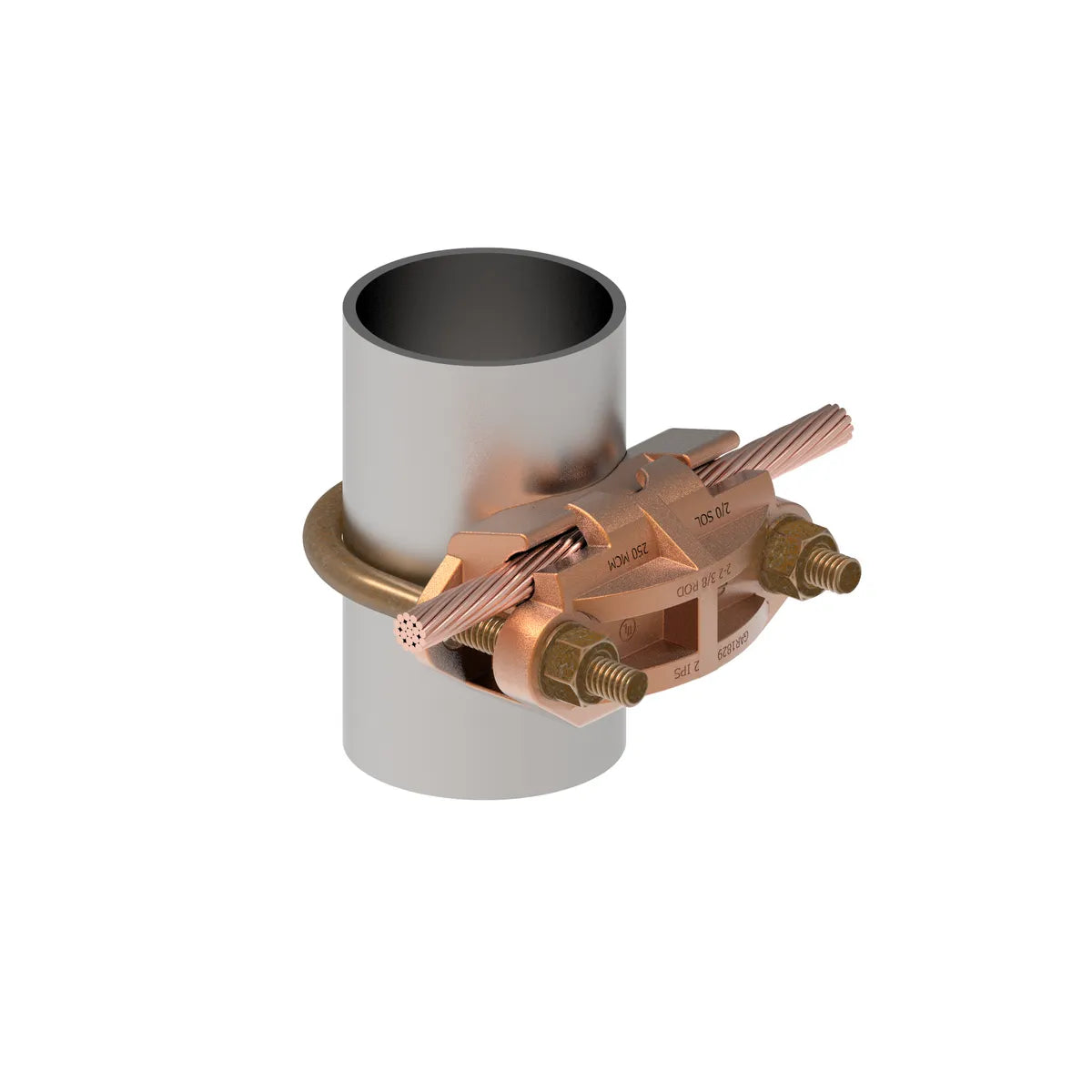

  • Parallel or 90° Copper Cable Connection
  • One-wrench installation
  • Rated for Direct Burial in earth or concrete

GENERAL SPECIFICATIONS

Application For joining a range of cable, parallel or at right angles to rod or tube, direct burial cable, fence post
Catalog Number GAR1626
EU RoHS Indicator Yes
Installation Torque Recommended in-lb 240 LBS/in
Installation Torque Recommended Run in-lb 240 Lb in
Material Copper
Material - Hardware DURIUM™ Silicon Bronze
Plated N
Plating Type Bright Dipped
Sub Brand Mechanical Connector
Type GAR
U Bolt Type 204
UPC 781810233405
UPC 14 Digit GTIN 00781810233405


Dimensions

Dimension - B Length inch 1.88 in
Dimension - Height fraction 3-1/2 in
Dimension - Height inch 3.50 in
Dimension - Height mm 88.9 mm
Dimension - L Length Overall mm 40 mm
Dimension - Length Overall inch 1.56 in
Dimension - Outside Diameter inch 1.66 in
Dimension - Width fraction 3 in
Dimension - Width inch 3.00 in
Dimension - Width mm 76 mm


Conductor Related

Conductor - Copper Solid Size 4 AWG
Conductor - Copper Solid Size Range 4 AWG – 3/0 AWG
Conductor - Copper Str Size 2/0 AWG
Conductor - Copper Str Size Range 5 AWG – 2/0 AWG
Conductor - Copper Tube Std Size 1/4 IPS IPS
Conductor - Copper Tube Std Size Range 1/4 IPS IPS
Conductor - Pipe or Round Tube Size Range 1-1/4 in
Conductor - Rebar Size 11
Conductor - Rebar Size Range 11
Conductor - Rod Size 1.380 – 1.66 in
Conductor - Rod Size Range 1 3/8 in – 1 1/2 in
Conductor Type
  • CU C Solid-Size
  • CU C Str-Size
  • CU Tube Std-Size
  • Rod-Size


Force Related

Installation Torque Recommended in-lb 240 LBS/in
Installation Torque Recommended Run in-lb 240 Lb in


Logistics

Carton Quantity 30
Minimum Pack Quantity 1
Pallet Quantity 1500


PRODUCT DATASHEET

GAR1626
