BurndySKU: BURGAR1726
Price:
$81.83
Stock:
Sold out

Description

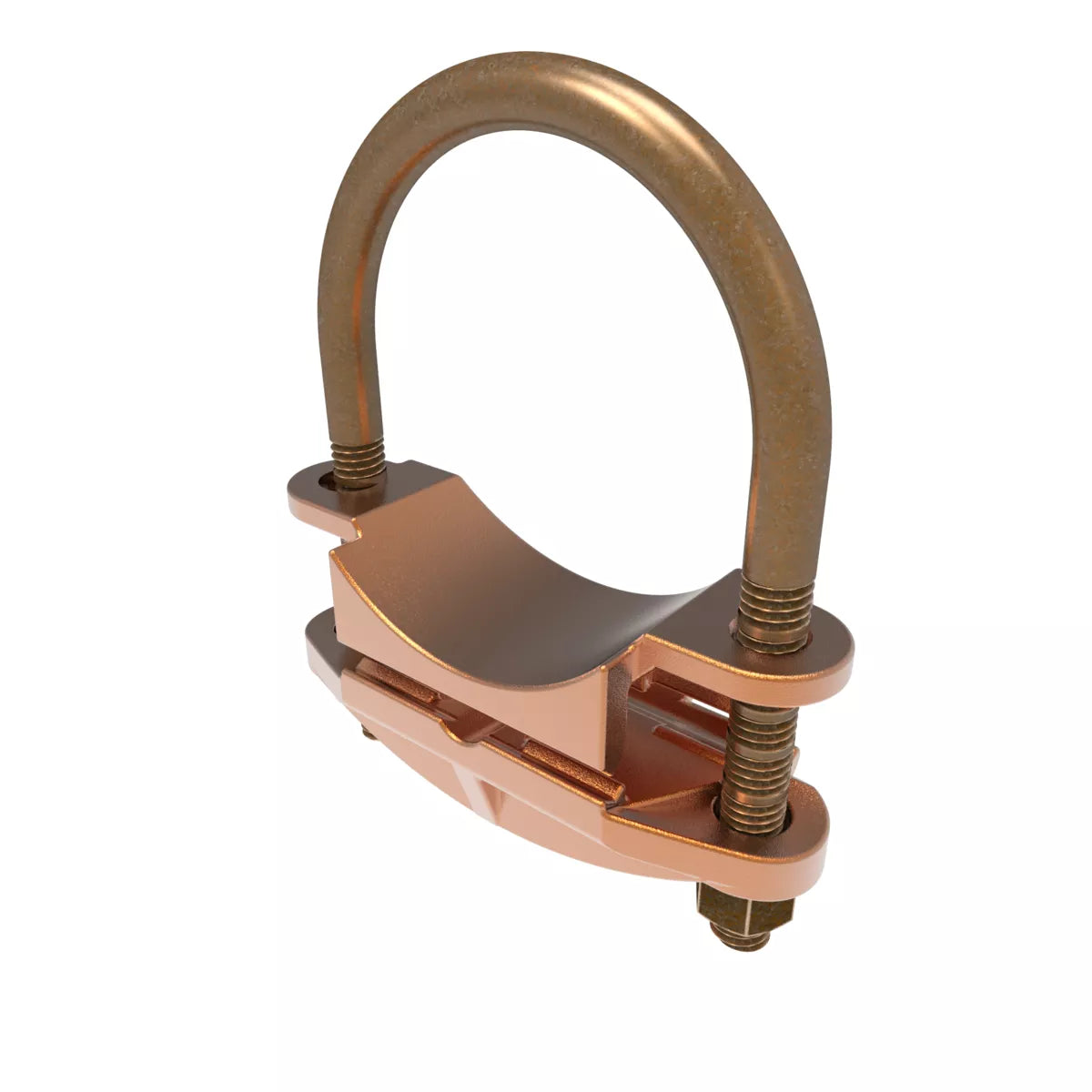

GAR1726 - Burndy - 1-1/2" Pipe 1-5/8" to 1-7/8" Rod Bright Dipped Mechanical Grounding Connector

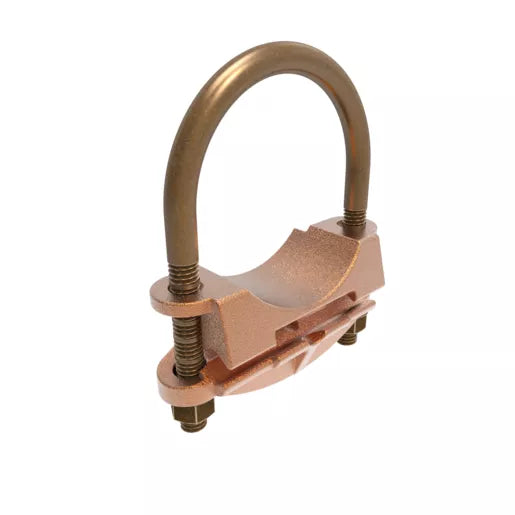

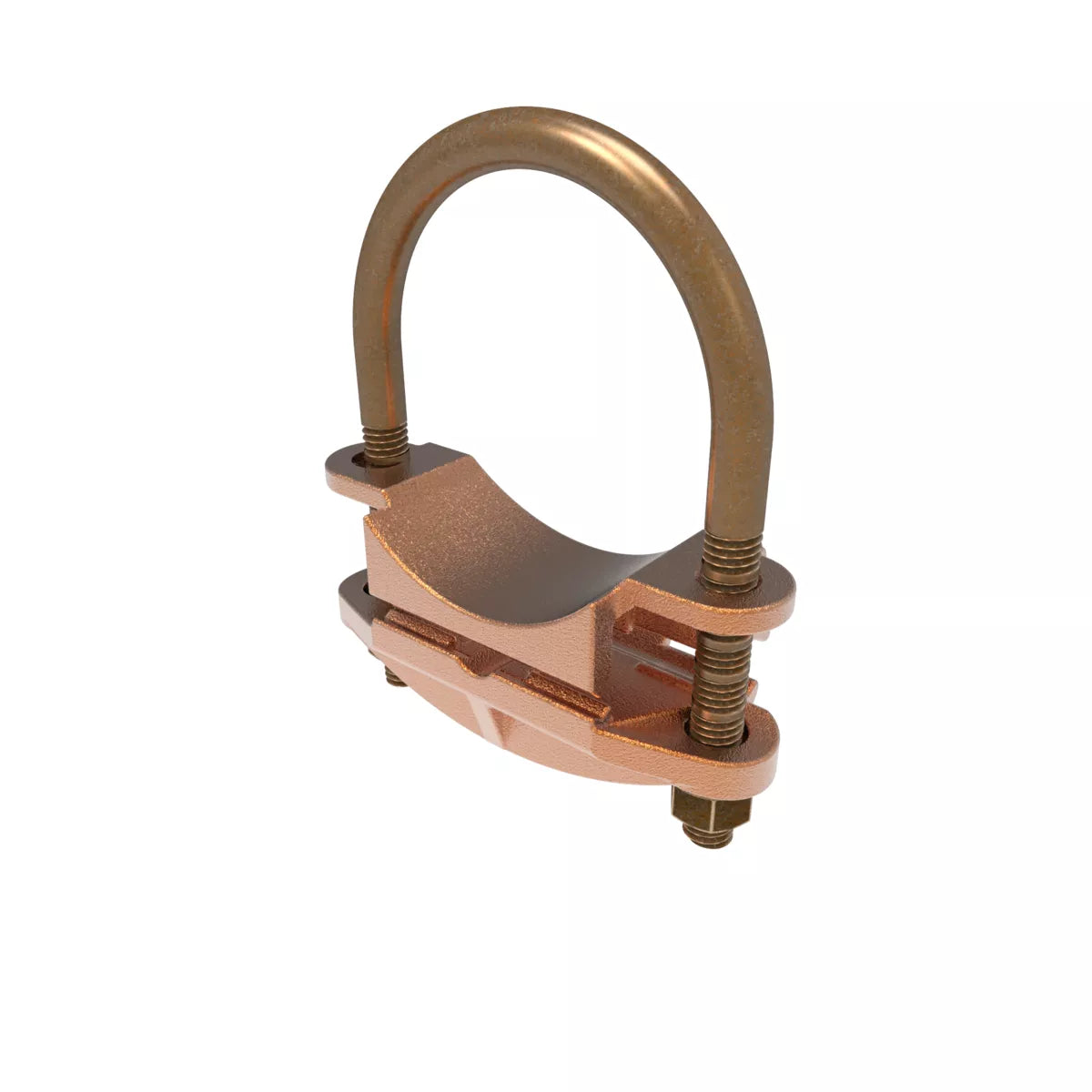

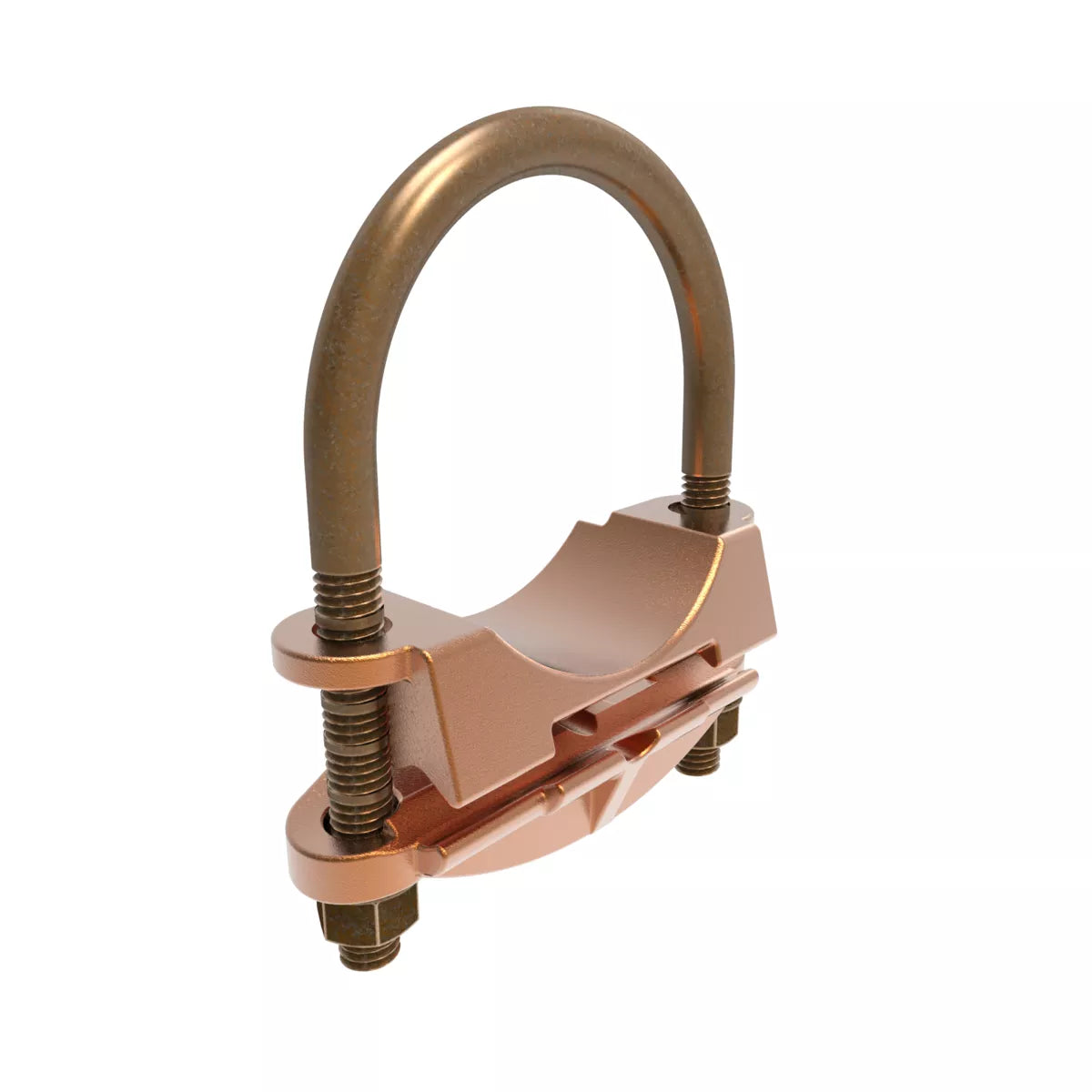

Mechanical Grounding Connector, Cable to Rod or Pipe, 4 AWG (Sol)-2/0 AWG (Str), 1-1/2" Pipe, 1-5/8"-1-7/8" Rod, Bright Dipped.

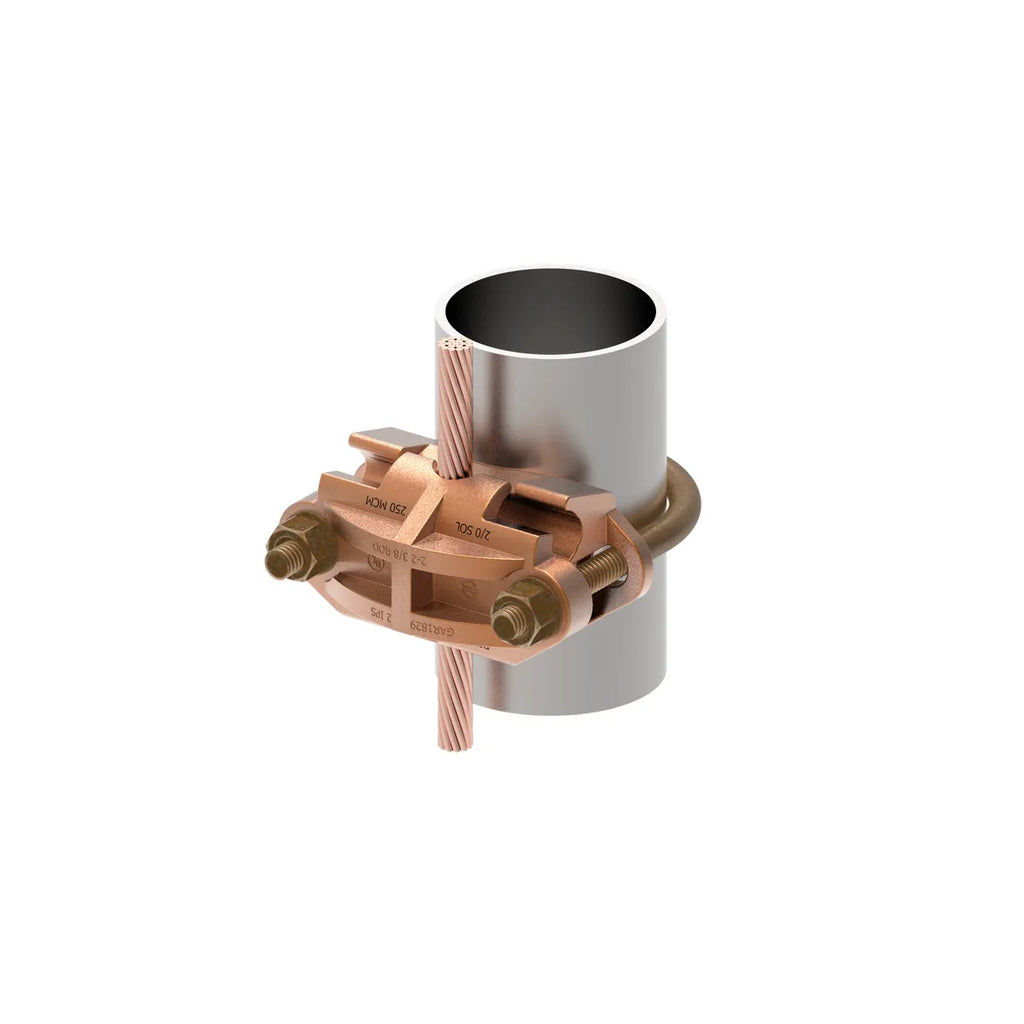

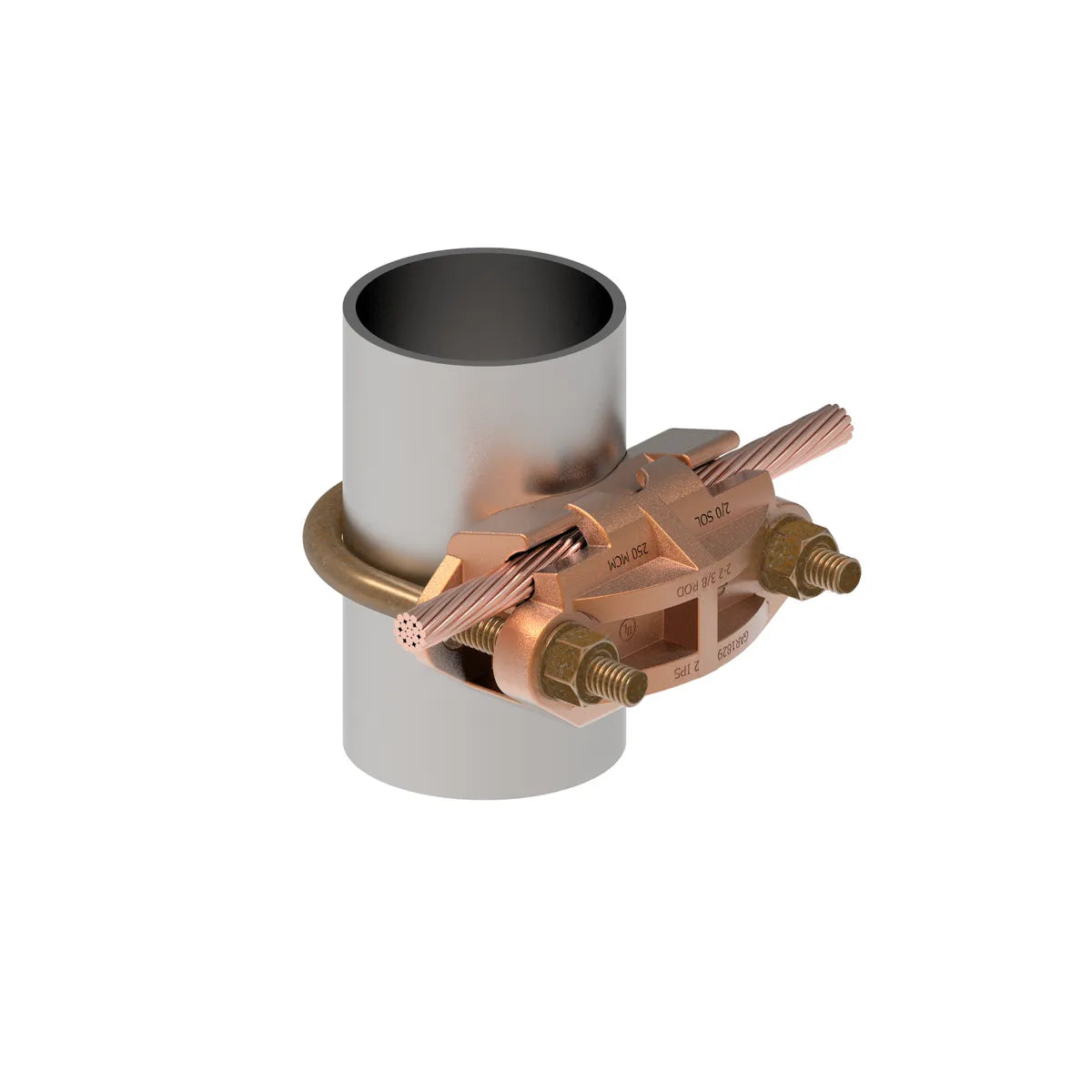

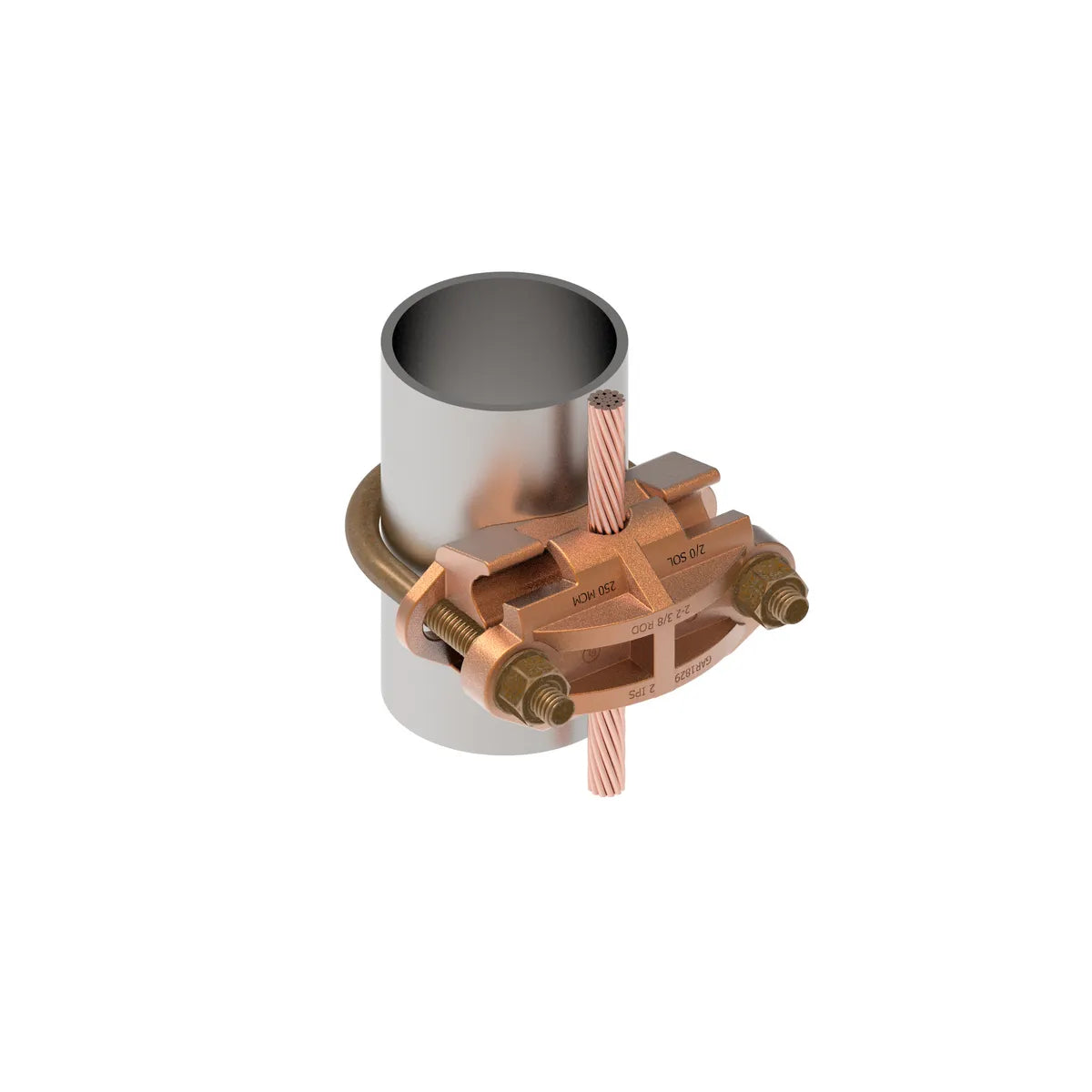

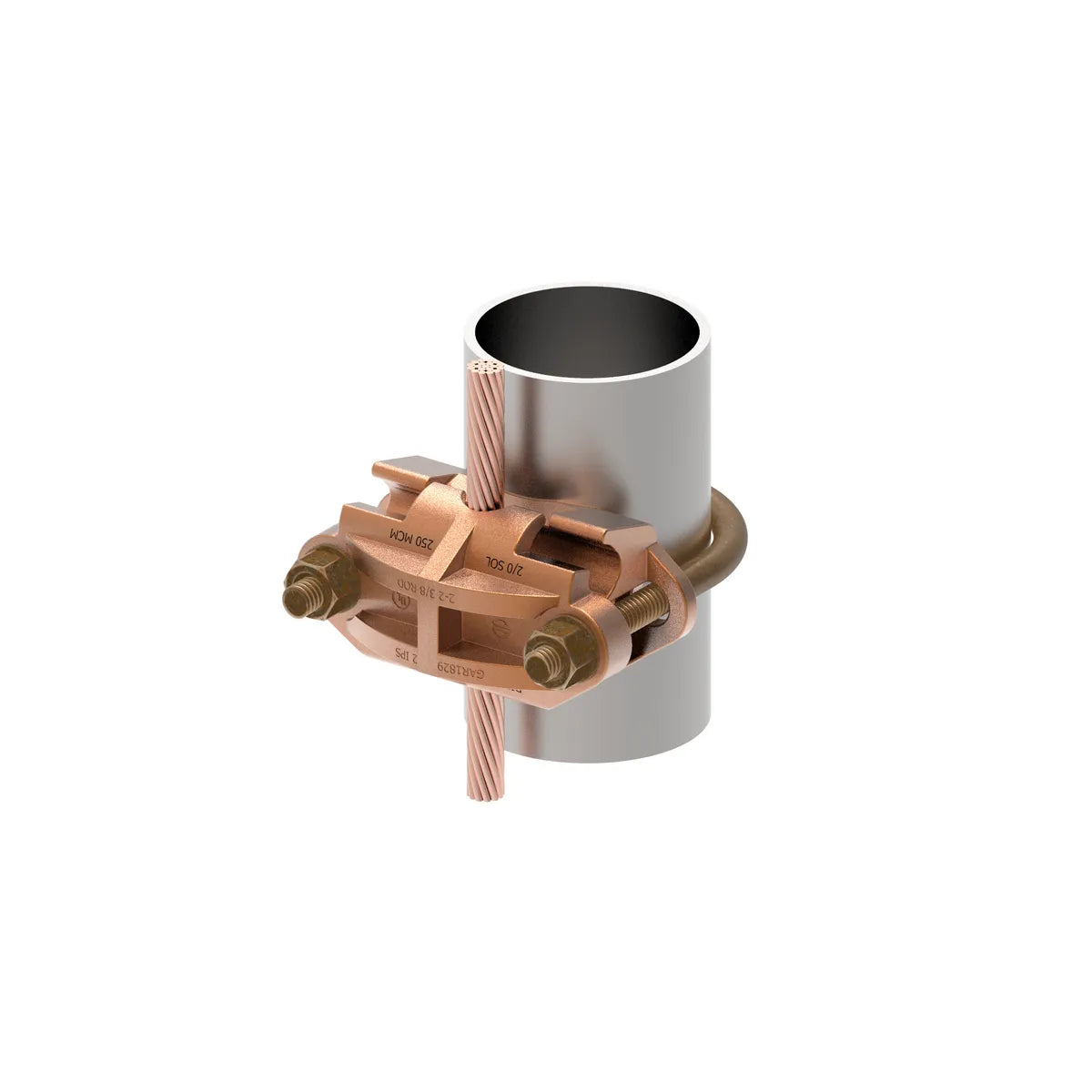

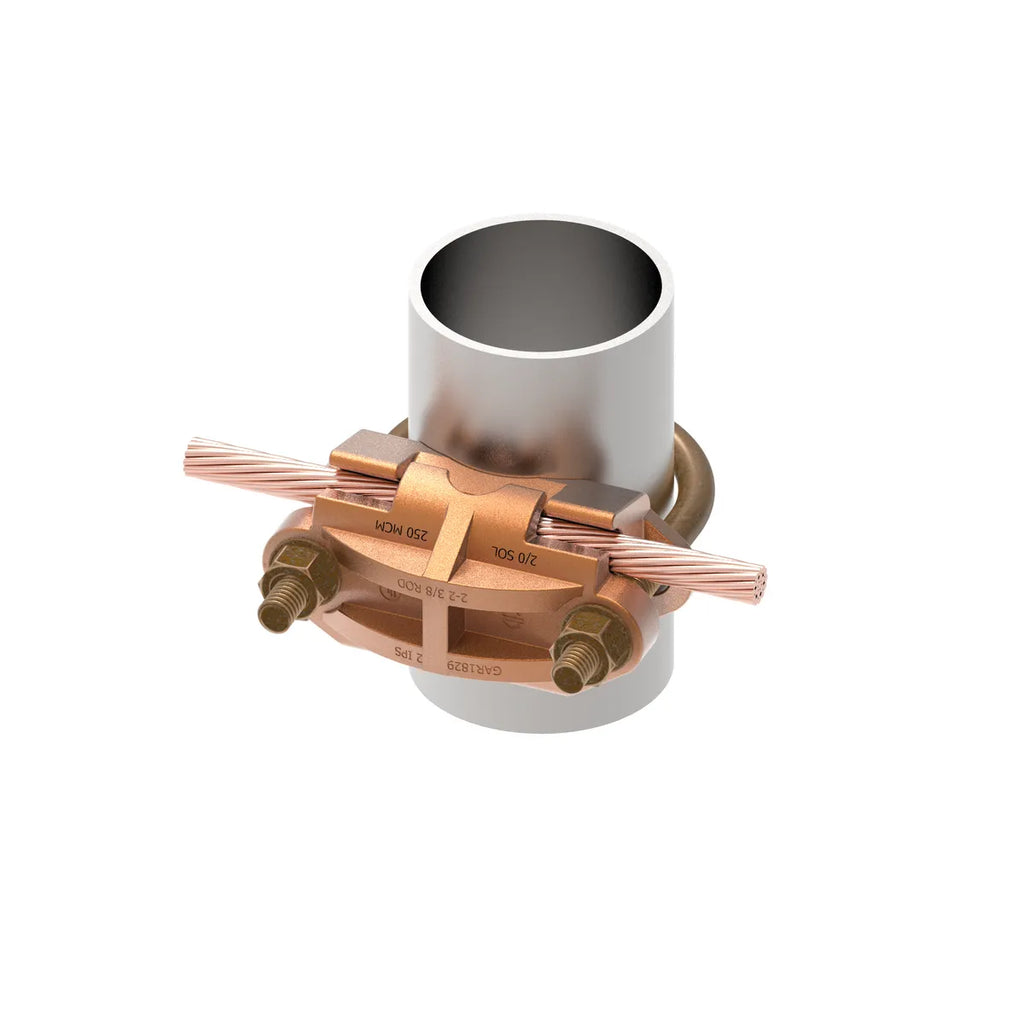

  • Parallel or 90° Copper Cable Connection
  • One-wrench installation
  • Rated for Direct Burial in earth or concrete

GENERAL SPECIFICATIONS

Application For joining a range of cable, parallel or at right angles to a rod or tube, direct burial cable, fence post
Catalog Number GAR1726
EU RoHS Indicator Yes
Installation Torque Recommended in-lb 240 LBS/in
Installation Torque Recommended Run in-lb 240 Lb in
Material Copper
Material - Hardware DURIUM™ Silicon Bronze
Plated N
Plating Type Bright Dipped
Sub Brand Mechanical Connector
Type GAR
U Bolt Type 268
UPC 781810234204
UPC 14 Digit GTIN 00781810234204


Dimensions



Dimension - B Length inch 2.31 in
Dimension - Height fraction 4 in
Dimension - Height inch 4.00 in
Dimension - Height mm 101.6 mm
Dimension - L Length Overall mm 40 mm
Dimension - Length Overall inch 1.56 in
Dimension - Outside Diameter inch 1.90 in
Dimension - Width fraction 3-1/4 in
Dimension - Width inch 3.25 in
Dimension - Width mm 83 mm
Package Height 0 in
Package Length 0 in
Package Weight 0 lb
Package Width 0 in


Conductor Related


Conductor - Copper Solid Size 4 AWG
Conductor - Copper Solid Size Range 4 AWG – 3/0 AWG
Conductor - Copper Str Size 2/0 AWG
Conductor - Copper Str Size Range 5 AWG – 2/0 AWG
Conductor - Copper Tube Std Size 1 1/2 IPS IPS
Conductor - Copper Tube Std Size Range 1 1/2 IPS IPS
Conductor - Pipe or Round Tube Size Range 1-1/2 in
Conductor - Rod Size 1.620 – 1.90 in
Conductor - Rod Size Range 1 5/8 in – 1 7/8 in
Conductor Type
  • CU C Solid-Size
  • CU C Str-Size
  • CU Tube Std-Size
  • Rod-Size



Force Related



Installation Torque Recommended in-lb 240 LBS/in
Installation Torque Recommended Run in-lb 240 Lb in


Logistics



Carton Quantity 30
Minimum Pack Quantity 1
Pallet Quantity 1800


PRODUCT DATASHEET

GAR1726
