Description
GENERAL

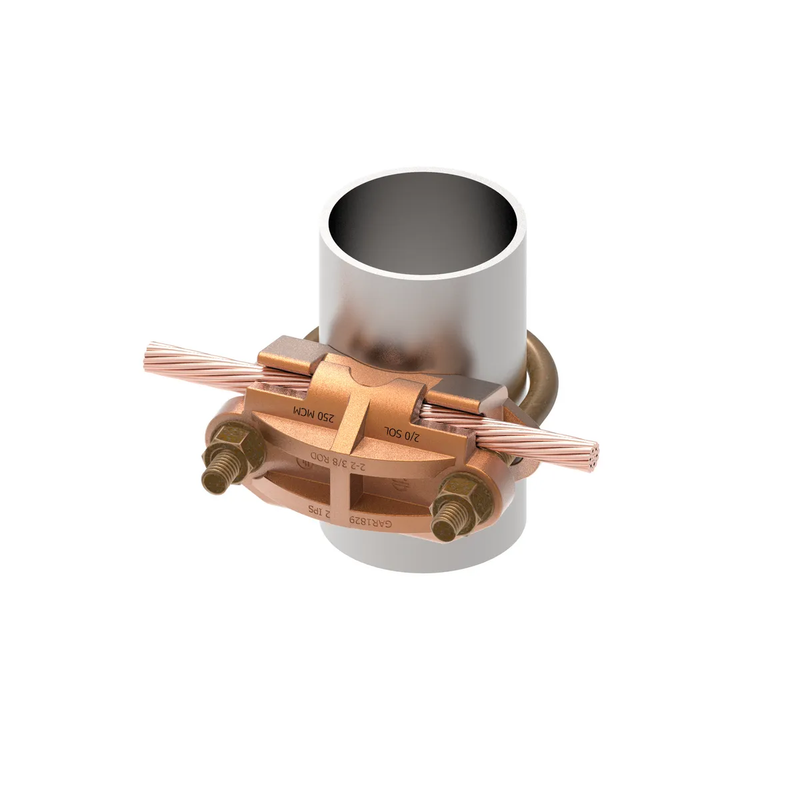

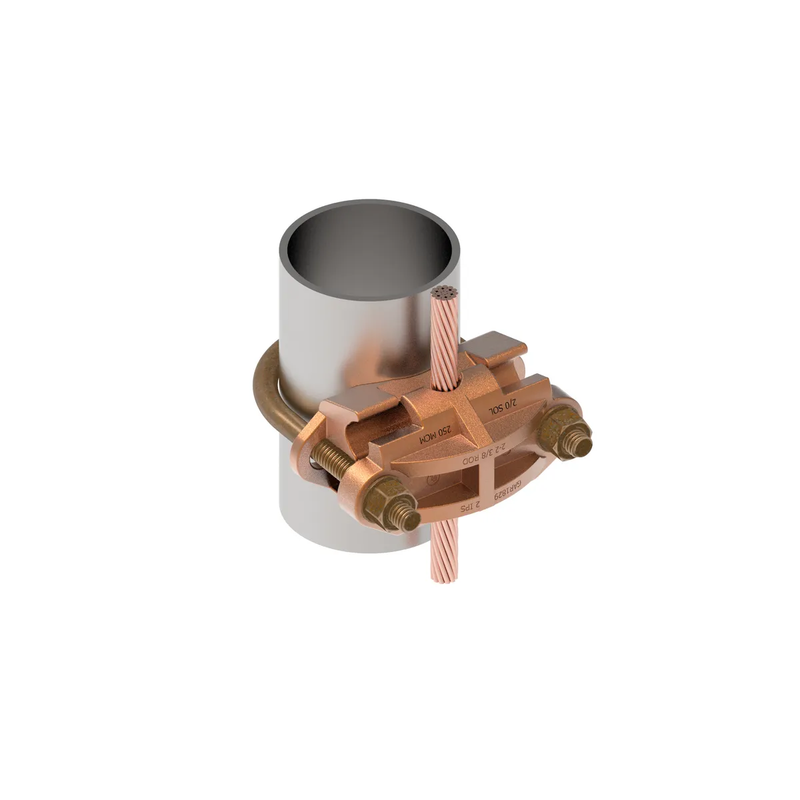

| Application | For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post |
| Catalog Number | GAR174C |
| Installation Torque Recommended in-lb | 240 LBS/in |
| Installation Torque Recommended Run in-lb | 240 Lb in |
| Material | Copper |
| Material - Hardware | DURIUM™ Silicon Bronze |
| Plated | No |
| Plating Type | Bright Dipped |
| Product Family | Grounding and Bonding Connectors>Copper Mechanical Grounding Connectors>Cable(s) to Ground Rod/Pipe/Tube (GAR/GD/GK)>Single Conductor(GAR) |
| Product Type | Mechanical |
| Sub Brand | MECHANICAL CONNECTOR |
| Type | GAR |
| U Bolt Type | 268 |
| UPC | 781810234006 |
| UPC 14 Digit GTIN | 00781810234006 |
DIMENSIONS
| Dimension - B Length inch | 2.31 in |
| Dimension - Height fraction | 4 |
| Dimension - Height inch | 4.00 in |
| Dimension - Height mm | 101.6 mm |
| Dimension - L Length Overall mm | 33 mm |
| Dimension - Length Overall inch | 1.31 in |
| Dimension - Outside Diameter inch | 1.90 in |
| Dimension - Width fraction | 3-1/4 in |
| Dimension - Width inch | 3.25 in |
| Dimension - Width mm | 83 mm |
| Package Height | 0 in |
| Package Length | 0 in |
| Package Weight | 0 lb |
| Package Width | 0 in |
CONDUCTOR RELATED
| Conductor - Copper Solid Size | 8 AWG |
| Conductor - Copper Solid Size Range | 8-3 |
| Conductor - Copper Str Size | 4 AWG |
| Conductor - Copper Str Size Range | 9 AWG - 4 AWG |
| Conductor - Copper Tube Std Size | 1 1/2 |
| Conductor - Copper Tube Std Size Range | 1 1/2 |
| Conductor - Pipe or Round Tube Size Range | 1-1/2 in |
| Conductor - Rod Size | 1.620-1.90 in |
| Conductor - Rod Size Range | 1 5/8-1 7/8 |
| Conductor Type | CU C Solid-Size CU C Str-Size CU Tube Std-Size Rod-Size |
CERTIFICATIONS AND COMPLIANCE
| Buy America(n) Qualified | BABA Compliant (All status valid till December 2026) |
| Certification - CSA Approved | Yes |
| Certification - cULus | No |
| Certification - ETL | No |
| Certification - UL Listed Direct Burial | Yes |
| Certification - UL Recognized | No |
| Industry Standard(s) | UL467 |
| Standards - Industry Standards Met | UL467 |
| Standards - RoHS Compliance Status | EX |
| UL Listed | Yes |
FORCE RELATED
| Installation Torque Recommended in-lb | 240 LBS/in |
| Installation Torque Recommended Run in-lb | 240 Lb in |
LOGISTICS
| Carton Quantity | 40 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 1560 |
