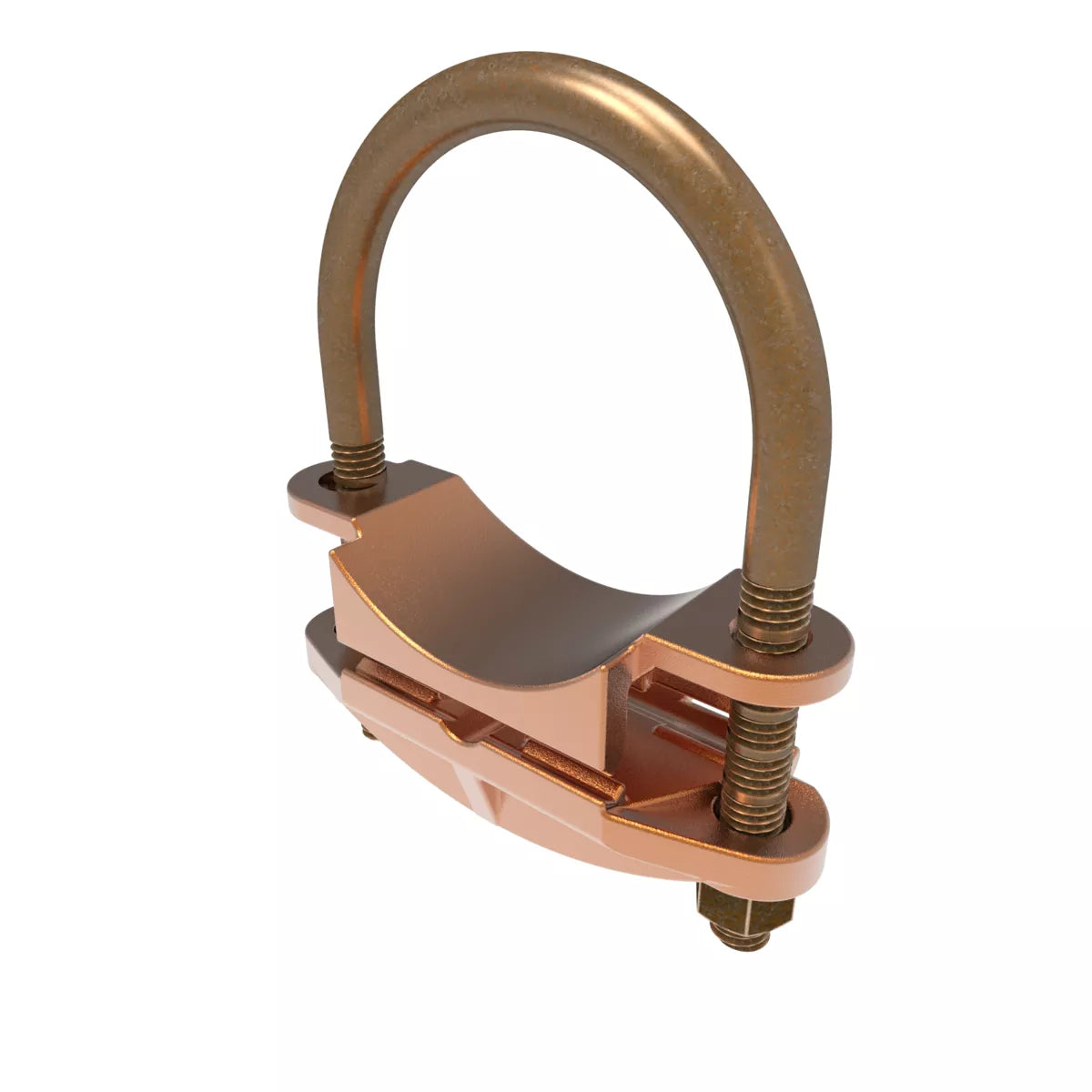

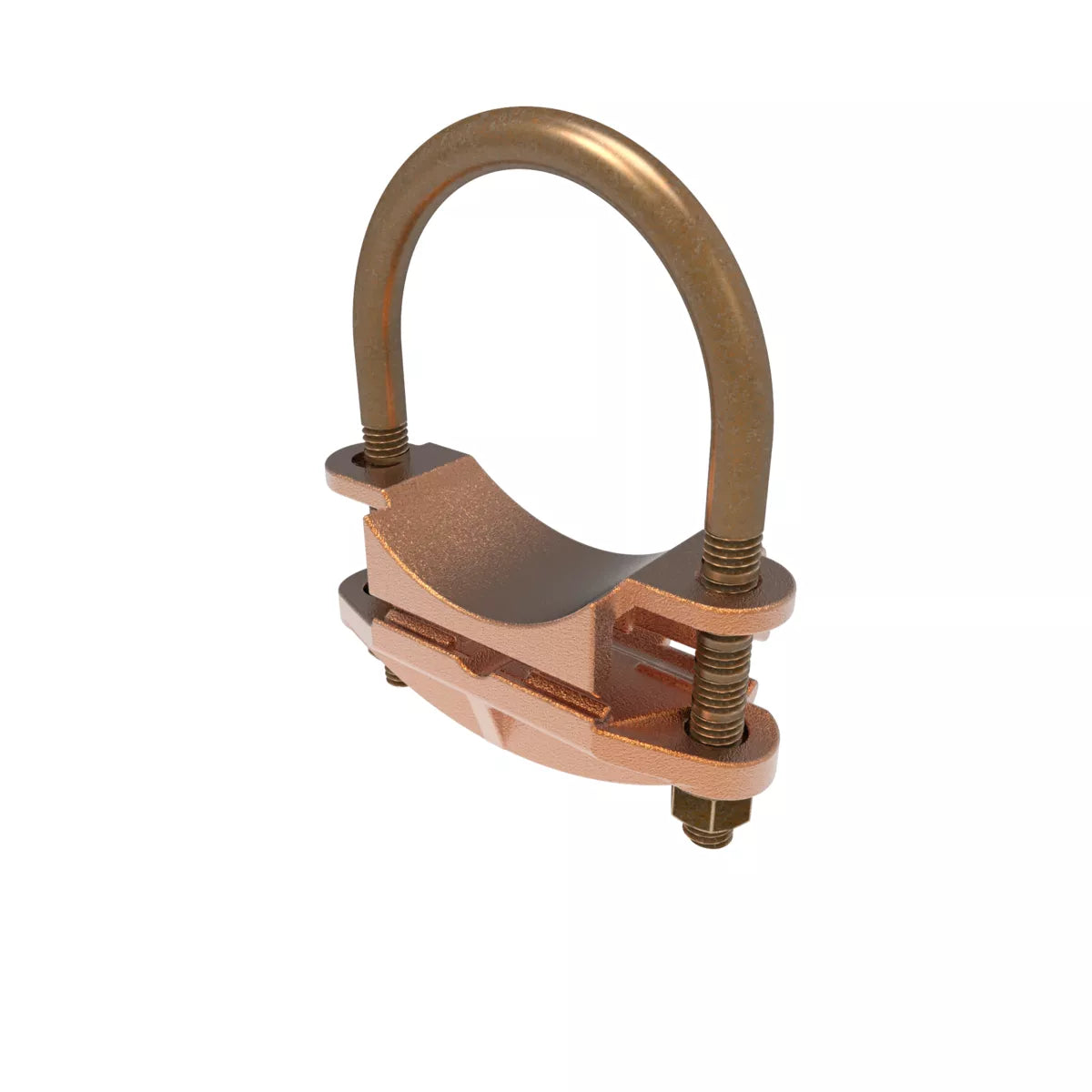

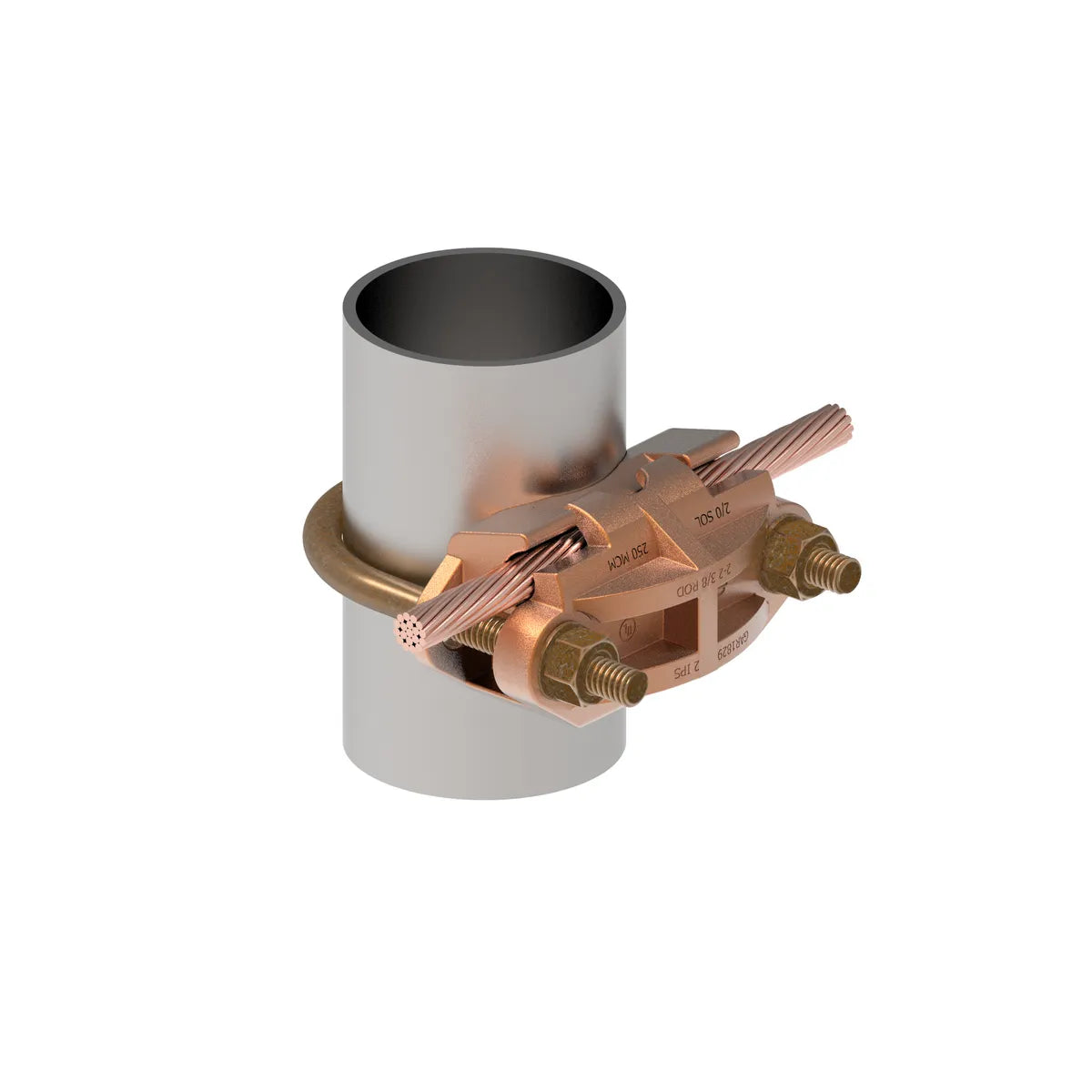

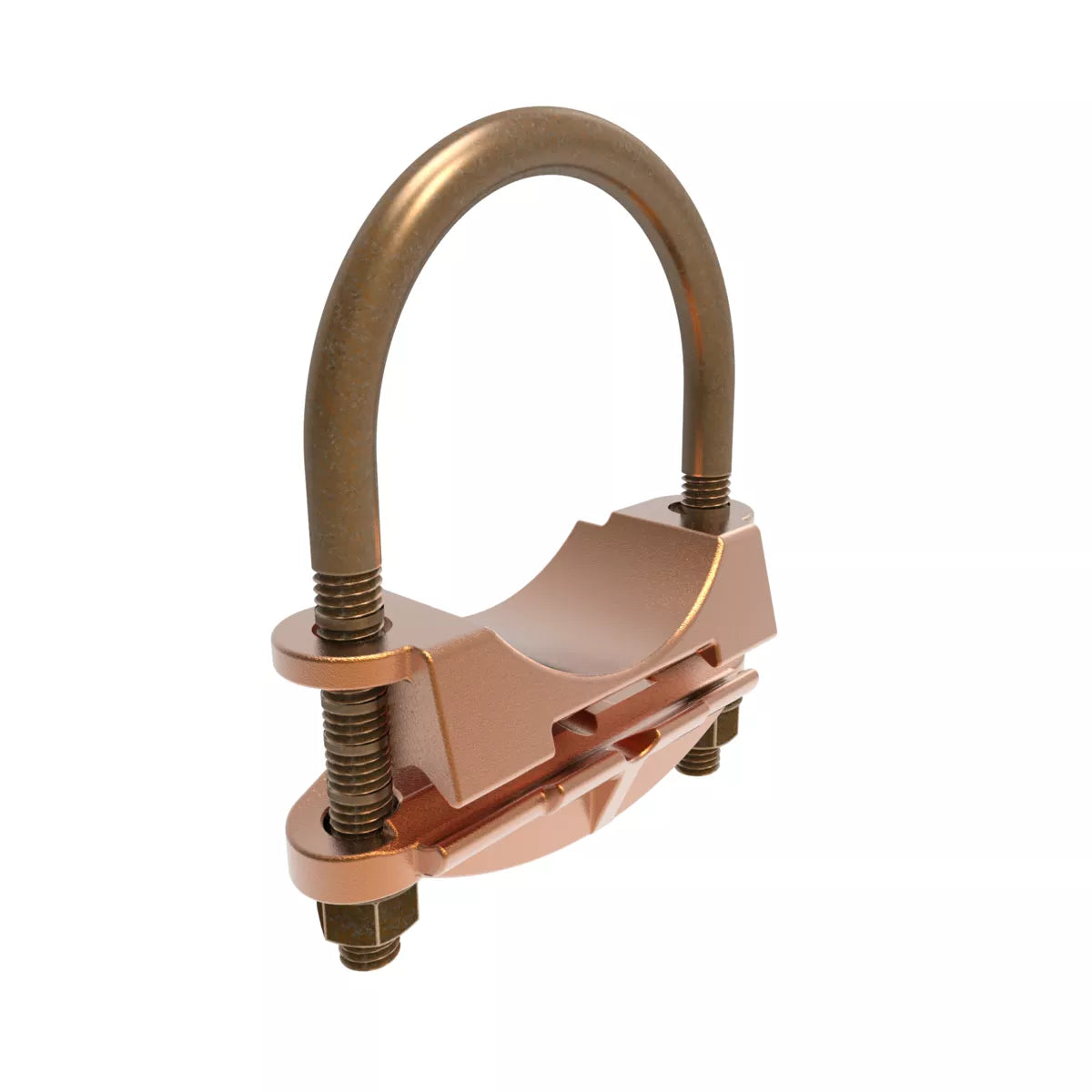

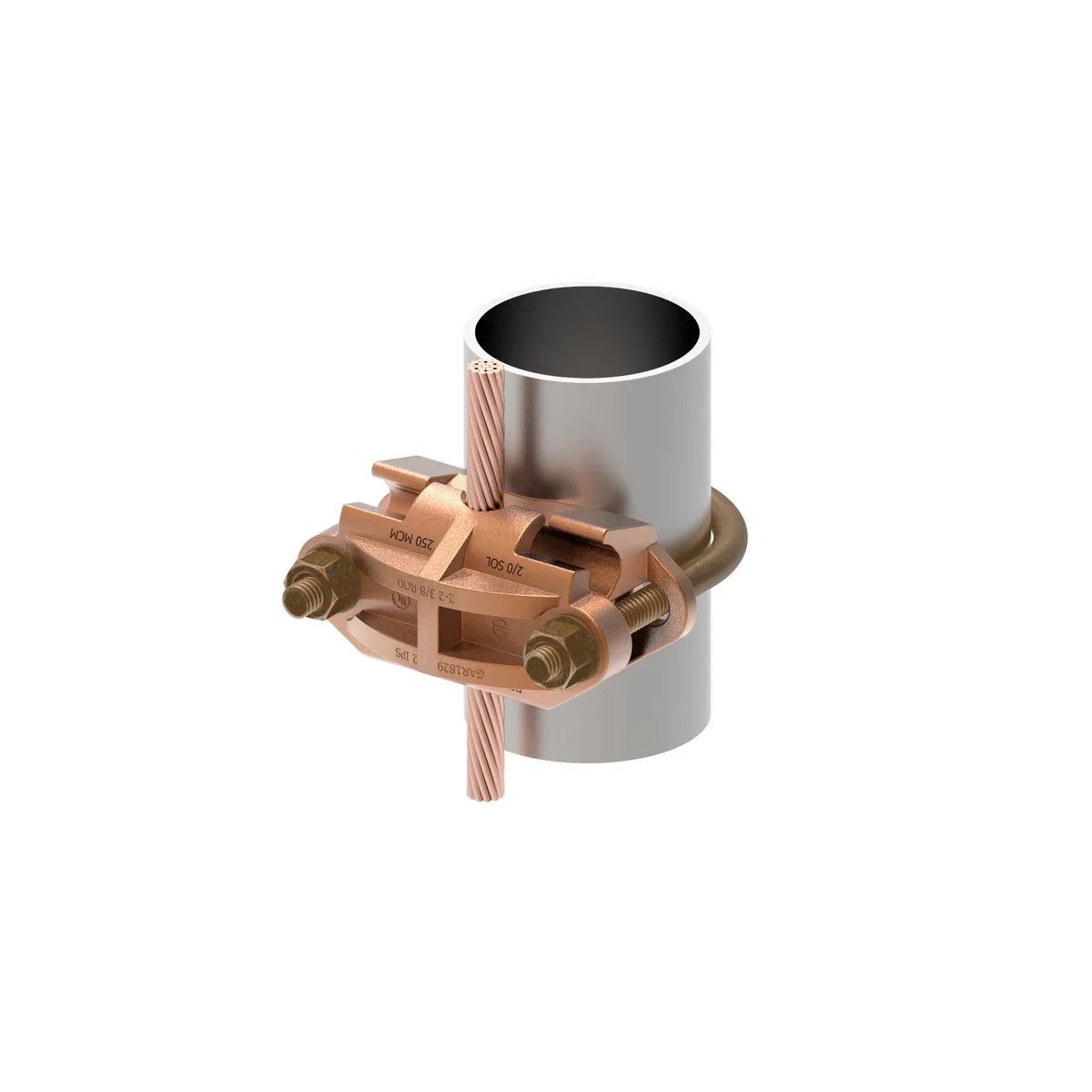

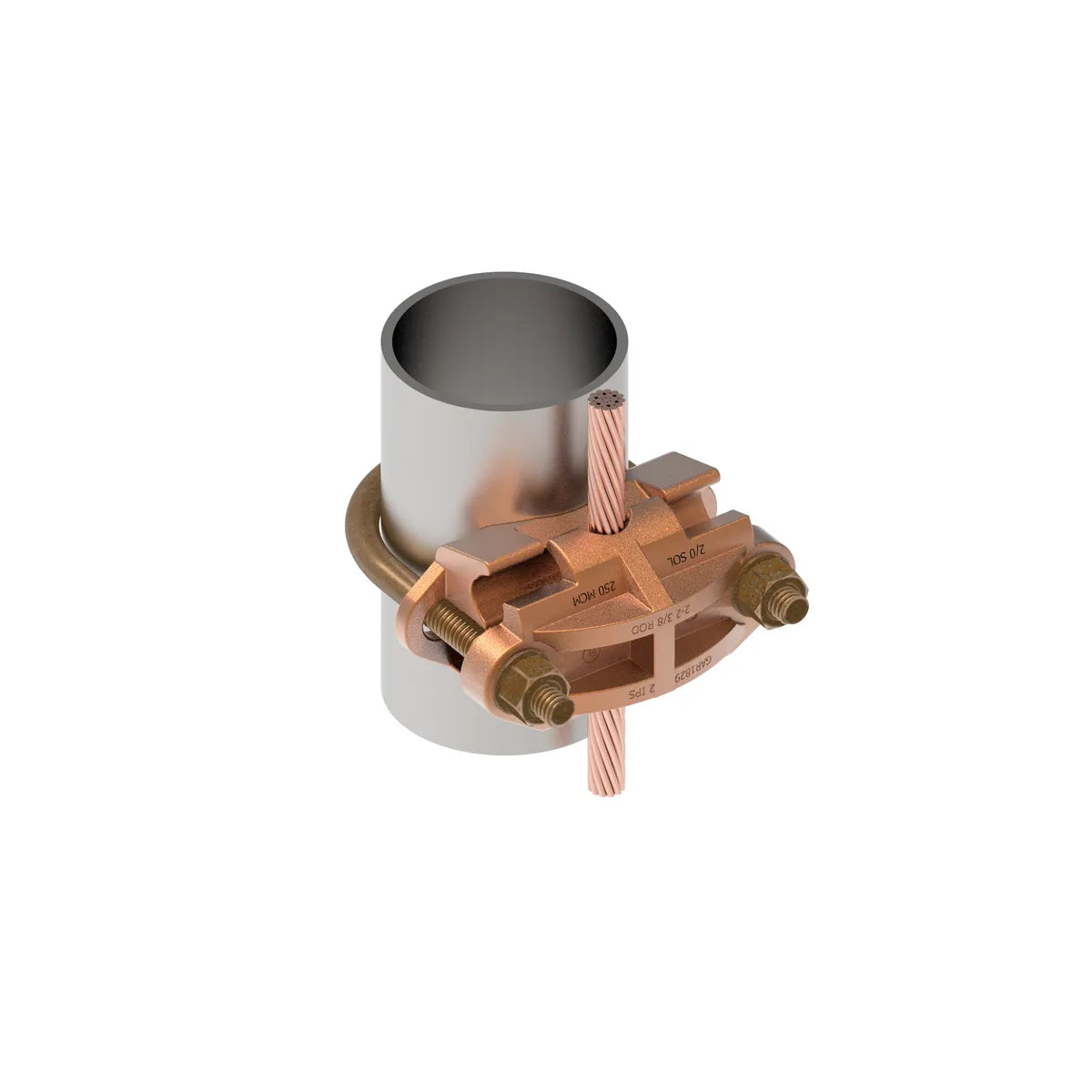

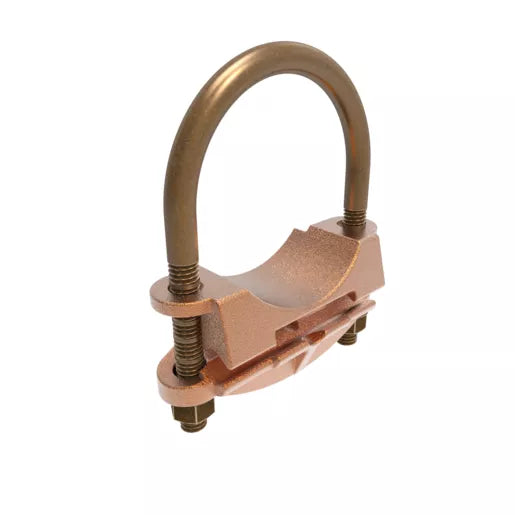

GAR184C - Burndy - 2" to 2-3/8" Rod 2" Pipe Bright Dipped Mechanical Grounding Connector
Mechanical Grounding Connector, Cable to Rod or Pipe, 8 AWG (Sol.) - 4 AWG (Str.), 2" - 2-3/8" Rod, 2" Pipe, Bright Dipped.

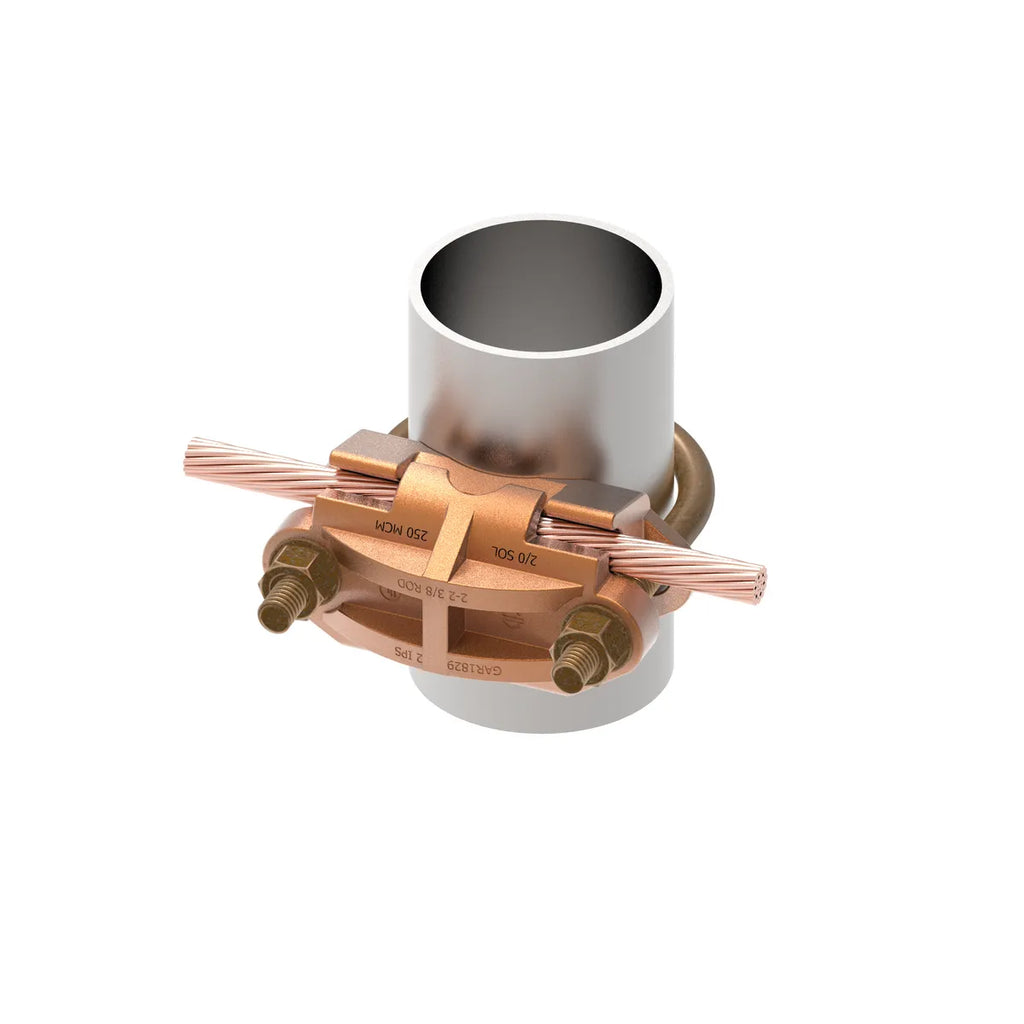

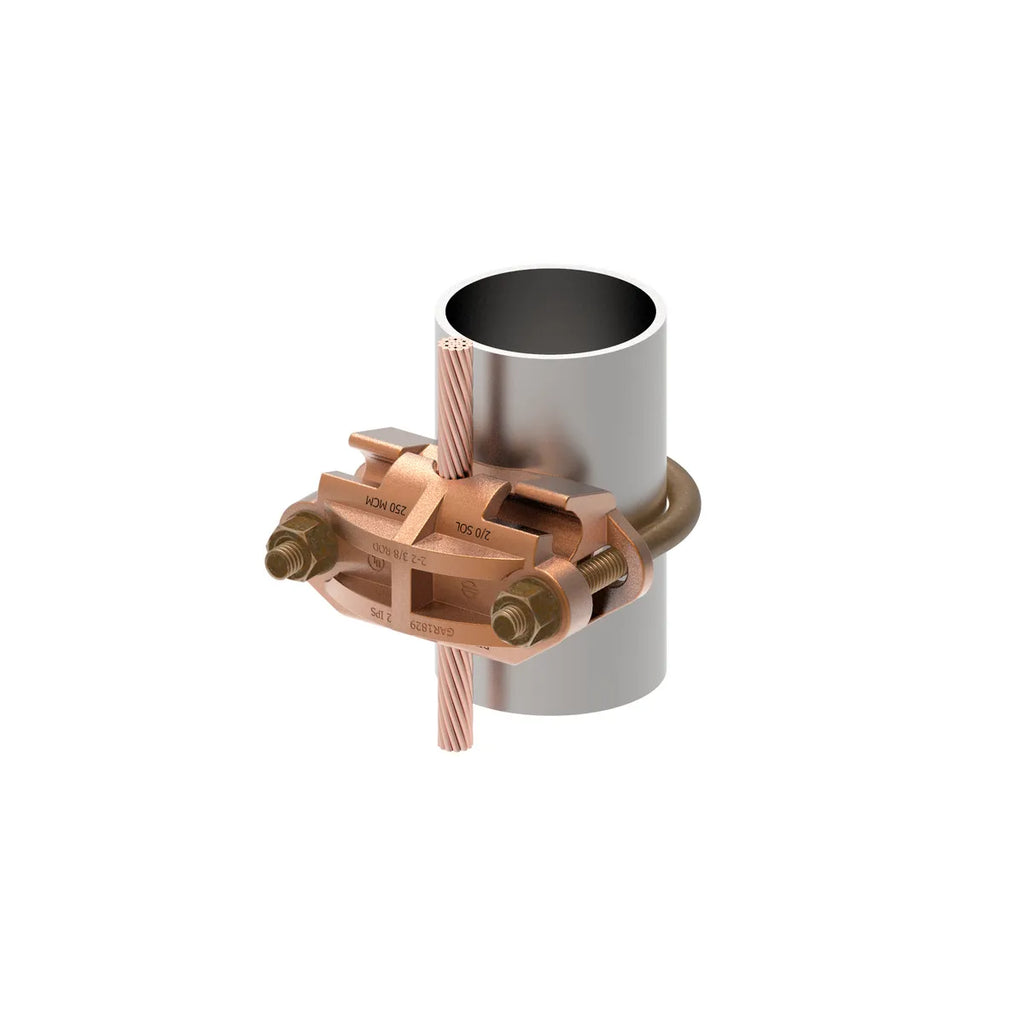

- Parallel or 90° Copper Cable Connection
- One-wrench installation
- Rated for Direct Burial in earth or concrete
GENERAL SPECIFICATIONS
| Application |
For joining a range of cable, parallel or at right angles to rod or tube, direct burial cable, fence post |
| Catalog Number |
GAR184C |
| EU RoHS Indicator |
Yes |
| Installation Torque Recommended in-lb |
240 LBS/in |
| Installation Torque Recommended Run in-lb |
240 Lb-in |
| Material |
Copper |
| Material - Hardware |
DURIUM™ Silicon Bronze |
| Plated |
N |
| Plating Type |
Bright Dipped |
| Sub Brand |
Mechanical Connector |
| Type |
GAR |
| U Bolt Type |
257 |
| UPC |
781810234808 |
| UPC 14 Digit GTIN |
00781810234808 |
Dimensions
| Dimension - B Length inch |
2.75 in |
| Dimension - Height fraction |
4-1/4 in |
| Dimension - Height inch |
4.25 in |
| Dimension - Height mm |
108 mm |
| Dimension - L Length Overall mm |
33 mm |
| Dimension - Length Overall inch |
1.31 in |
| Dimension - Outside Diameter inch |
2.38 in |
| Dimension - Width fraction |
3-3/4 in |
| Dimension - Width inch |
3.69 in |
| Dimension - Width mm |
94 mm |
Conductor Related
| Conductor - Copper Solid Size |
8 AWG |
| Conductor - Copper Solid Size Range |
8 AWG – 3 AWG |
| Conductor - Copper Str Size |
4 AWG |
| Conductor - Copper Str Size Range |
9 AWG – 4 AWG |
| Conductor - Copper Tube Std Size |
2 IPS IPS |
| Conductor - Copper Tube Std Size Range |
2 IPS IPS |
| Conductor - Pipe or Round Tube Size Range |
2 in |
| Conductor - Rod Size |
2 in – 2.38 in |
| Conductor - Rod Size Range |
2 in – 2 3/8 in |
| Conductor Type |
CU C Solid-Size, CU C Str-Size, CU Tube Std-Size, Rod-Size |
Force Related
| Installation Torque Recommended in-lb |
240 LBS/in |
| Installation Torque Recommended Run in-lb |
240 Lb-in |
Logistics
PRODUCT DATASHEET
GAR184C
