BurndySKU: BURGAR1926
Price:
$122.49
Stock:
Sold out

Description

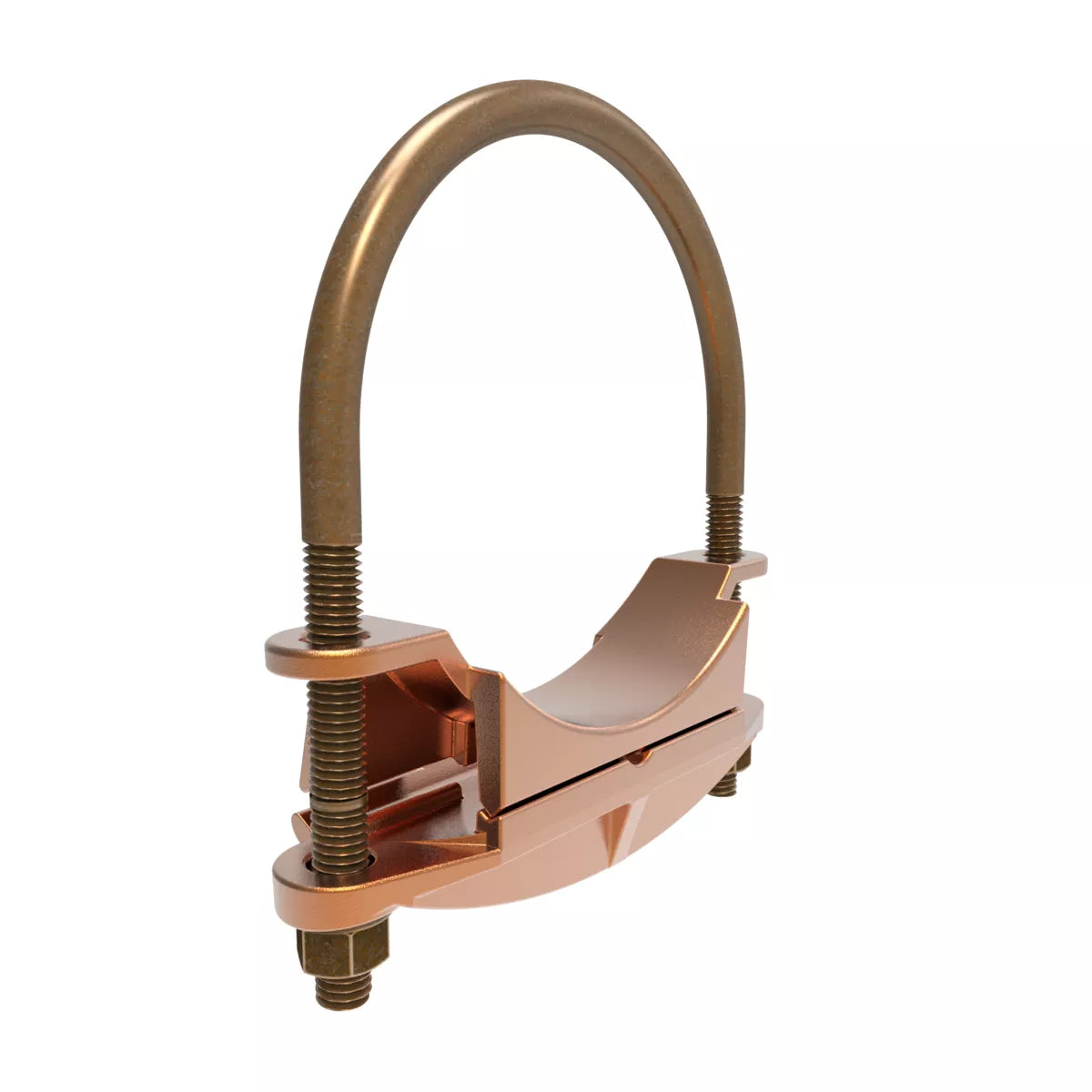

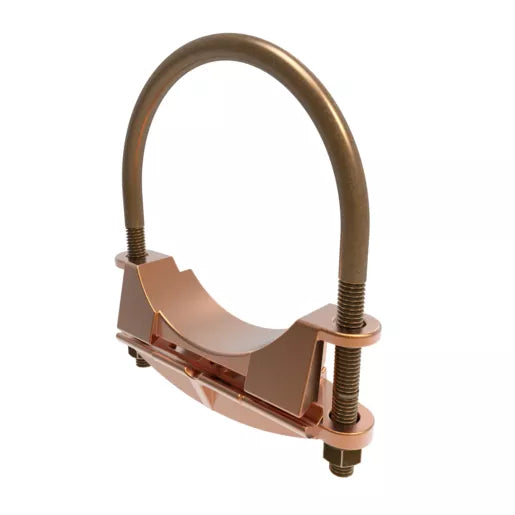

GAR1926 - Burndy - 2-1/2" Pipe 2-1/2" to 2-7/8" Rod Bright Dipped Mechanical Grounding Connector

Mechanical Grounding Connector, Cable to Rod or Pipe, 4 AWG (Sol)-2/0 AWG (Str), 2-1/2" Pipe, 2-1/2"-2-7/8"Rod, Bright Dipped.

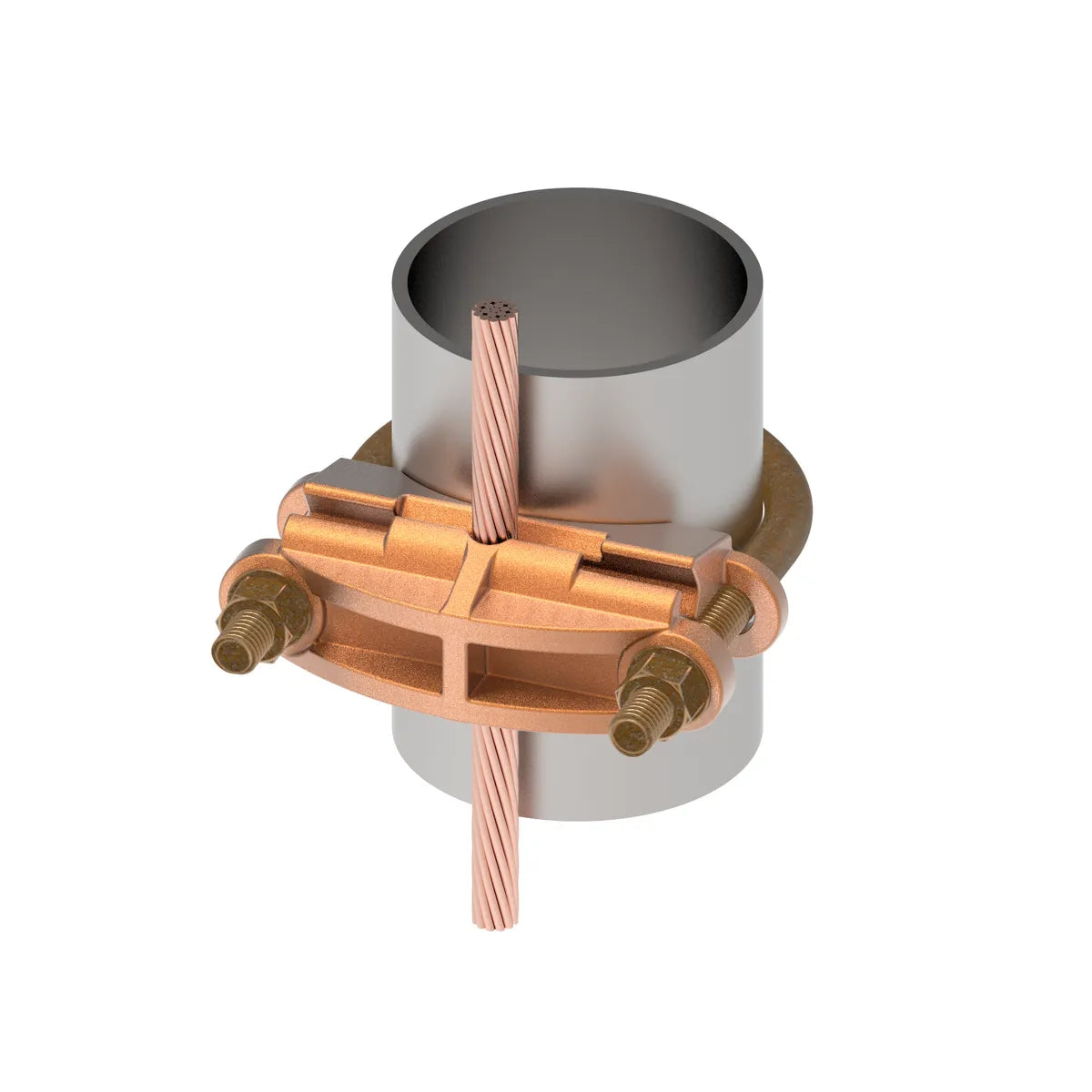

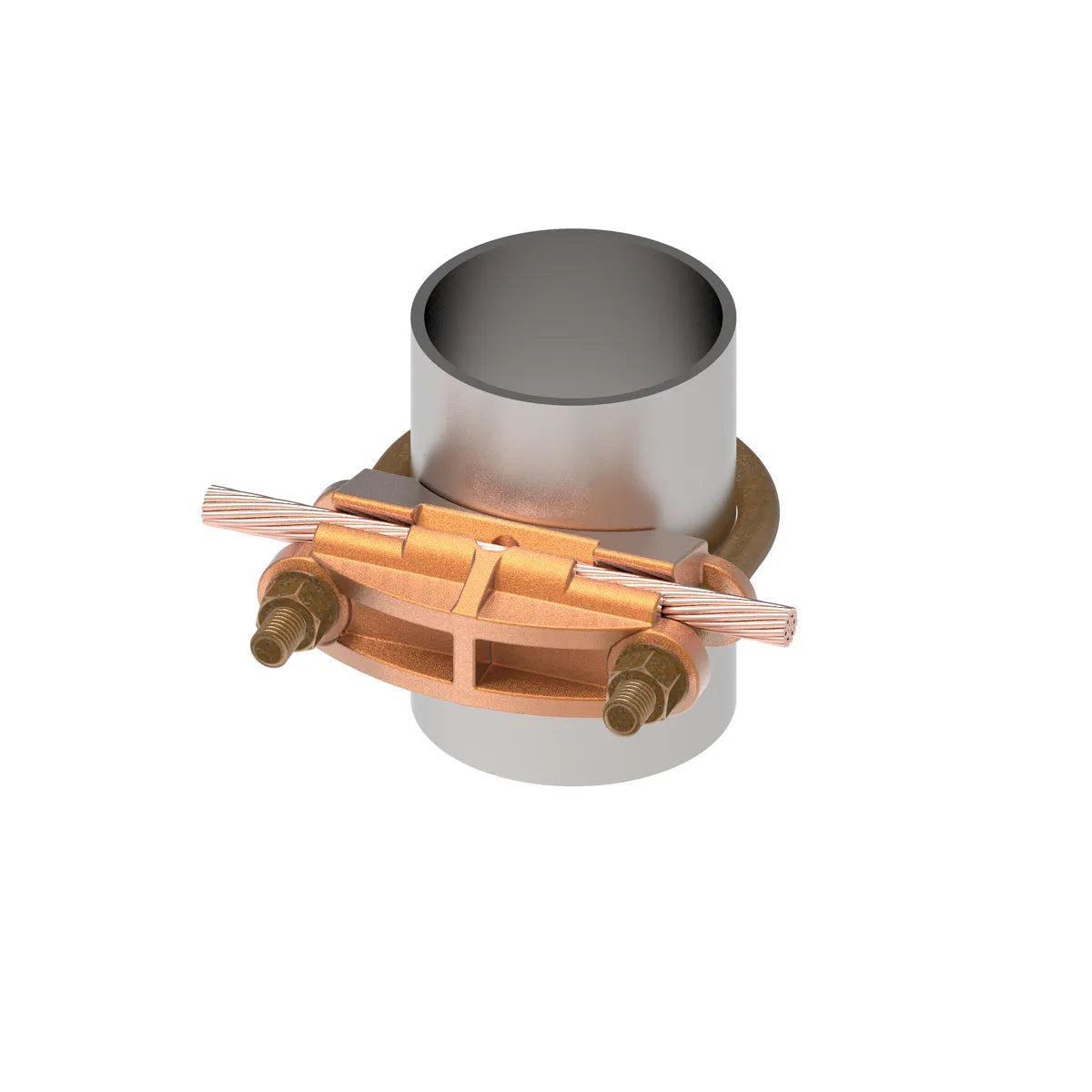

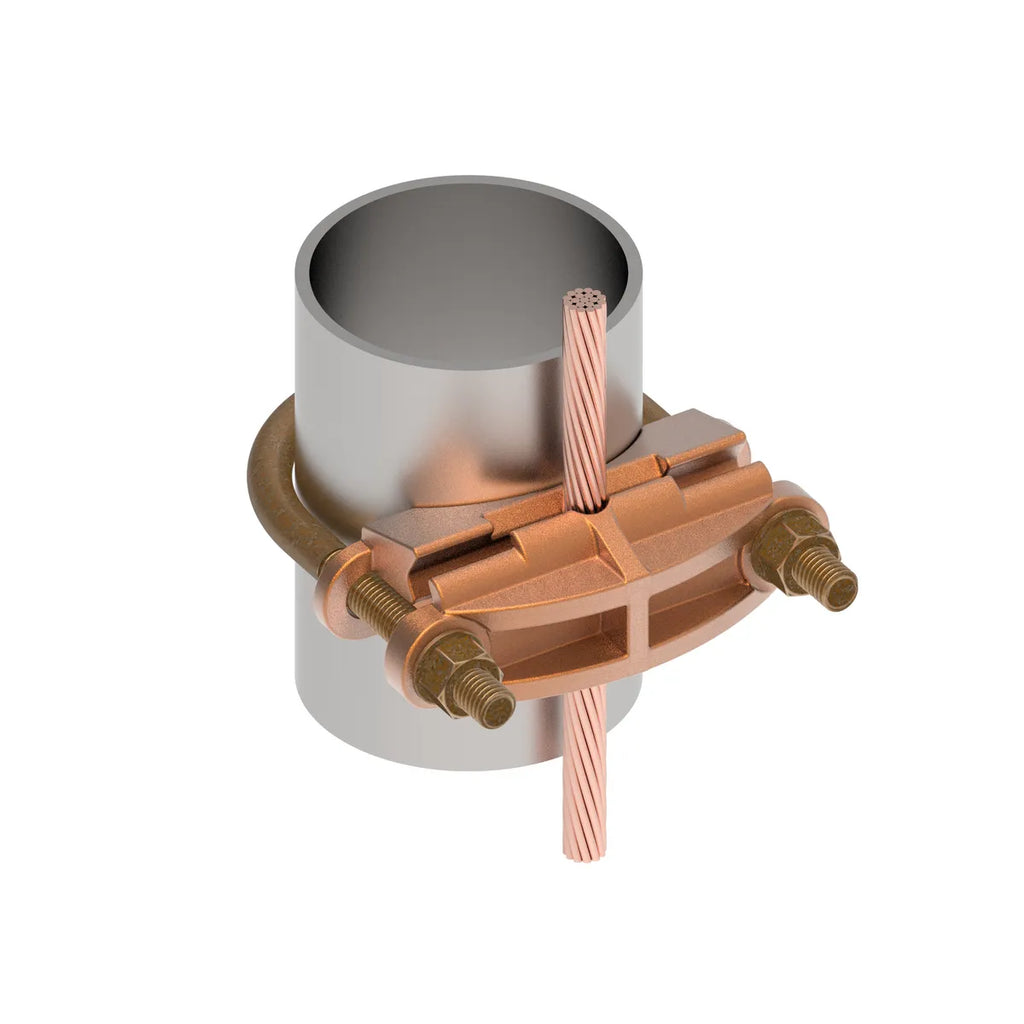

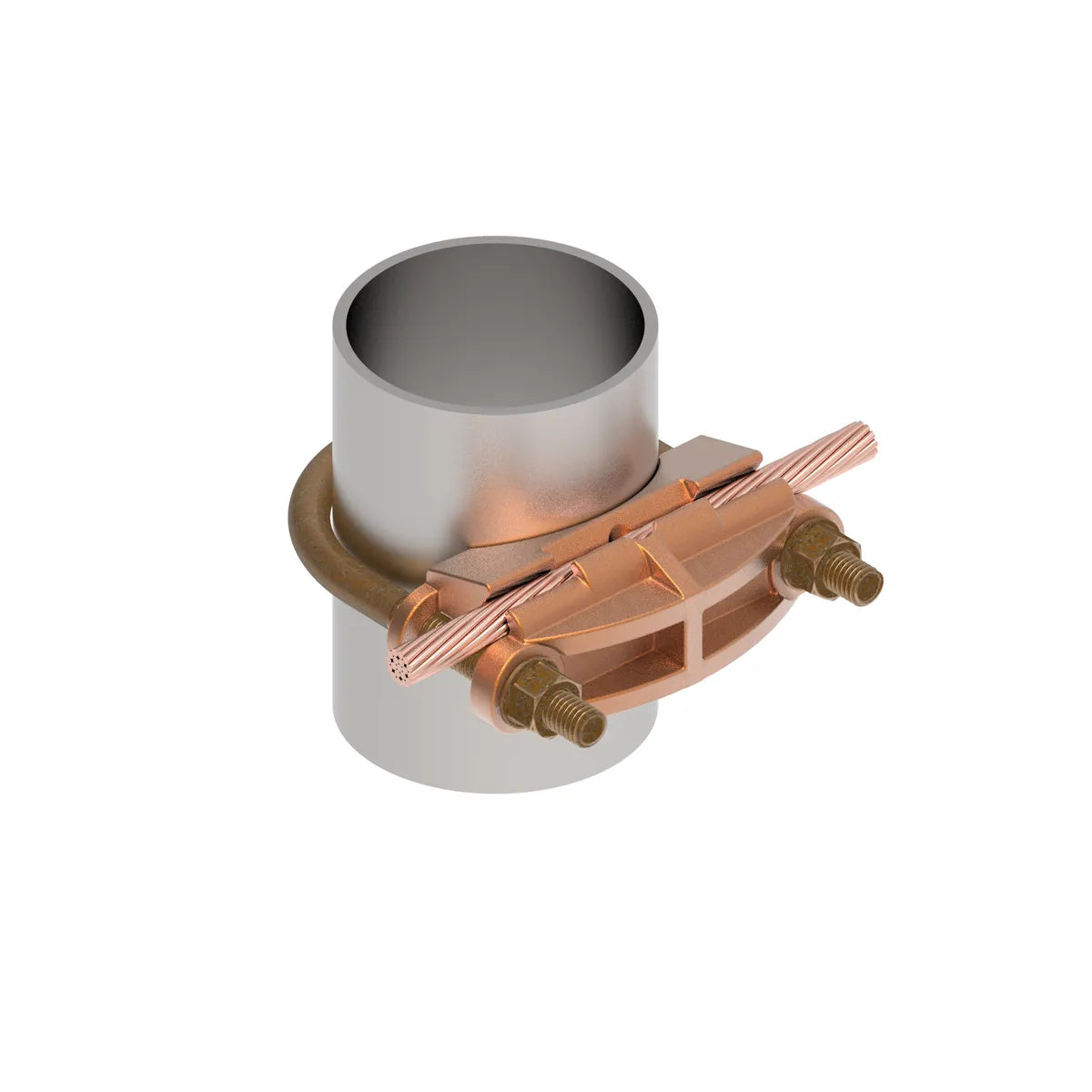

  • Parallel or 90° Copper Cable Connection
  • One-wrench installation
  • Rated for Direct Burial in earth or concrete

GENERAL SPECIFICATIONS

Application For joining a range of cable, parallel or at right angles to rod or tube, direct burial cable, fence post
Catalog Number GAR1926
EU RoHS Indicator Yes
Installation Torque Recommended in-lb 240 LBS/in
Installation Torque Recommended Run in-lb 240 Lb-in
Material Copper
Material - Hardware DURIUM™ Silicon Bronze
Plated N
Plating Type Bright Dipped
Sub Brand Mechanical Connector
Type GAR
U Bolt Type 266
UPC 781810235805
UPC 14 Digit GTIN 00781810235805

Dimensions

Dimension - B Length inch 3.25 in
Dimension - Height fraction 5 in
Dimension - Height inch 5.00 in
Dimension - Height mm 127 mm
Dimension - L Length Overall mm 40 mm
Dimension - Length Overall inch 1.56 in
Dimension - Outside Diameter inch 2.88 in
Dimension - Width fraction 4-1/4 in
Dimension - Width inch 4.19 in
Dimension - Width mm 106 mm
Package Height 6 in
Package Length 11.5 in
Package Weight 23.9 lb
Package Width 9.4 in

Conductor Related

Conductor - Copper Solid Size 4 AWG
Conductor - Copper Solid Size Range 4 AWG – 3/0 AWG
Conductor - Copper Str Size 2/0 AWG
Conductor - Copper Str Size Range 5 AWG – 2/0 AWG
Conductor - Copper Tube Std Size 2 1/2 IPS IPS
Conductor - Copper Tube Std Size Range 2 1/2 IPS IPS
Conductor - Pipe or Round Tube Size Range 2-1/2 in
Conductor - Rod Size 2.5 in – 2.88 in
Conductor - Rod Size Range 2 1/2 in – 2 7/8 in
Conductor Type
  • CU C Solid-Size
  • CU C Str-Size
  • CU Tube Std-Size
  • Rod-Size


Force Related

Installation Torque Recommended in-lb 240 LBS/in
Installation Torque Recommended Run in-lb 240 Lb-in

Logistics

Carton Quantity 15
Minimum Pack Quantity 1
Pallet Quantity 1125

PRODUCT DATASHEET

GAR1926
