GAR2126 - Burndy - 3-1/2" to 4" Cable to Rod or Pipe Mechanical Grounding Connector

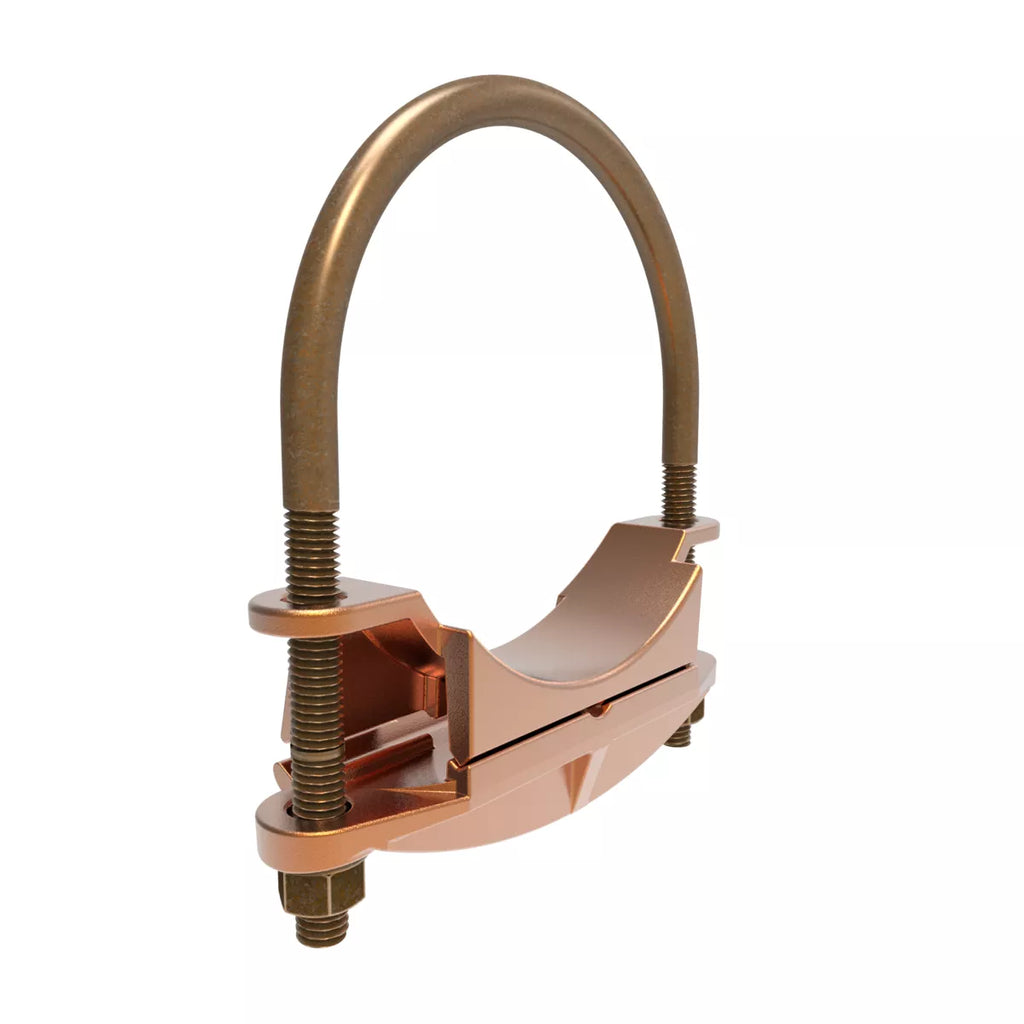

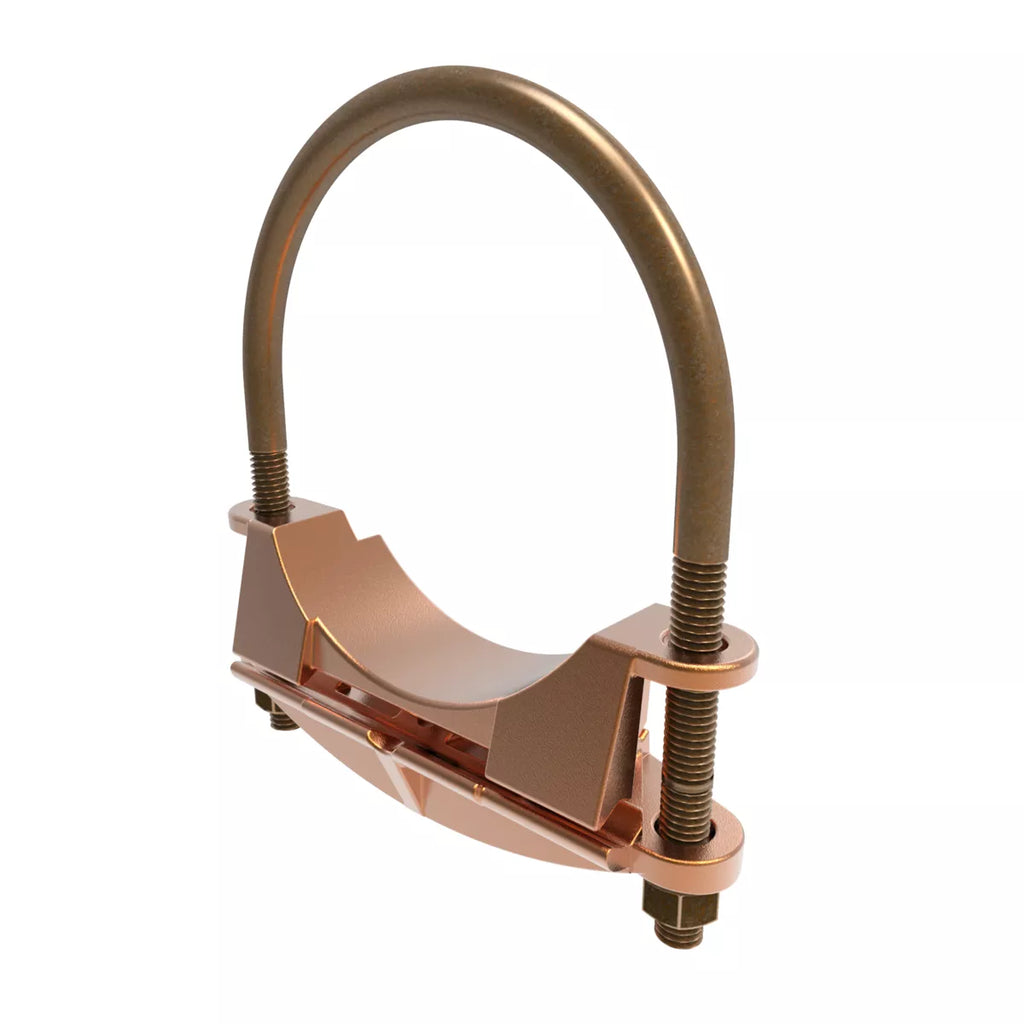

Mechanical Grounding Connector, Cable to Rod or Pipe, 4 AWG (Sol.) - 2/0 AWG (Str.), 3-1/2" to 4" Rod, 3-1/2" Pipe, Bright Dipped.

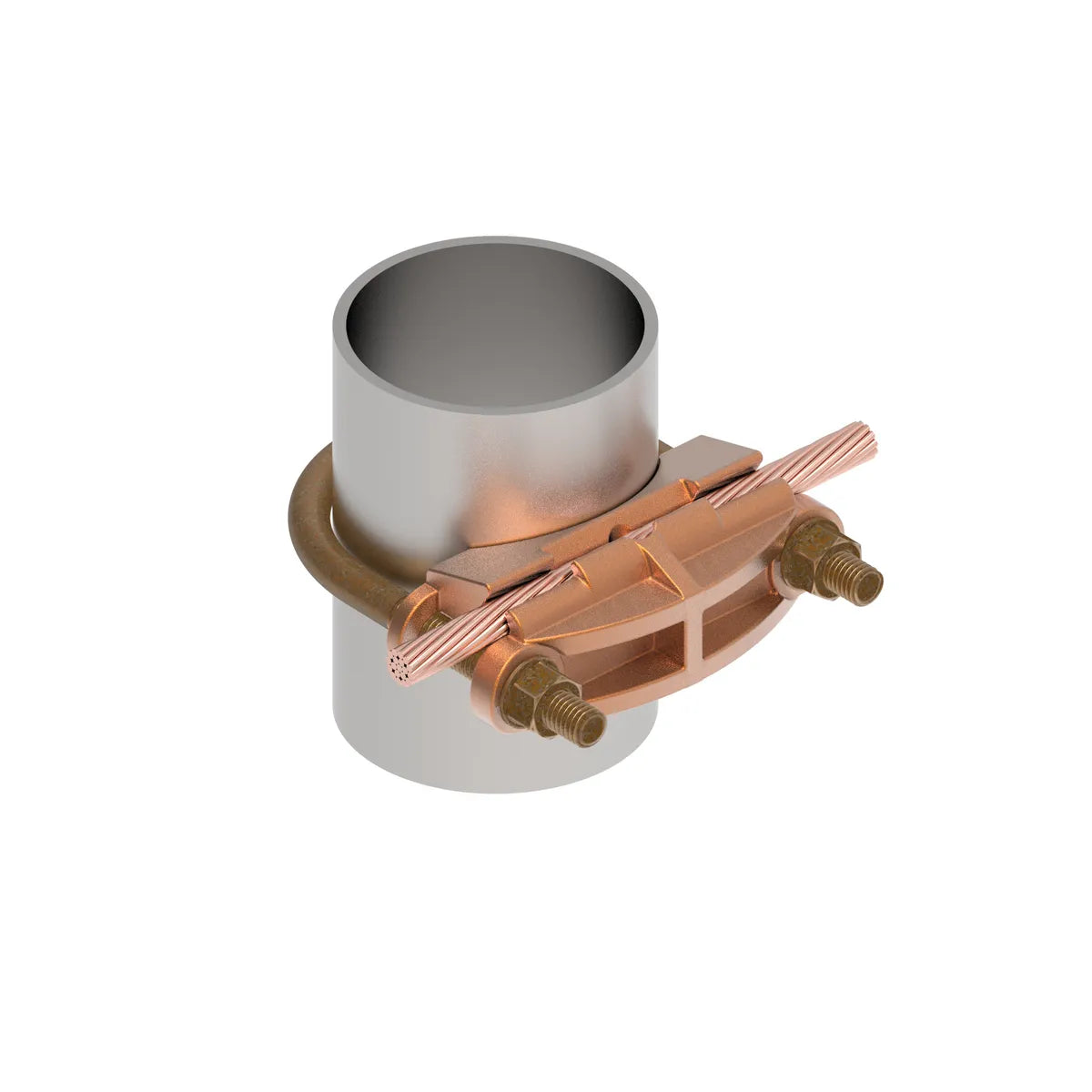

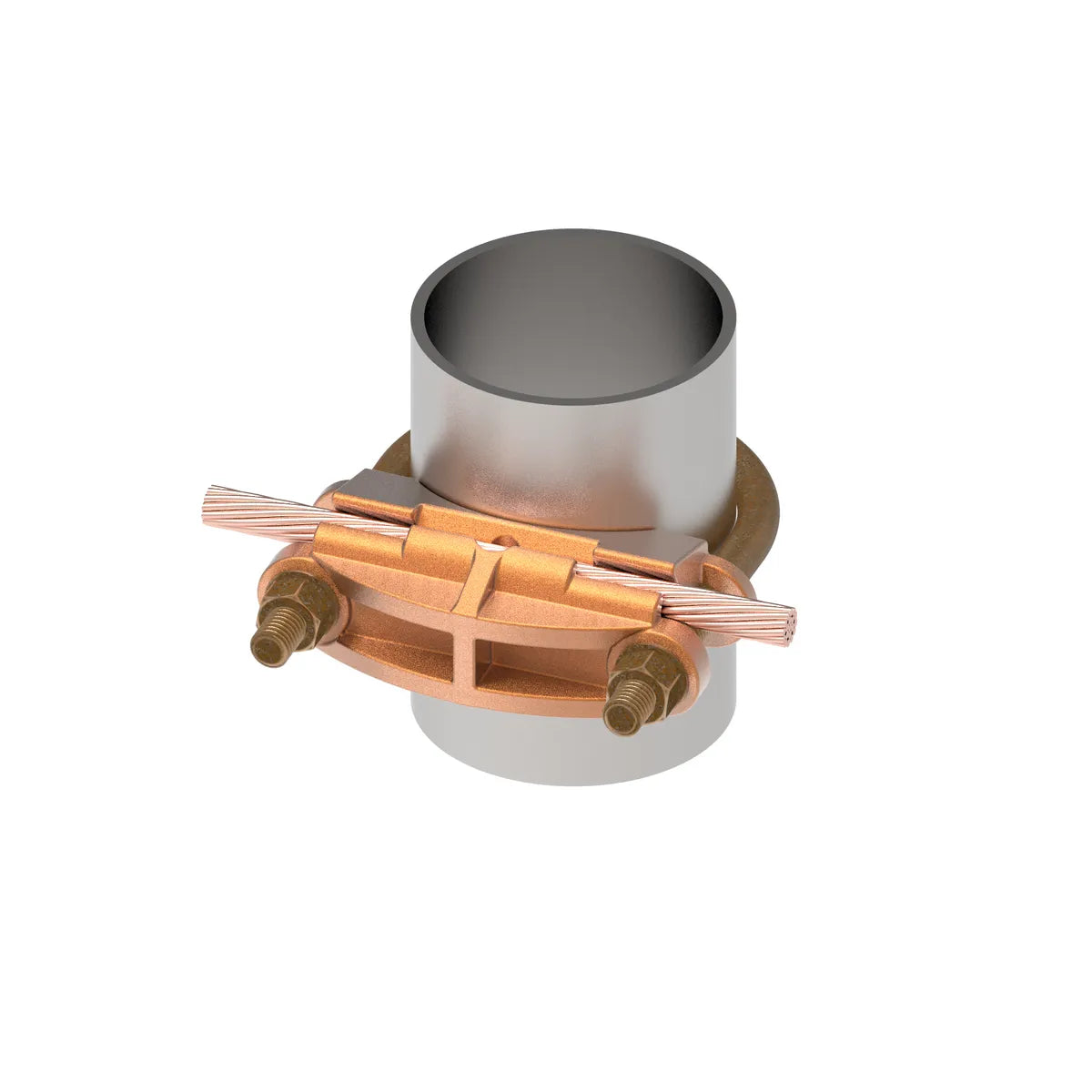

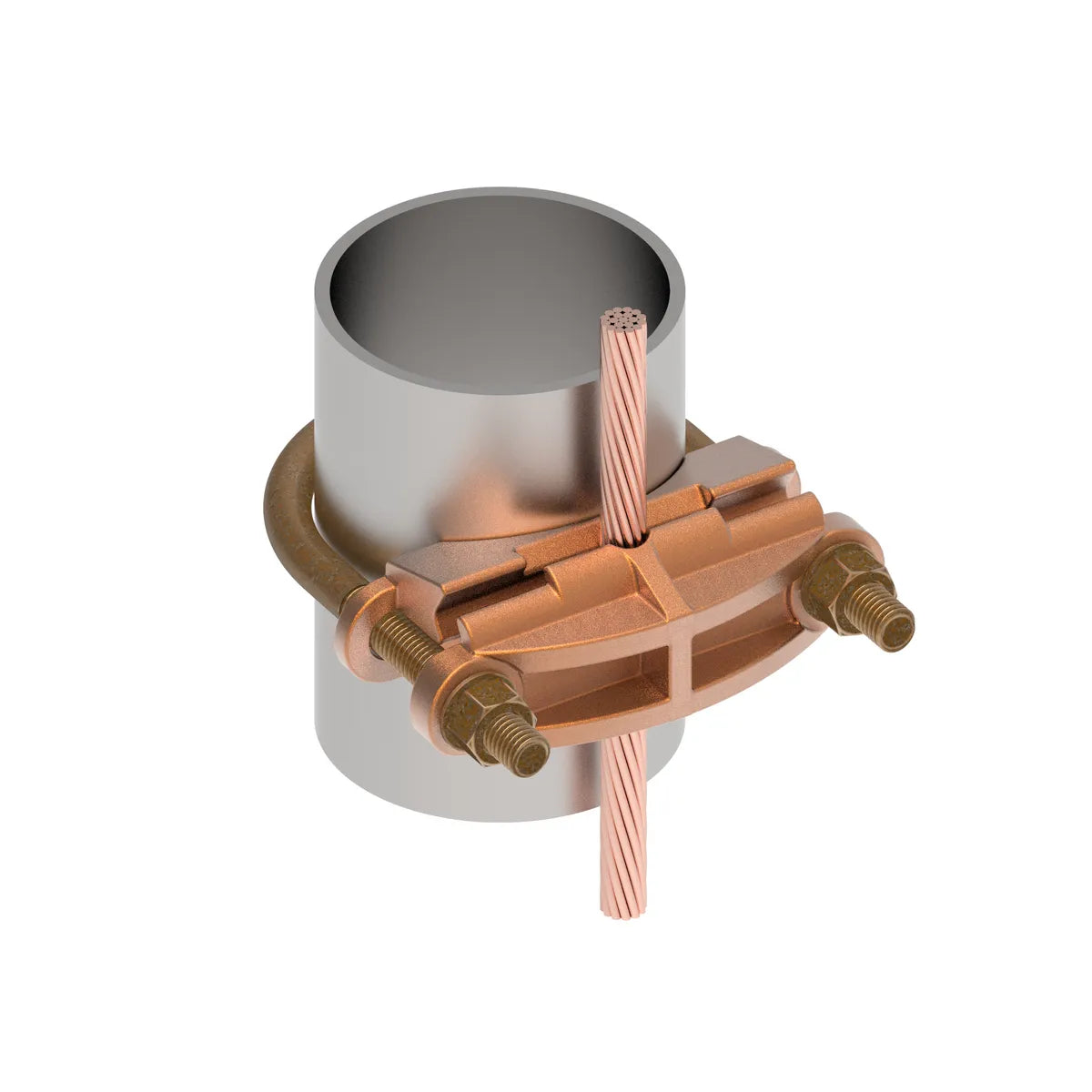

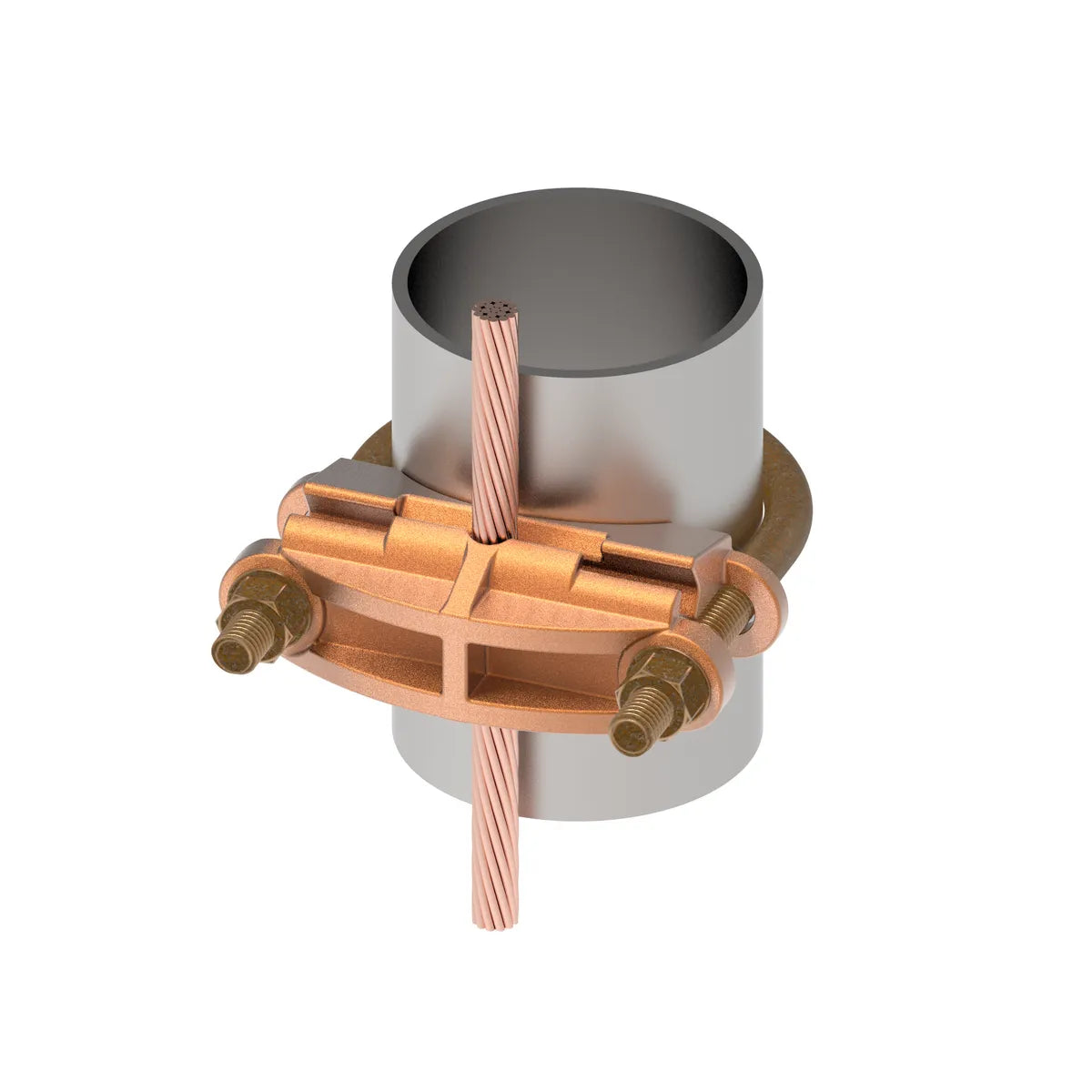

- Parallel or 90 deg Copper Cable Connection
- One-wrench installation
- Rated for Direct Burial in earth or concrete
GENERAL SPECIFICATIONS
| Application |
For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post |
| Catalog Number |
GAR2126 |
| EU RoHS Indicator |
Yes |
| Installation Torque Recommended in-lb |
240 LBS/in |
| Material |
Copper Alloy |
| Material - Hardware |
DURIUM(TM) Silicon Bronze |
| Plated |
N |
| Plating Type |
Bright Dipped |
| Sub Brand |
MECHANICAL CONNECTOR |
| Type |
GAR |
| U Bolt Type |
264 |
| UPC |
781810236802 |
| UPC 14 Digit GTIN |
00781810236802 |
Dimensions
| Dimension - B Length inch |
4.00 in |
| Dimension - Height fraction |
6-1/4 in |
| Dimension - Height inch |
6.25 in |
| Dimension - Height mm |
158.8 mm |
| Dimension - L Length Overall mm |
40 mm |
| Dimension - Length Overall inch |
1.56 in |
| Dimension - Outside Diameter inch |
4.00 in |
| Dimension - Width fraction |
5-3/8 in |
| Dimension - Width inch |
5.31 in |
| Dimension - Width mm |
135 mm |
Conductor Related
| Conductor - Copper Solid Size |
4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG |
| Conductor - Copper Solid Size Range |
4 AWG-2/0 AWG |
| Conductor - Copper Str Size |
5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG |
| Conductor - Copper Str Size Range |
5 AWG - 2/0 AWG |
| Conductor - Copper Tube Std Size |
3 1/2 IPS IPS |
| Conductor - Copper Tube Std Size Range |
3 1/2 IPS IPS |
| Conductor - Pipe or Round Tube Size |
3 1/2 in |
| Conductor - Rod Size |
3.5 - 4.0 in |
| Conductor Type |
CU C Solid-SizeCU C Str-SizeCU Tube Std-SizeRod-Size |
Force Related
| Installation Torque Recommended in-lb |
240 LBS/in |
Logistics
| Carton Quantity |
12 |
| Minimum Pack Quantity |
1 |
| Pallet Quantity |
1 |
PRODUCT DATASHEET
GAR2126
