Description

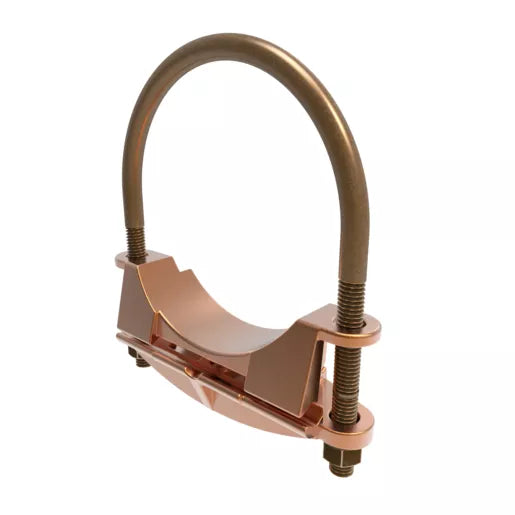

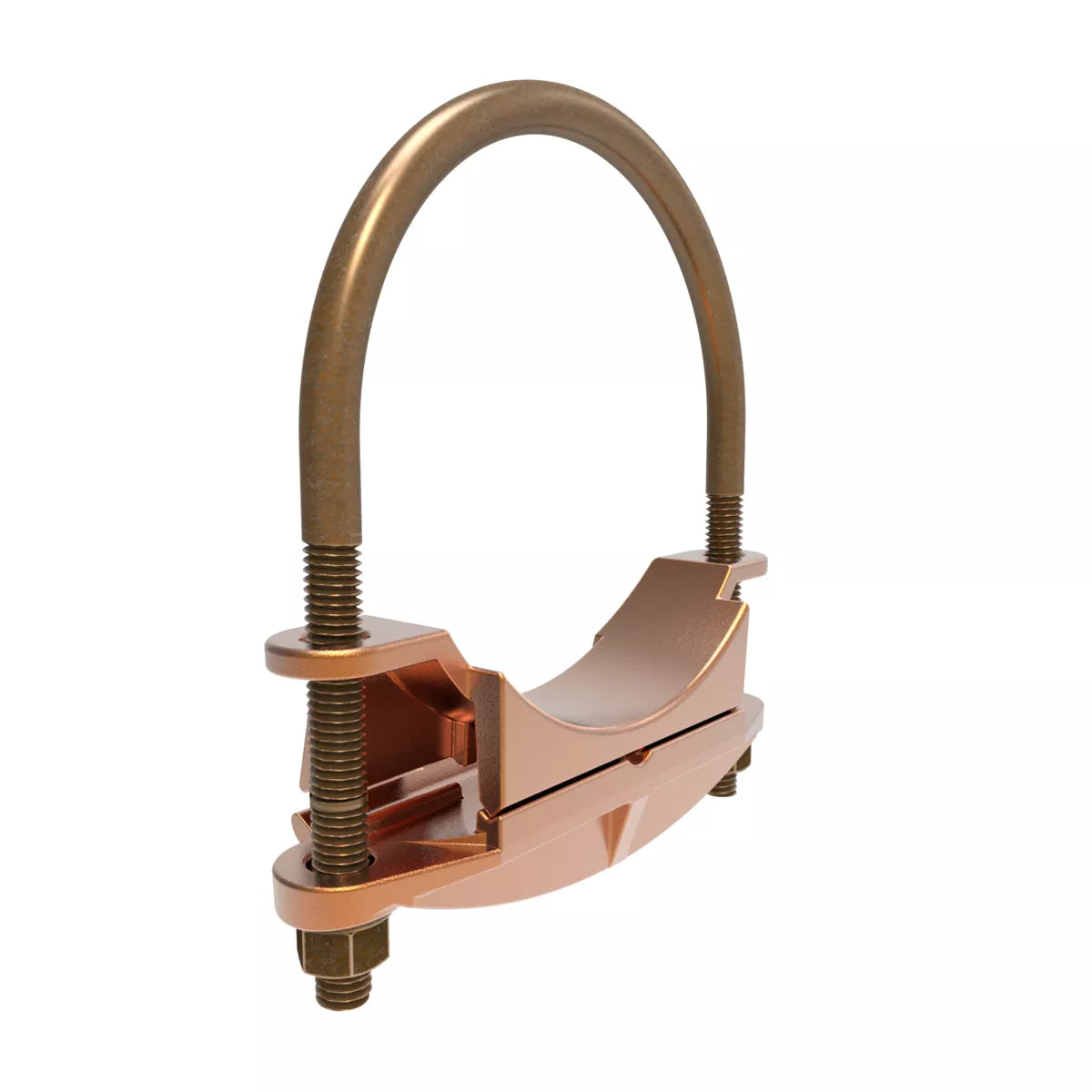

GAR2229 - Burndy - 4" Pipe 4" to 4-1/2" Rod Bright Dipped Mechanical Grounding Connector
Mechanical Grounding Connector, Cable to Rod or Pipe, 2/0 AWG (Sol) -250 kcmil, 4" Pipe, 4"-4-1/2" Rod, Bright Dipped.

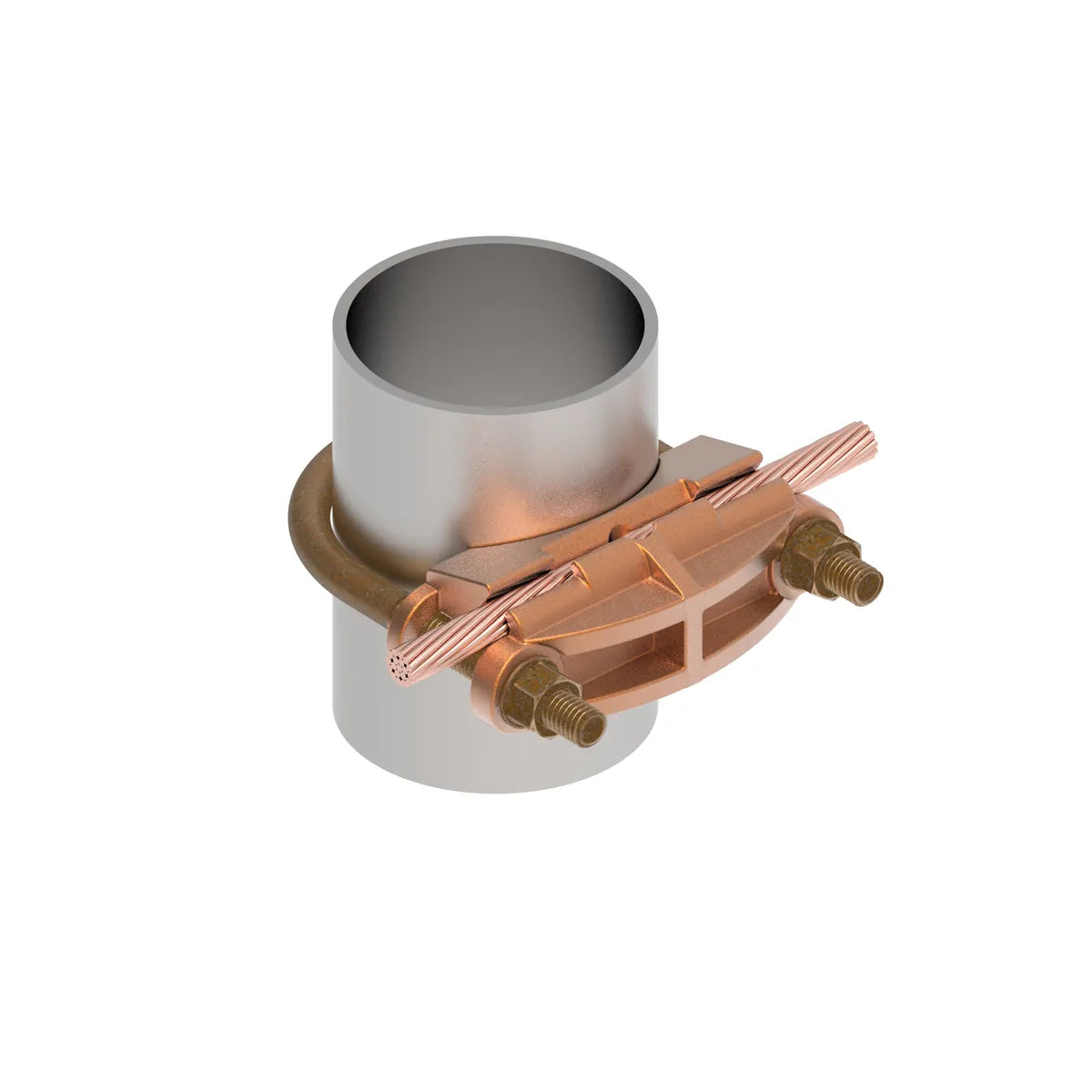

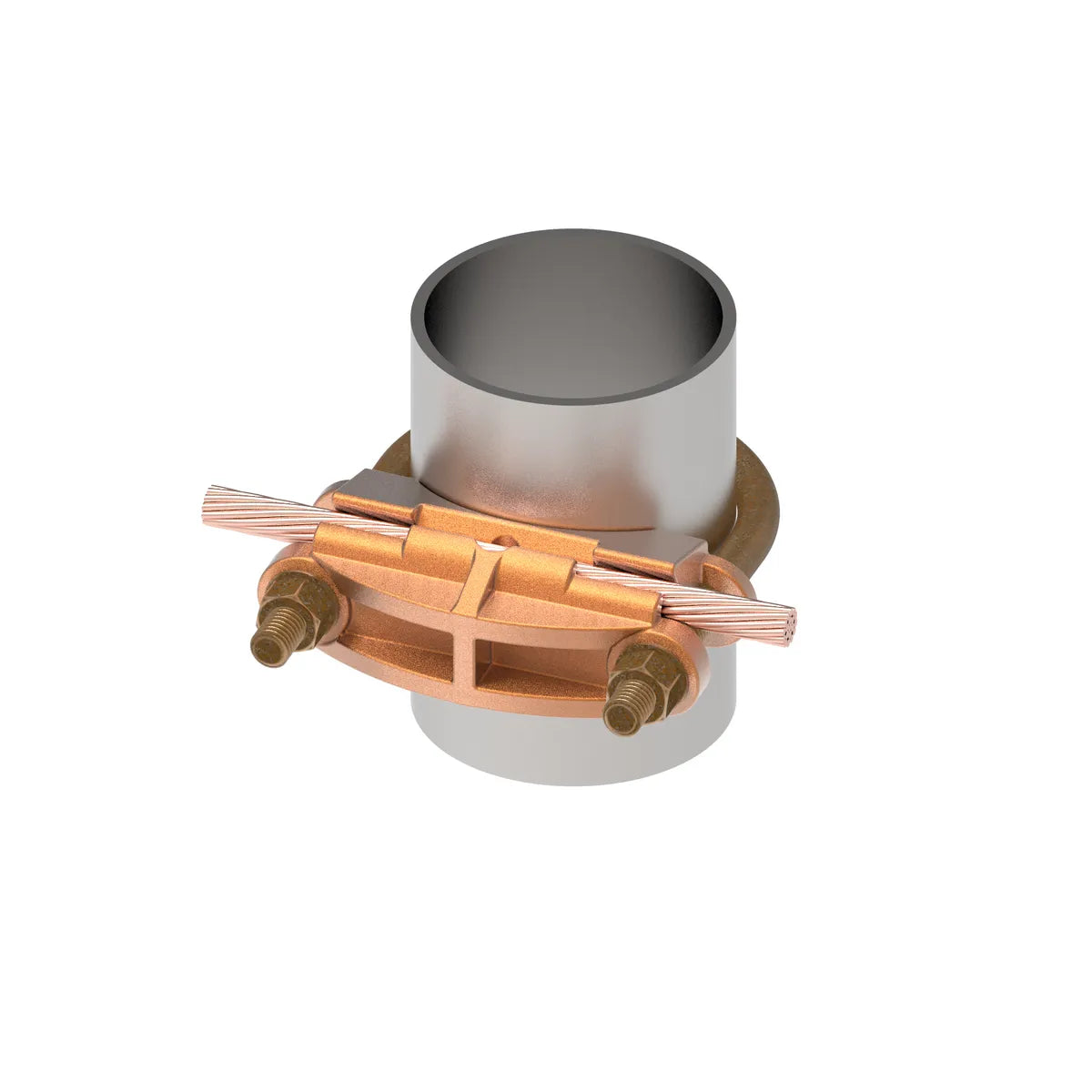

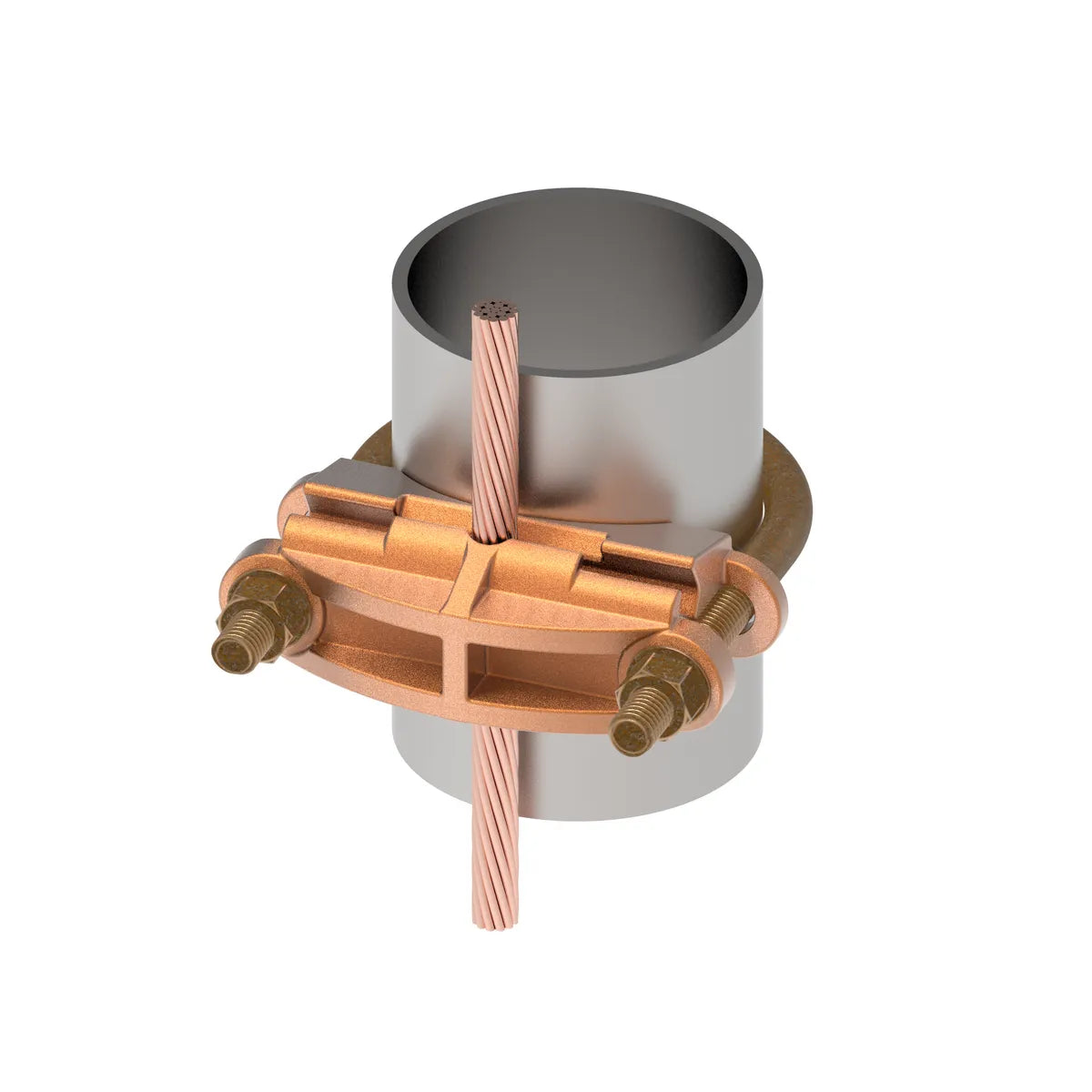

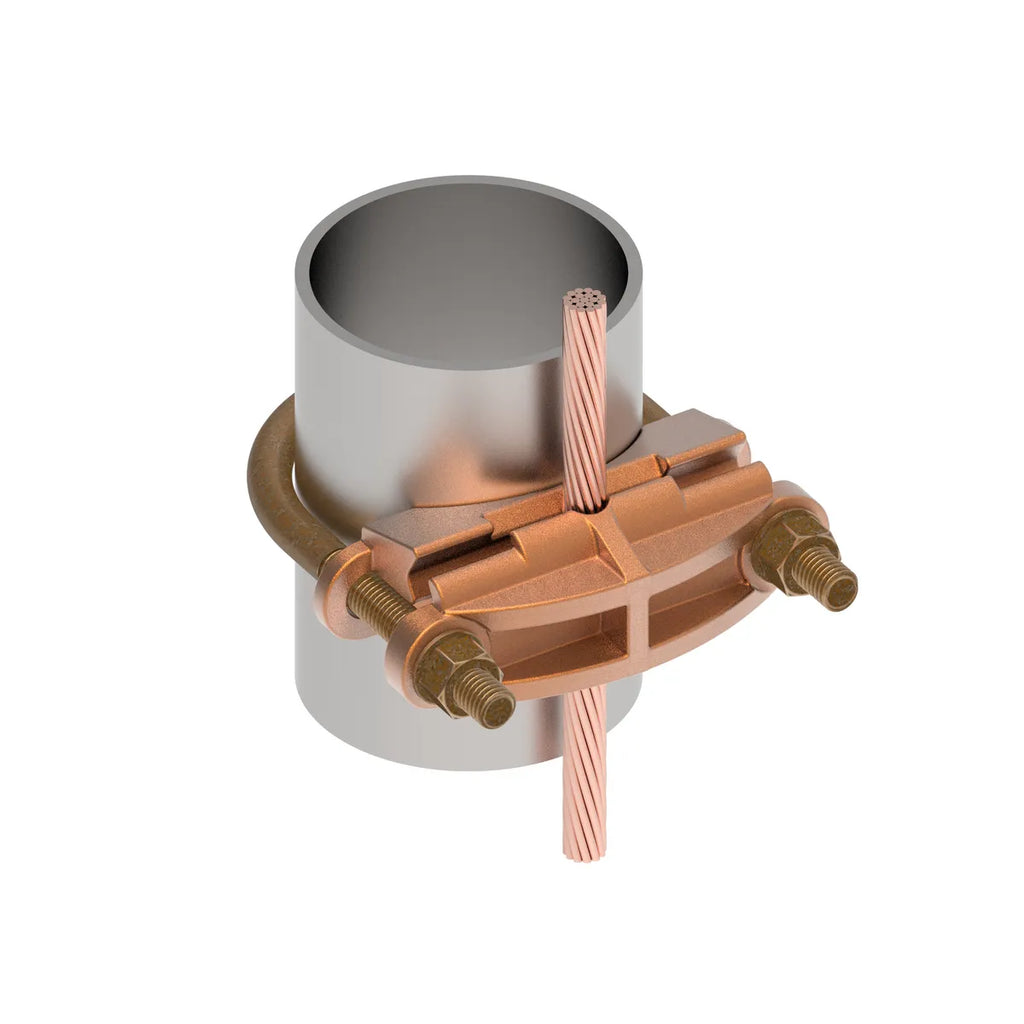

- Parallel or 90° Copper Cable Connection
- One-wrench installation
- Rated for Direct Burial in earth or concrete
GENERAL SPECIFICATIONS
| Application | For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post |
| Catalog Number | GAR2229 |
| EU RoHS Indicator | Yes |
| Installation Torque Recommended in-lb | 240 LBS/in |
| Material | Copper Alloy |
| Material - Hardware | DURIUM™ Silicon Bronze |
|
Plated |
N |
|
Plating Type |
Bright Dipped |
| Sub Brand | MECHANICAL CONNECTOR |
| Type | GAR |
| U Bolt Type | 261 |
| UPC | 781810237601 |
| UPC 14 Digit GTIN | 00781810237601 |
Dimensions
|
Dimension - B Length inch |
4.50 in |
| Dimension - Height fraction | 6-3/8 n |
| Dimension - Height inch | 6.38 in |
| Dimension - Height mm | 162.1 mm |
|
Dimension - L Length Overall mm |
46 mm |
|
Dimension - Length Overall inch |
1.81 in |
| Dimension - Outside Diameter inch | 4.50 in |
| Dimension - Width fraction | 5-7/8 in |
| Dimension - Width inch | 5.81 in |
| Dimension - Width mm | 148 mm |
Conductor Related
| Conductor - Copper Solid Size | 2/0 AWG;3/0 AWG;4/0 AWG |
| Conductor - Copper Solid Size Range | 2/0 AWG-250 Kcmil |
|
Conductor - Copper Str Size |
1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Conductor - Copper Str Size Range | 1/0 AWG - 250 kcmil |
| Conductor - Copper Tube Std Size | 4 IPS IPS |
| Conductor - Copper Tube Std Size Range | 4 IPS IPS |
| Conductor - Pipe or Round Tube Size Range | 4 in |
| Conductor - Rod Size | 4.0 - 4.5 in |
| Conductor Type |
|
Force Related
|
Installation Torque Recommended in-lb |
240 LBS/in |
Logistics
| Carton Quantity | 12 |
| Minimum Pack Quantity | 1 |
|
Pallet Quantity |
1 |
PRODUCT DATASHEET
