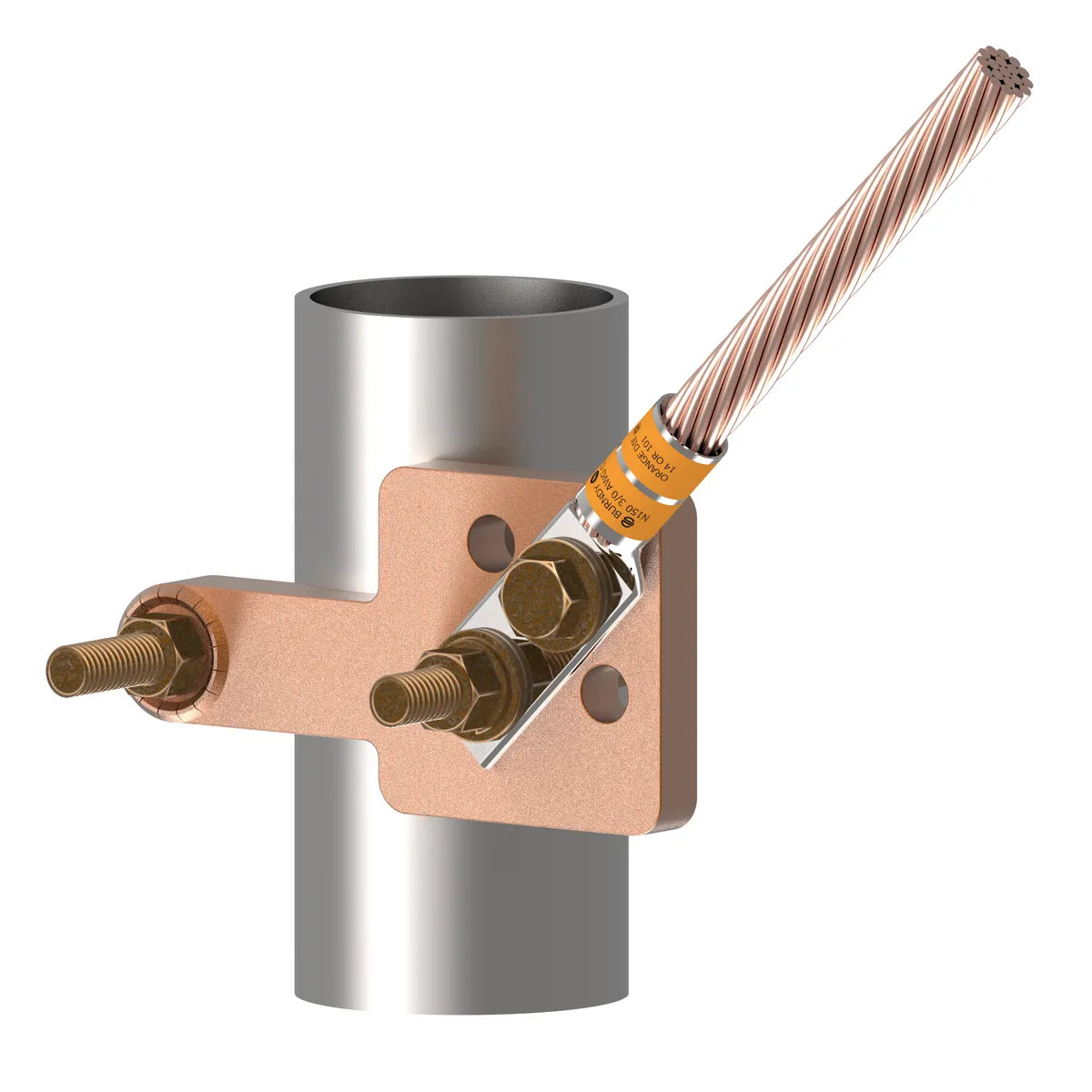

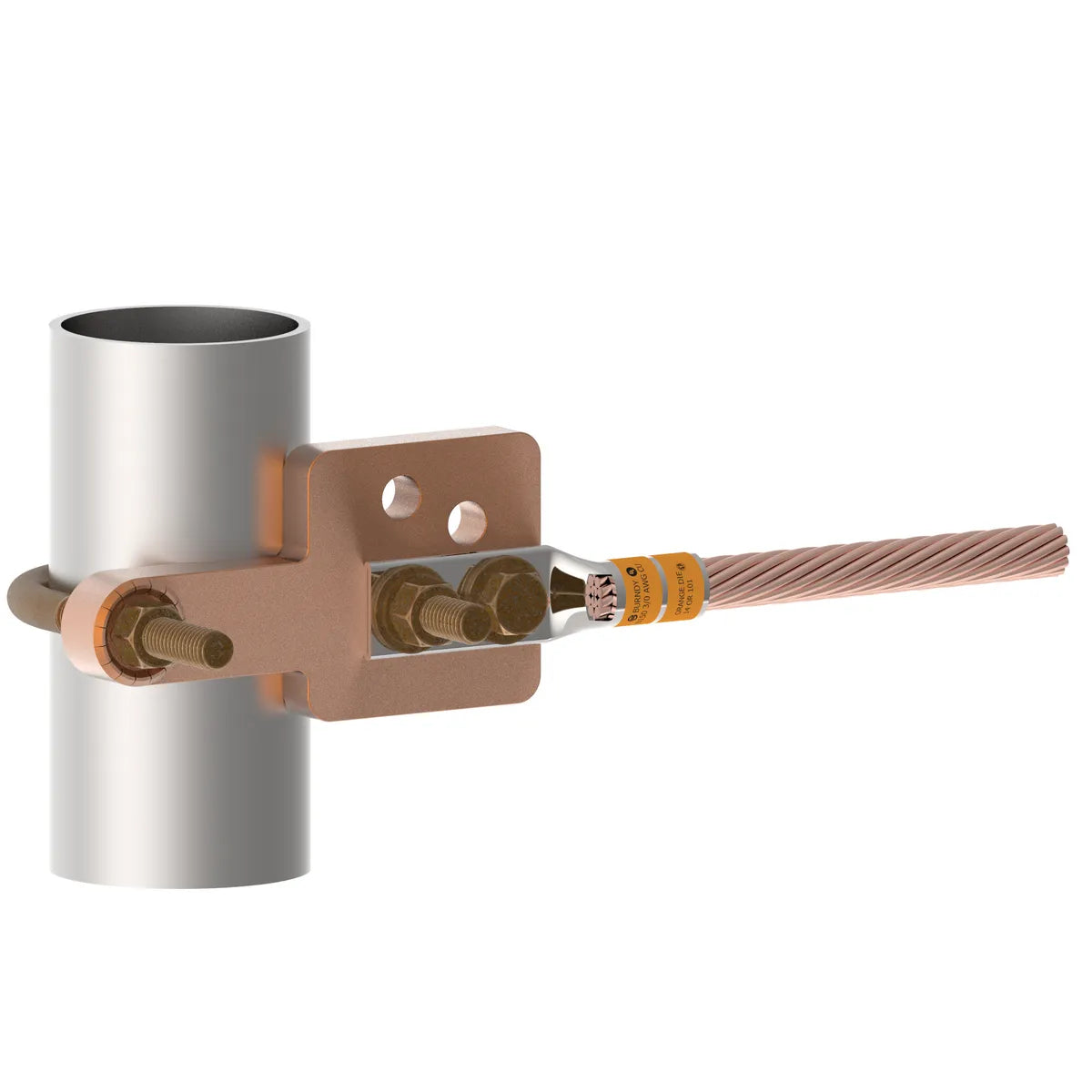

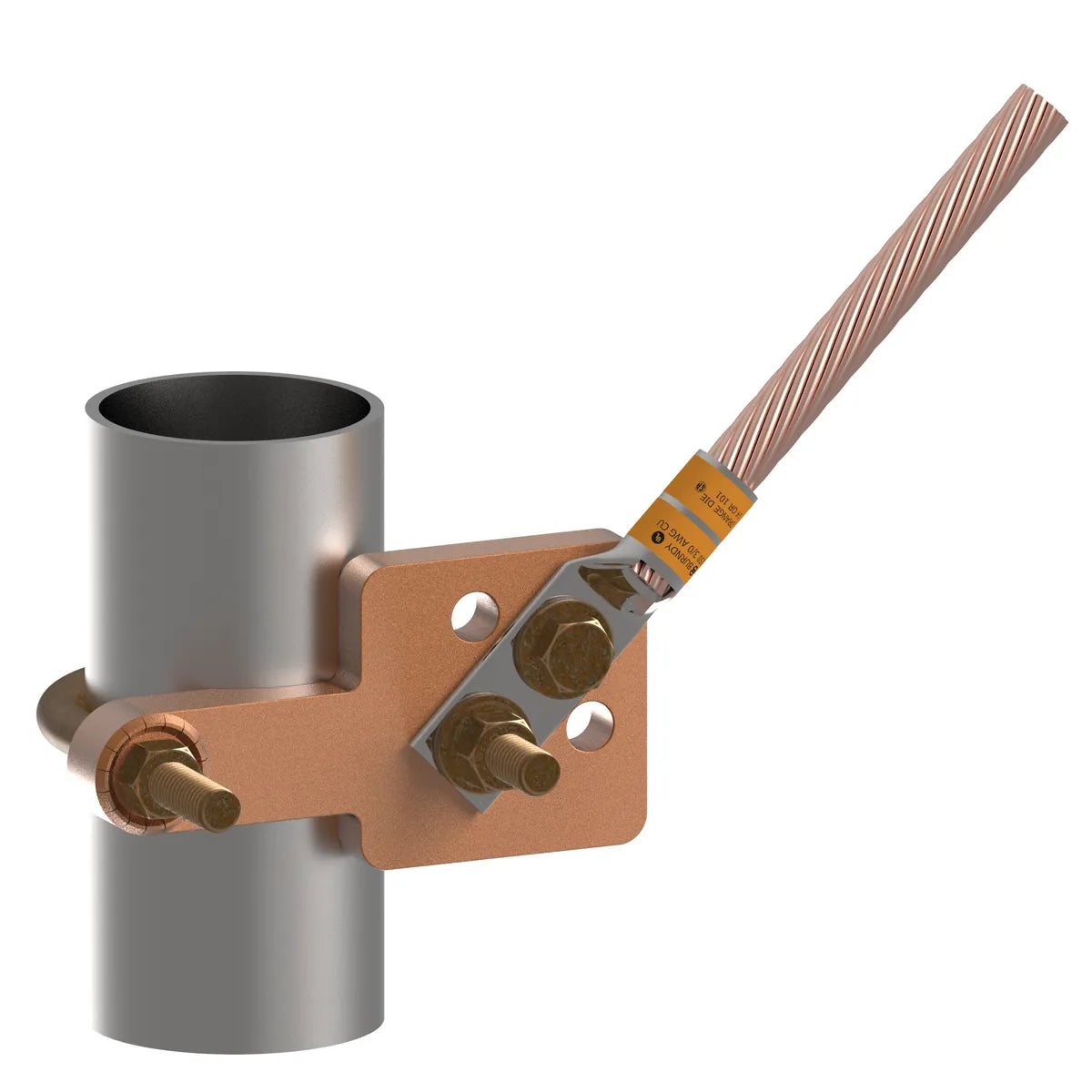

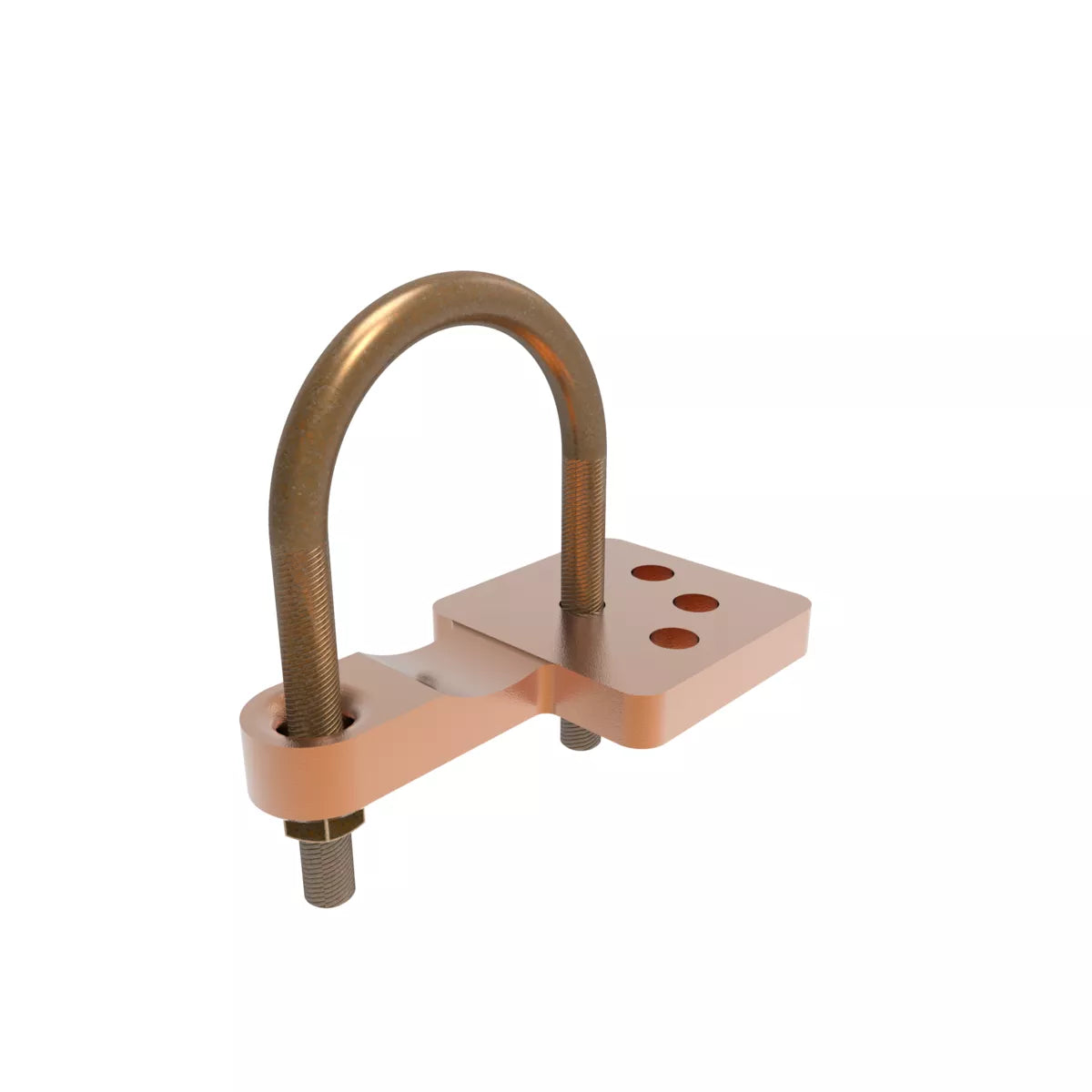

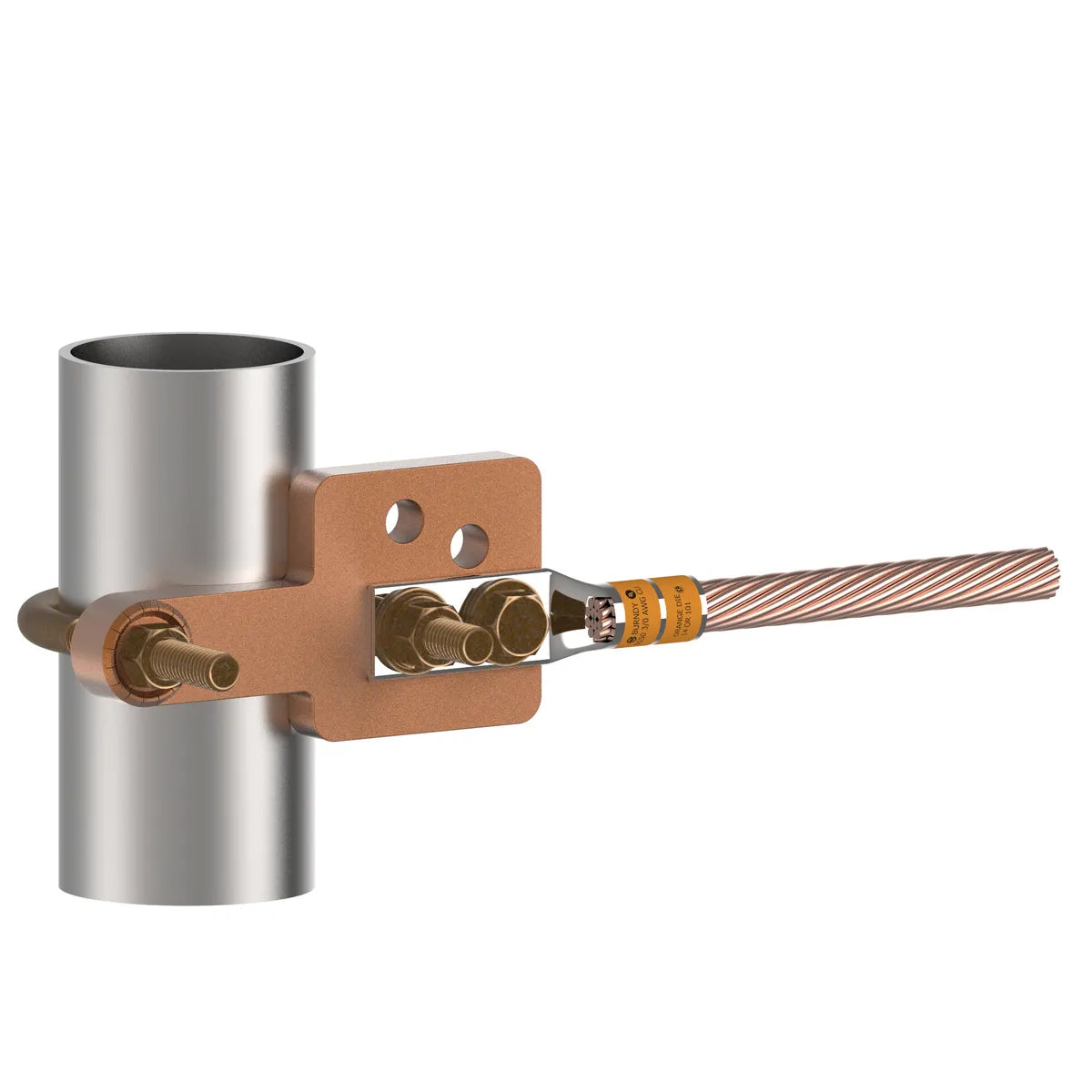

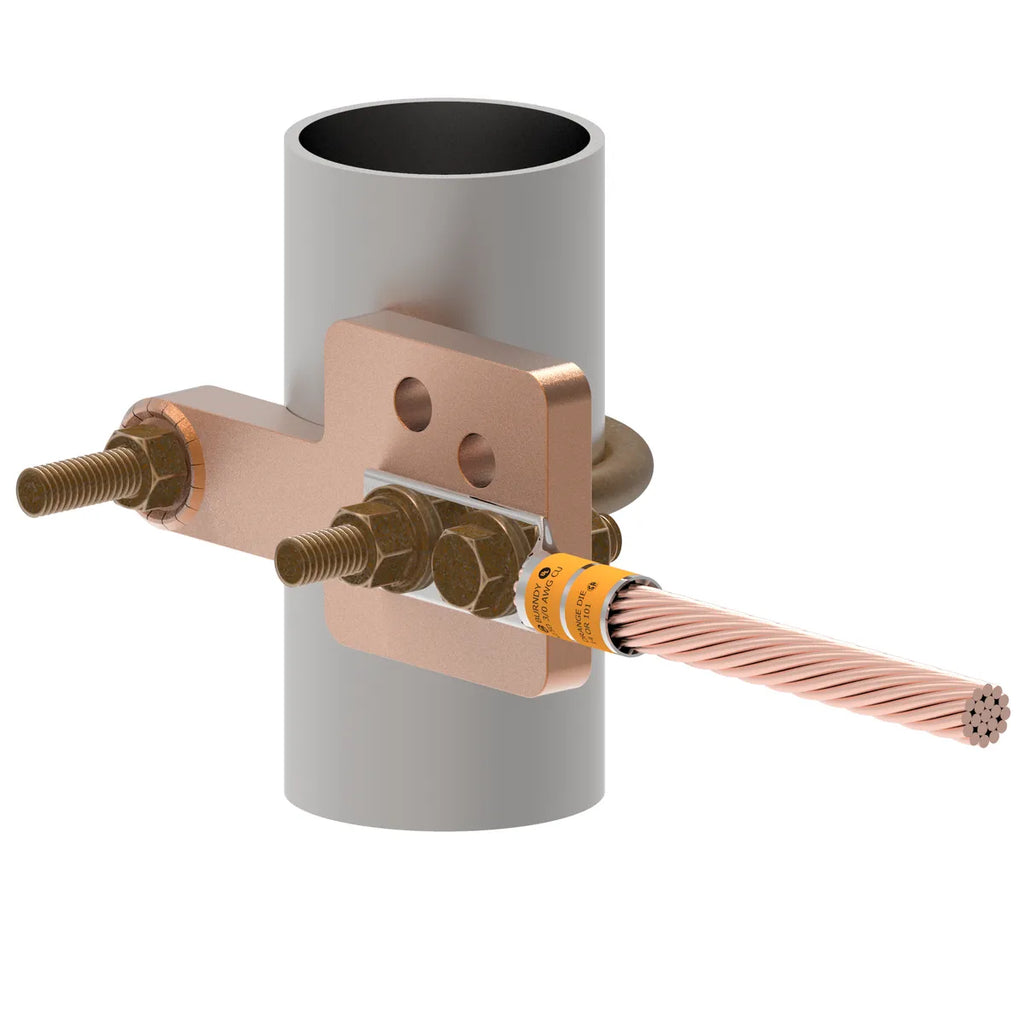

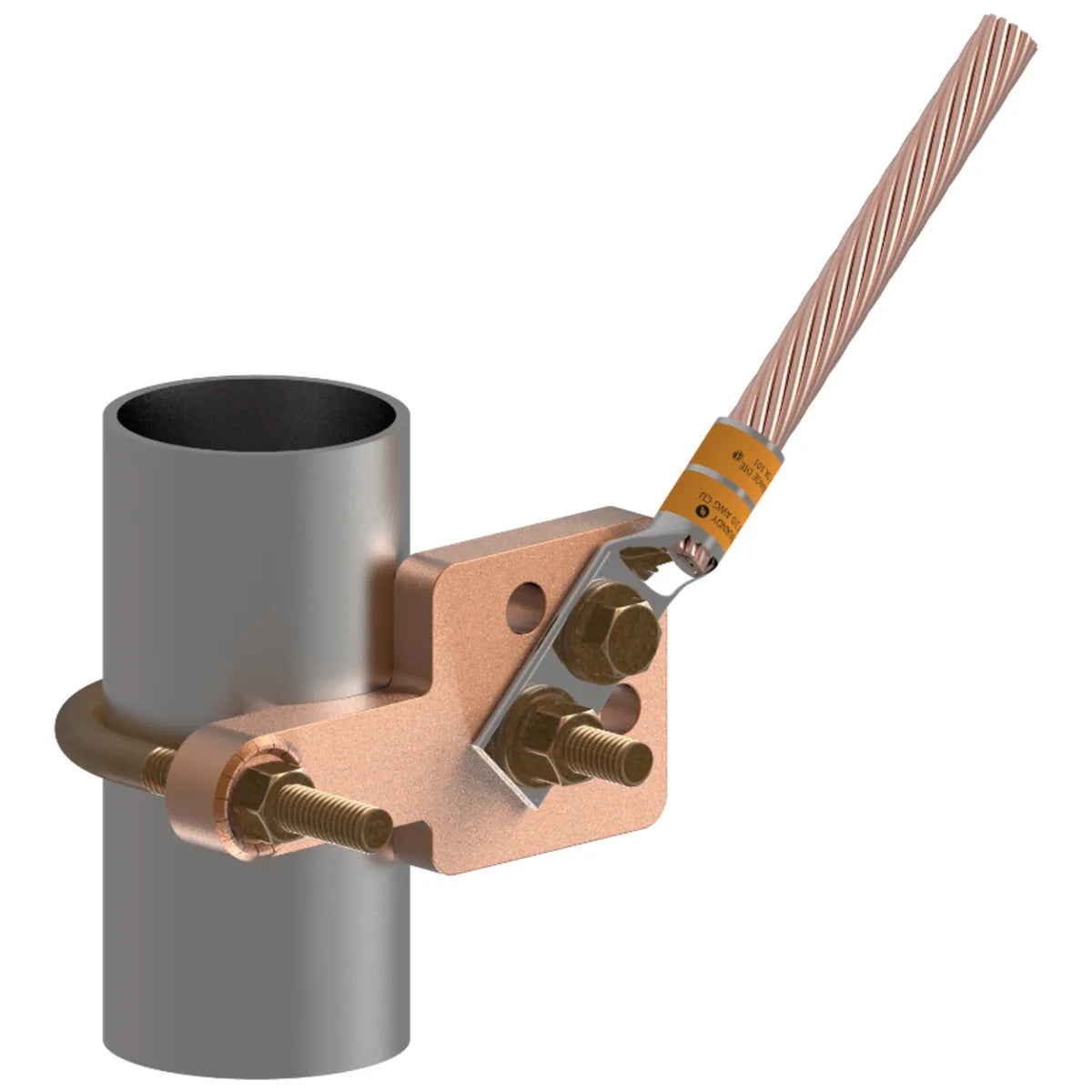

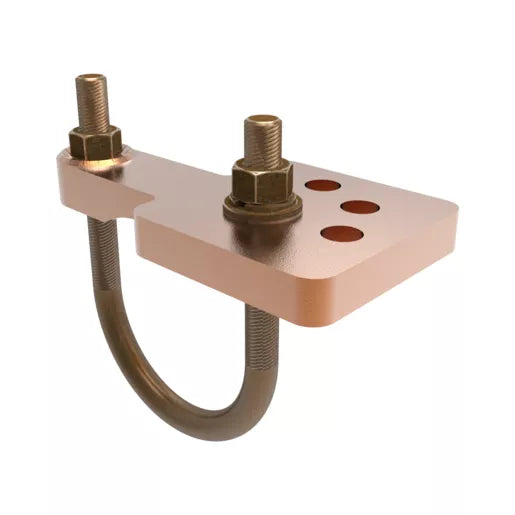

GAR3903TC - Burndy - 1-1/4" to 2" IPS Mechanical Ground Connector
Mechanical Grounding Connector, For 2 Hole Lug to Pipe or Rod, 1-1/4" - 2" IPS, Pre-drilled pad for (2) 3/8” bolts on 1” centers. Silicon bronze hardware.
- Large, smooth connector contact area between pipe and ground clamp to maximize contact area between connector and pipe
- Pre-drilled pad for 2-3/8" bolts on 1" centers to allow for direct mounting of 2-hole compression terminals up to 750 kcmil to pipe
- One-wrench installation
- UL467 Listed for the US and Canadian Markets
GENERAL SPECIFICATIONS
| Application | For Direct Burial, Water Pipe As Well As Structural And Reinforcing Rod Shapes |
| Catalog Number | GAR3903TC |
| EU RoHS Indicator | Yes |
| Installation Torque Recommended in-lb | 240 LBS/in |
| Material | Copper Alloy |
| Material - Hardware | DURIUM™ Silicon Bronze |
| Physical Attribute - Number of Holes | 3 |
| Physical Attribute - Pad Configuration | 2.50 x 2.50 - 3 Holes |
|
Plated |
N |
|
Plating Type |
Unplated |
| Sub Brand | MECHANICAL CONNECTOR |
| Type | Rod or Tube Clamp with Mounting Pad |
| U Bolt Type | 1032 |
| UPC | 781810241110 |
| UPC 14 Digit GTIN | 00781810241110 |
Dimensions
| Dimension - Bolt Size fraction | 3/8 |
| Dimension - Height inch | 4.00 in |
| Dimension - Height mm | 101.6 mm |
| Dimension - Length Overall inch | 2.50 in |
| Dimension - Outside Diameter inch | 2.38 in |
| Dimension - Thread Size | 3/8-16 |
| Dimension - Threads per inch | 16 |
| Dimension - Width inch | 4.75 in |
| Dimension - Width mm | 121 mm |
Conductor Related
| Conductor - Copper Tube EH Size | 1 1/4;2 |
| Conductor - Copper Tube EH Size Range | 1 1/4-2 |
| Conductor - Pipe or Round Tube Size | 1.25 - 2 in |
Force Related
|
Installation Torque Recommended in-lb |
240 LBS/in |
Configuration
|
Physical Attribute - Number of Holes
|
3
|
|
Physical Attribute - Pad Configuration
|
2.50 x 2.50 - 3 Holes
|
Logistics
| Carton Quantity | 20 |
| Minimum Pack Quantity | 1 |
|
Pallet Quantity |
1200 |
