GAR3904 - Burndy - 2-1/2" to 3-1/2" Pipe 3/8" Stud Mechanical Grounding Connector
Mechanical Grounding Connector, Conductor to Pipe, 4-4/0 AWG, 2-1/2" - 3-1/2" Pipe, 3/8" Stud. Galvanized Steel Hardware.

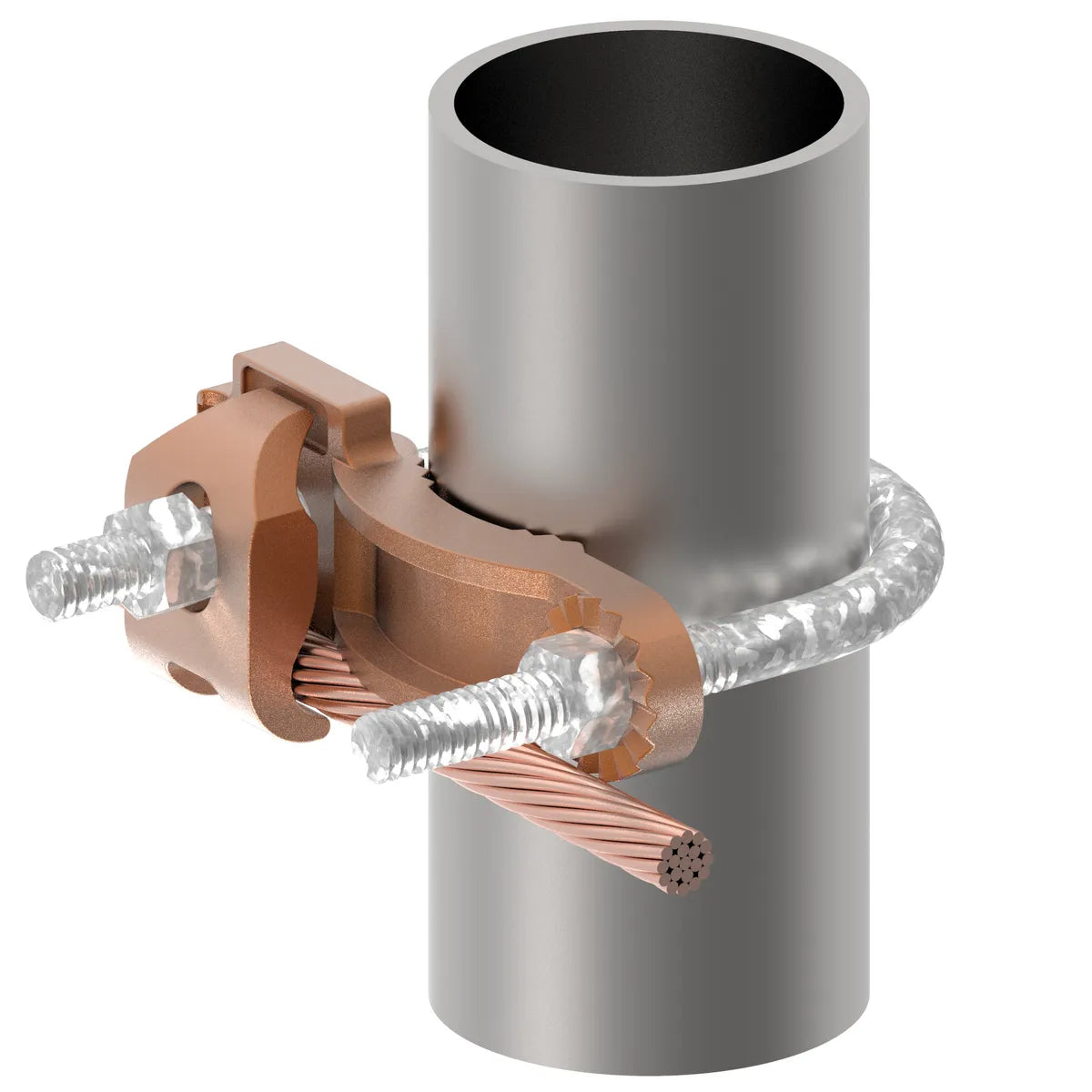

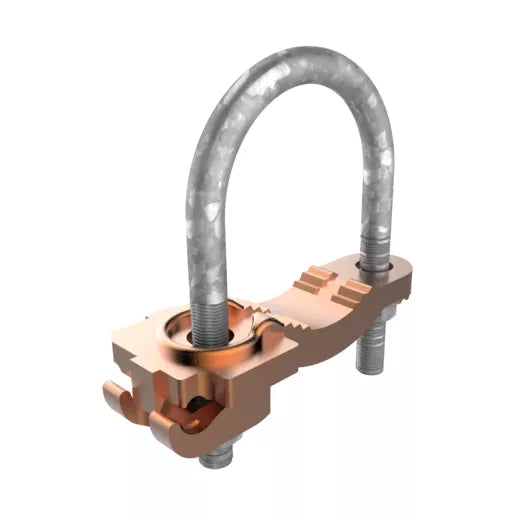

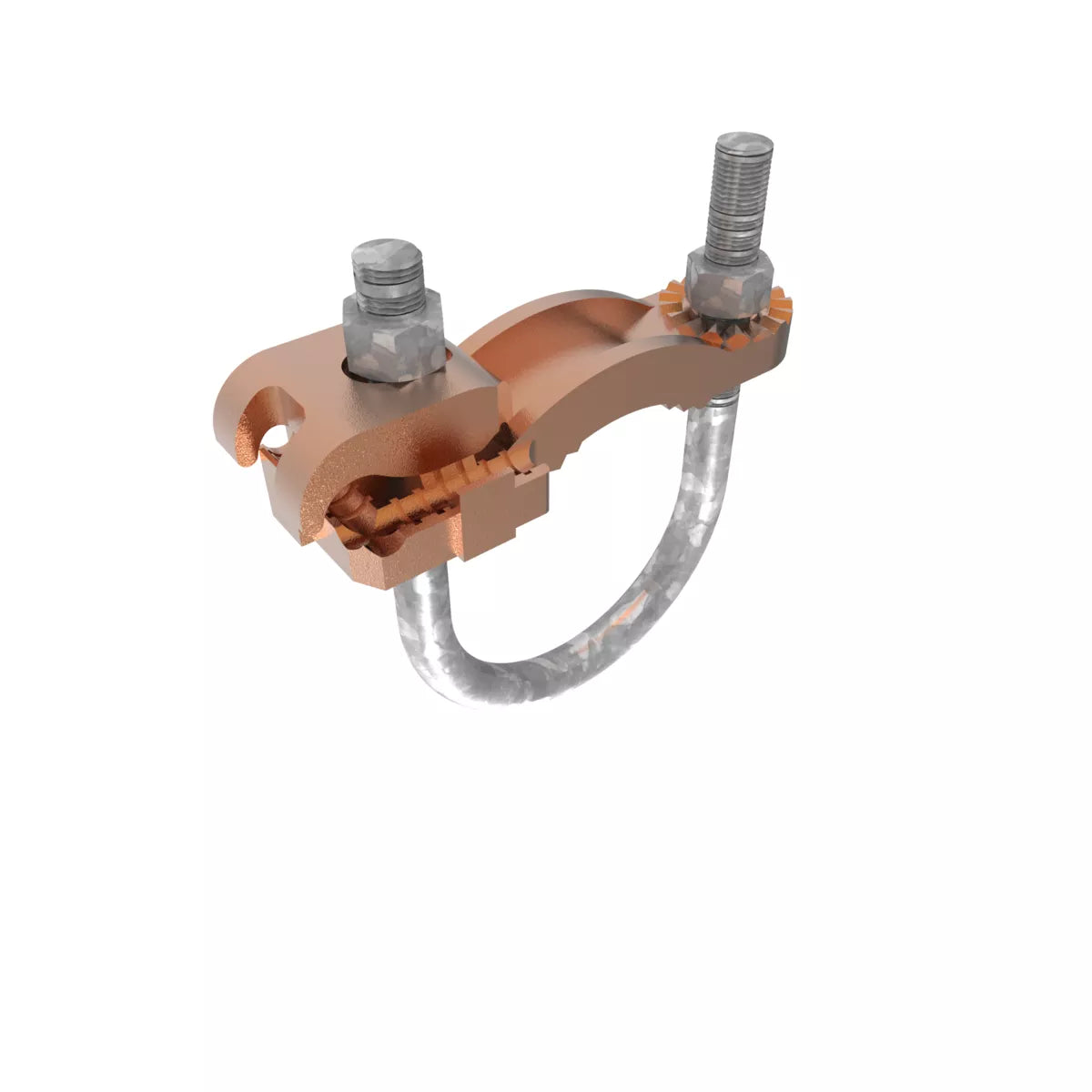

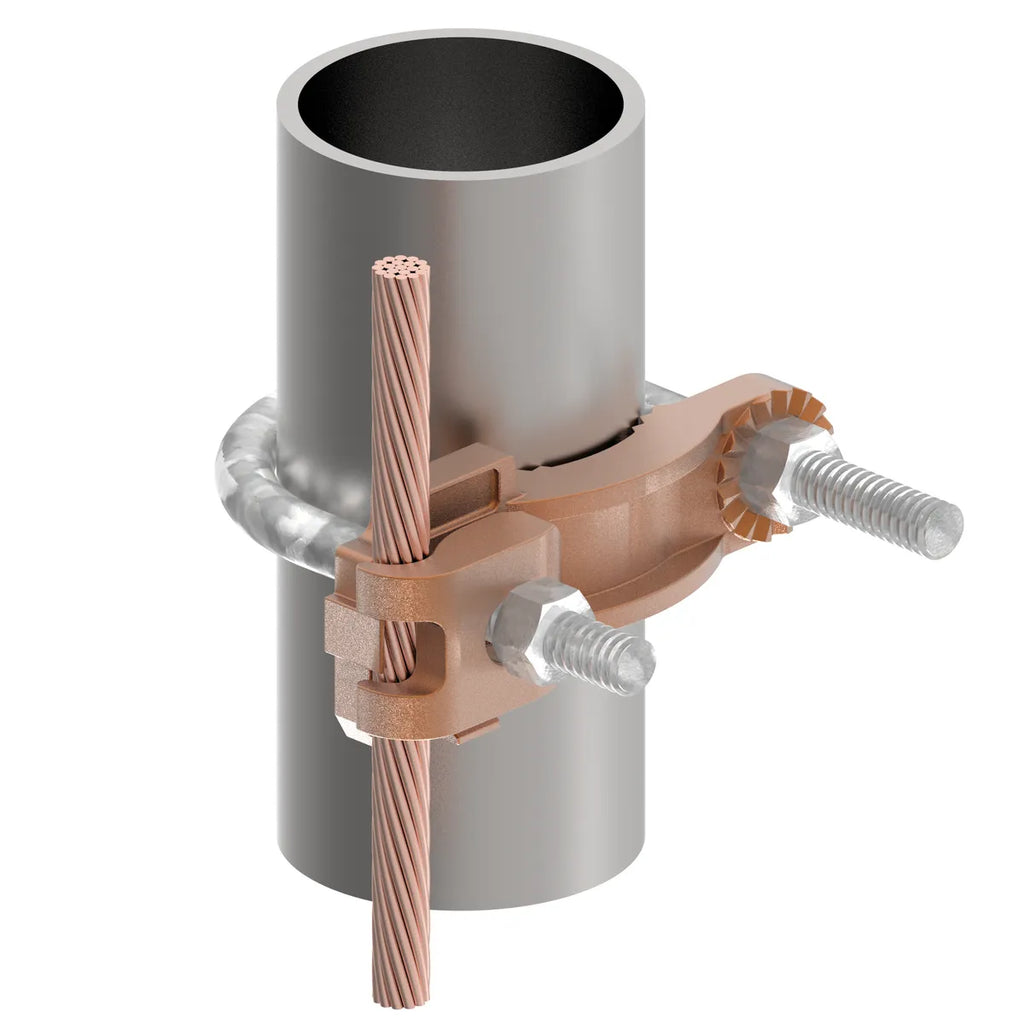

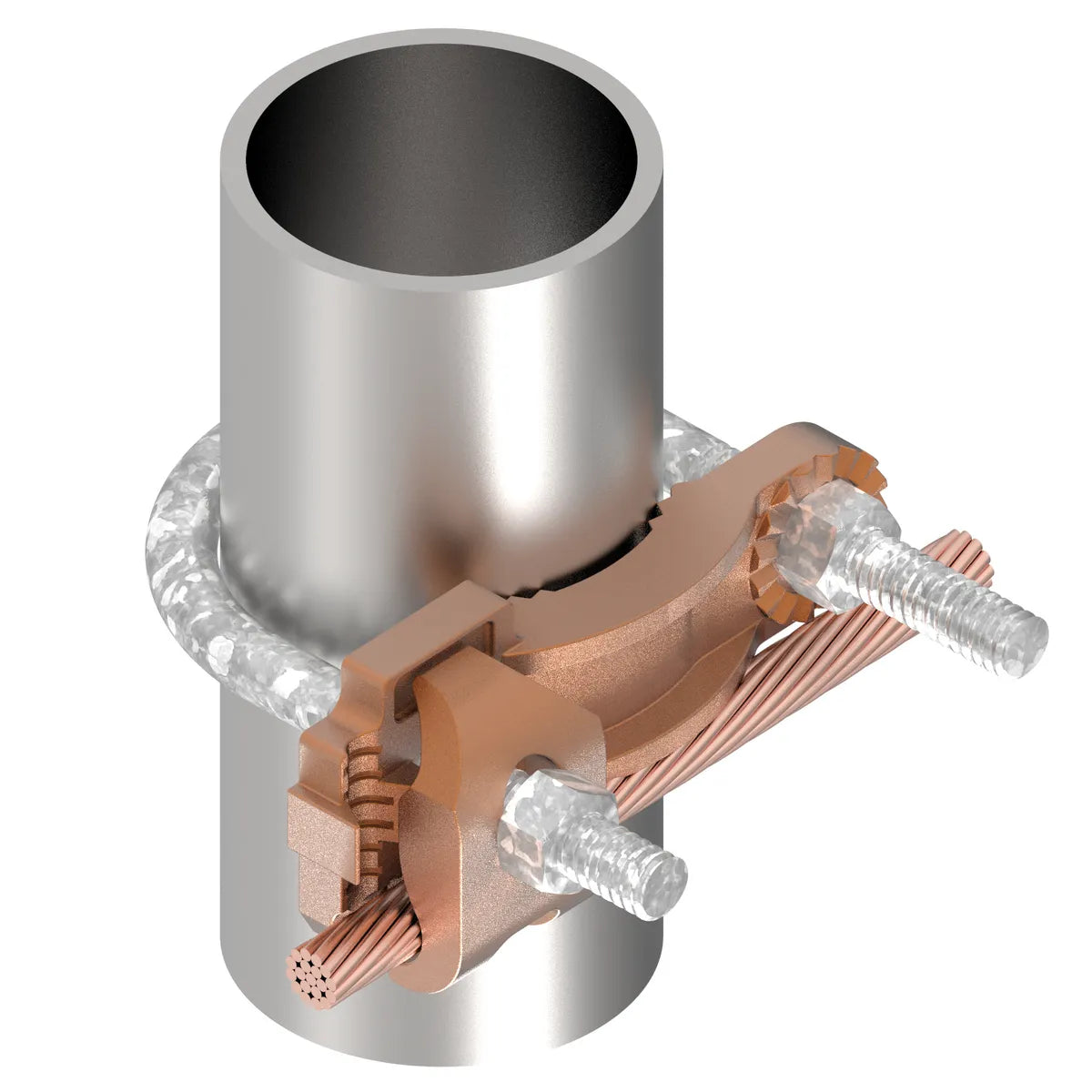

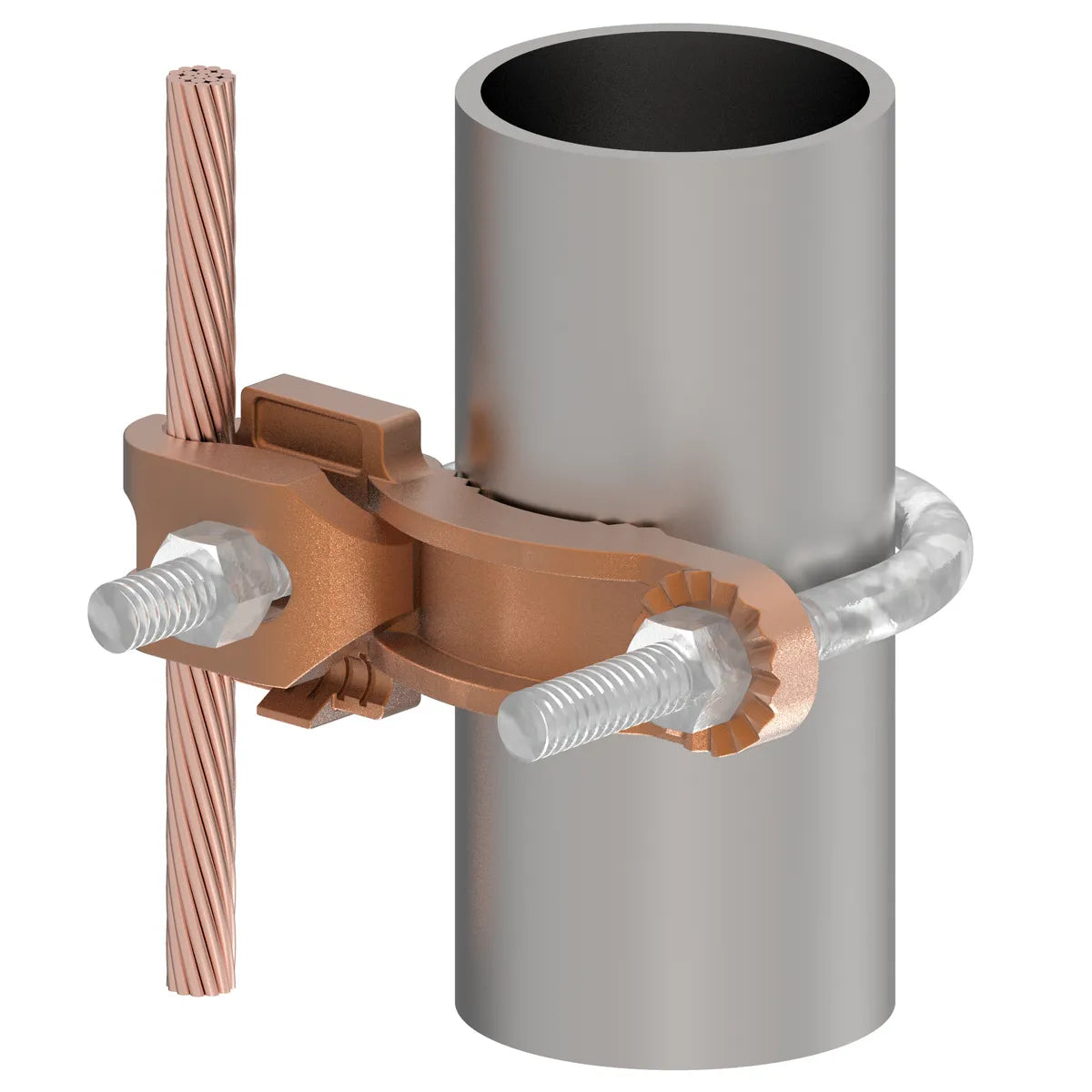

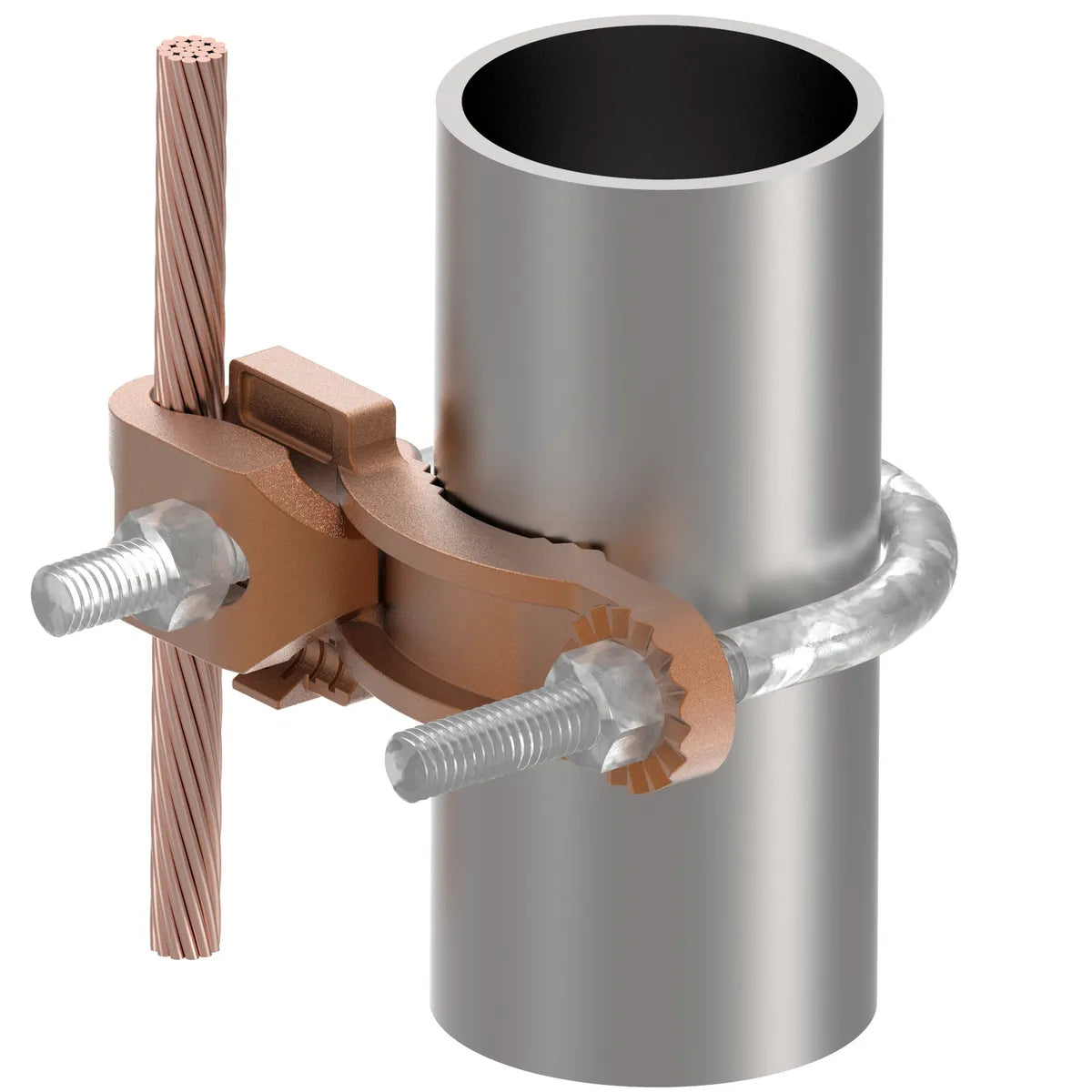

- Cable clamp swivels at 90 deg, permits parallel grounding of one pipe on a 90 deg cable run for grounding several parallel pipes
- One-wrench installation for simplified installation
- Rated for Direct Burial in earth or concrete
- UL467 Listed for the US and Canadian Markets
- Provides quality assurance to recognized industry NEC standards from an independent part
GENERAL SPECIFICATIONS
| Application |
For Connecting A Small To Medium Range Copper Ground Conductor To Water Pipe As Well As Structural And Reinforcing Rod Shapes, Direct Burial Cables |
| Catalog Number |
GAR3904 |
| EU RoHS Indicator |
Yes |
| Installation Torque Recommended in-lb |
200 LBS/in |
| Material |
Copper Alloy |
| Material - Hardware |
Galvanized Steel |
| Plated |
N |
| Plating Type |
Unplated |
| Sub Brand |
MECHANICAL CONNECTOR |
| Type |
GAR3902 |
| U Bolt Type |
1033G |
| UPC |
7.8181E+11 |
| UPC 14 Digit GTIN |
7.8181E+11 |
Dimensions
| Dimension - B Length inch |
1.75 in |
| Dimension - Height inch |
6.50 in |
| Dimension - Height mm |
165.1 mm |
| Dimension - Length Overall inch |
1.75 in |
| Dimension - Outside Diameter inch |
4.00 in |
| Dimension - Width inch |
6.00 in |
| Dimension - Width mm |
152 mm |
Conductor Related
| Conductor - Copper Solid Size Range |
4 AWG - 4/0 AWG |
| Conductor - Copper Str Size |
4;3;2;1;1/0;2/0;3/0;4/0 |
| Conductor - Copper Str Size Range |
4 AWG - 4/0 AWG |
| Conductor - Copper Tube Std Size |
2 1/2;3 1/2 |
| Conductor - Copper Tube Std Size Range |
2 1/2-3 1/2 |
| Conductor - Pipe or Round Tube Size |
2.5 - 3.5 in |
Force Related
| Installation Torque Recommended in-lb |
200 LBS/in |
Logistics
| Carton Quantity |
12 |
| Minimum Pack Quantity |
1 |
| Pallet Quantity |
1092 |
PRODUCT DATASHEET
GAR3904
