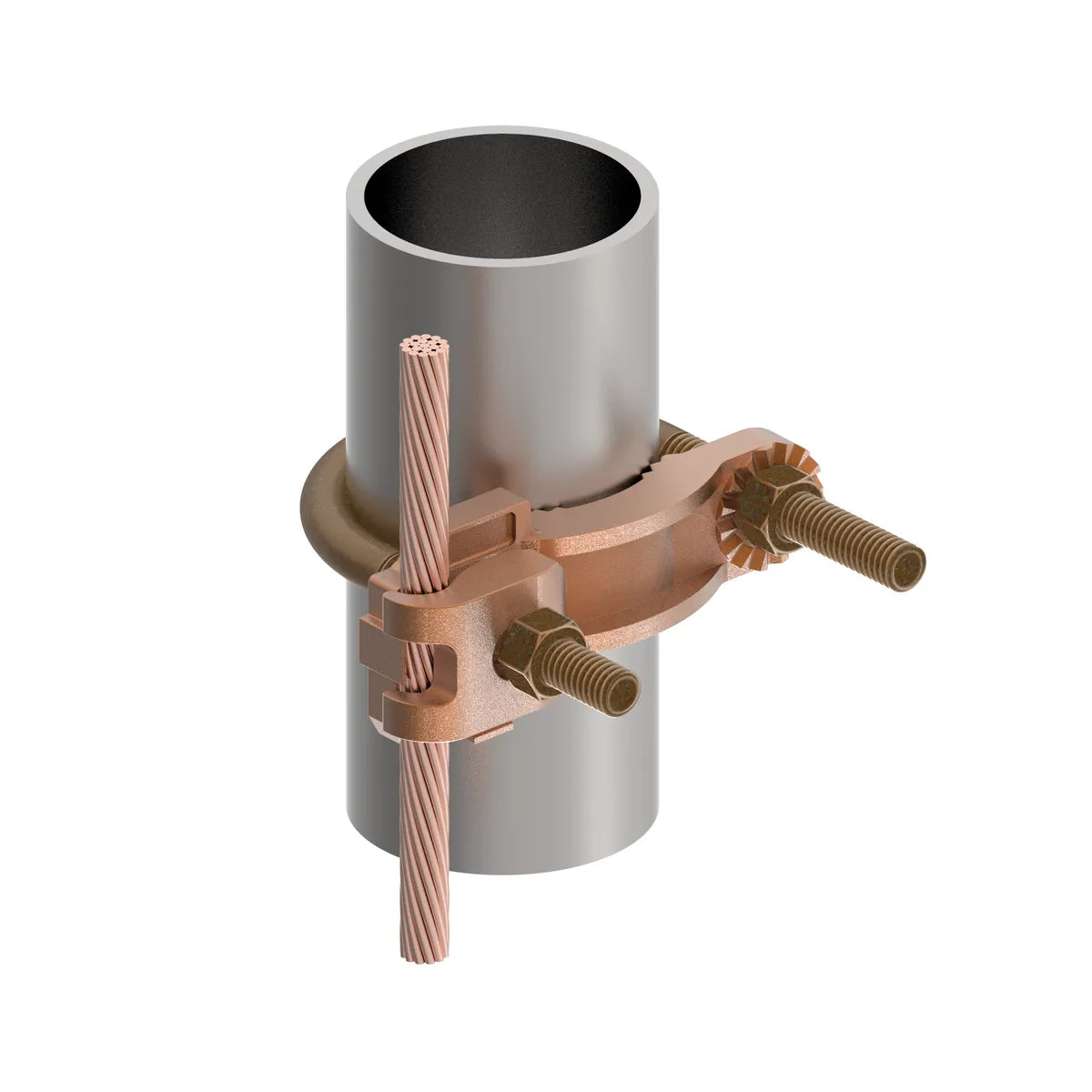

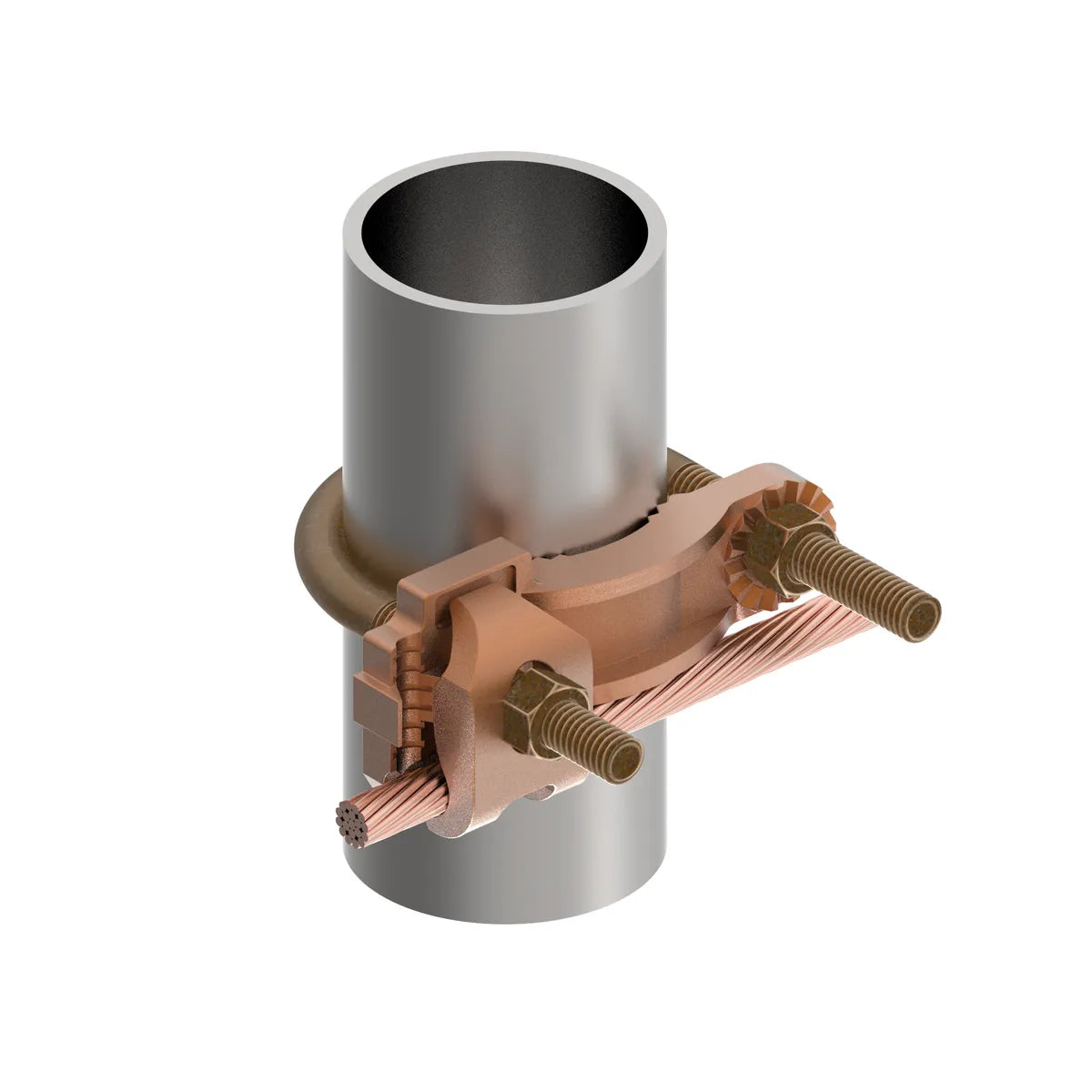

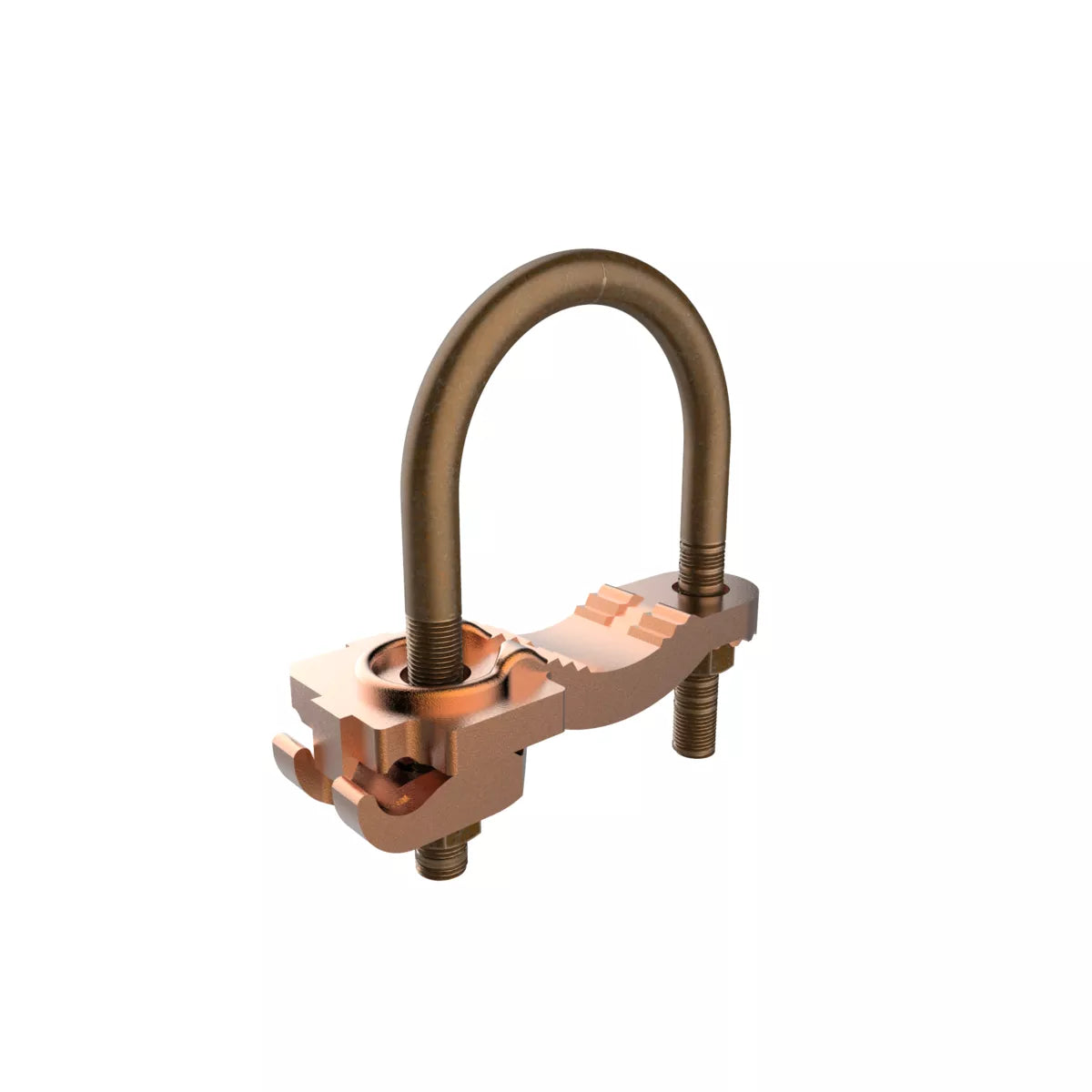

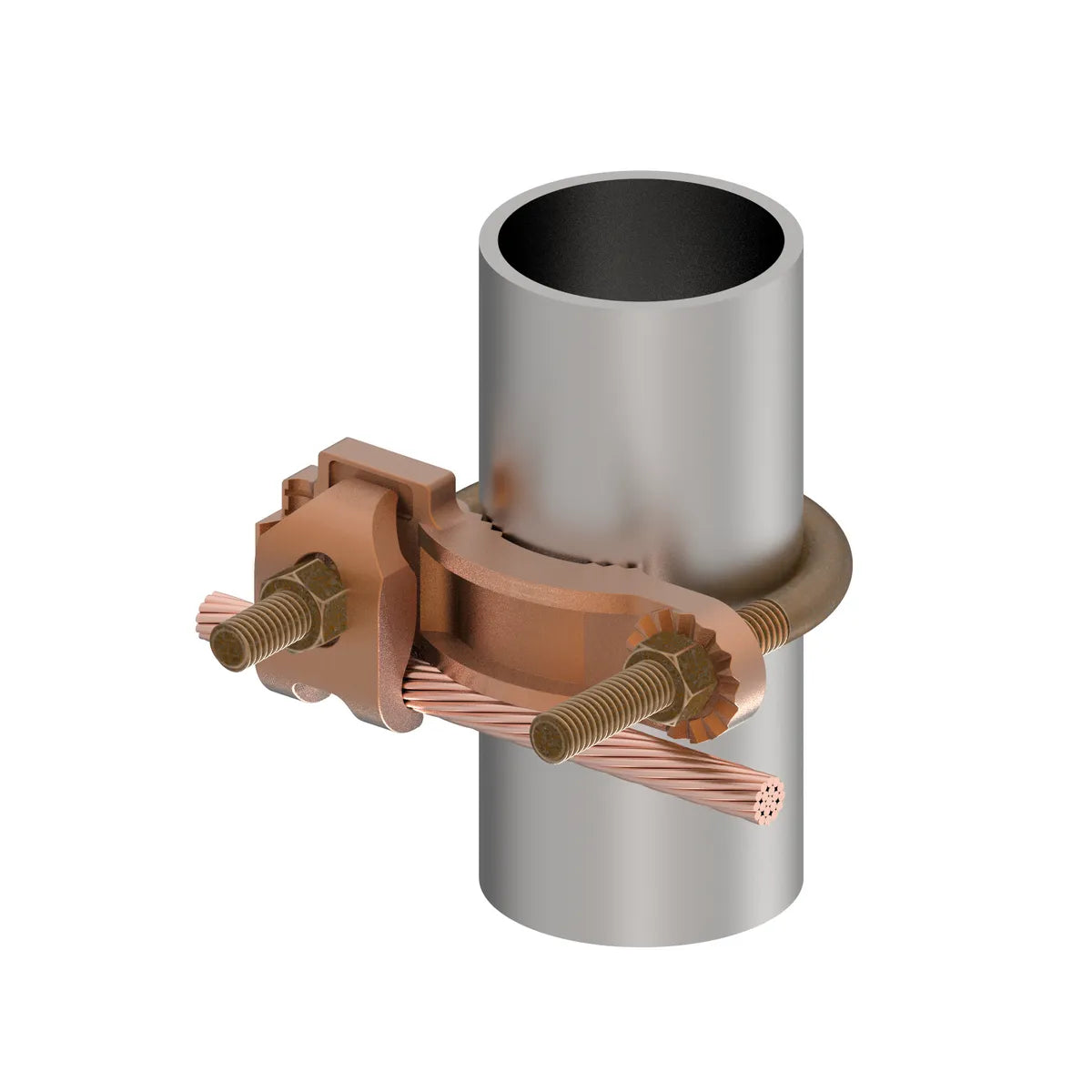

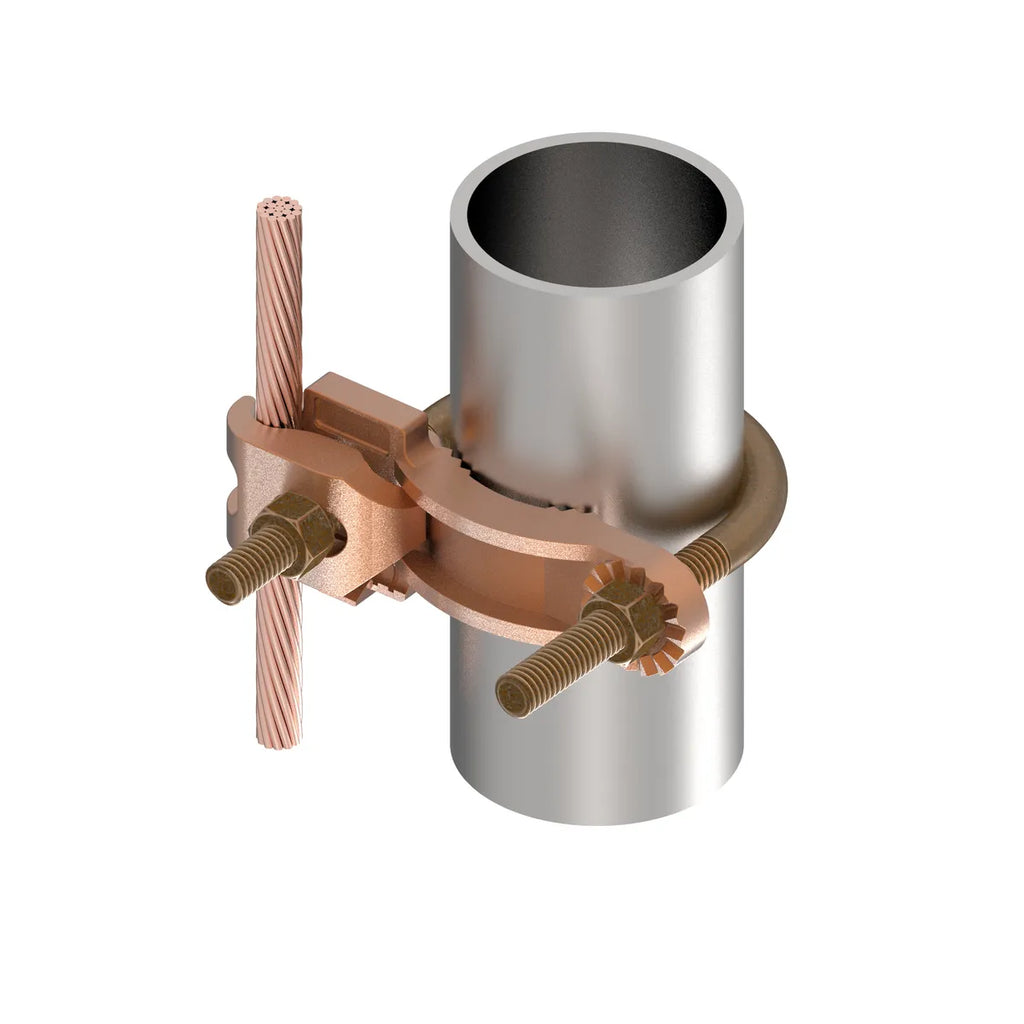

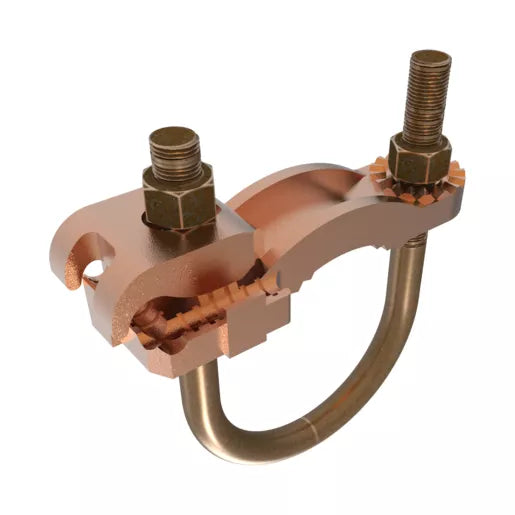

GAR3904BU - Burndy - 2-1/2" to 3-1/2" Pipe 3/8" Stud Mechanical Grounding Connector
Mechanical Grounding Connector, Conductor to Pipe, 4-4/0 AWG, 2-1/2"-3-1/2" Pipe, 3/8" Stud. Silicon bronze hardware.

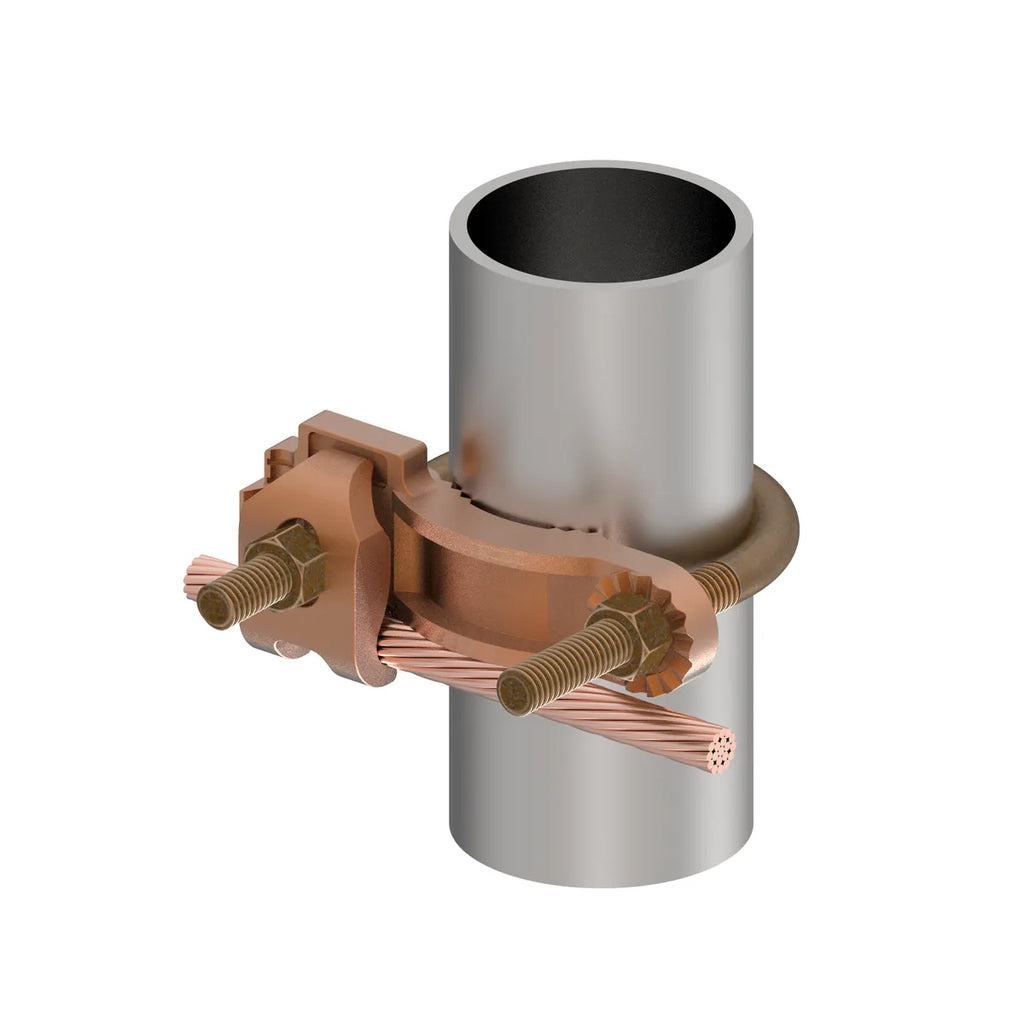

- Cable clamp swivels at 90°
- One-wrench installation for simplified installation
- Rated for Direct Burial in earth or concrete
- UL467 Listed for the US and Canadian Markets
- High conductivity copper ground connector for connecting a small/medium range copper ground conductor to water pipe, structural, and reinforcing rod shapes
GENERAL SPECIFICATIONS
| Application | For Connecting A Small To Medium Range Copper Ground Conductor To Water Pipe As Well As Structural And Reinforcing Rod Shapes |
| Catalog Number | GAR3904BU |
| EU RoHS Indicator | Yes |
| Installation Torque Recommended in-lb | 200 LBS/in |
| Material | Copper Alloy |
| Material - Hardware | DURIUM™ Silicon Bronze |
| Plated | N |
| Plating Type | Unplated |
| Sub Brand | MECHANICAL CONNECTOR |
| Type | GAR-BU |
| U Bolt Type | 1033 |
| UPC | 781810001516 |
| UPC 14 Digit GTIN | 00781810001516 |
Dimensions
| Dimension - B Length inch | 1.75 in |
| Dimension - Height inch | 6.50 in |
| Dimension - Height mm | 165.1 mm |
| Dimension - Length Overall inch | 1.75 in |
| Dimension - Outside Diameter inch | 4.00 in |
| Dimension - Width inch | 6.00 in |
| Dimension - Width mm | 152 mm |
Conductor Related
| Conductor - Copper Solid Size Range | 4 AWG - 4/0 AWG |
| Conductor - Copper Str Size |
4;3;2;1;1/0;2/0;3/0;4/0 |
| Conductor - Copper Str Size Range | 4 AWG - 4/0 AWG |
| Conductor - Copper Tube Std Size | 2 1/2;3 1/2 |
| Conductor - Copper Tube Std Size Range | 2 1/2-3 1/2 |
| Conductor - Pipe or Round Tube Size | 2.5 - 3.5 in |
Force Related
|
Installation Torque Recommended in-lb |
200 LBS/in |
Logistics
| Carton Quantity | 10 |
| Minimum Pack Quantity | 1 |
|
Pallet Quantity |
1050 |
