GAR3904TC - Burndy - 2-1/2" to 3-1/2" IPS Mechanical Ground Connector

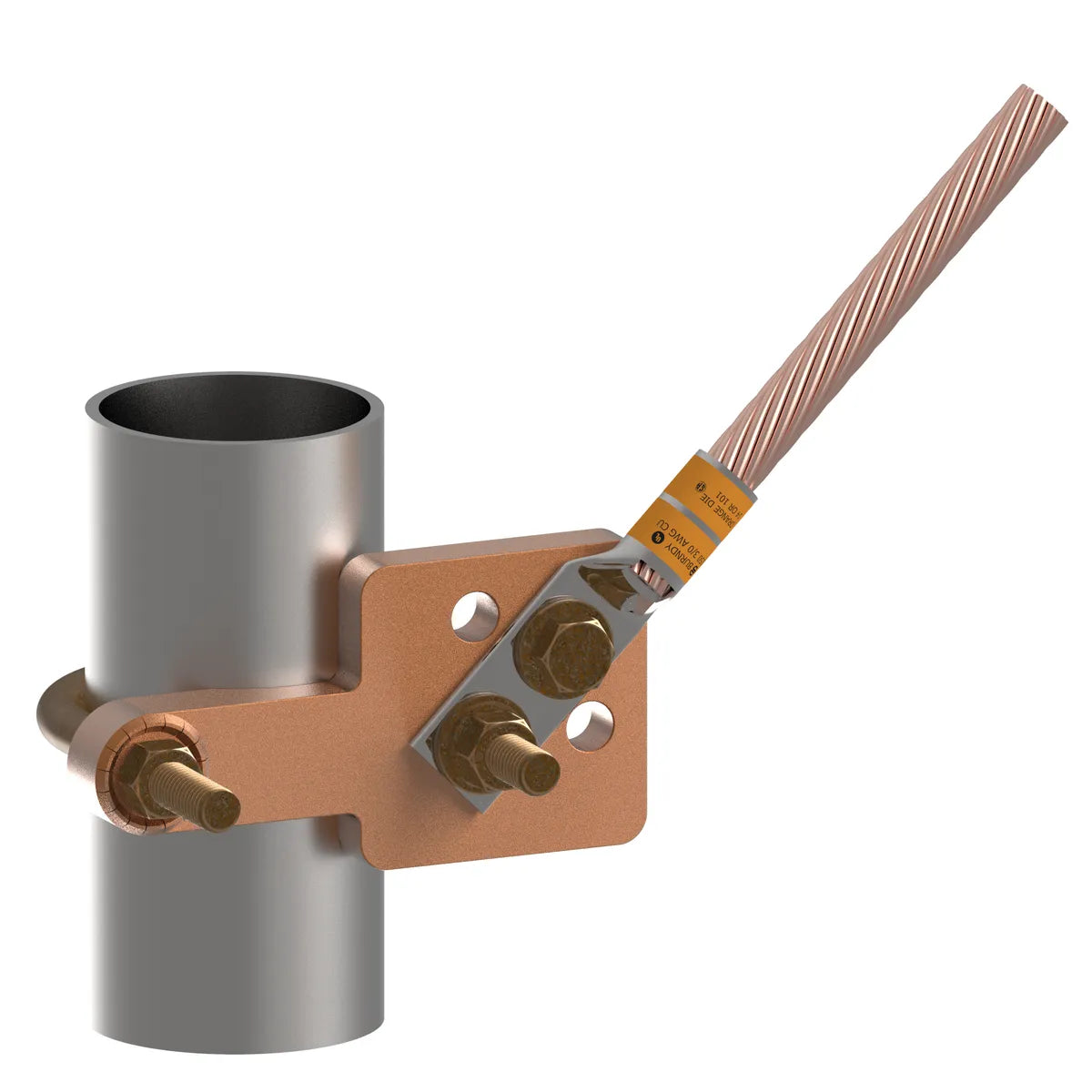

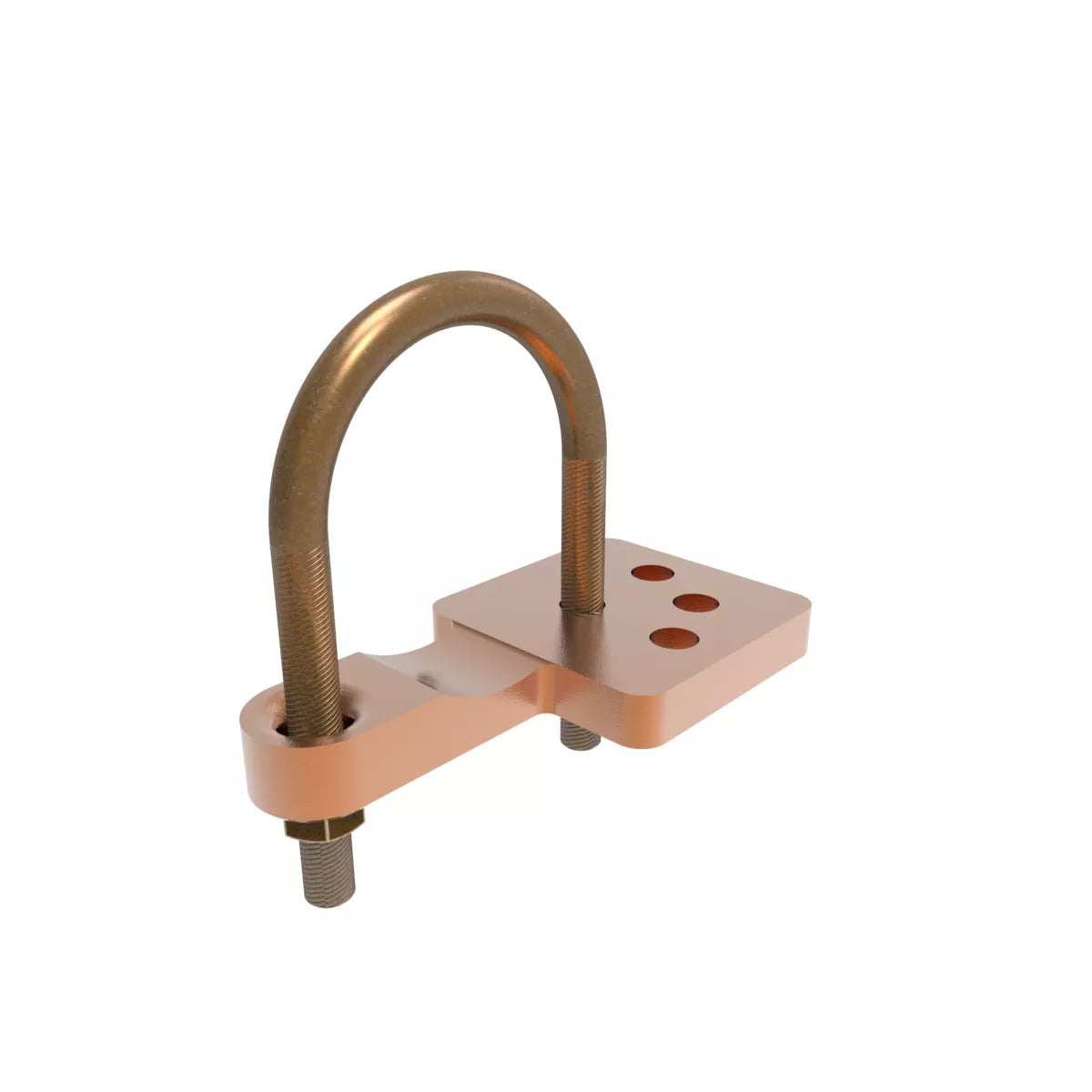

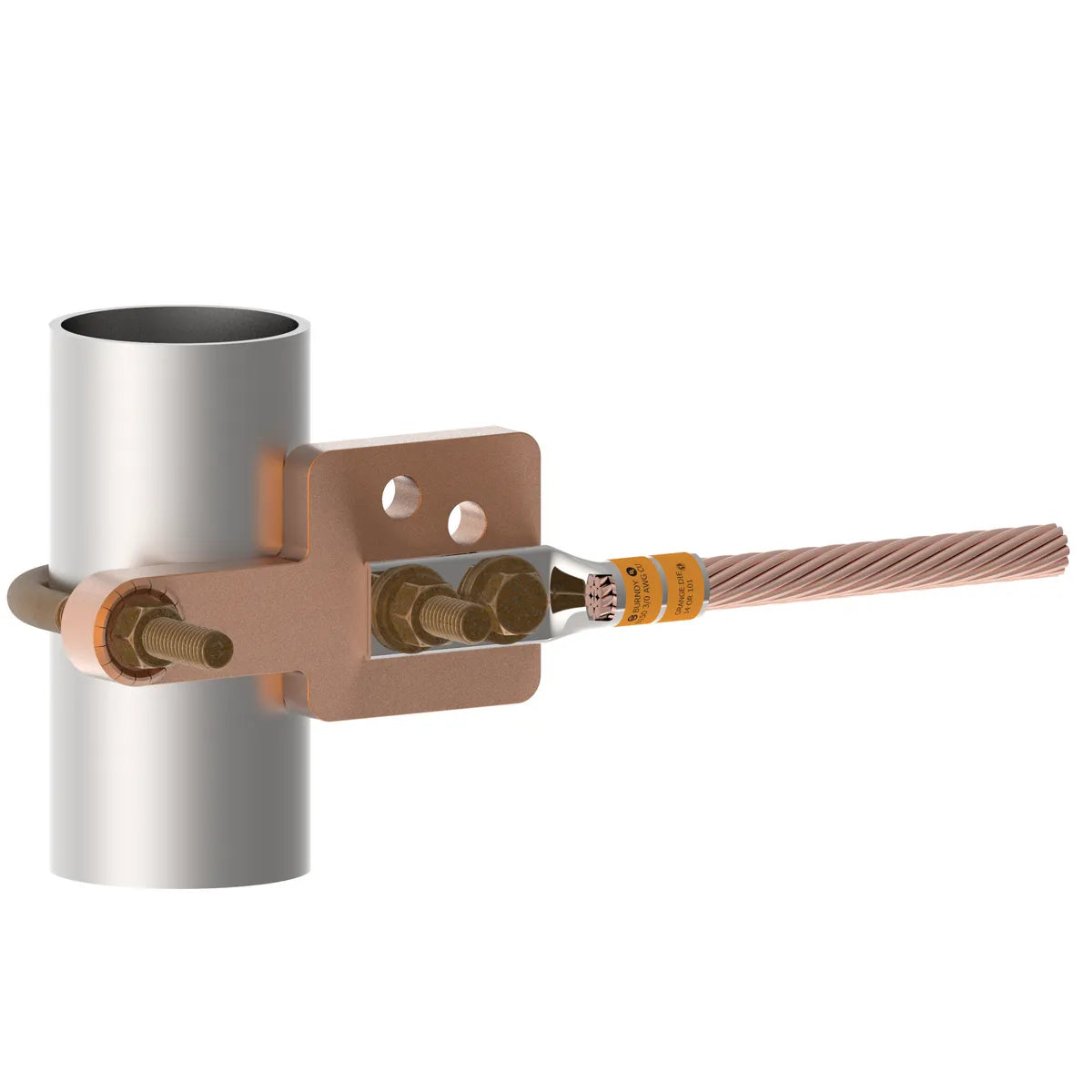

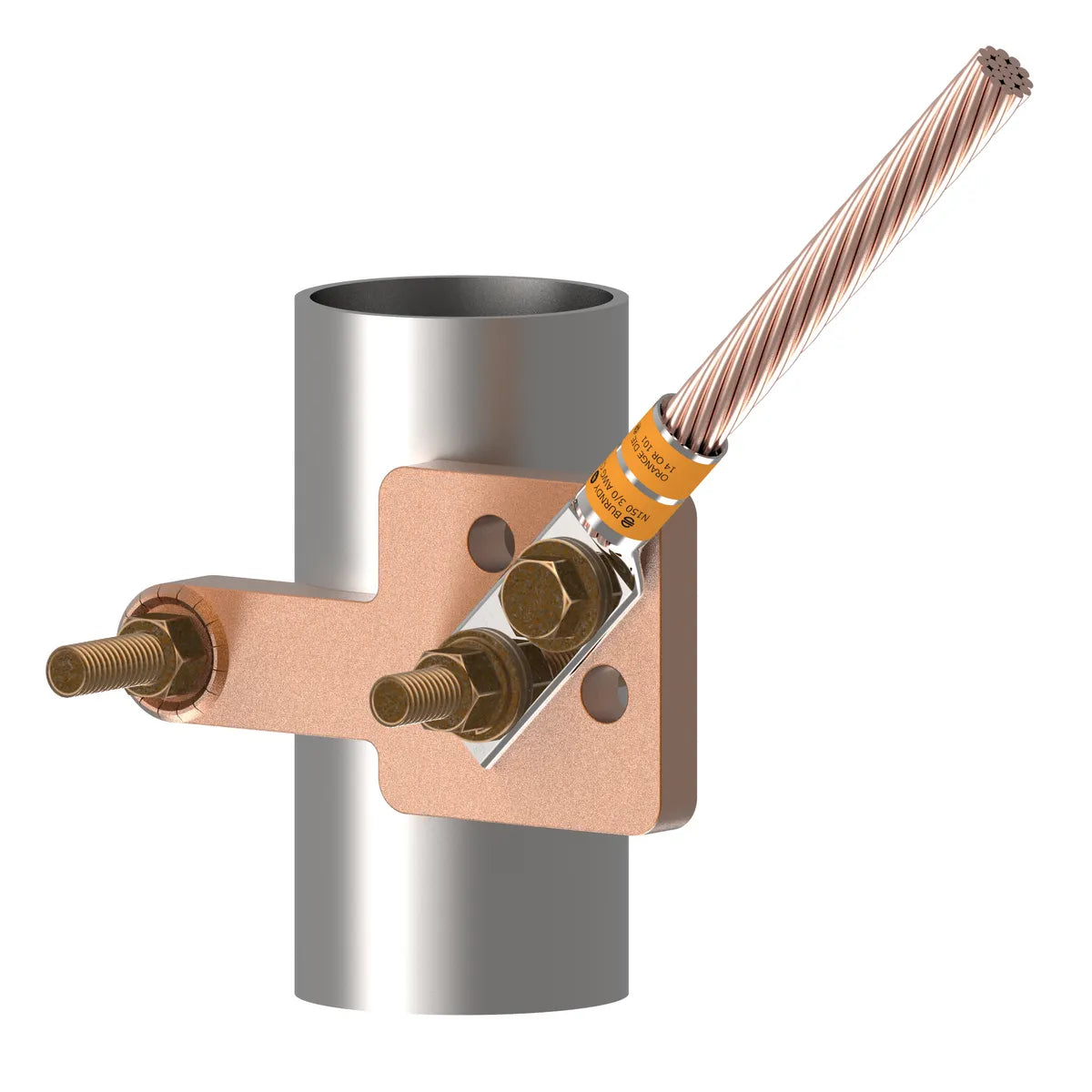

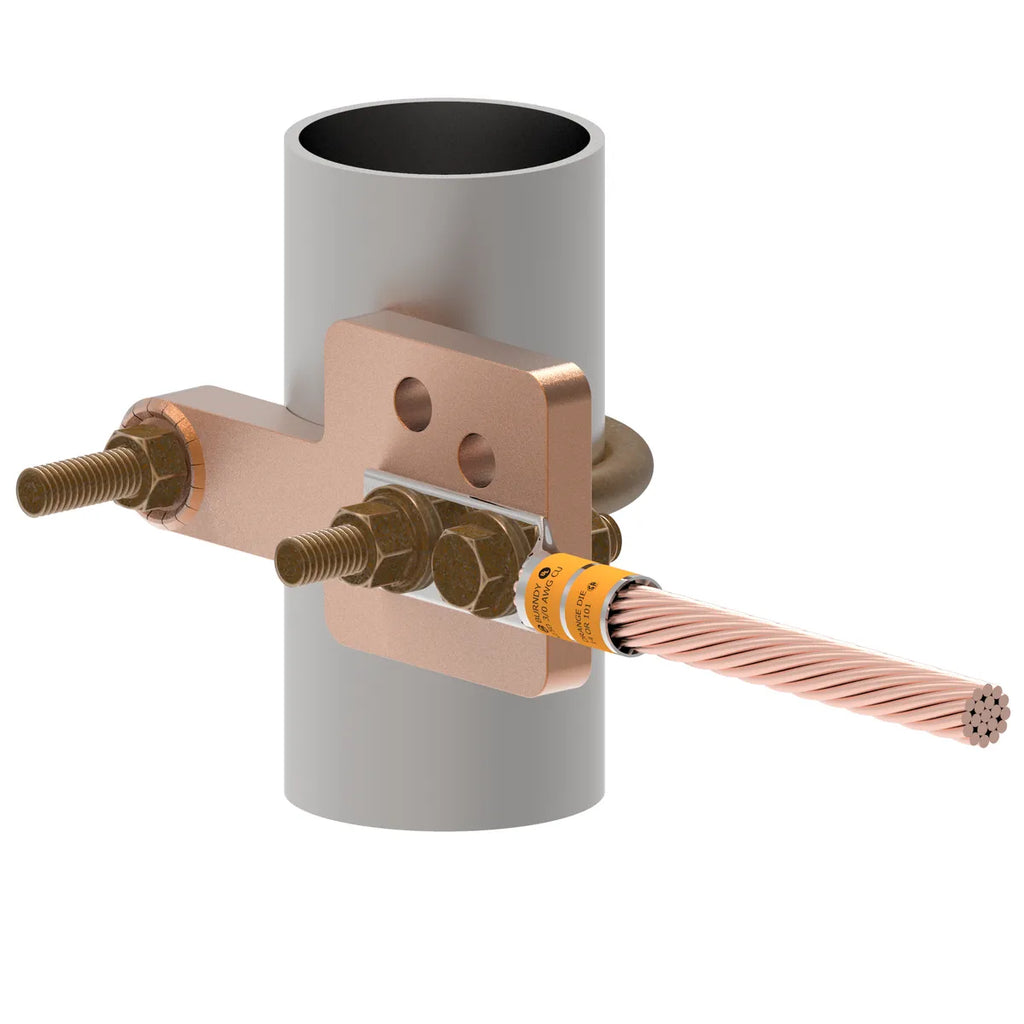

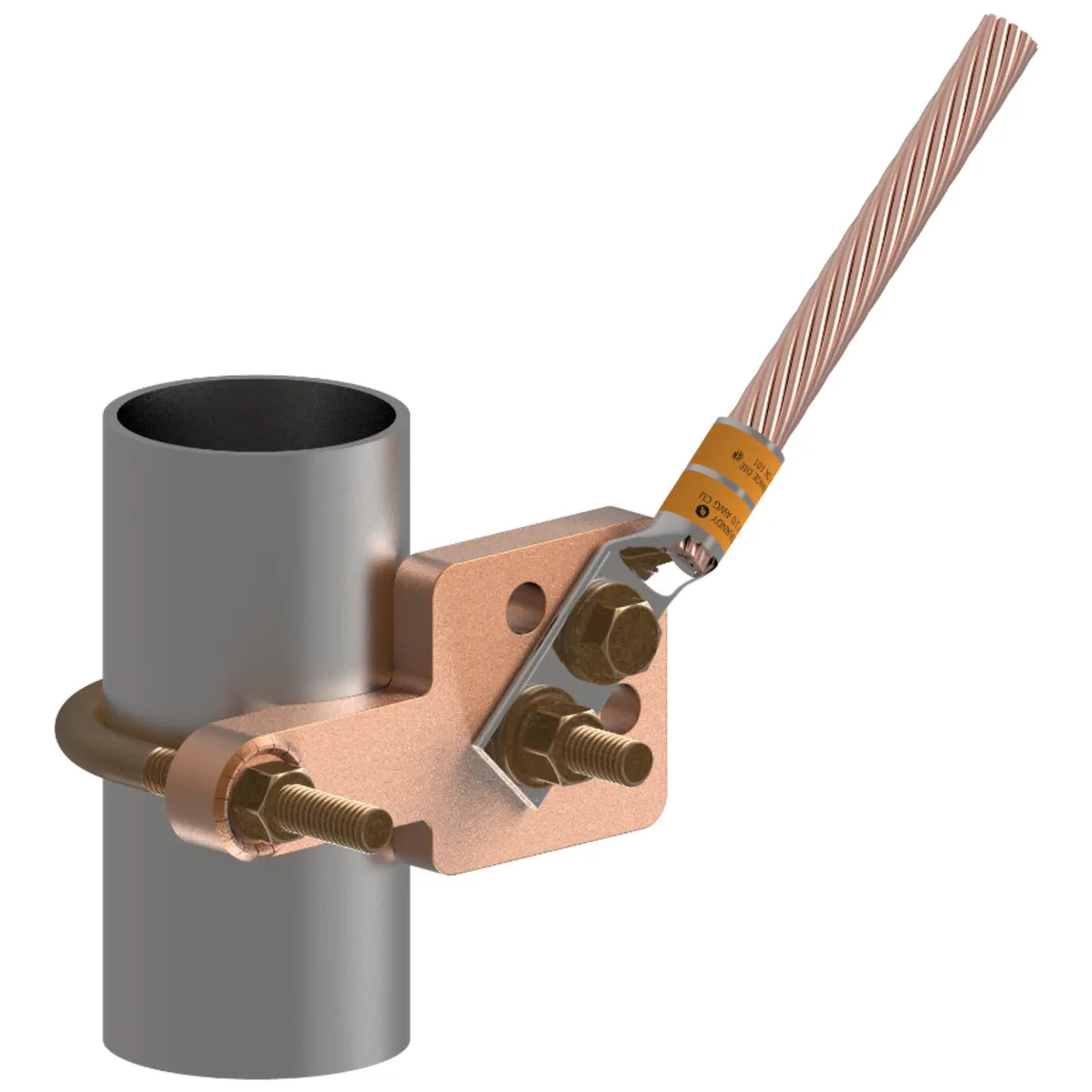

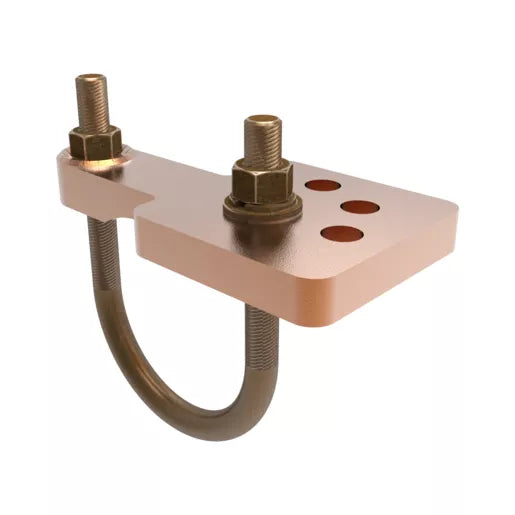

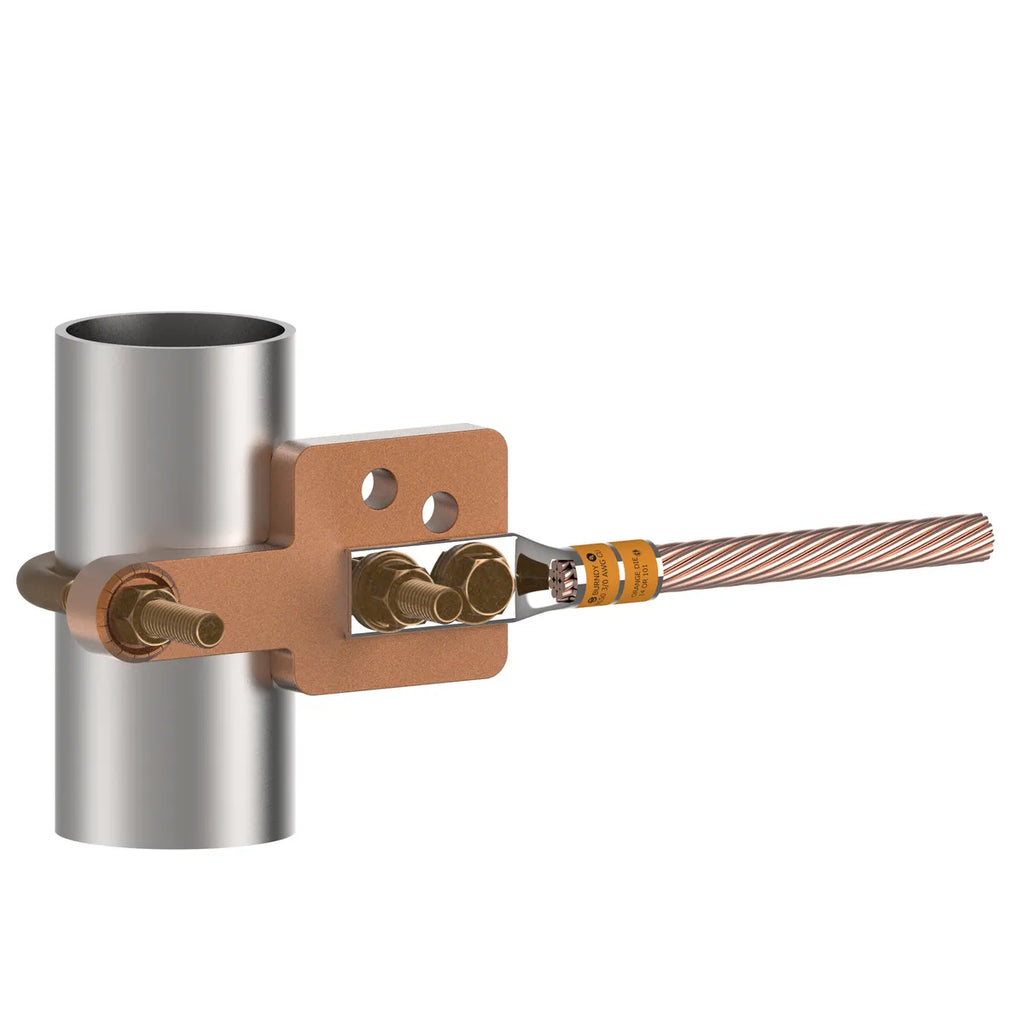

Mechanical Grounding Connector, For 2 Hole Lug to Pipe or Rod, 2-1/2"- 3-1/2" IPS. Pre-drilled pad for (2) 3/8” bolts on 1” centers. Silicon bronze hardware.
- Large, smooth connector contact area between the pipe and the ground clamp to maximize contact area between the connector and pipe
- Pre-drilled pad for 2-3/8" bolts on 1" centers to allow for direct mounting of 2-hole compression terminals up to 750 kcmil to pipe
- One-wrench installation
- UL467 Listed for the US and Canadian Markets
GENERAL SPECIFICATIONS
| Application | For Direct Burial, Water Pipe As Well As Structural And Reinforcing Rod Shapes |
| Catalog Number | GAR3904TC |
| EU RoHS Indicator | Yes |
| Installation Torque Recommended in-lb | 240 LBS/in |
| Material | Copper Alloy |
| Material - Hardware | DURIUM™ Silicon Bronze |
| Physical Attribute - Number of Holes | 3 |
| Physical Attribute - Pad Configuration | 2.50 x 2.50 - 3 Holes |
| Plated | N |
| Plating Type | Unplated |
| Sub Brand | MECHANICAL CONNECTOR |
| Type | Rod or Tube Clamp with Mounting Pad |
| U Bolt Type | 1033 |
| UPC | 781810001578 |
| UPC 14 Digit GTIN | 00781810001578 |
Dimensions
| Dimension - Bolt Size fraction | 3/8 |
| Dimension - Height inch | 6.50 in |
| Dimension - Height mm | 165.1 mm |
|
Dimension - Length Overall inch |
2.50 in |
| Dimension - Outside Diameter inch | 4.00 in |
| Dimension - Thread Size | 3/8-16 |
| Dimension - Threads per inch | 16 |
| Dimension - Width inch | 6.50 in |
| Dimension - Width mm | 165 mm |
Conductor Related
| Conductor - Copper Tube Std Size | 2 1/2;3 1/2 |
| Conductor - Copper Tube Std Size Range | 2 1/2-3 1/2 |
| Conductor - Pipe or Round Tube Size | 2.5 - 3.5 in |
Force Related
|
Installation Torque Recommended in-lb |
240 LBS/in |
Logistics
| Carton Quantity | 10 |
| Minimum Pack Quantity | 1 |
|
Pallet Quantity |
1050 |
PRODUCT DATASHEET
