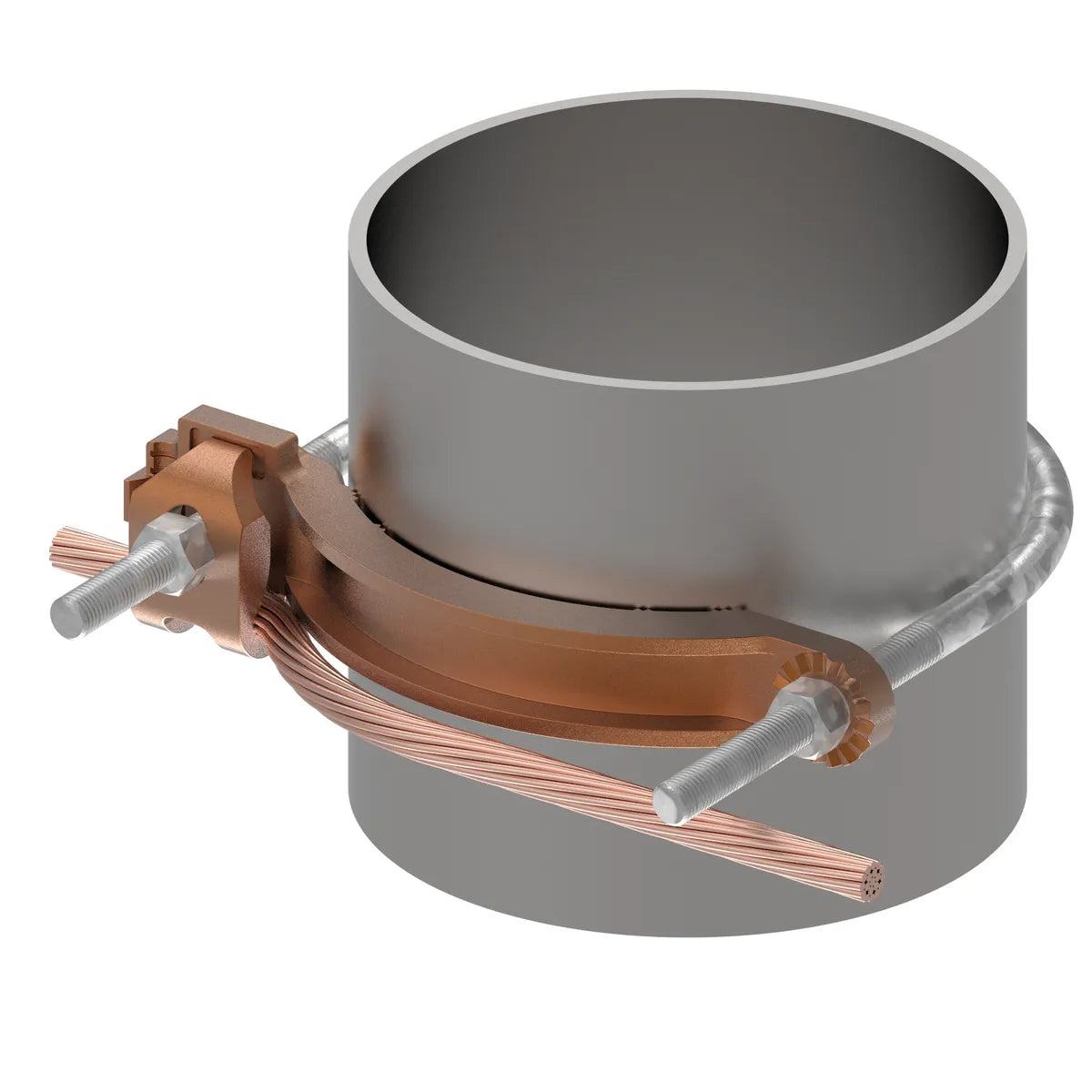

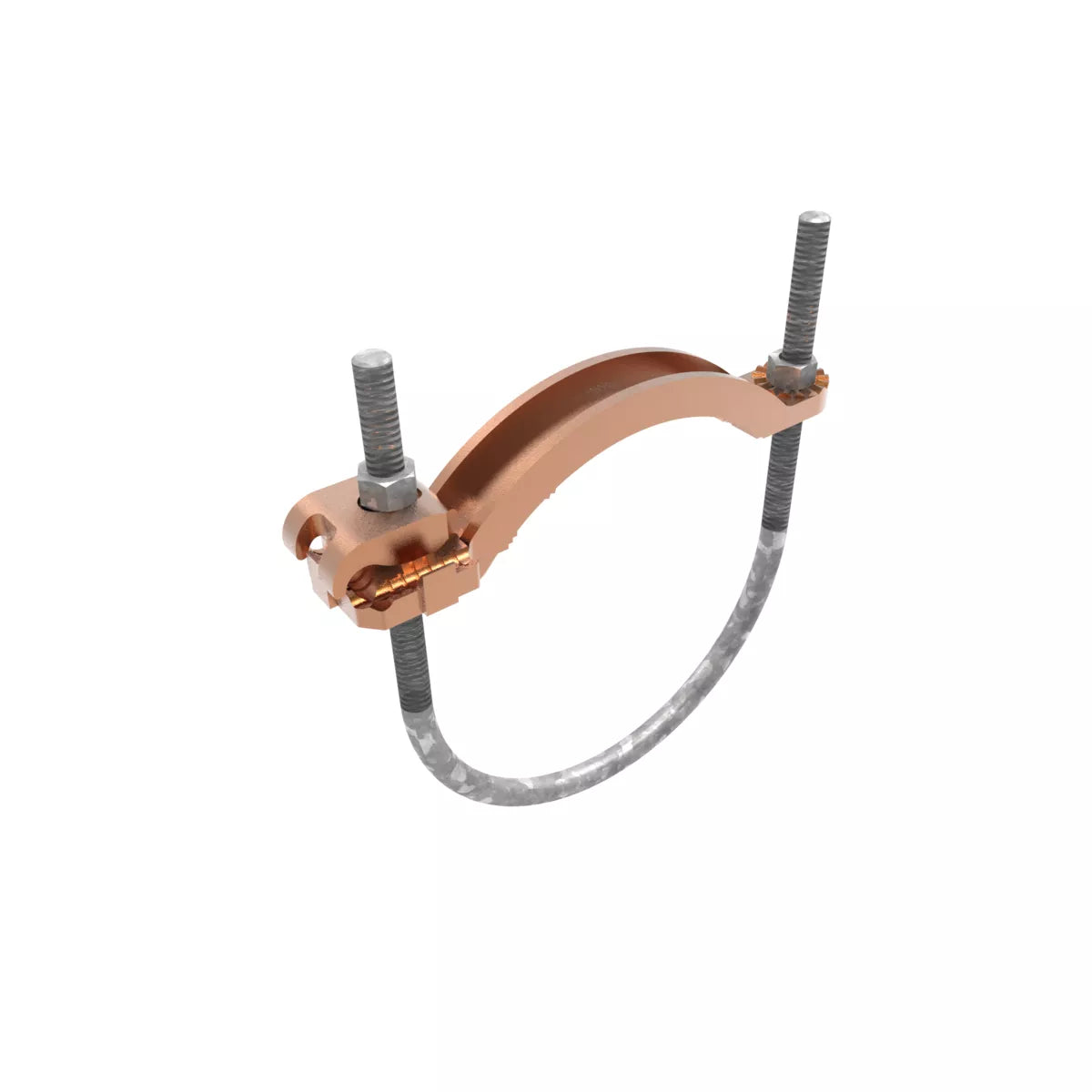

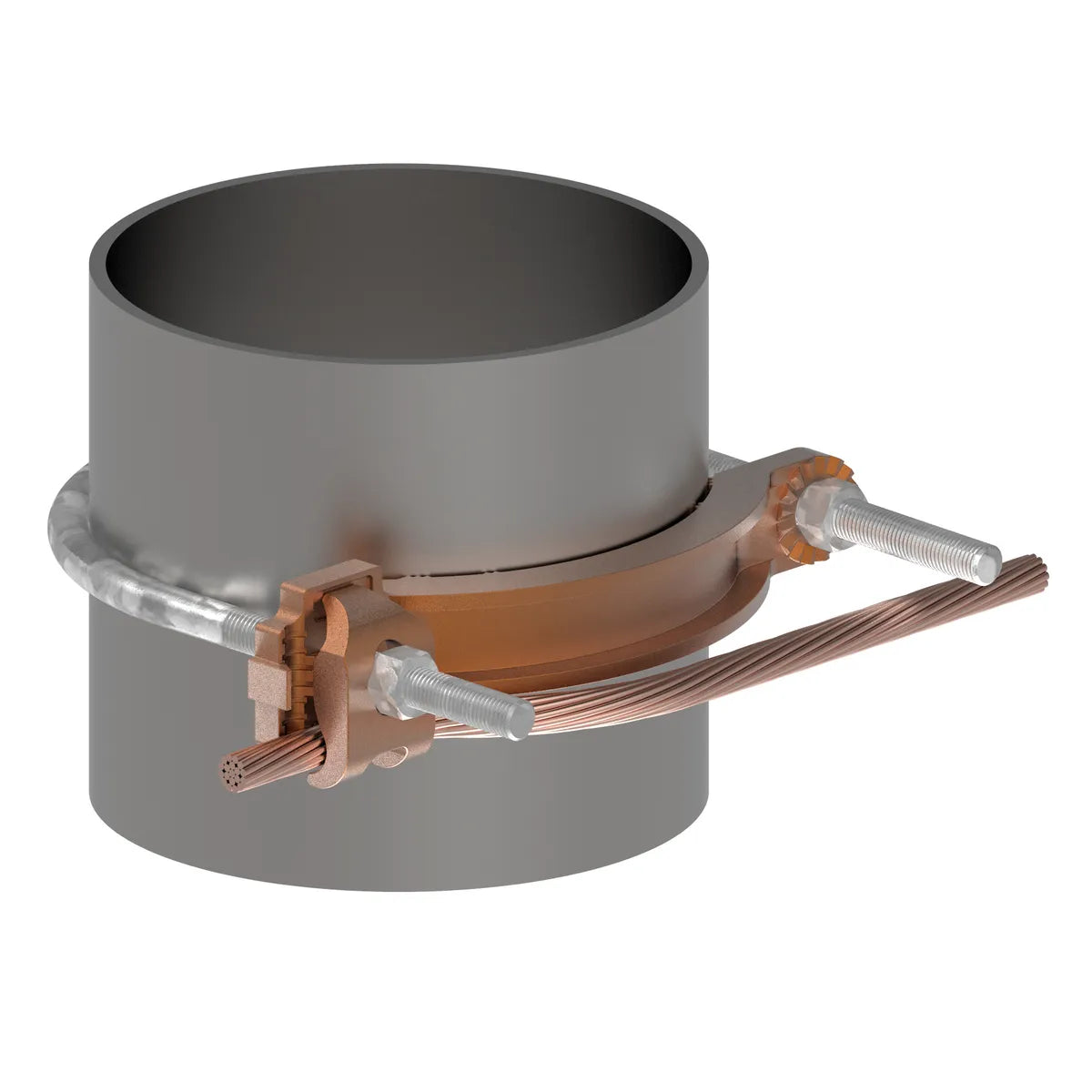

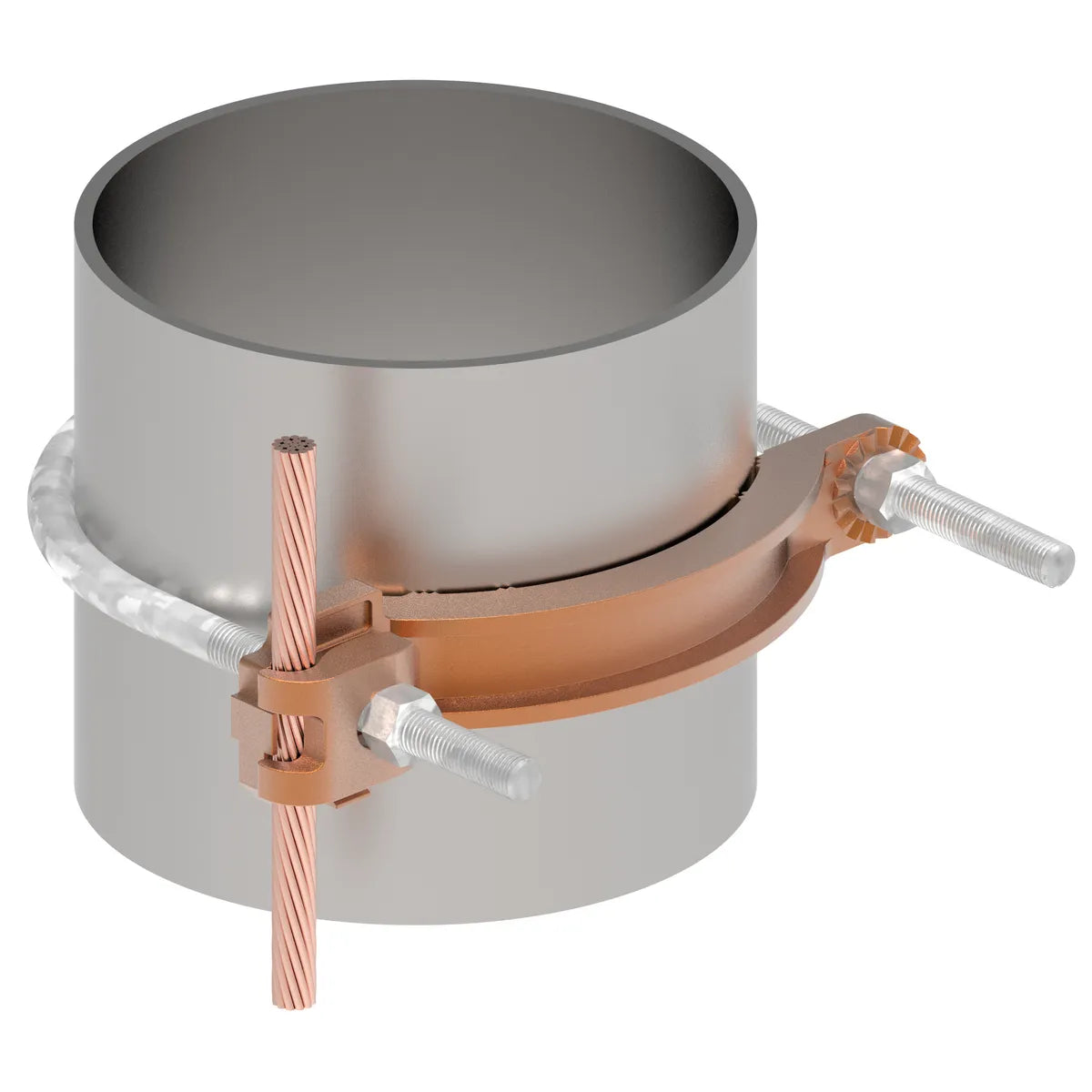

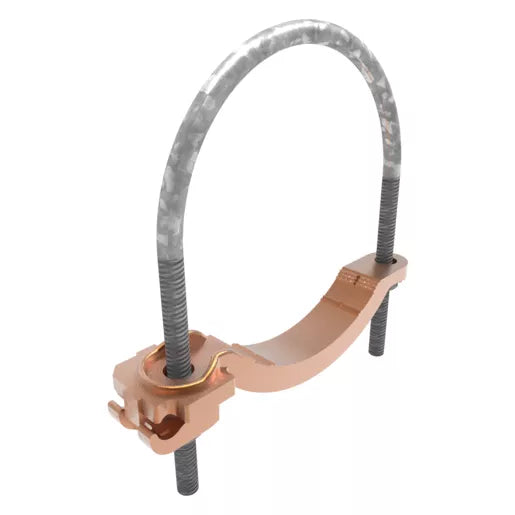

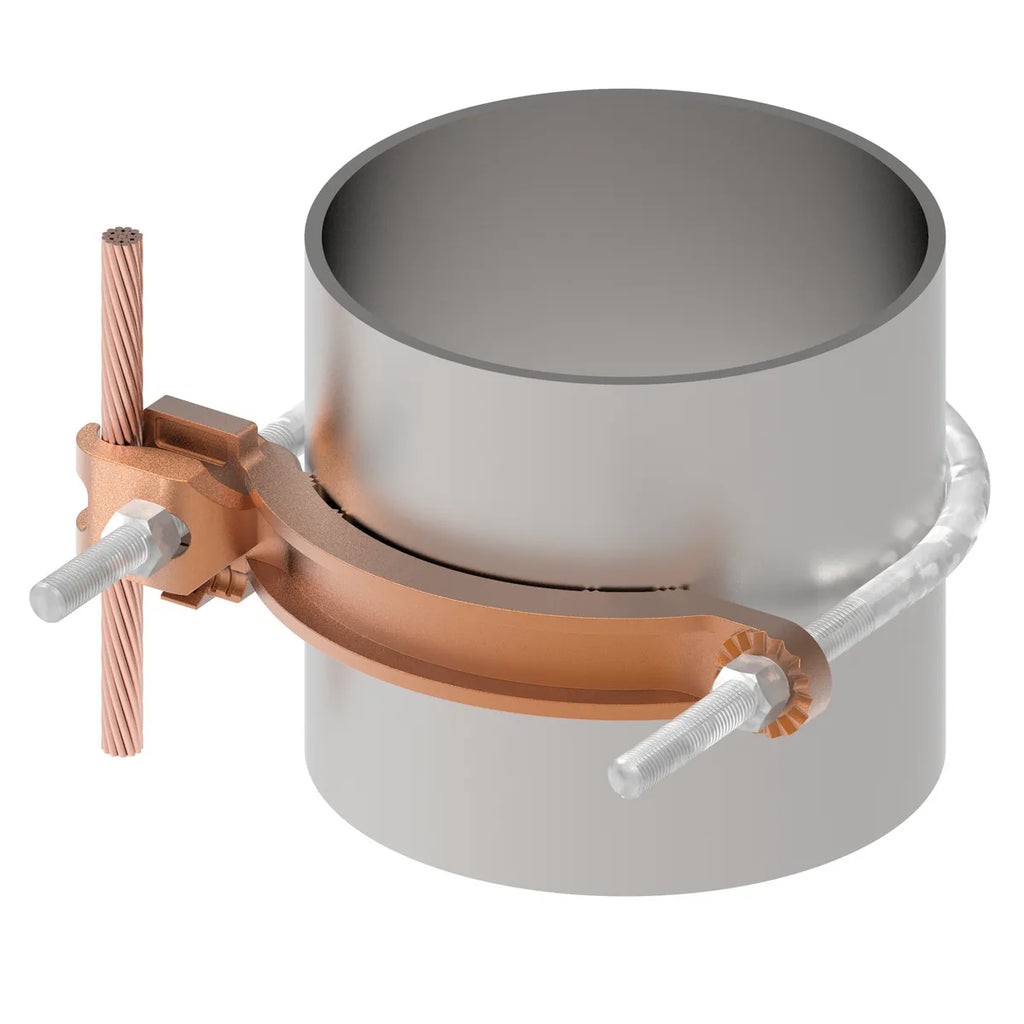

GAR3905 - Burndy - 4" to 5" Pipe 3/8" Stud Mechanical Grounding Connector
Mechanical Grounding Connector, Conductor to Water Pipe, 4-4/0 AWG, 4" - 5" Pipe, 3/8" Stud. Galvanized Steel Hardware.
- Cable clamp swivels at 90°, permits parallel grounding of one pipe on a 90° cable run for grounding several parallel pipes
- One-wrench installation for simplified installation
- Rated for Direct Burial in earth or concrete
- UL467 Listed for the US and Canadian Markets
- Provides quality assurance to recognized industry NEC standards from an independent part
GENERAL SPECIFICATIONS
| Application | For Connecting A Small To Medium Range Copper Ground Conductor To Water Pipe As Well As Structural And Reinforcing Rod Shapes, Direct Burial Cables |
| Catalog Number | GAR3905 |
| EU RoHS Indicator | Yes |
| Installation Torque Recommended in-lb | 200 LBS/in |
| Material | Copper Alloy |
| Material - Hardware | Galvanized Steel |
| Plated | N |
| Plating Type | Unplated |
| Sub Brand | MECHANICAL CONNECTOR |
| Type | GAR3902 |
| U Bolt Type | 422G |
| UPC | 781810234044 |
| UPC 14 Digit GTIN | 00781810234044 |
Dimensions
| Dimension - B Length inch | 1.75 in |
| Dimension - Height inch | 7.50 in |
| Dimension - Height mm | 190.5 mm |
| Dimension - length Overall inch | 1.75 in |
| Dimension - Outside Diameter inch | 5.56 in |
| Dimension - Width inch | 7.50 in |
| Dimension - Width mm | 191 mm |
Conductor Related
| Conductor - Copper Solid Size Range | 4 AWG - 4/0 AWG |
| Conductor - Copper Str Size |
4;3;2;1;1/0;2/0;3/0;4/0 |
| Conductor - Copper Str Size Range | 4 AWG - 4/0 AWG |
| Conductor - Copper Tube Std Size | 4;5 |
| Conductor - Copper Tube Std Size Range | 4-5 |
| Conductor - Pipe or Round Tube Size | 4 - 5 in |
Force Related
|
Installation Torque Recommended in-lb |
200 LBS/in |
Logistics
| Carton Quantity | 12 |
| Minimum Pack Quantity | 1 |
|
Pallet Quantity |
1092 |
PRODUCT DATASHEET
