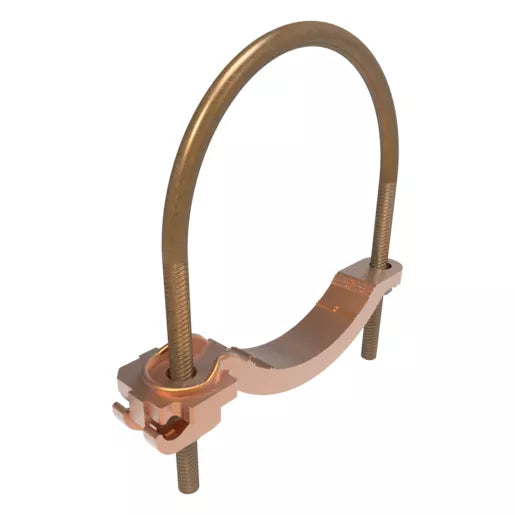

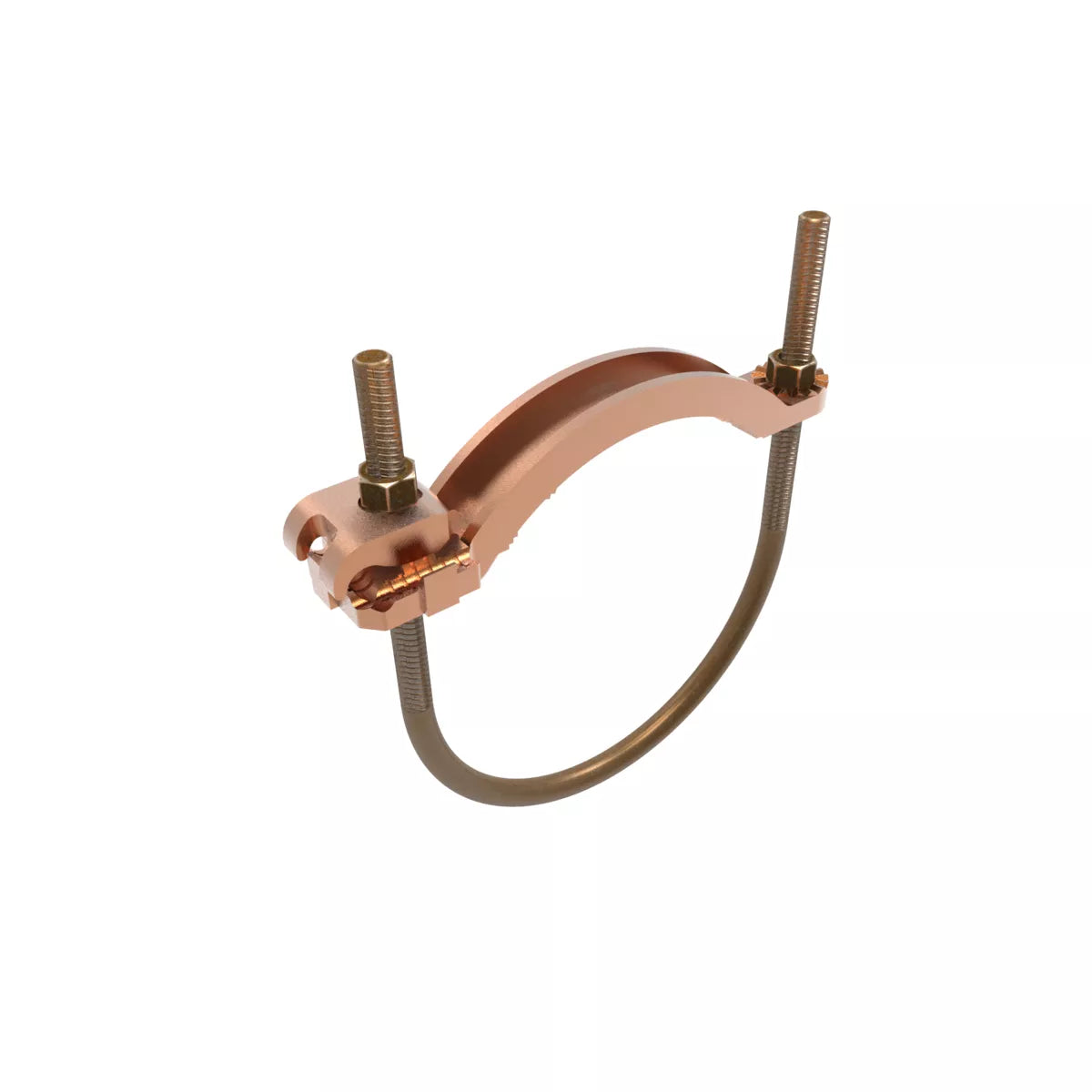

GAR3905BU - Burndy - 4" to 5" Pipe 3/8" Stud Mechanical Grounding Connector
Mechanical Grounding Connector, Conductor to Water Pipe, 4-4/0 AWG, 4"-5" Pipe, 3/8" Stud. Silicon bronze hardware.

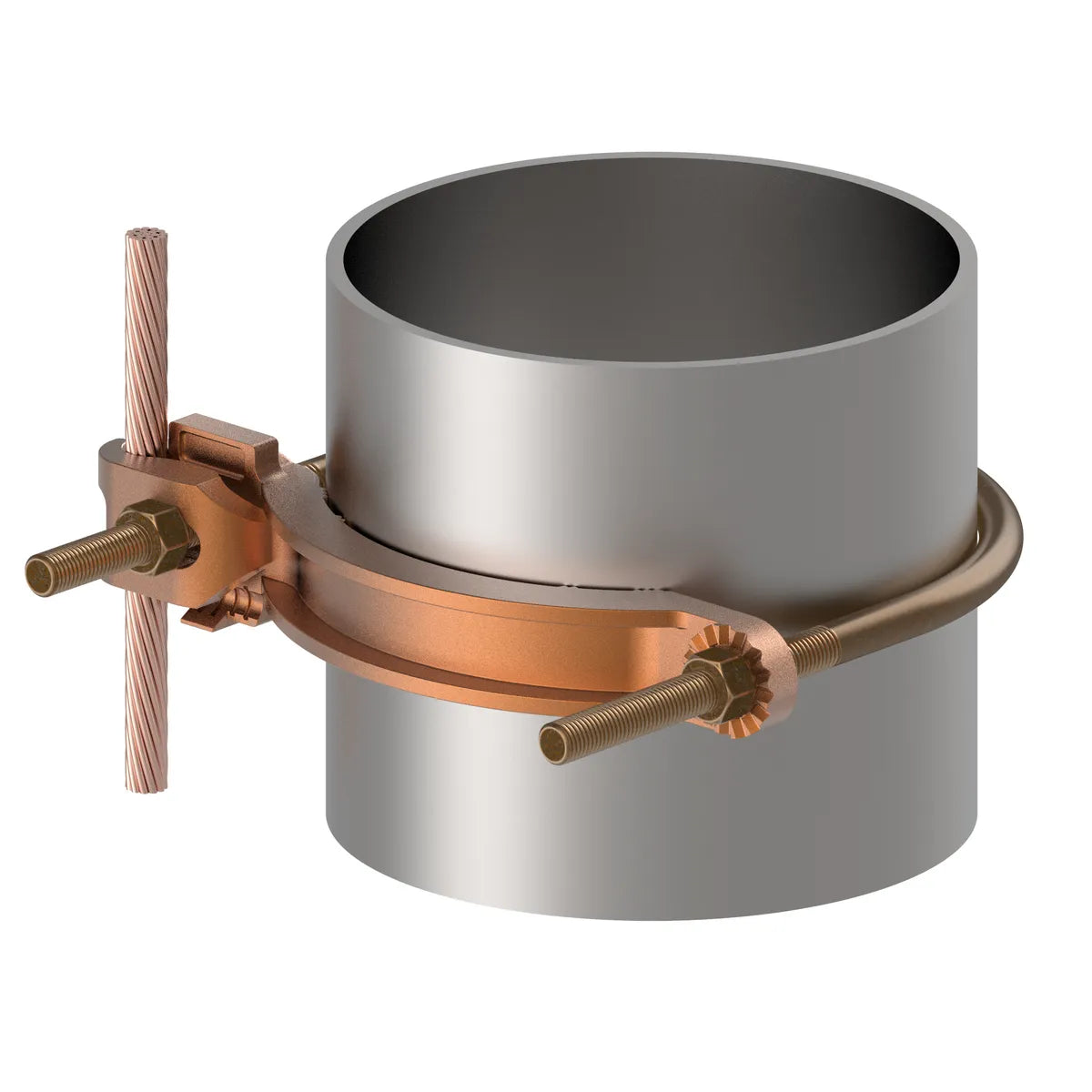

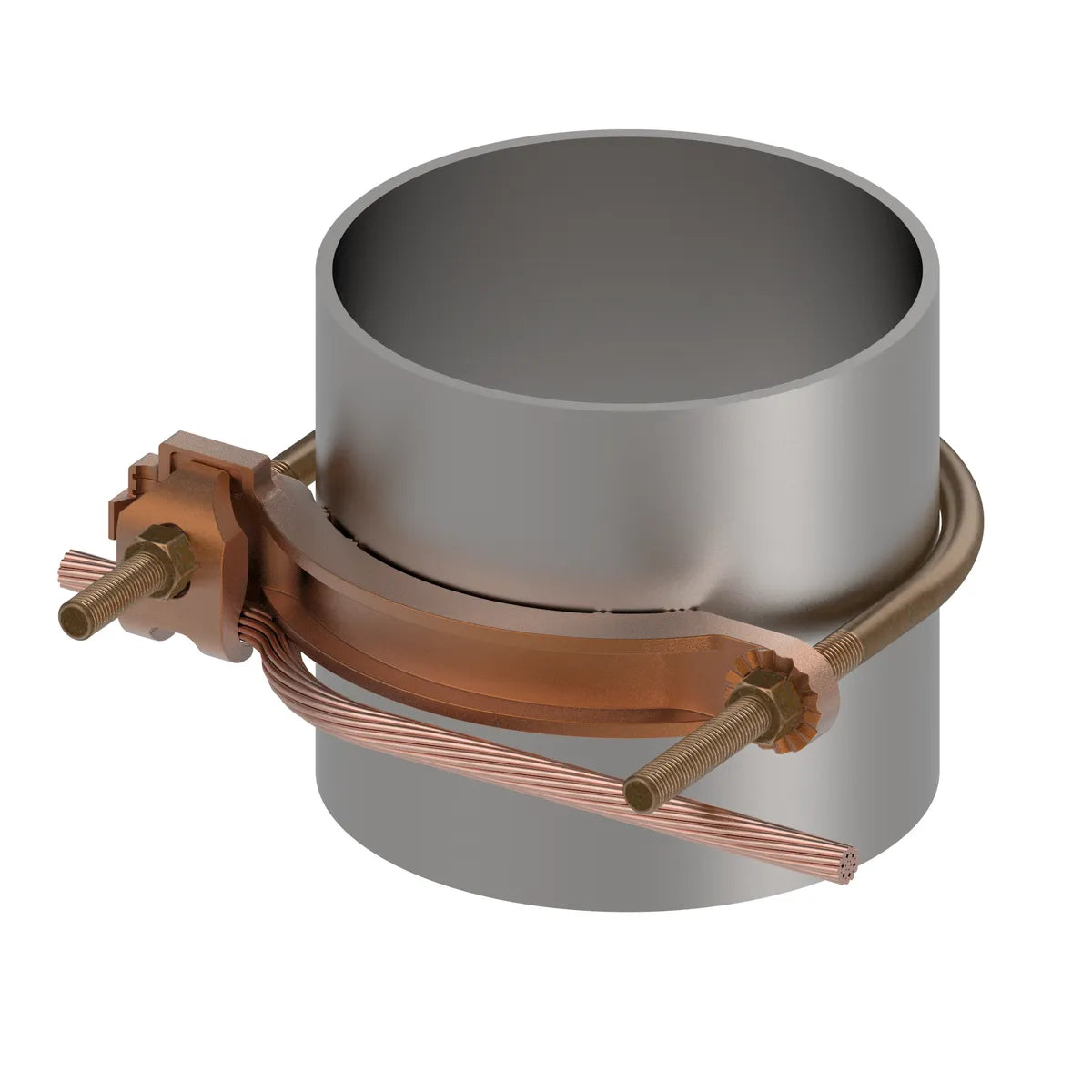

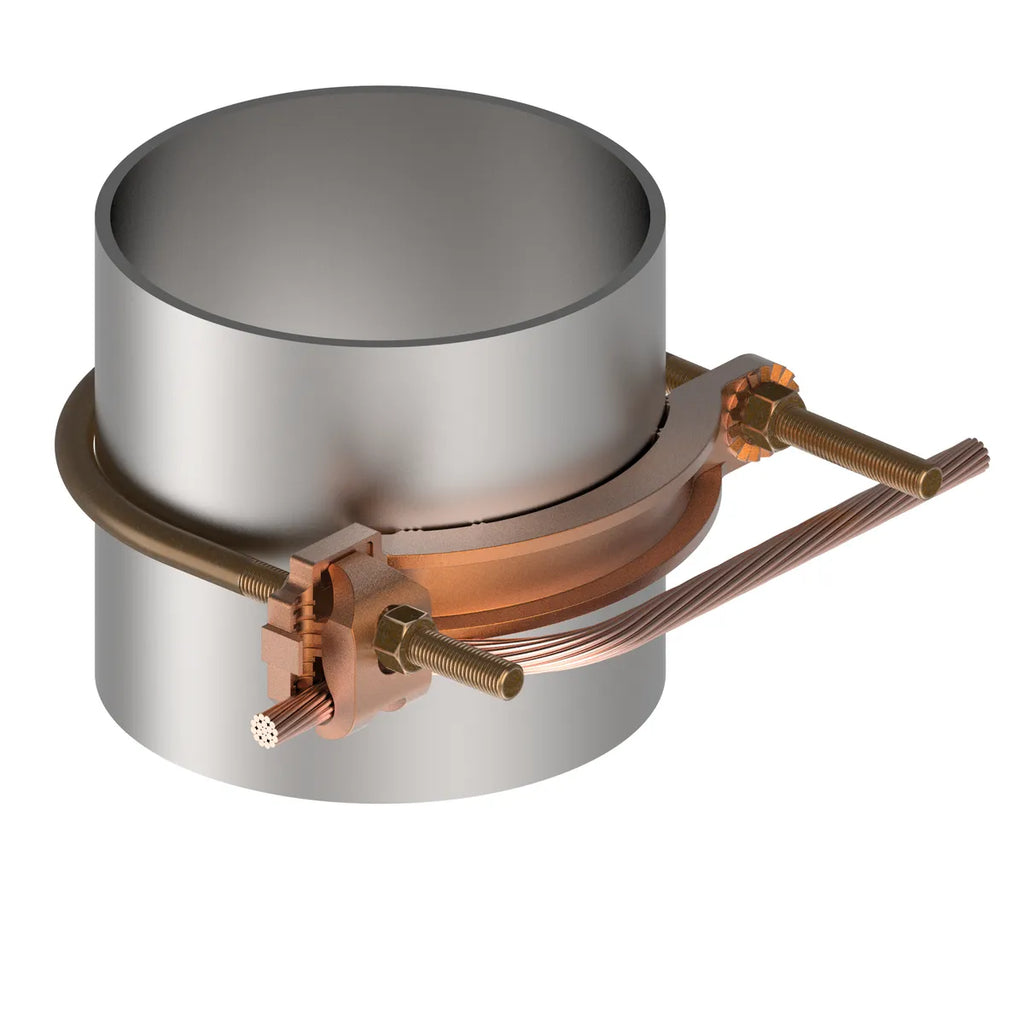

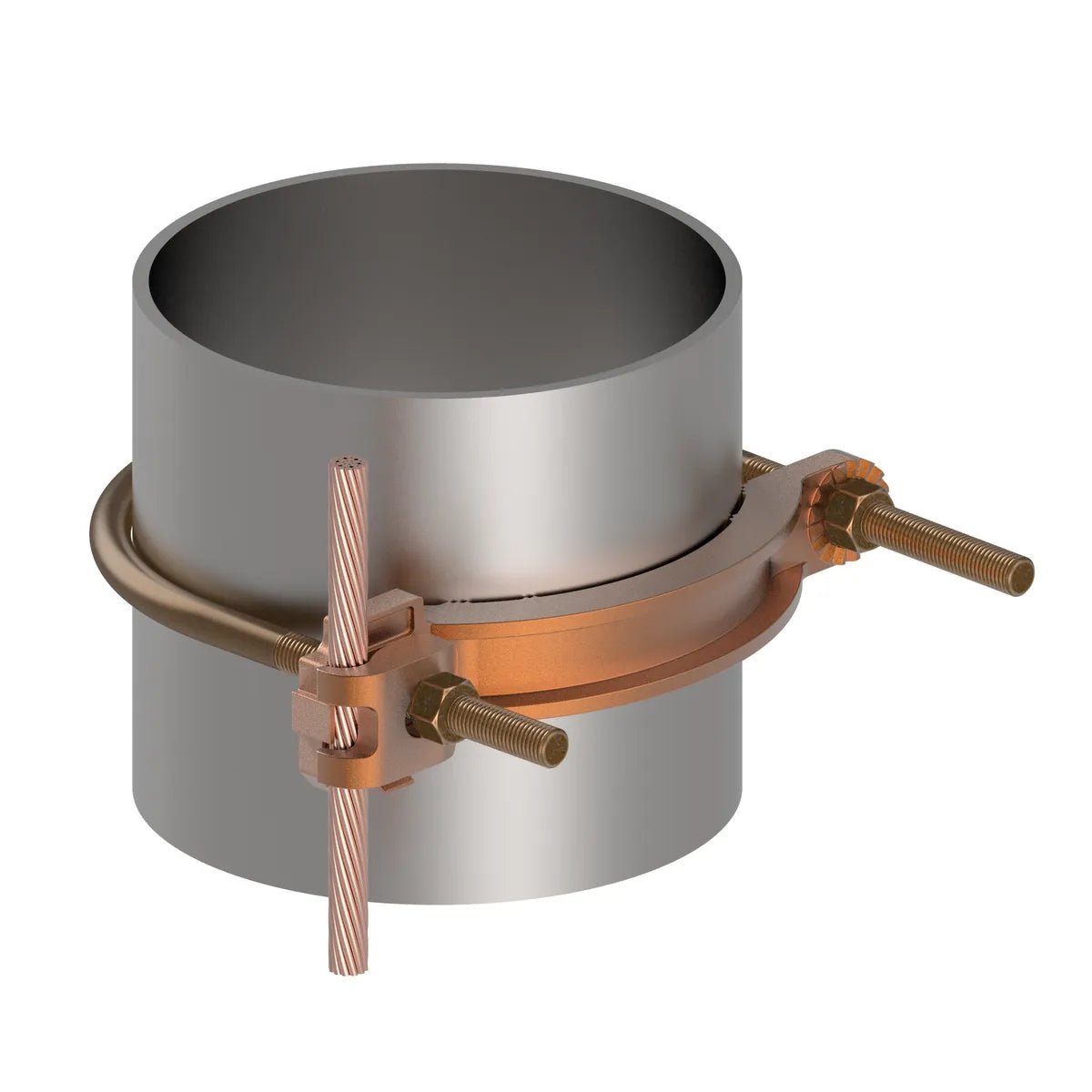

- Cable clamp swivels at 90°
- One-wrench installation for simplified installation
- Rated for Direct Burial in earth or concrete
- UL467 Listed for the US and Canadian Markets
- High conductivity copper ground connector for connecting a small/medium range copper ground conductor to water pipe, structural and reinforcing rod shapes
GENERAL SPECIFICATIONS
| Application |
For Connecting A Small To Medium Range Copper Ground Conductor To Water Pipe As Well As Structural And Reinforcing Rod Shapes |
| Catalog Number |
GAR3905BU |
| EU RoHS Indicator |
Yes |
| Installation Torque Recommended in-lb |
200 LBS/in |
| Material |
Copper Alloy |
| Material - Hardware |
DURIUM™ Silicon Bronze |
| Plated |
N |
| Plating Type |
Unplated |
| Sub Brand |
MECHANICAL CONNECTOR |
| Type |
GAR-BU |
| U Bolt Type |
422 |
| UPC |
781810001523 |
| UPC 14 Digit GTIN |
00781810001523
|
Dimensions
| Dimension - b Length inch |
1.75 in |
| Dimension - Height inch |
7.50 in |
| Dimension - Height mm |
190.5 mm |
| Dimension - length Overall inch |
1.75 in |
| Dimension - Outside Diameter inch |
5.56 in |
| Dimension - Width inch |
7.50 in |
| Dimension - Width mm |
191 mm |
Conductor Related
| Conductor - Copper Solid Size Range |
4 AWG - 4/0 AWG |
| Conductor - Copper Str Size |
|
| Conductor - Copper Str Size Range |
4 AWG - 4/0 AWG |
| Conductor - Copper Tube Std Size |
4;5 |
| Conductor - Copper Tube Std Size Range |
4-5 |
| Conductor - Pipe or Round Tube Size |
4 - 5 in |
Force Related
| Installation Torque Recommended in-lb |
200 LBS/in |
Logistics
| Carton Quantity
|
15 |
| Minimum Pack Quantity |
1 |
| Pallet Quantity |
1170 |
PRODUCT DATASHEET
GAR3905BU
