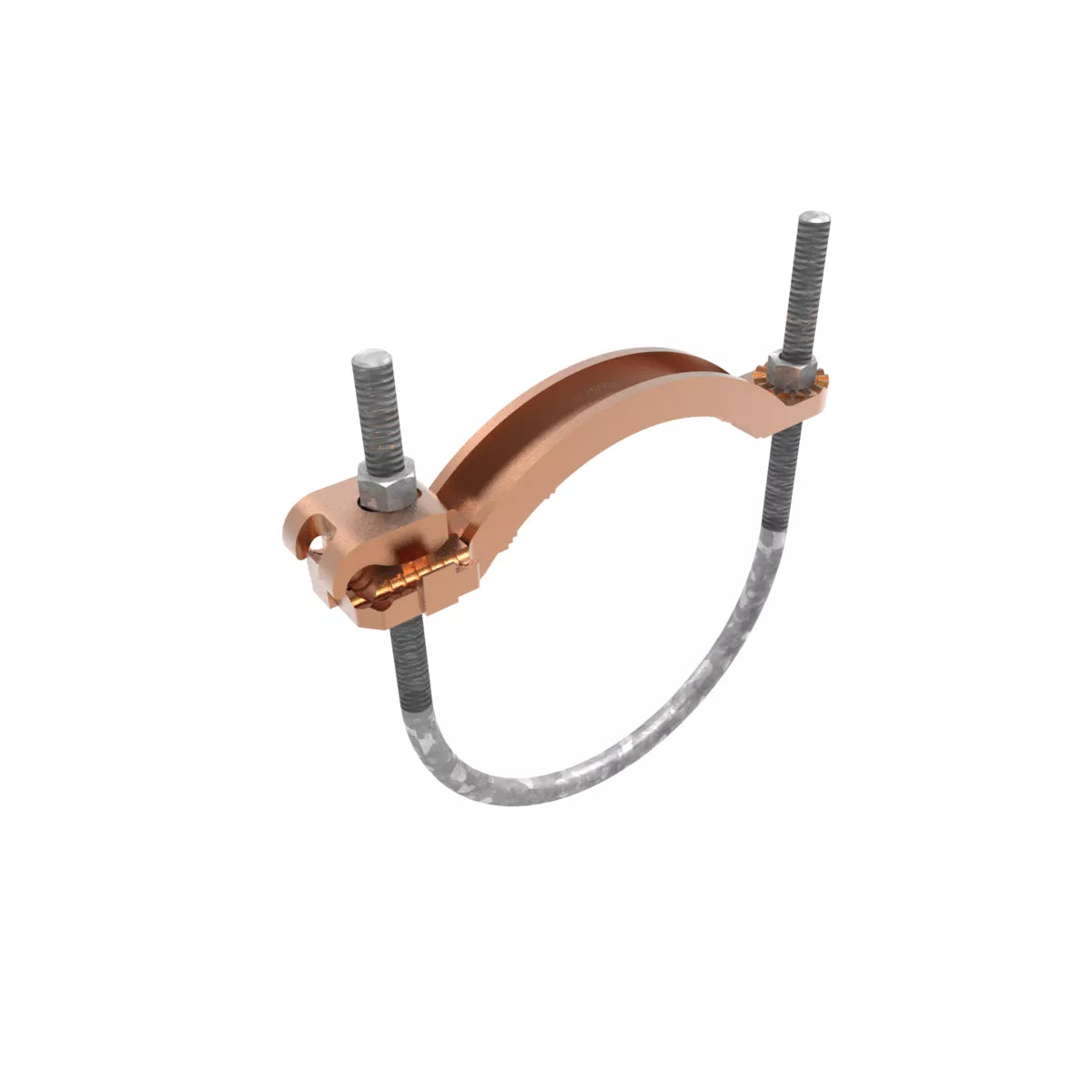

GAR3906 - Burndy - 6" Pipe 3/8" Stud Galvanized Steel Hardware Mechanical Grounding Connector
Mechanical Grounding Connector, Conductor to Water Pipe, 4-4/0 AWG, 6" Pipe, 3/8" Stud. Galvanized Steel Hardware.

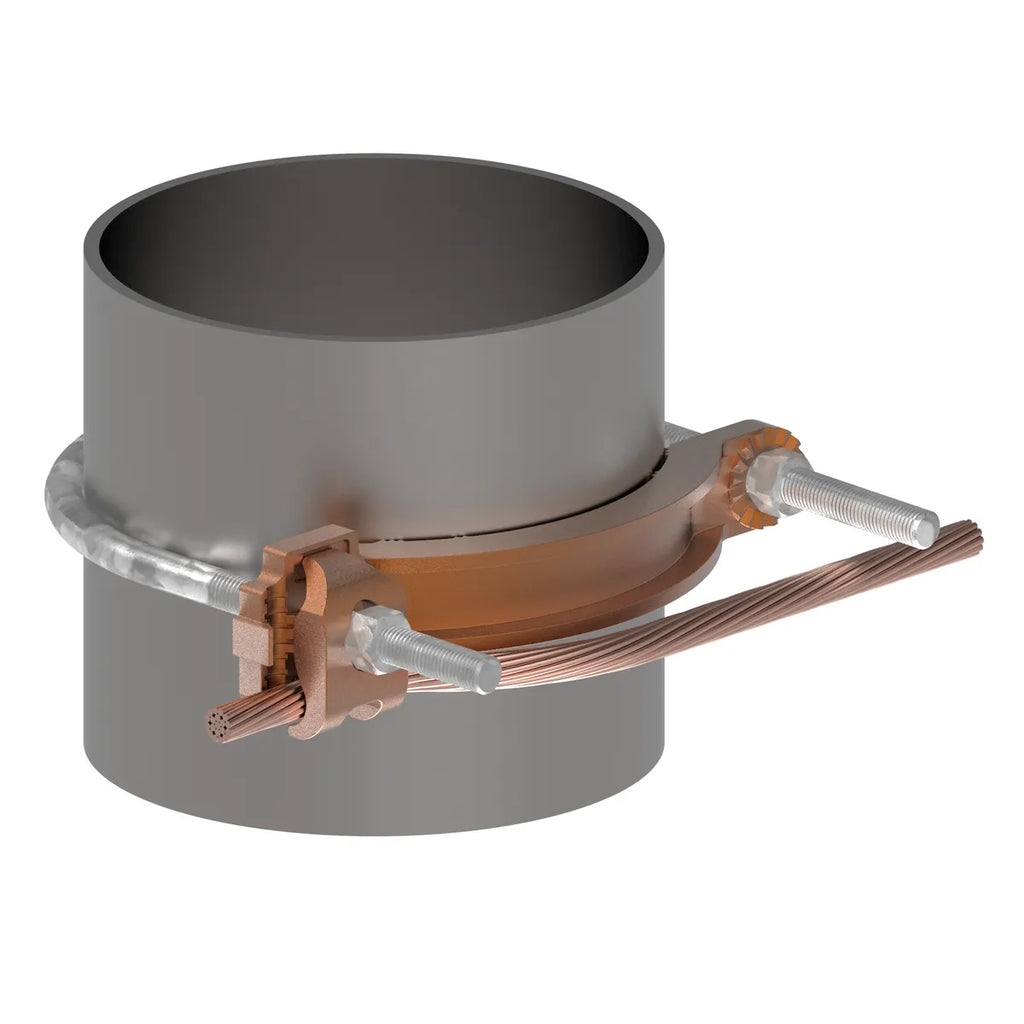

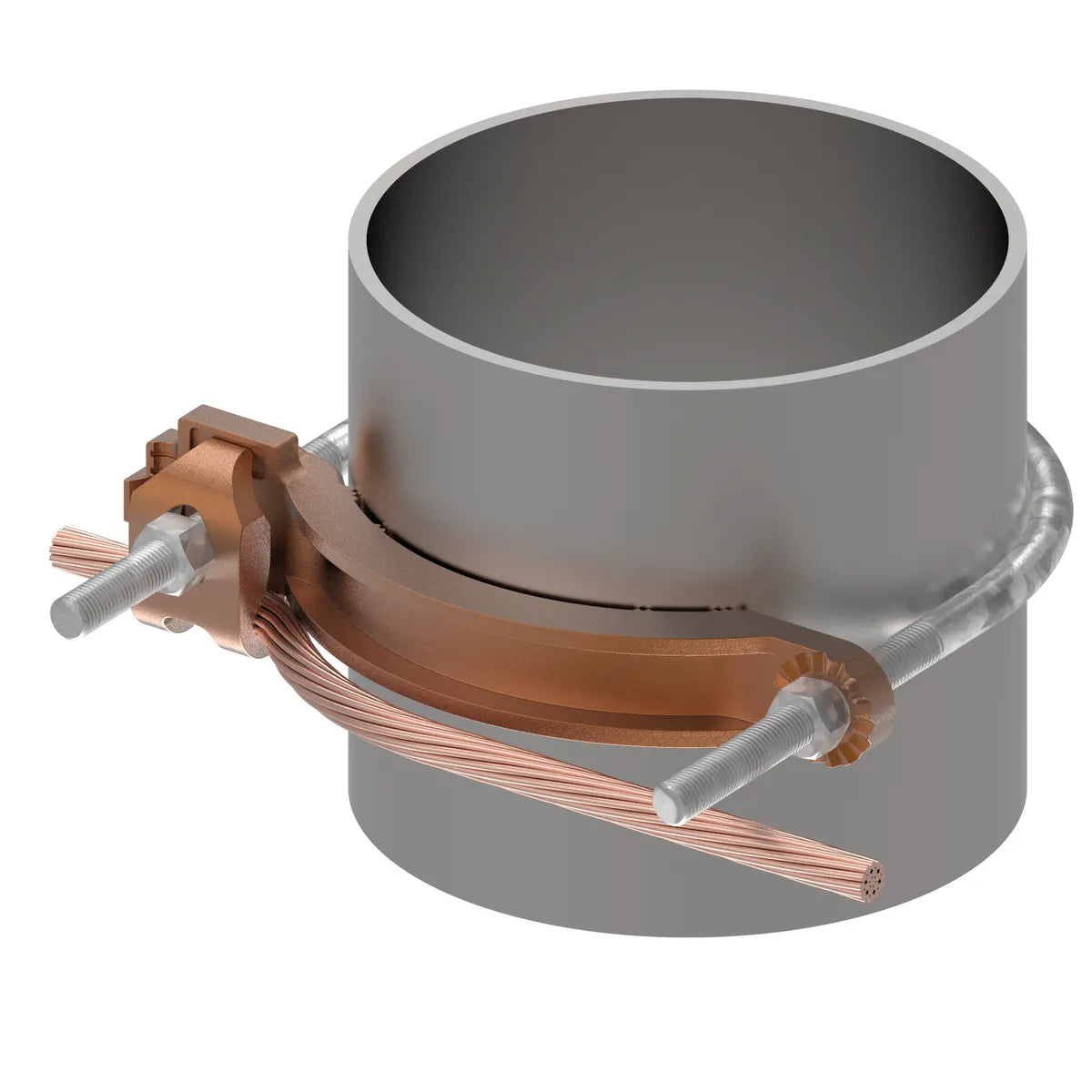

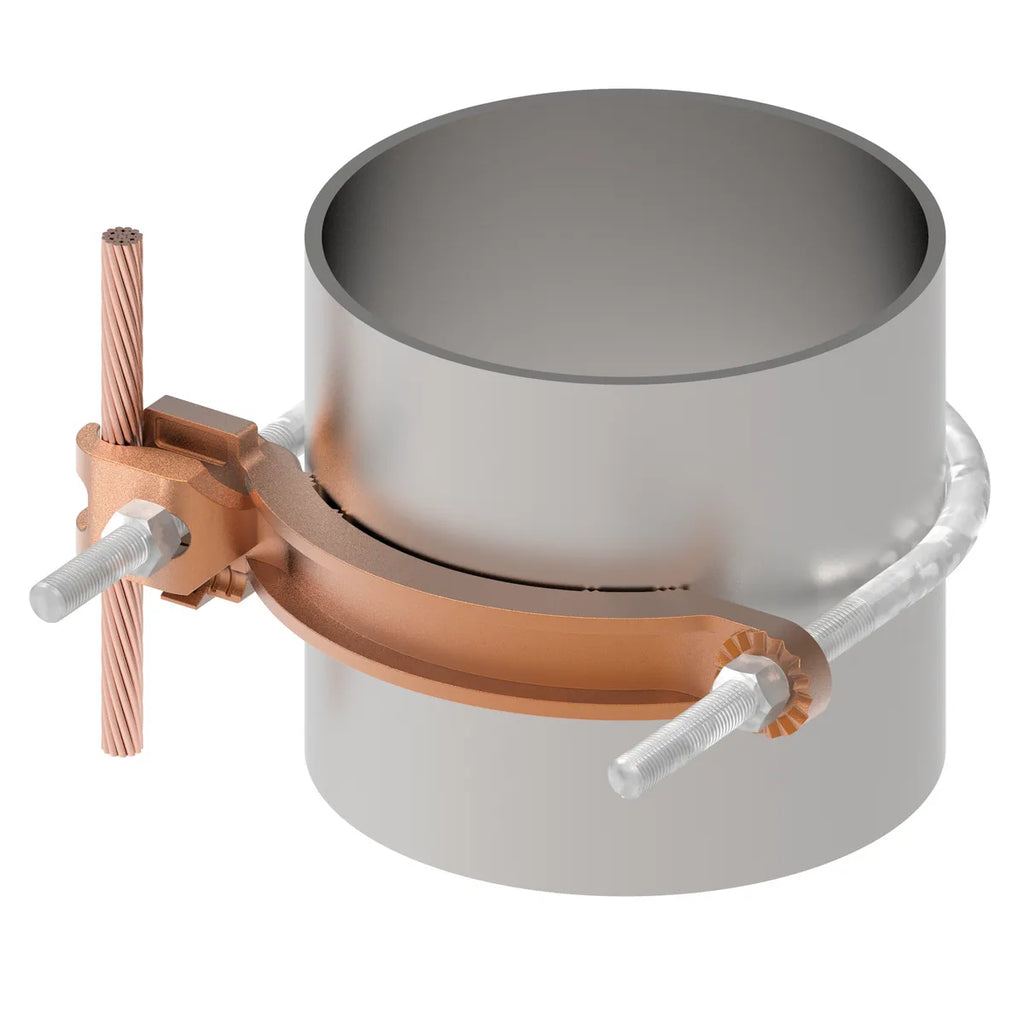

- Cable clamp swivels at 90°, permits parallel grounding of one pipe on a 90° cable run for grounding several parallel pipes
- One-wrench installation for simplified installation
- Rated for Direct Burial in earth or concrete
- UL467 Listed for the US and Canadian Markets
- Provides quality assurance to recognized industry NEC standards from an independent part
GENERAL SPECIFICATIONS
| Application |
For Connecting A Small To Medium Range Copper Ground Conductor To Water Pipe As Well As Structural And Reinforcing Rod Shapes, Direct Burial Cables |
| Catalog Number |
GAR3906 |
| EU RoHS Indicator |
Yes |
| Installation Torque Recommended in-lb |
200 lb-in |
| Material |
Copper Alloy |
| Material - Hardware |
Galvanized Steel |
| Sub Brand |
MECHANICAL CONNECTOR |
| Type |
GAR3902 |
| U Bolt Type |
1027G |
| UPC |
781810234051 |
| UPC 14 Digit GTIN |
00781810234051
|
Dimensions
| Dimension - Height inch |
8.50 in |
| Dimension - Height mm |
215.9 mm |
| Dimension - Outside Diameter inch |
6.62 in |
| Dimension - Width inch |
8.62 in |
| Dimension - Width mm |
219 mm |
Conductor Related
| Conductor - Copper Solid Size Range |
4 AWG - 4/0 AWG |
| Conductor - Copper Str Size Range |
4 AWG - 4/0 AWG |
| Conductor - Copper Tube Std Size |
6 |
| Conductor - Copper Tube Std Size Range |
6 |
| Conductor - Pipe or Round Tube Size |
6 in |
Logistics
| Carton Quantity
|
6 |
| Minimum Pack Quantity |
1 |
PRODUCT DATASHEET
GAR3906
