GAR6429 - Burndy - 3/8" Pipe 5/8" to 3/4" Rod Bright Dipped Mechanical Grounding Connector

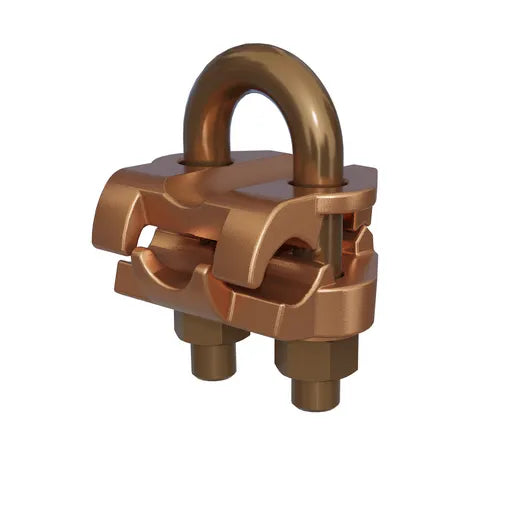

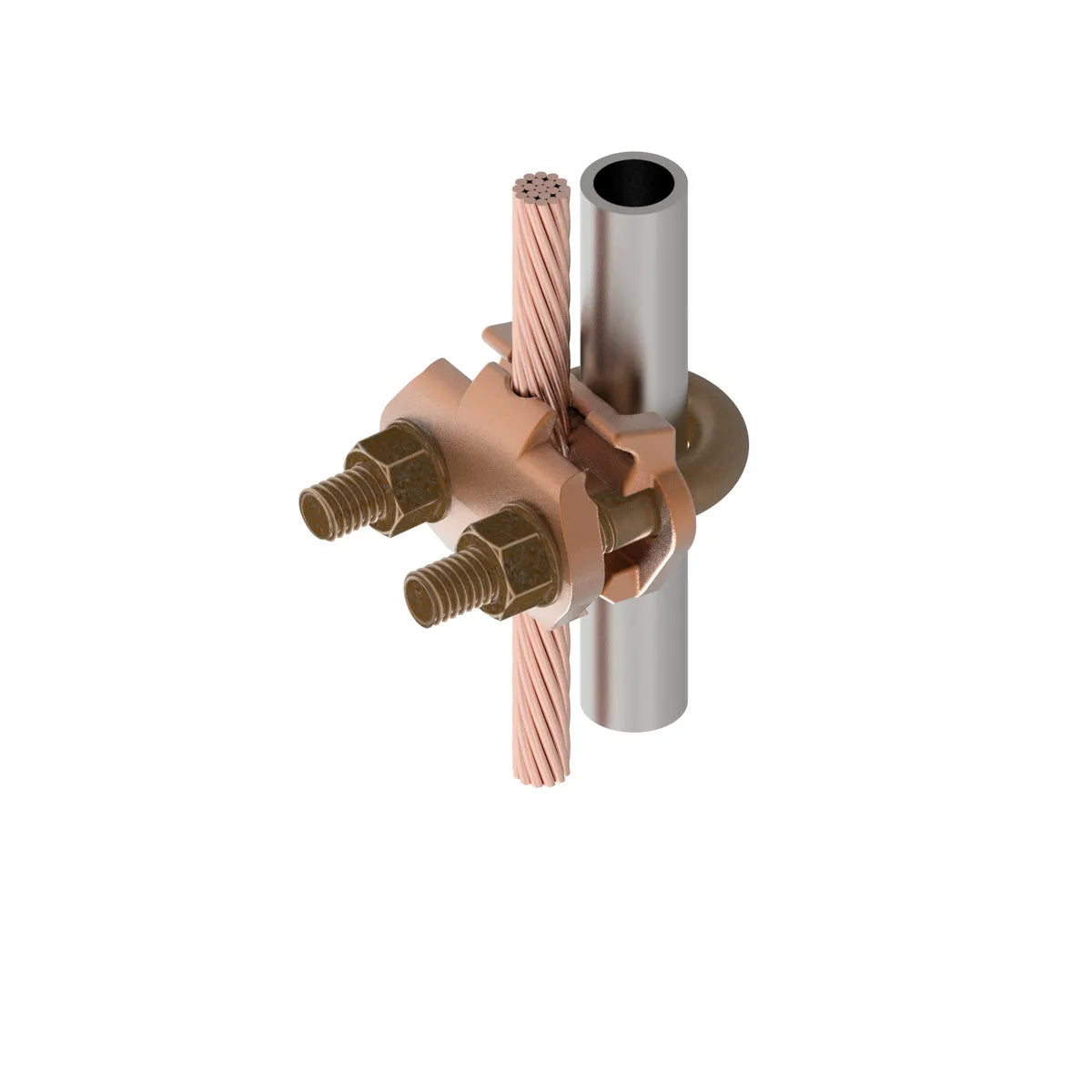

Mechanical Grounding Connector, Cable to Rod or Pipe, 2/0 AWG (Sol) -250 kcmil, 3/8" Pipe, 5/8"-3/4" Rod, #5-#6 Rebar, Bright Dipped. Silicon bronze hardware.

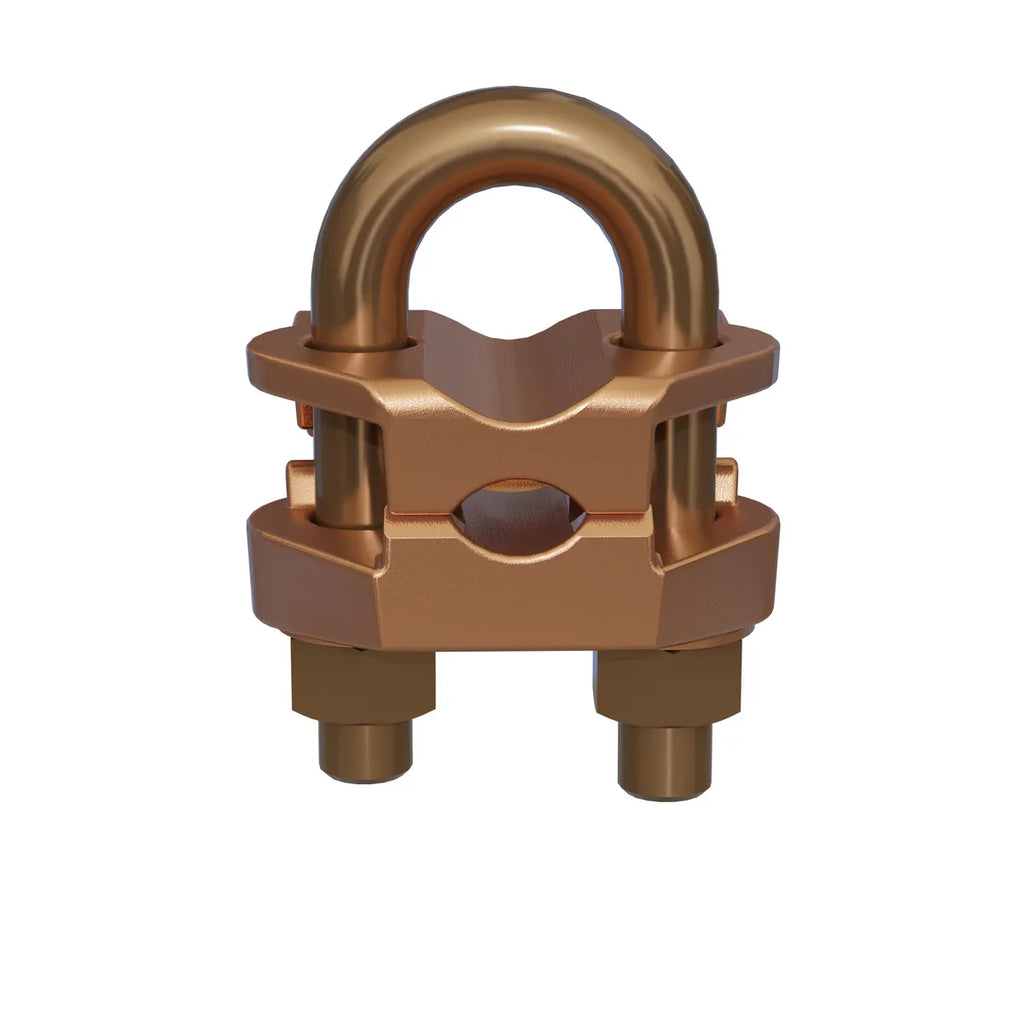

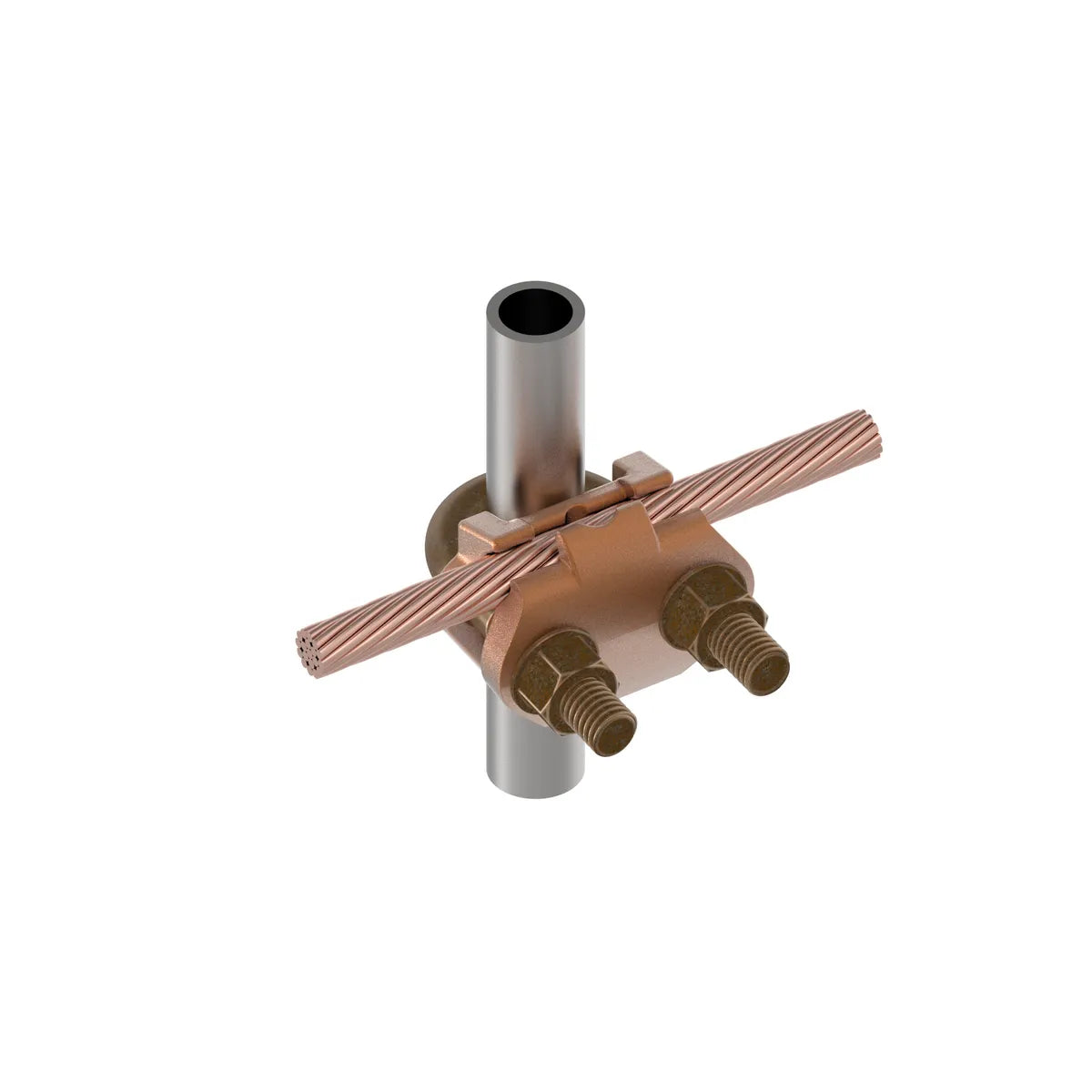

- Wire to Rebar
- Fence Post Grounding Connector

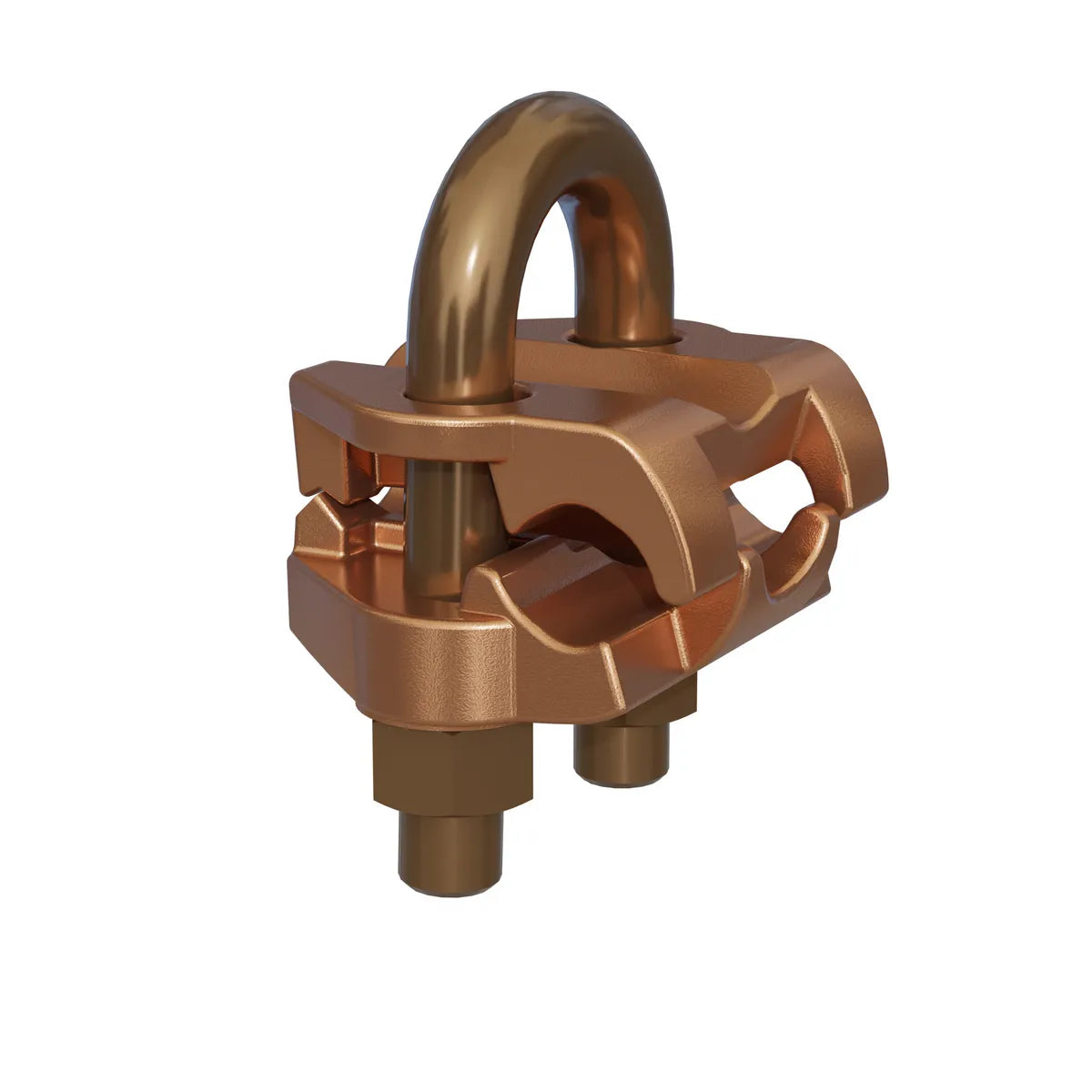

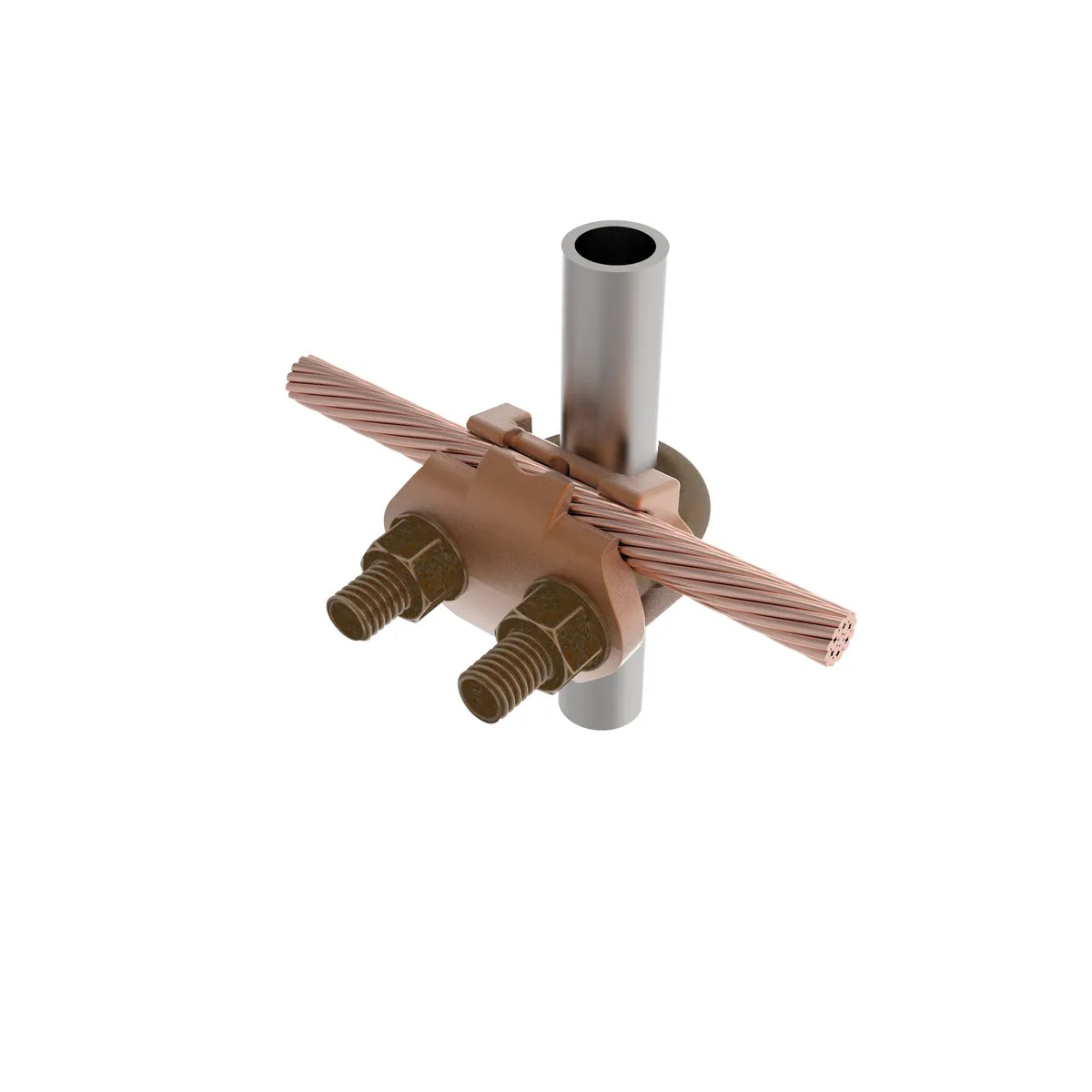

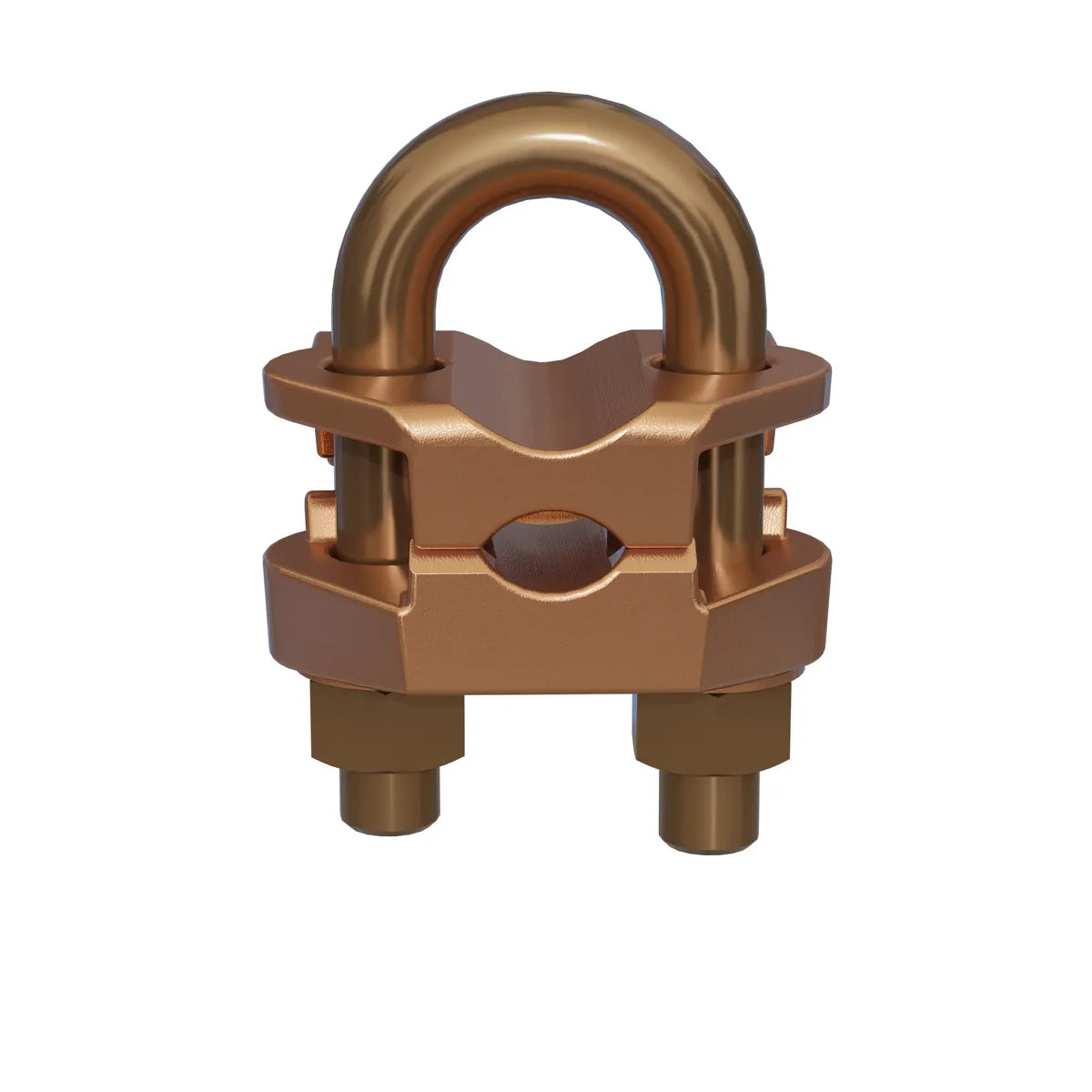

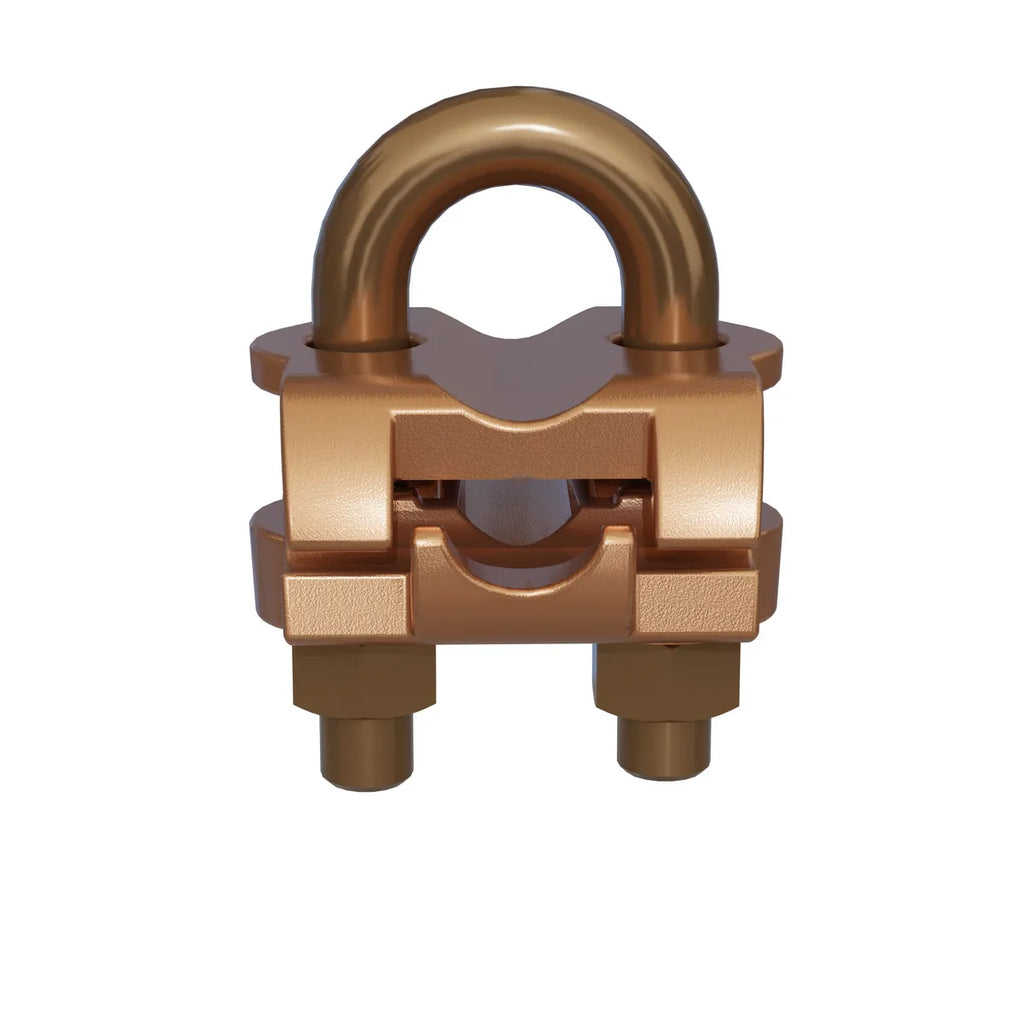

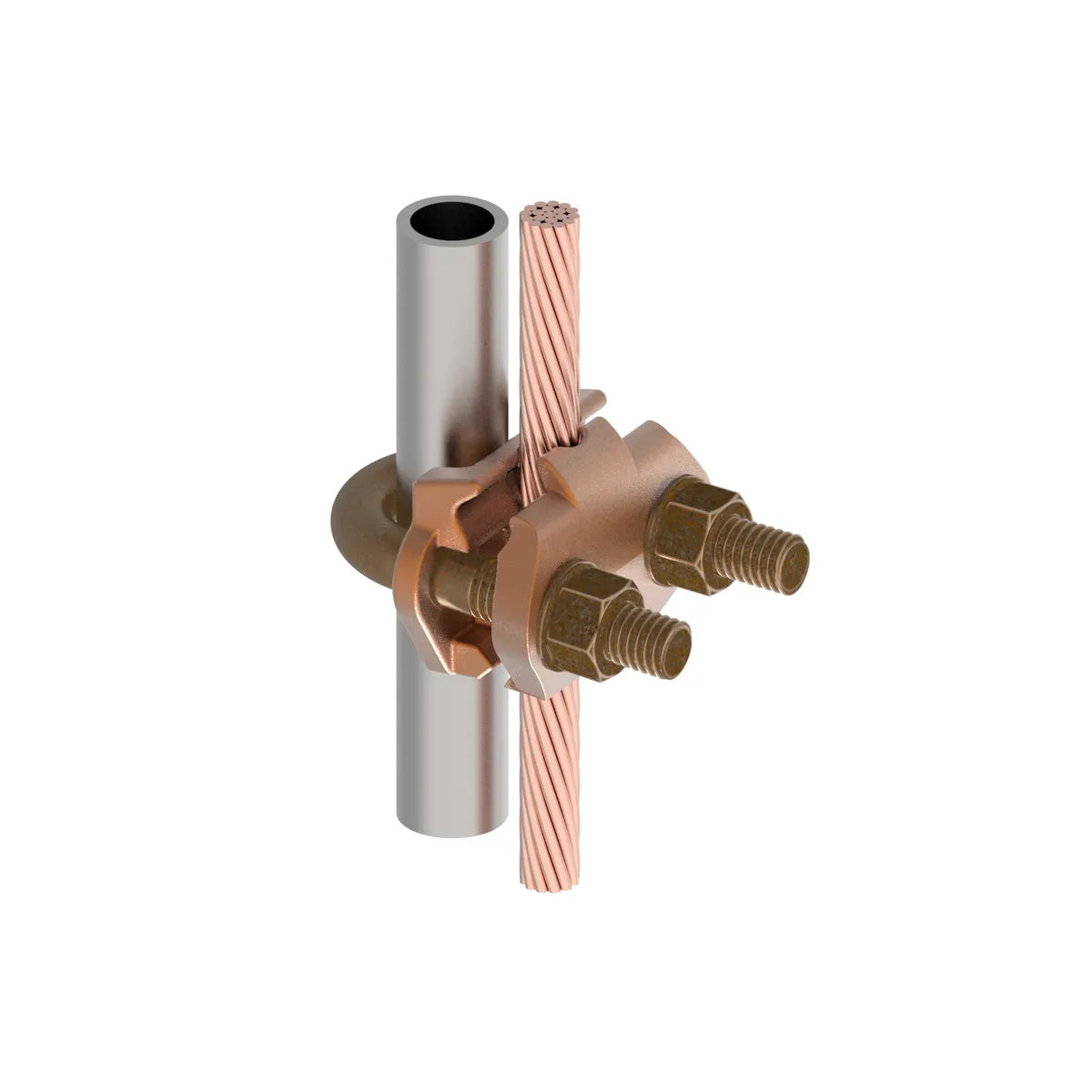

- Wire to Pipe
- One-wrench installation
- Rated for Direct Burial in earth or concrete
- UL467 Listed for US and Canadian Markets
- Select connectors qualified to IEEE-837-2014
GENERAL SPECIFICATIONS
| Application |
For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post |
| Catalog Number |
GAR6429 |
| EU RoHS Indicator |
Yes |
| Installation Torque Recommended in-lb |
240 lb-in |
| Material |
Copper Alloy |
| Material - Hardware |
DURIUM™ Silicon Bronze |
| Plated |
N |
| Plating Type |
Bright Dipped |
| Sub Brand |
MECHANICAL CONNECTOR |
| Type |
GAR |
| U Bolt Type |
269 |
| UPC |
781810238400 |
| UPC 14 Digit GTIN |
00781810238400
|
Dimensions
| Dimension - B Length inch |
1.75 in |
| Dimension - Height fraction |
2-7/8 in |
| Dimension - Height inch |
2.88 in |
| Dimension - Height mm |
73.2 mm |
| Dimension - L Length Overall mm |
46 mm |
| Dimension - Length Overall inch |
1.81 mm |
| Dimension - Outside Diameter inch |
0.68 in |
| Dimension - Width fraction |
2-1/8 in |
| Dimension - Width inch |
2.06 in |
| Dimension - Width mm |
52 mm |
Conductor Related
| Conductor - Copper Solid Size |
2/0 AWG;3/0 AWG;4/0 AWG |
| Conductor - Copper Solid Size Range |
2/0 AWG - 250 kcmil |
| Conductor - Copper Str Size |
1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Conductor - Copper Str Size Range |
1/0 AWG - 250 kcmil |
| Conductor - Copper Tube Std Size |
3/8 IPS IPS |
| Conductor - Copper Tube Std Size Range |
3/8 IPS IPS |
| Conductor - Pipe or Round Tube Size |
3/8 in |
| Conductor - Rebar Size |
5 ;6 |
| Conductor - Rebar Size Range |
5 -6 |
| Conductor - Rod Size |
0.625in - 0.75in |
| Conductor - Rod Size Range |
5/8 in-3/4 in |
| Conductor Type |
- CU C Solid-Size
- CU C Str-Size
- CU Tube Std-Size
- Rod-Size
|
Force Related
| Installation Torque Recommended in-lb |
240 lb-in |
Logistics
| Carton Quantity
|
25 |
| Minimum Pack Quantity |
1 |
| Pallet Quantity |
2100 |
PRODUCT DATASHEET
GAR6429
