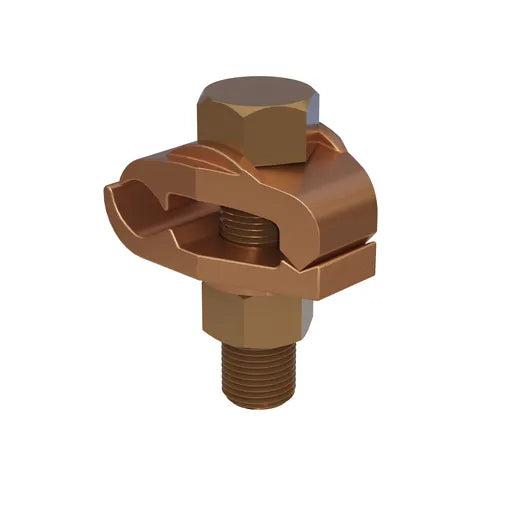

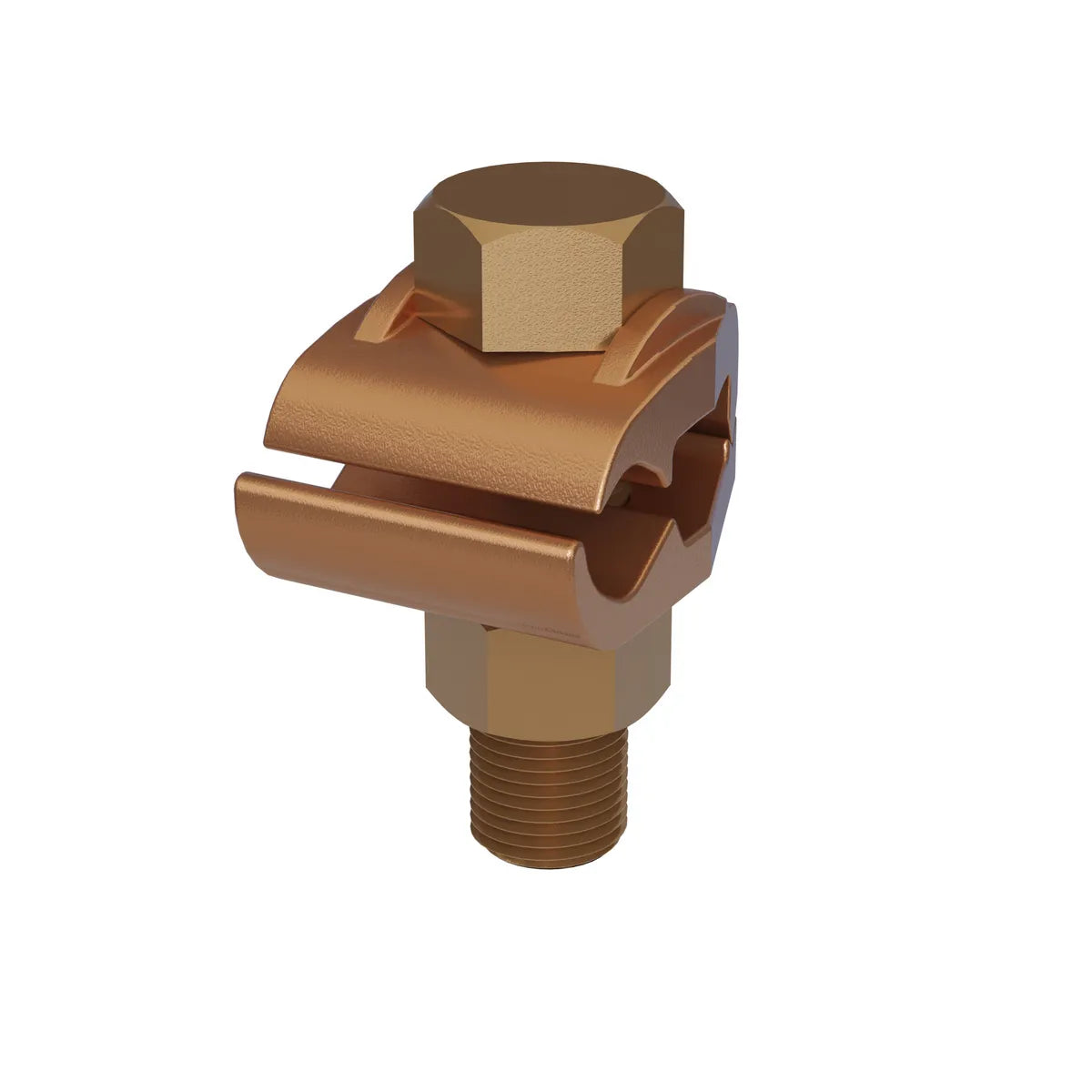

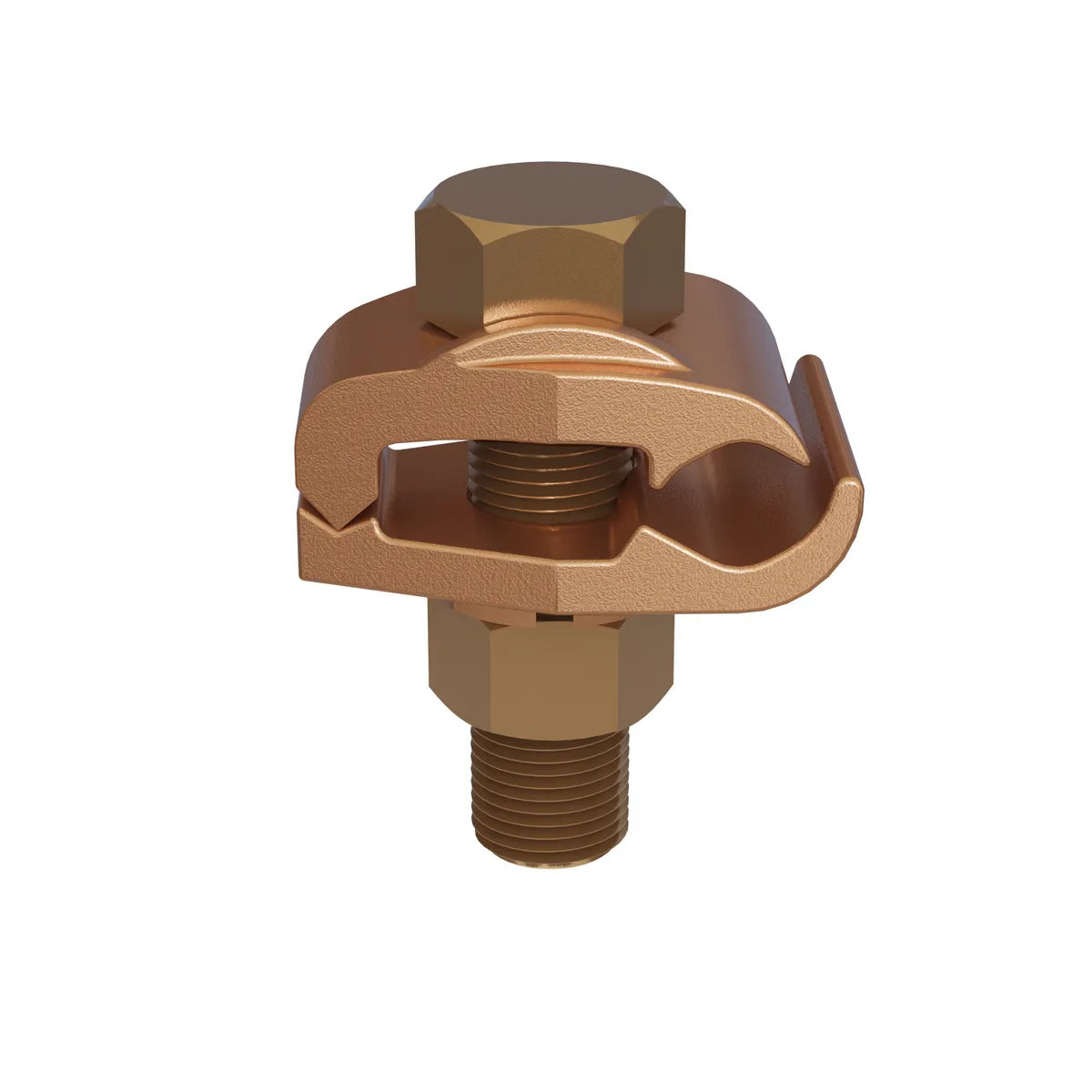

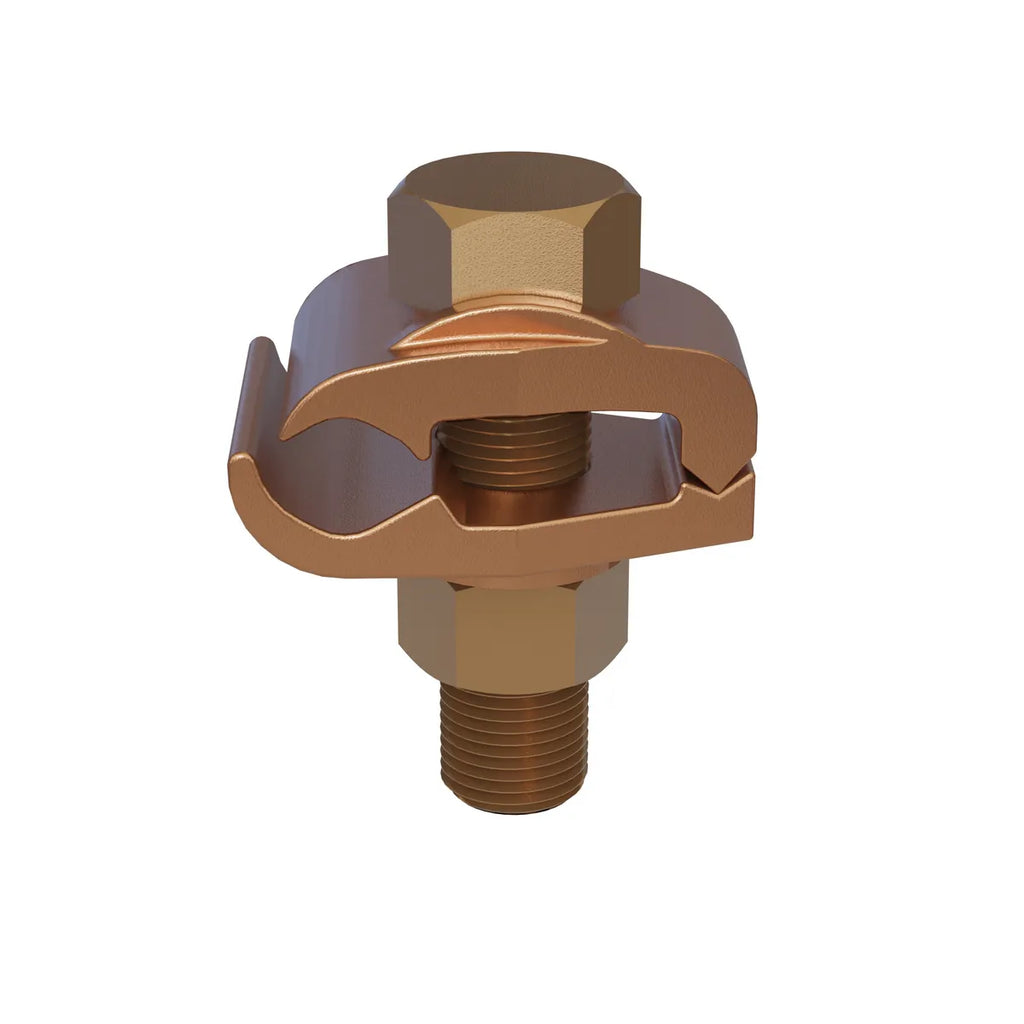

GB29 - Burndy - 1/2" Stud Silicon Bronze Hardware Mechanical Grounding Connector
Mechanical Grounding Connector, Cable to 1/4" Thick Bar, 2/0 AWG (Sol) -250 kcmil, 1/2" Stud, Silicon Bronze Hardware.
- High copper alloy ground connector for joining a range of cable to 1/4" thick bar
- Type GB separates the cable from bar
- One-wrench installation
- UL467 Listed
- Suitable for Direct Burial in earth or concrete
GENERAL SPECIFICATIONS
| Application |
For Copper Cable To Bar, Direct Burial Cable |
| Catalog Number |
GB29 |
| EU RoHS Indicator |
Yes |
| Installation Torque Recommended in-lb |
480 lb-in |
| Material |
Copper Alloy |
| Material - Hardware |
DURIUM™ Silicon Bronze |
| Physical Attribute - Pad Type |
Hexagonal Bolt |
| Plated |
N |
| Plating Type |
Unplated |
| Sub Brand |
MECHANICAL CONNECTOR |
| Type |
GB |
| UPC |
781810231272 |
| UPC 14 Digit GTIN |
00781810231272
|
Dimensions
| Pallet QuantityDimension - B Length inch |
1.25 in |
| Dimension - Height inch |
2.32 in |
| Dimension - Height mm |
58.9 mm |
| Dimension - L Length Overall mm |
32 mm |
| Dimension - Length Overall inch |
1.25 in |
| Dimension - Width fraction |
1-7/8 in |
| Dimension - Width inch |
1.88 mm |
Conductor Related
| Conductor - Copper Solid Size |
2/0 AWG;3/0 AWG;4/0 AWG |
| Conductor - Copper Solid Size Range |
2/0 AWG - 250 kcmil |
| Conductor - Copper Str Size |
2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Conductor - Copper Str Size Range |
2/0 AWG - 250 kcmil |
Force Related
| Installation Torque Recommended in-lb |
480 lb-in |
Logistics
| Carton Quantity
|
12 |
| Minimum Pack Quantity |
1 |
| Pallet Quantity |
2400 |
PRODUCT DATASHEET
GB29
