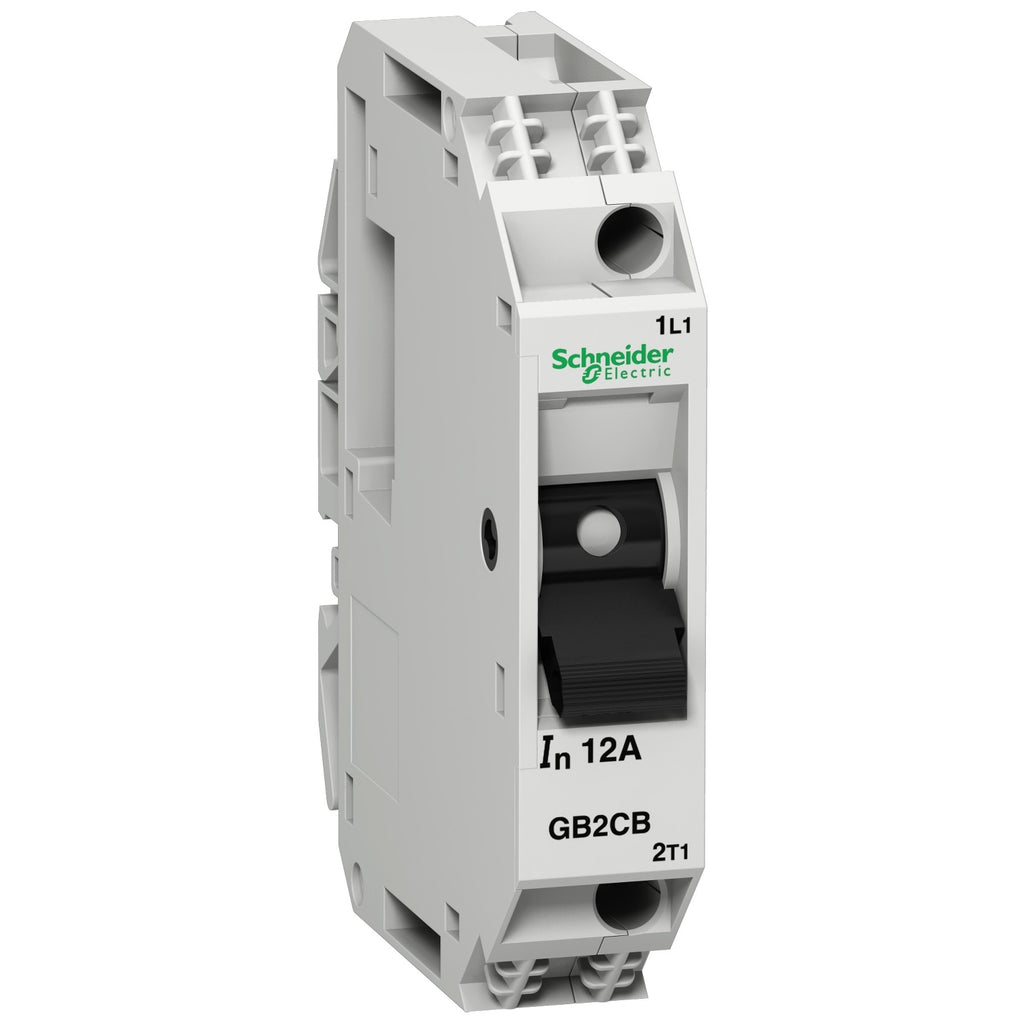

GB2CB10 - Schneider Electric - 5 Amp 1 Pole TeSys GB2 Square D Thermal Magnetic Circuit Protector
TeSys GB circuit breaker, 1 pole (1P), 5A/250V IEC/277V UL, for the protection of industrial equipment control circuits. It provides thermal-magnetic protection with a magnetic tripping level at 66A (13 In) and breaking capacity Icu 2kA@240V. It can also be used for protection of DC loads up to 5A/48V DC-13 with a breaking capacity Icu 1.5kA@24V. Compact device (15mm wide), mounting on 35mm DIN-rail, control by toggle lever (start-stop guaranteed for 8000 cycles). Sold in lots of 6 units. Multi standards certified (IEC, UL, CSA).
GENERAL SPECIFICATIONS
| Range | TeSys |
| Product name | TeSys GB2 |
| Device short name | GB2 |
| Product or Component Type | Circuit breaker |
| Device Application | Control |
| Poles description | 1P |
| Network type | AC/DC |
| Utilisation category | Category A IEC 60947-2 |
| DC-12 IEC 60947-5-1 | |
| DC-13 IEC 60947-5-1 | |
| Network frequency | 50/60 Hz IEC 60947-2 |
| Breaking capacity | 2 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 75 % 230/240 V AC 50/60 Hz IEC 60947-2 |
| Trip unit technology | Thermal-magnetic |
| Magnetic tripping current | 66 A |
| Complementary | |
| Mounting Mode | By clips |
| Mounting Support | Rail |
| Plate | |
| Mounting position | Horizontal |
| Vertical | |
| Control Type | Toggle |
| Line Rated Current | 5 A |
| [Ue] rated operational voltage | 250 V AC 50/60 Hz IEC 60947-2 |
| 277 V AC 60 Hz CSA C22.2 No 235 | |
| 277 V AC 60 Hz UL 1077 | |
| 48 V DC | |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-2 |
| Power dissipation per pole | 2 W |
| Mechanical durability | 8000 cycles |
| Electrical durability | 8000 cycles |
| Connections - terminals | connector 1 0.001…0.009 in² (0.75…6 mm²)solid without cable end |
| connector 2 0.001…0.006 in² (0.75…4 mm²)solid without cable end | |
| connector 1 0.001…0.006 in² (0.75…4 mm²)flexible with cable end | |
| connector 2 0.001…0.004 in² (0.75…2.5 mm²)flexible with cable end | |
| Tightening torque | 10.6 lbf.in (1.2 N.m) connector |
| Mechanical robustness | Shocks 22 Gn for 20 ms IEC 60068-2-27 |
| Vibrations 5 Gn, 5...110 Hz IEC 60068-2-6 | |
| Quantity per Set | Set of 6 |
| 9 mm pitches | 2 |
| Height | 2.9 in (74 mm) |
| Width | 0.6 in (15 mm) |
| Depth | 2.6 in (67 mm) |
| Environment | |
| Standards | EN/IEC 60947-1 |
| EN/IEC 60947-2 | |
| CSA C22.2 No 235 | |
| UL 1077 | |
| Product Certifications | UL |
| CSA | |
| Protective treatment | TC |
| IP degree of protection | IP20 IEC 60529 |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Ambient Air Temperature for Storage | -40…176 °F (-40…80 °C) |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Operating altitude | 9842.52 ft (3000 m) |
| Ordering and shipping details | |
| Category | US1000I22631 |
| Discount Schedule | 000I |
| GTIN | 3389110214635 |
| Returnability | Yes |
| Country of origin | FR |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 3.740 in (9.500 cm) |
| Package 1 Width | 4.134 in (10.500 cm) |
| Package 1 Length | 3.740 in (9.500 cm) |
| Package weight(Lbs) | 1.869 oz (53.000 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 3.346 in (8.500 cm) |
| Package 2 Width | 3.740 in (9.500 cm) |
| Package 2 Length | 3.150 in (8.000 cm) |
| Package 2 Weight | 11.852 oz (336.000 g) |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 72 |
| Package 3 Height | 5.906 in (15.000 cm) |
| Package 3 Width | 11.811 in (30.000 cm) |
| Package 3 Length | 15.748 in (40.000 cm) |
| Package 3 Weight | 9.517 lb(US) (4.317 kg) |
