Description
GENERAL

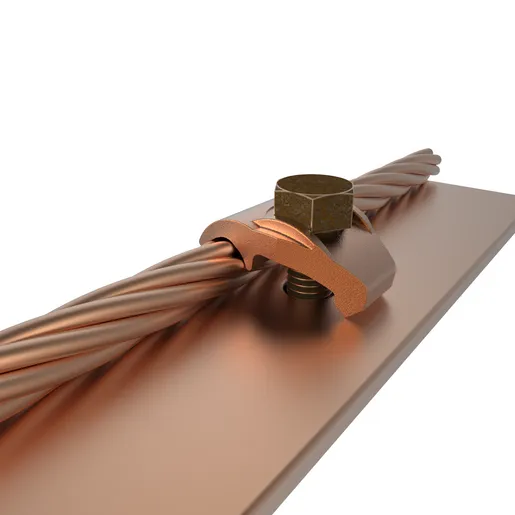

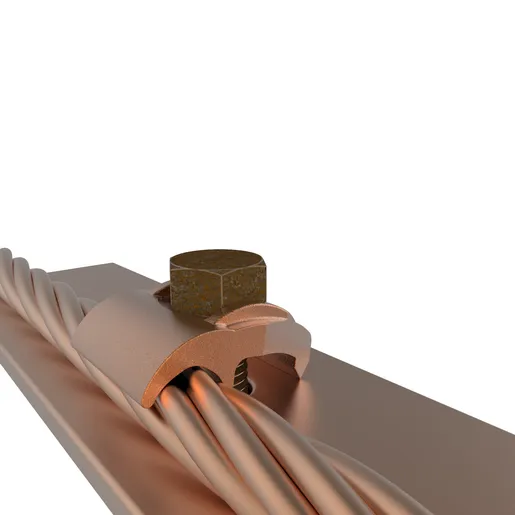

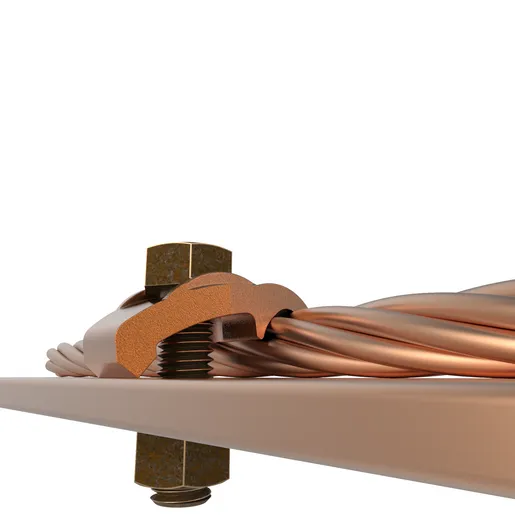

| Application | For Copper Cable To Bar, Direct Burial Cable |
| Catalog Number | GBM29 |
| Installation Torque Recommended in-lb | 480 lb-in |
| Material | Copper Alloy |
| Material Type - Screw | DURIUM™ Silicon Bronze |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Plated | No |
| Plating Type | Unplated |
| Product Family | Grounding and Bonding Connectors>Copper Mechanical Grounding Connectors>Cable(s) to Bar/Flat |
| Product Type | Mechanical |
| Sub Brand | MECHANICAL CONNECTOR |
| Type | GBM |
| UPC | 781810231456 |
| UPC 14 Digit GTIN | 00781810231456 |
DIMENSIONS
| Dimension - Height inch | 2.07 in |
| Dimension - Height mm | 52.6 mm |
| Dimension - L Length Overall mm | 32 mm |
| Dimension - Length Overall inch | 1.25 in |
| Dimension - Width fraction | 1-5/6 in |
| Dimension - Width inch | 1.84 in |
| Dimension - Width mm | 47 mm |
| Package Height | 0 in |
| Package Length | 0 in |
| Package Weight | 0 lb |
| Package Width | 0 in |
CONDUCTOR RELATED
| Conductor - Copper Solid Size | 2/0 AWG;3/0 AWG;4/0 AWG |
| Conductor - Copper Solid Size Range | 2/0 AWG - 250 KCMIL |
| Conductor - Copper Str Size | 2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Conductor - Copper Str Size Range | 2/0 AWG - 250 kcmil |
CERTIFICATIONS AND COMPLIANCE
| Certification - CSA Approved | Yes |
| Certification - cULus | No |
| Certification - ETL | No |
| Certification - UL Listed Direct Burial | Yes |
| Certification - UL Recognized | No |
| Industry Standard(s) | UL467 |
| Standards - Industry Standards Met | UL467 |
| Standards - RoHS Compliance Status | EX |
| UL Listed | Yes |
FORCE RELATED
| Installation Torque Recommended in-lb | 480 lb-in |
LOGISTICS
| Carton Quantity | 75 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 3825 |
