Description
GENERAL
| Application | For Copper Cable To Bar, Direct Burial Cable |

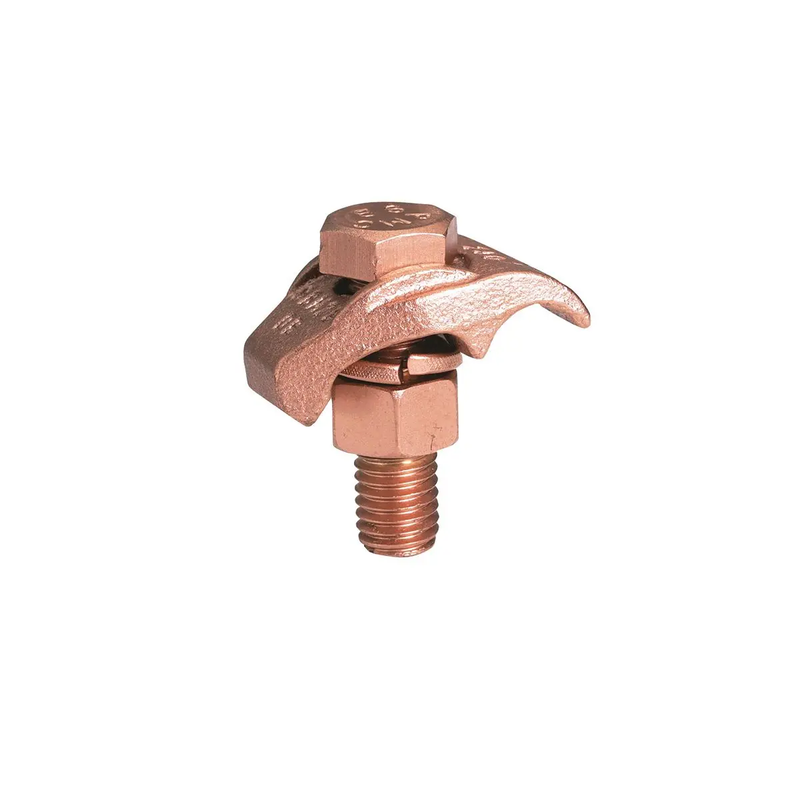

| Catalog Number | GBM4C |
| Installation Torque Recommended in-lb | 240 lb-in |
| Material | Copper Alloy |
| Material Type - Screw | DURIUM™ Silicon Bronze |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Plated | No |
| Plating Type | Unplated |
| Product Family | Grounding and Bonding Connectors>Copper Mechanical Grounding Connectors>Cable(s) to Bar/Flat |
| Product Type | Mechanical |
| Sub Brand | MECHANICAL CONNECTOR |
| Type | GBM |
| UPC | 781810231432 |
| UPC 14 Digit GTIN | 00781810231432 |
DIMENSIONS
| Dimension - Height inch | 1.36 in |
| Dimension - Height mm | 34.5 mm |
| Dimension - L Length Overall mm | 22 mm |
| Dimension - Length Overall inch | 0.88 in |
| Dimension - Width fraction | 1-1/50 in |
| Dimension - Width inch | 1.02 in |
| Dimension - Width mm | 26 mm |
| Package Height | 0 in |
| Package Length | 0 in |
| Package Weight | 0 lb |
| Package Width | 0 in |
CONDUCTOR RELATED
| Conductor - Copper Solid Size | 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG |
| Conductor - Copper Solid Size Range | #8 AWG-#4 AWG |
| Conductor - Copper Str Size | 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG |
| Conductor - Copper Str Size Range | 8 AWG - 4 AWG |
CERTIFICATIONS AND COMPLIANCE
| Buy America(n) Qualified | TAA Compliant (All status valid till December 2026) |
| Certification - CSA Approved | Yes |
| Certification - UL Listed Direct Burial | Yes |
| Industry Standard(s) | UL467 |
| Standards - Industry Standards Met | UL467 |
| Standards - RoHS Compliance Status | EX |
| UL Listed | Yes |
FORCE RELATED
| Installation Torque Recommended in-lb | 240 lb-in |
LOGISTICS
| Carton Quantity | 150 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 15000 |
