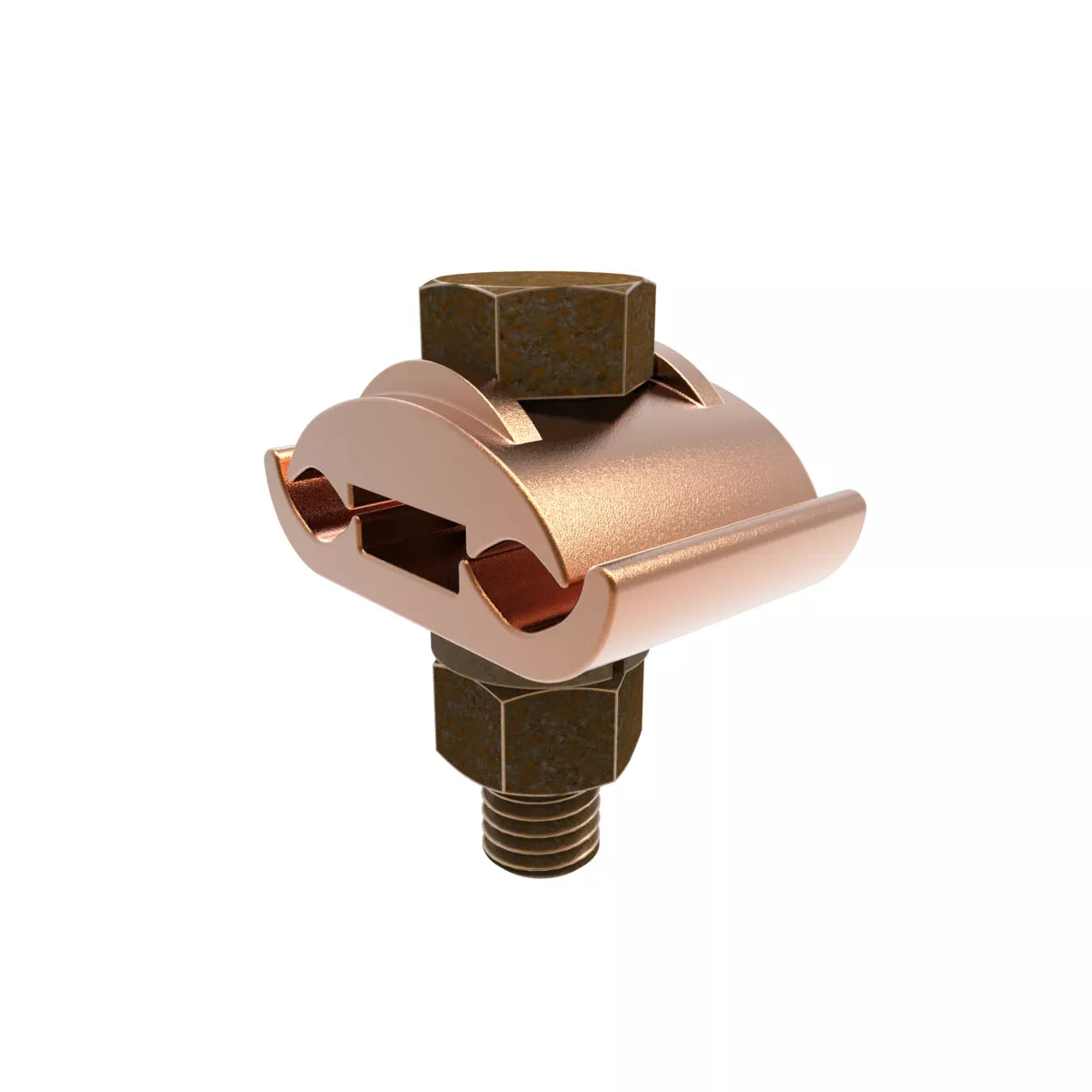

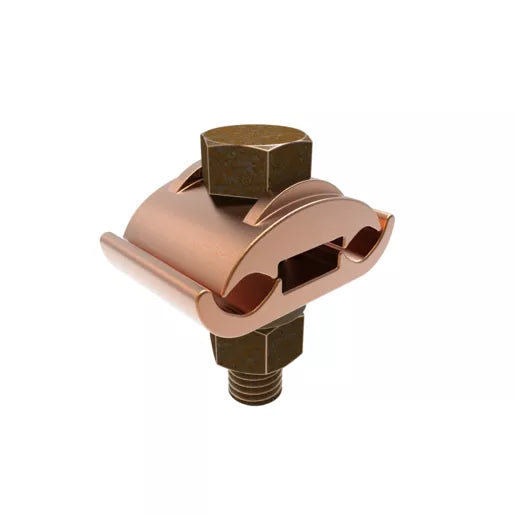

GC2626 - Burndy - 3/8" Stud Silicon Bronze Hardware Mechanical Grounding Connector
Mechanical Grounding Connector, 2 Cables to 1/4" Thick Bar, 4 AWG (Sol)-2/0 AWG (Str), 3/8" Stud, Silicon Bronze Hardware

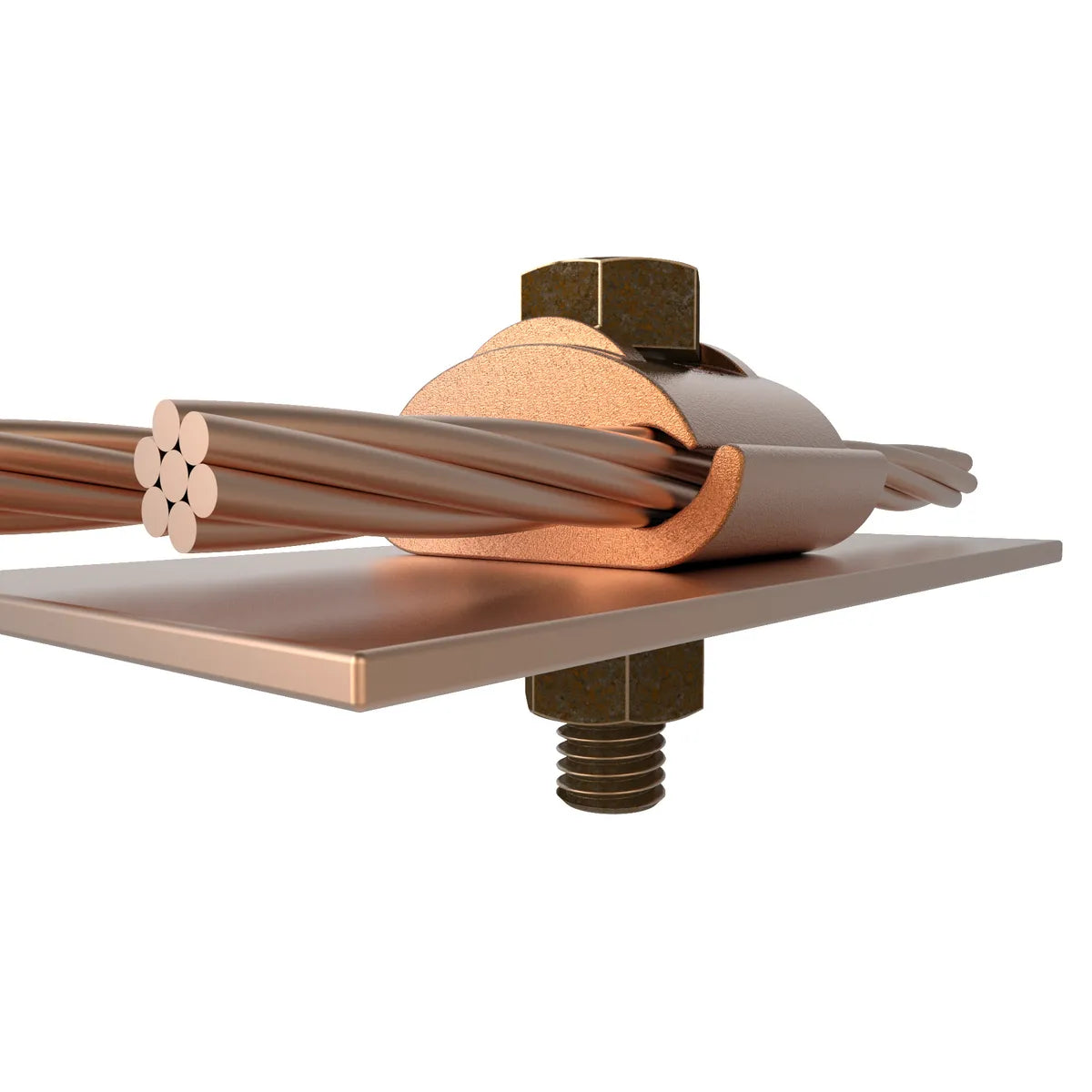

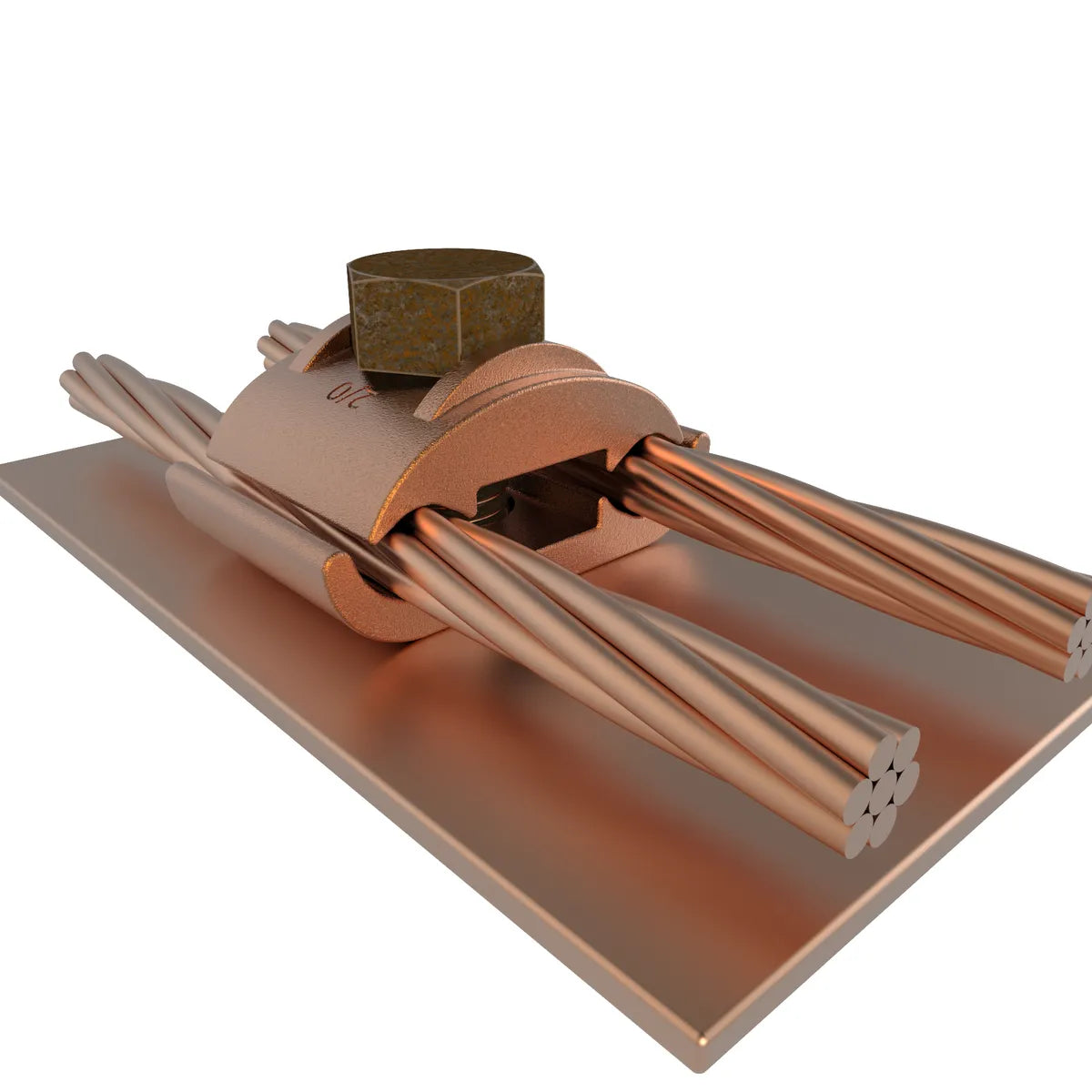

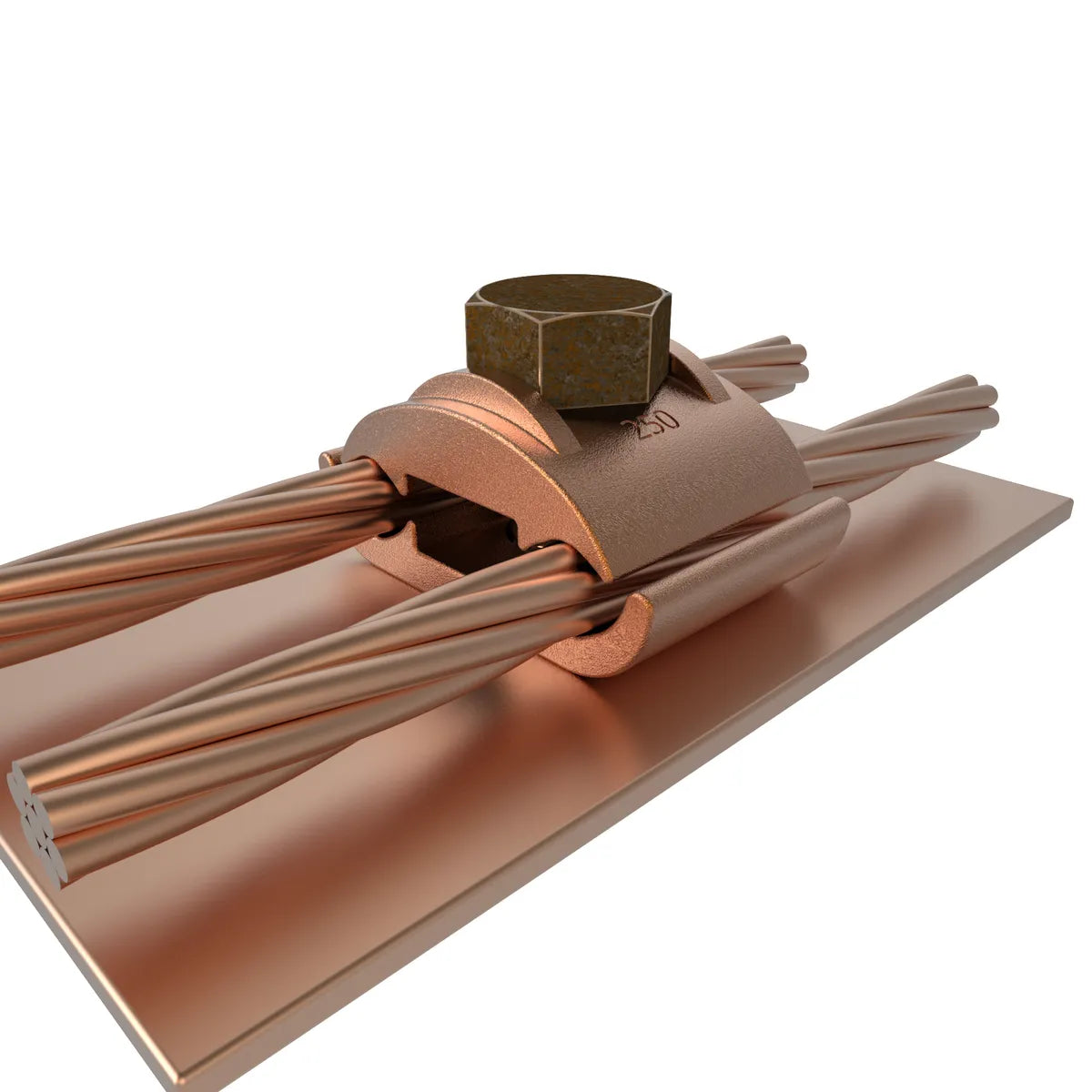

- High copper alloy ground connector for joining a wide range of 2 parallel cables to a 1/2" thick bar
- Type GC separates the cable from the bar
- Type GCM clamps the cable directly to the bar surface
- One wrench installation
- UL467 Listed
- Suitable for Direct Burial in earth or concrete
GENERAL SPECIFICATIONS
| Application |
For Joining A Wide Range Of Two Parallel Copper Cables, Direct Burial In Concrete Or Ground |
| Catalog Number |
GC2626 |
| EU RoHS Indicator |
Yes |
| Installation Torque Recommended in-lb |
240 lb-in |
| Material |
Copper Alloy |
| Material - Hardware |
DURIUM™ Silicon Bronze |
| Physical Attribute - Screw Type |
Hexagonal Bolt |
| Plated |
N |
| Plating Type |
Unplated |
| Sub Brand |
MECHANICAL CONNECTOR |
| Type |
GC |
| UPC |
781810231661 |
| UPC 14 Digit GTIN |
00781810231661
|
Dimensions
| Dimension - Height inch |
1.74 in |
| Dimension - Height mm |
44.2 mm |
| Dimension - L Length Overall mm |
25 mm |
| Dimension - Length Overall inch |
1.00 in |
| Dimension - Width inch |
1.57 in |
| Dimension - Width mm |
40 mm |
| Dimensions |
1 in x 1.57 in x 1.74 in |
| Height |
1.74 in |
| Length |
1 in |
| Width |
1.57 in |
Conductor Related
| Conductor - Copper Solid Size |
4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG |
| Conductor - Copper Solid Size Range |
4 AWG-2/0 AWG |
| Conductor - Copper Str Size |
4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG |
| Conductor - Copper Str Size Range |
4 AWG-2/0 AWG |
Force Related
| Installation Torque Recommended in-lb |
240 lb-in |
Logistics
| Carton Quantity
|
12 |
| Minimum Pack Quantity |
1 |
| Pallet Quantity |
2400 |
PRODUCT DATASHEET
GC2626
