Description

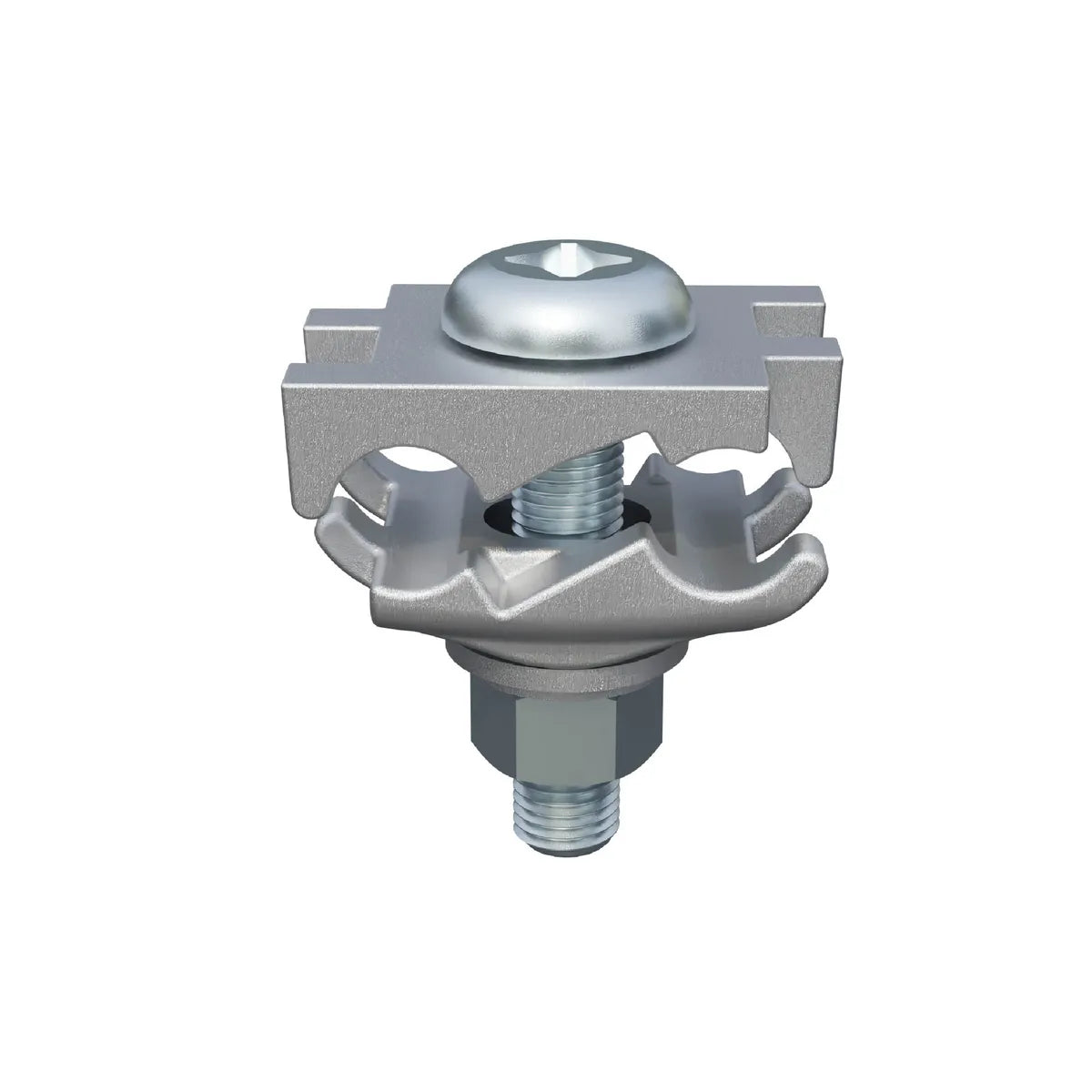

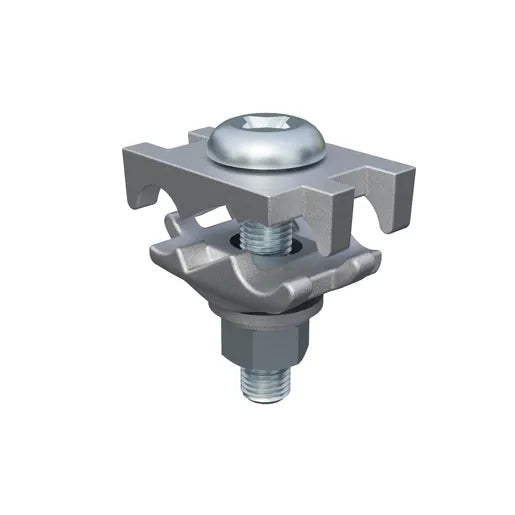

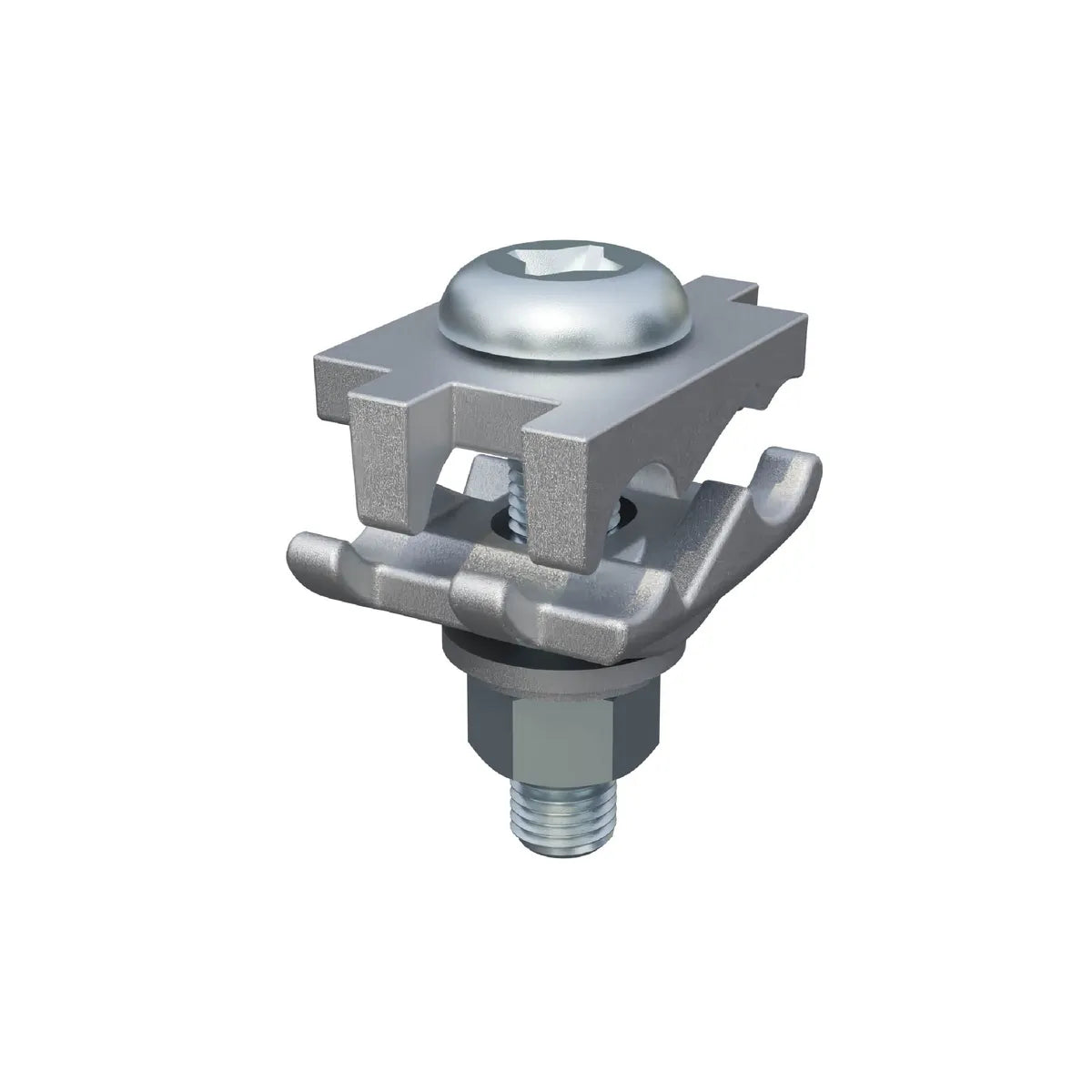

GC2626CT - Burndy - 3/8" Stud Galvanized Steel Hardware Mechanical Grounding Connector
Cast Copper Alloy Mechanical Grounding Cable Tray Clamp, #2 Sol-2/0 Str. Al/Cu Rated, 3/8" Stud, Galvanized Steel Hardware, Tin-plated Connector
- Cable Tray Ground Clamp of tin-plated cast copper
- Accommodates either one or two conductors, copper or aluminum cable
- Low-profile head with deep Phillips recess
- A Galvanized steel bolt has a ribbed neck, preventing rotation during installation when installed in a 0.44 diameter hole
- Rated for Direct Burial in earth or concrete
- UL467 Listed for the US and Canadian Markets with copper conductor only
GENERAL SPECIFICATIONS
| Application | For Direct Burial Applications In Concrete Or Earth, And For Use With Aluminum Or Galvanized Steel Cable Tray |
| Catalog Number | GC2626CT |
| EU RoHS Indicator | Yes |
| Installation Torque Recommended in-lb | 240 LBS/in |
| Material | Copper Alloy |
| Plated | Y |
| Plating Type | tin Plated |
| Sub Brand | MECHANICAL CONNECTOR |
| Type | GC-CT |
| UPC | 781810220573 |
| UPC 14 Digit GTIN | 00781810220573 |
Dimensions
| Dimension - B Length inch | 1.12 in |
| Dimension - Cross Flats inch | 0.56 in |
| Dimension - Height inch | 1.95 in |
| Dimension - Height mm | 49.5 mm |
| Dimension - Width inch | 1.70 in |
| Dimension - Width mm | 43 mm |
Conductor Related
| Conductor - AL Str Size | 2 AWG; 1 AWG; 1/0 AWG; 2/0 AWG |
| Conductor - AL Str Size Range | 2 AWG - 2/0 AWG |
| Conductor - Copper Solid Size | 2 AWG; 1 AWG; 1/0 AWG; 2/0 AWG |
| Conductor - Copper Solid Size Range | 2 AWG - 2/0 AWG |
| Conductor - Copper Str Size | 2 AWG;1 AWG;1/0 ;2/0 AWG |
| Conductor - Copper Str Size Range | 2 AWG - 2/0 AWG |
Force Related
| Installation Torque Recommended in-lb | 240 LBS/in |
Logistics
| Carton Quantity | 50 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 5400 |
PRODUCT DATASHEET
