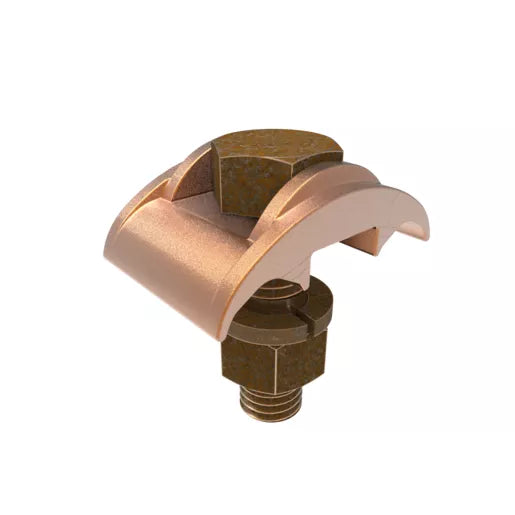

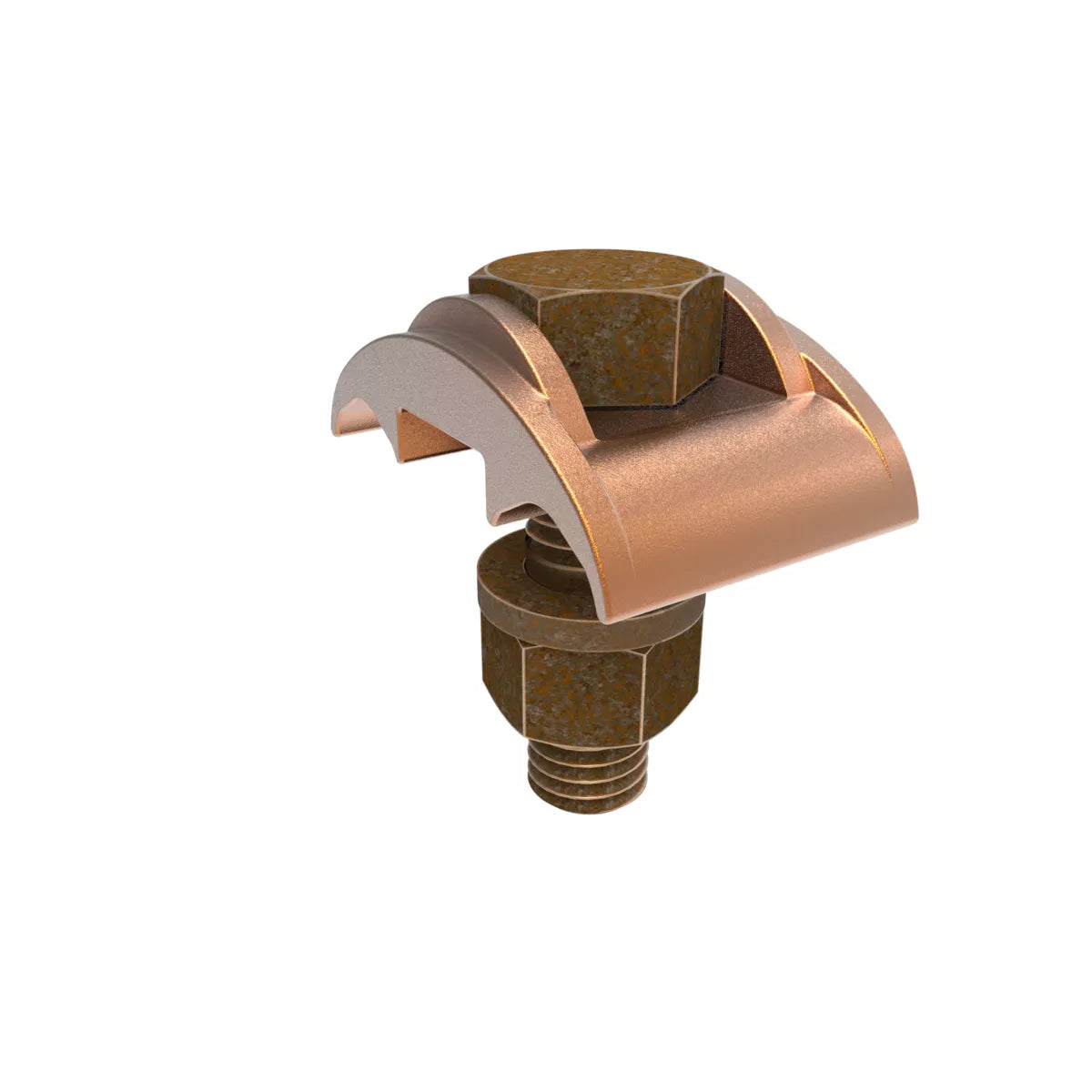

GCM29 - Burndy - 1/2" Stud Mechanical Grounding Connector
Mechanical Grounding Connector, 2 Cables to 1/4" Thick Bar, 2/0 AWG (Sol) -250 kcmil, 1/2" Stud,2.07 H.

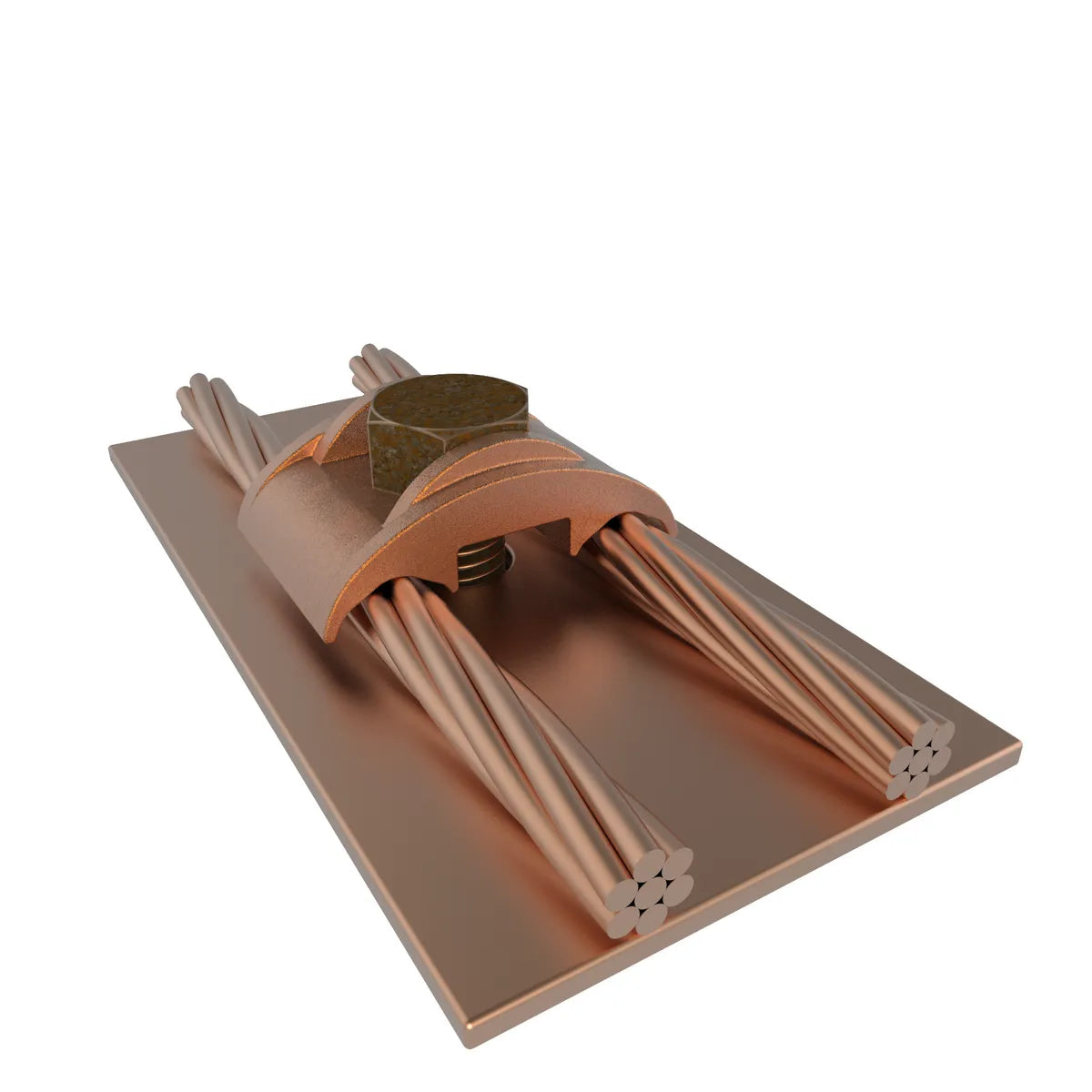

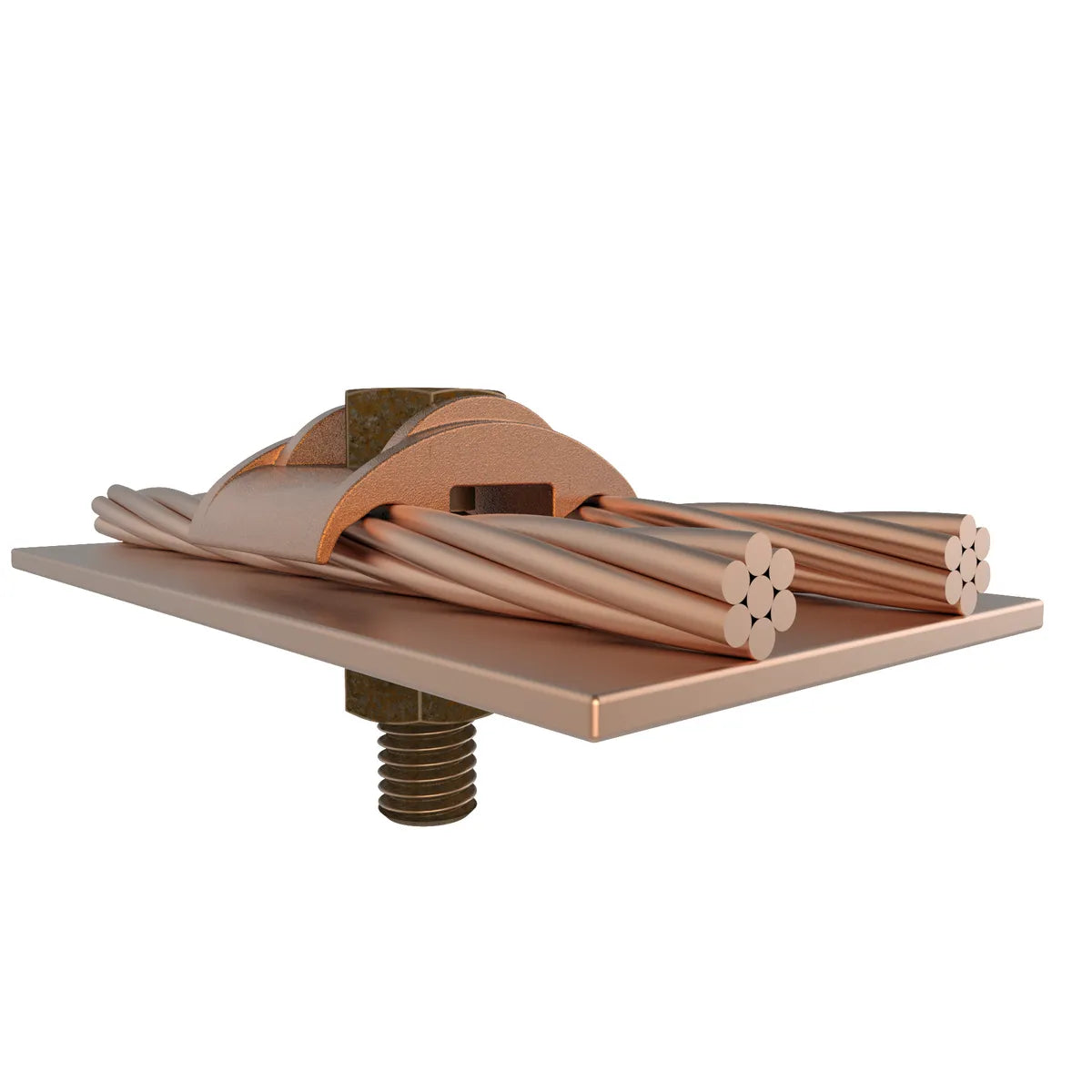

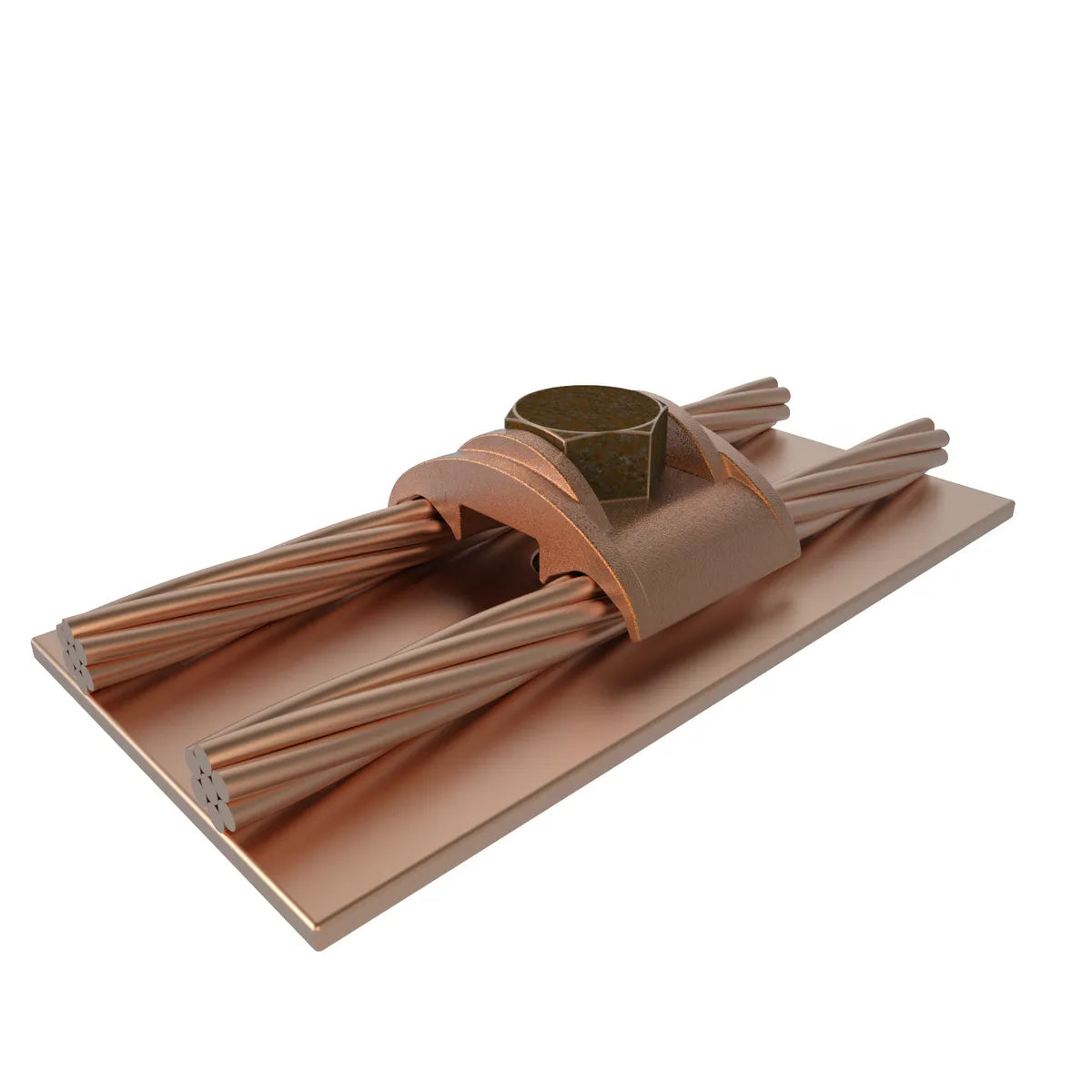

- High copper alloy ground connector for joining a wide range of 2 parallel cables to a 1/2" thick bar
- Type GC separates the cable from the bar
- Type GCM clamps the cable directly to the bar surface
- One wrench installation
- UL467 Listed
- Suitable for Direct Burial in earth or concrete
GENERAL SPECIFICATIONS
| Application |
For Joining A Wide Range Of Two Copper Parallel Cables And Direct Burial In Concrete Or Ground |
| Catalog Number |
GCM29 |
| EU RoHS Indicator |
Yes |
| Installation Torque Recommended in-lb |
480 lb-in |
| Material |
Copper Alloy |
| Material - Hardware |
DURIUM™ Silicon Bronze |
| Physical Attribute - Screw Type |
Hexagonal Bolt |
| Plated |
N |
| Plating Type |
Unplated |
| Sub Brand |
MECHANICAL CONNECTOR |
| Type |
GCM |
| UPC |
781810001776 |
| UPC 14 Digit GTIN |
00781810001776
|
Dimensions
| Dimension - Height inch |
2.07 in
|
| Dimension - Height mm |
52.6 mm |
| Dimension - L Length Overall mm |
32 mm |
| Dimension - Length Overall inch |
1.25 in |
| Dimension - Width fraction |
1-8/9 in |
| Dimension - Width inch |
1.90 in |
| Dimension - Width mm |
48 mm |
Conductor Related
| Conductor - Copper Solid Size |
2/0 AWG;3/0 AWG;4/0 AWG |
| Conductor - Copper Solid Size Range |
2/0 AWG-250 KCMIL |
| Conductor - Copper Str Size |
2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Conductor - Copper Str Size Range |
2/0 AWG - 250 kcmil |
Force Related
| Installation Torque Recommended in-lb |
480 lb-in |
Logistics
| Carton Quantity
|
25 |
| Minimum Pack Quantity |
1 |
| Pallet Quantity |
4500 |
PRODUCT DATASHEET
GCM29
