Description
GENERAL

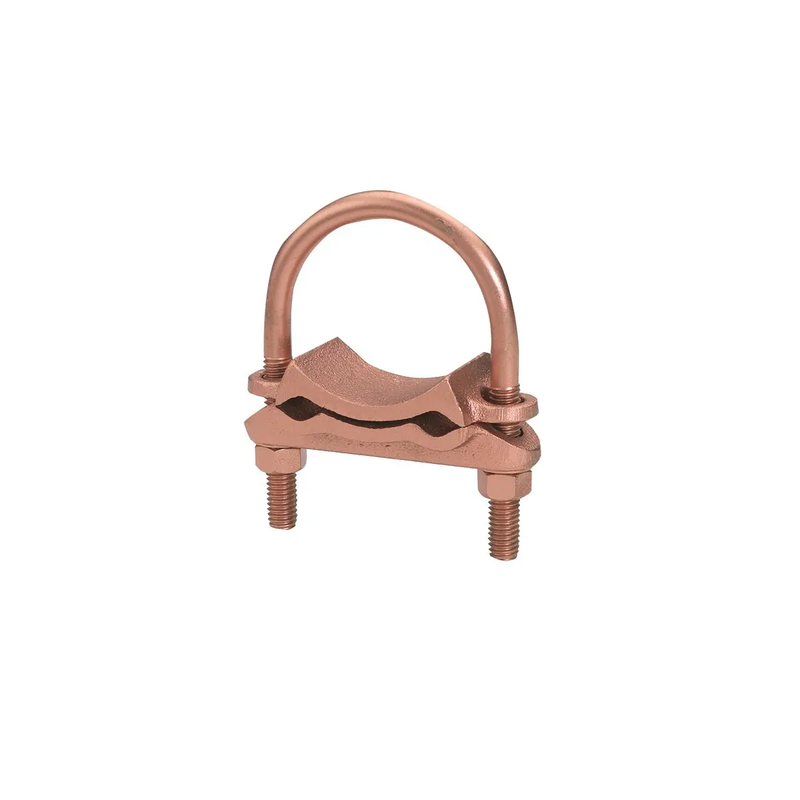

| Application | For Joining A Range Of Two Parallel Cables To Rod Or Tube, Grounding Fence Posts, Direct Burial Applications In Earth Or Concrete |
| Catalog Number | GD1526 |
| Installation Torque Recommended in-lb | 240 LBS/in |
| Material | Copper Alloy, Cast |
| Material Type - Screw | DURIUM™ Silicon Bronze |
| Plated | No |
| Plating Type | Unplated |
| Product Family | Grounding and Bonding Connectors>Copper Mechanical Grounding Connectors>Cable(s) to Ground Rod/Pipe/Tube (GAR/GD/GK)>Two Conductor (GD) |
| Product Type | Mechanical |
| Sub Brand | MECHANICAL CONNECTOR |
| Type | GD |
| U Bolt Type | 244 |
| UPC | 781810260258 |
| UPC 14 Digit GTIN | 00781810260258 |
DIMENSIONS
| Dimension - B Length inch | 1.13 in |
| Dimension - Height fraction | 3-3/8 in |
| Dimension - Height inch | 3.38 in |
| Dimension - Height mm | 85.9 mm |
| Dimension - Width fraction | 2-5/8 in |
| Dimension - Width inch | 2.63 in |
| Dimension - Width mm | 67 mm |
| Package Height | 0 in |
| Package Length | 0 in |
| Package Weight | 0 lb |
| Package Width | 0 in |
CONDUCTOR RELATED
| Conductor - Copper Solid Size | 4;3;2;1;1/0;2/0 |
| Conductor - Copper Solid Size Range | 4-2/0 |
| Conductor - Copper Str Size | 4;3;2;1;1/0;2/0 |
| Conductor - Copper Str Size B Range | 1 |
| Conductor - Copper Str Size Range | 4 AWG - 2/0 AWG |
| Conductor - Copper Tube Std Size | 1-1/8;1-1/4 |
| Conductor - Copper Tube Std Size Range | 1-1/8-1-1/4 |
| Conductor - Rod Size | 1 1/4 in |
| Conductor - Rod Size Range | 1 1/4 in |
CERTIFICATIONS AND COMPLIANCE
| Buy America(n) Qualified | Contact Manufacturer |
| Certification - CSA Approved | Yes |
| Certification - cULus | No |
| Certification - ETL | No |
| Certification - UL Listed Direct Burial | Yes |
| Certification - UL Recognized | No |
| Industry Standard(s) | UL467 |
| Standards - Industry Standards Met | UL467 |
| Standards - RoHS Compliance Status | EX |
| UL Listed | Yes |
FORCE RELATED
| Installation Torque Recommended in-lb | 240 LBS/in |
LOGISTICS
| Carton Quantity | 12 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 2880 |
