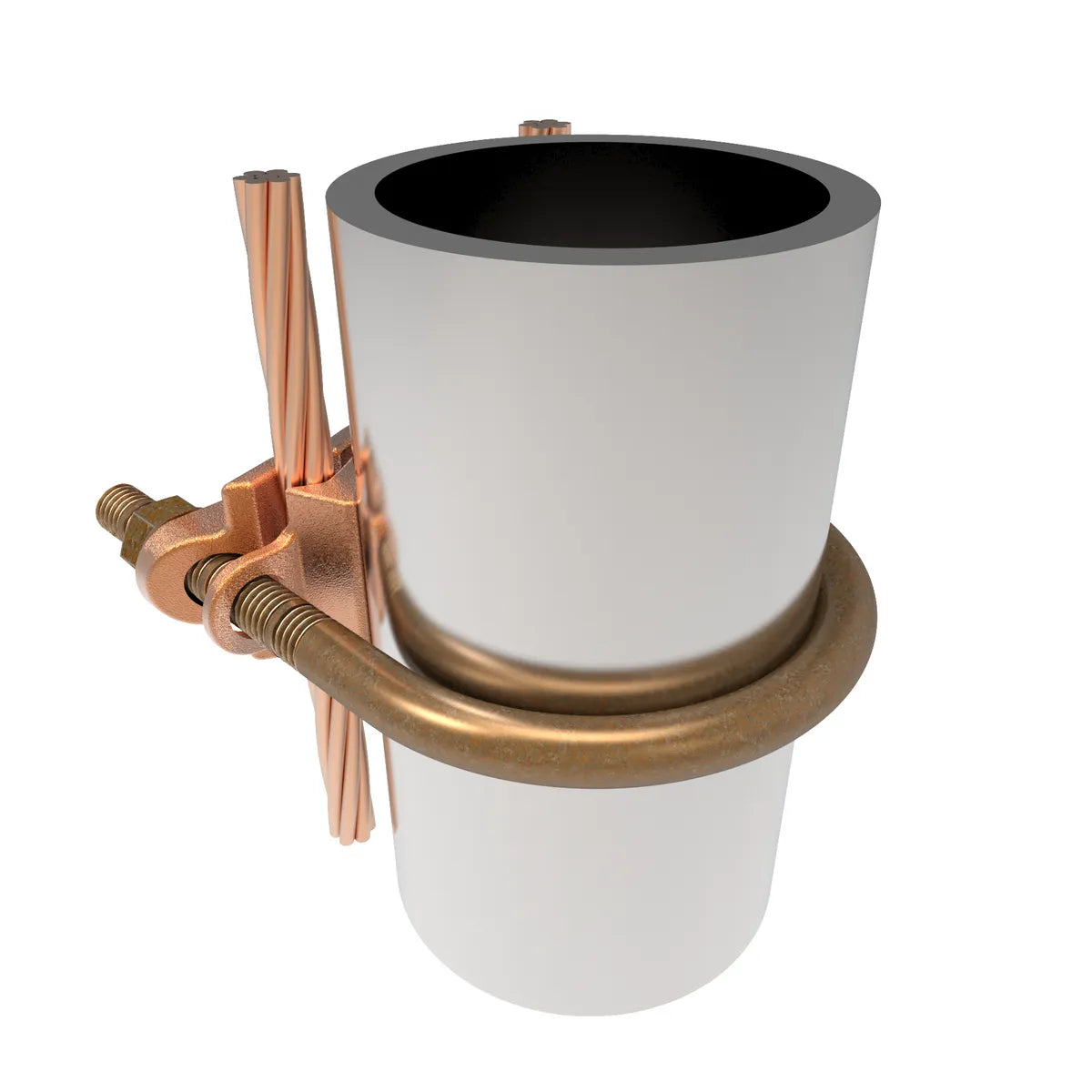

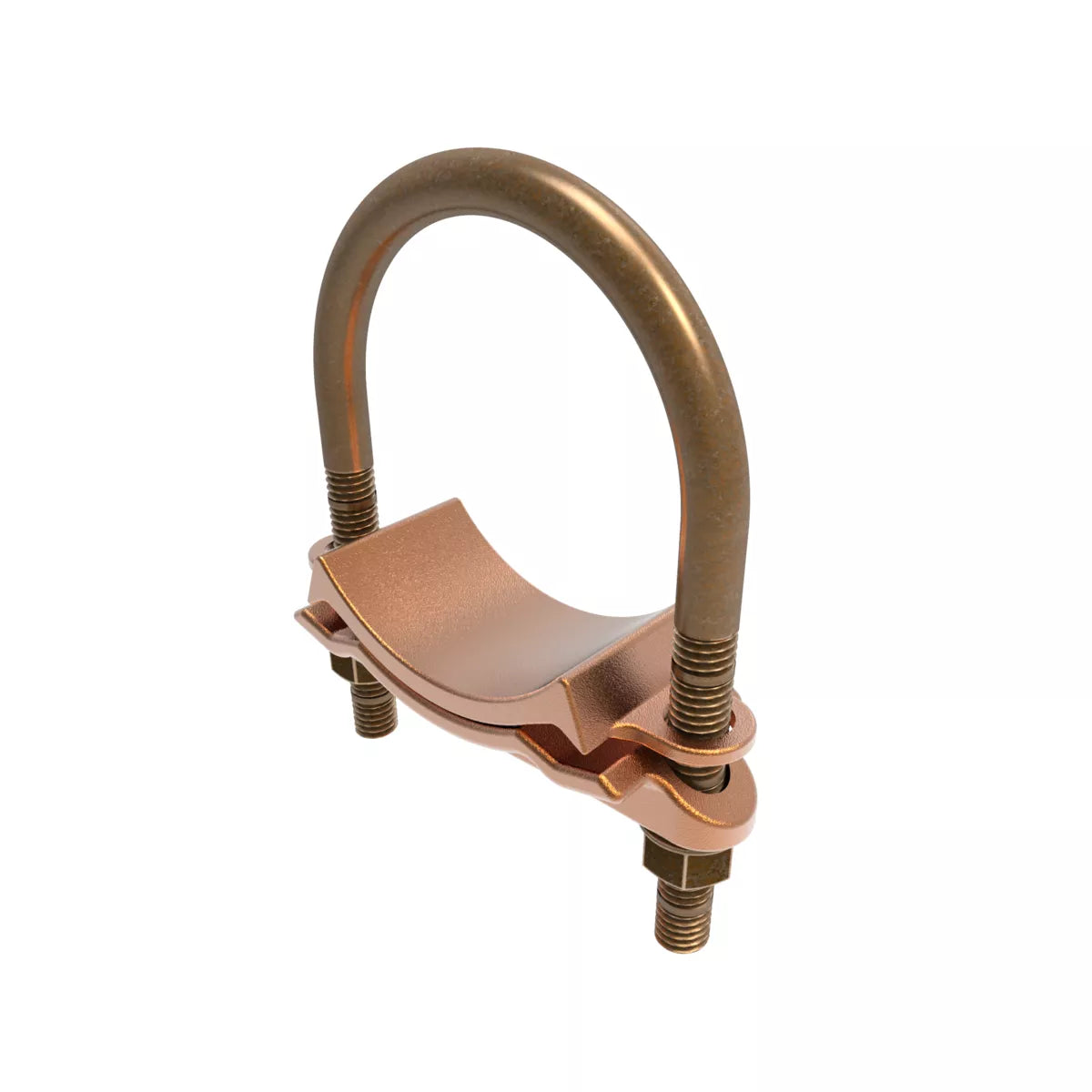

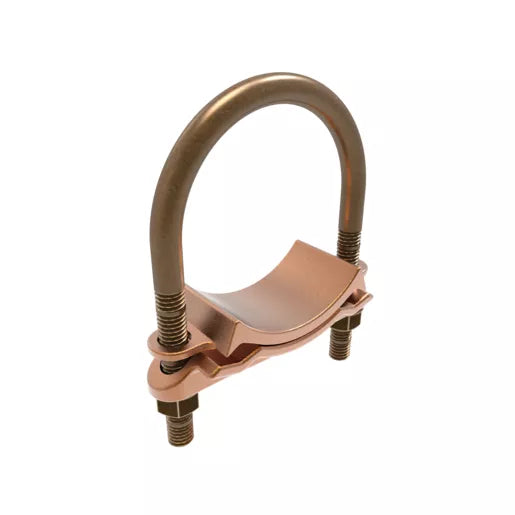

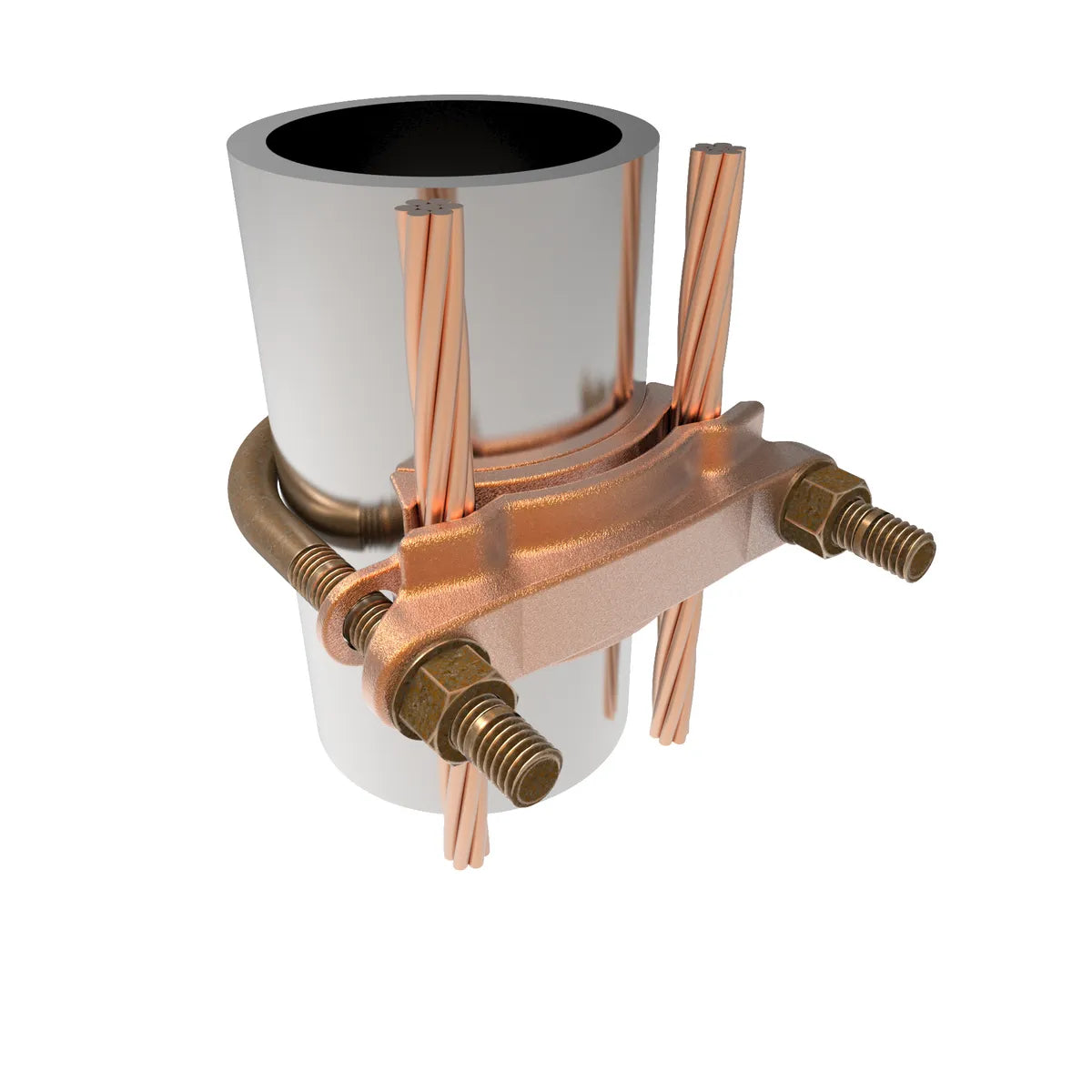

GD1826 - Burndy - 2" to 2-3/8" Rod Mechanical Grounding Connector
Mechanical Grounding Connector, 2 Parallel Cables to Rod or Pipe, 4 AWG ( Sol.) - 2/0 AWG (Str.), 2" to 2-3/8" Rod, 2" Pipe.
- Rated for Direct Burial in earth or concrete
- UL467 Listed for the US and Canadian Markets
- One-wrench installation
GENERAL SPECIFICATIONS
| Application |
For Joining A Range Of Two Parallel Copper Cables To Rod Or Pipe And Burial In Ground Or Concrete |
| Catalog Number |
GD1826 |
| EU RoHS Indicator |
Yes |
| Installation Torque Recommended in-lb |
240 LBS/in |
| Material |
Copper Alloy |
| Material - Hardware |
DURIUM™ Silicon Bronze |
| Plated |
N |
| Plating Type |
Unplated |
| Sub Brand |
MECHANICAL CONNECTOR |
| Type |
GD |
| U Bolt Type |
256 |
| UPC |
781810238943 |
| UPC 14 Digit GTIN |
00781810238943
|
Dimensions
| Dimension - B Length inch |
1.31 in |
| Dimension - Height fraction |
4-3/8 in |
| Dimension - Height inch |
4.38 in |
| Dimension - Height mm |
111.3 mm |
| Dimension - Width fraction |
3-3/4 in |
| Dimension - Width inch |
3.69 in |
| Dimension - Width mm |
94 mm |
Conductor Related
| Conductor - Copper Solid Size |
4; 3; 2; 1; 1/0; 2/0 |
| Conductor - Copper Solid Size Range |
4-2/0 |
| Conductor - Copper Str Size |
4;3;2;1;1/0;2/0 |
| Conductor - Copper Str Size B Range |
2 |
| Conductor - Copper Str Size Range |
4 AWG - 2/0 AWG |
| Conductor - Copper Tube Std Size |
2 |
| Conductor - Copper Tube Std Size Range |
2 |
| Conductor - Rod Size |
2 in |
| Conductor - Rod Size Range |
2 in |
Force Related
| Installation Torque Recommended in-lb |
240 LBS/in |
Logistics
PRODUCT DATASHEET
GD1826
