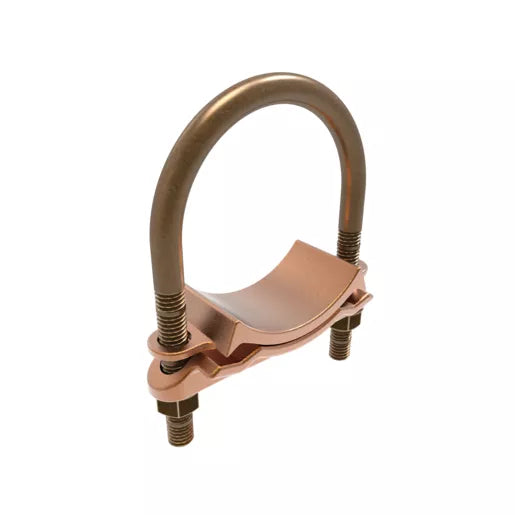

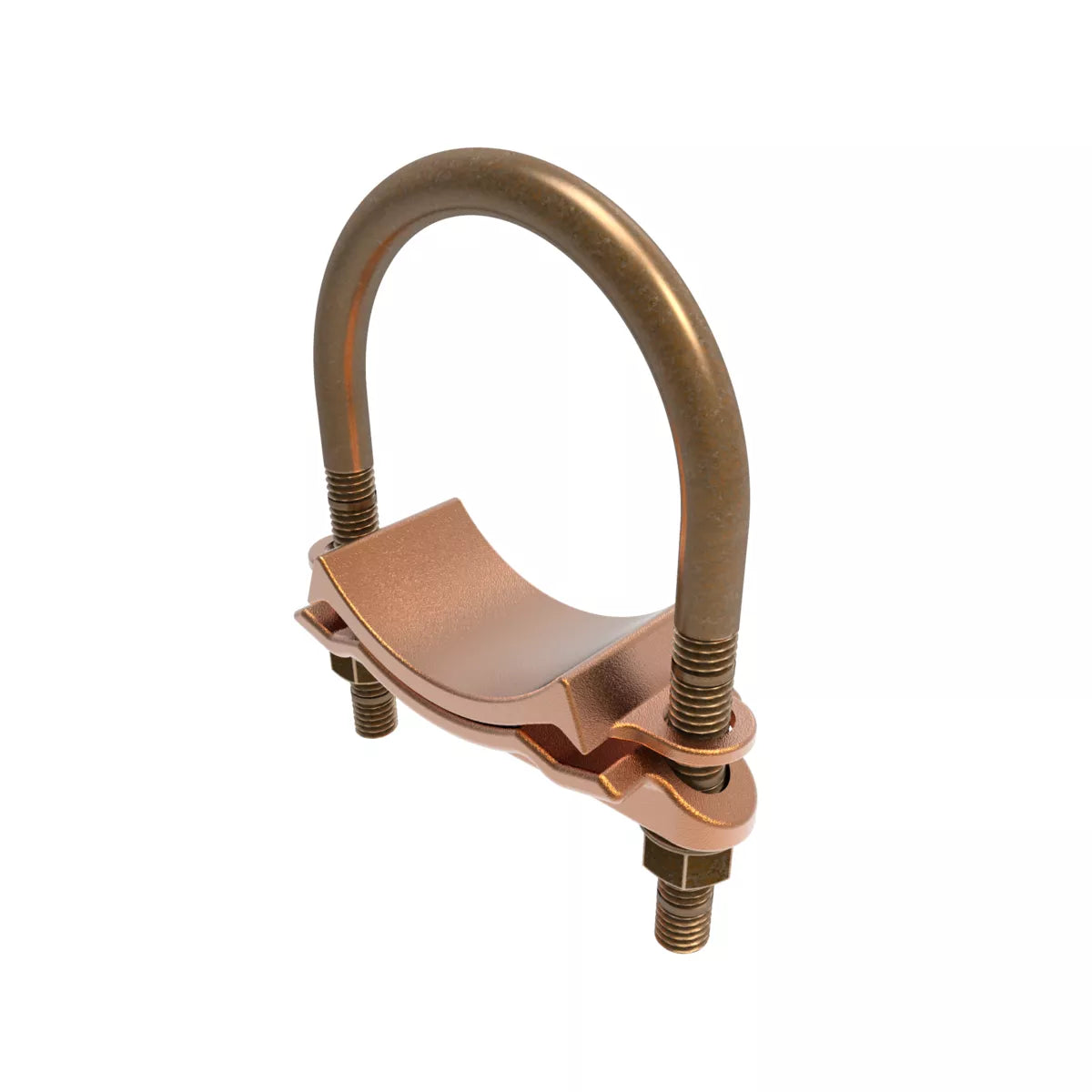

GD1829 - Burndy - 2" to 2-3/8" Rod Mechanical Grounding Connector

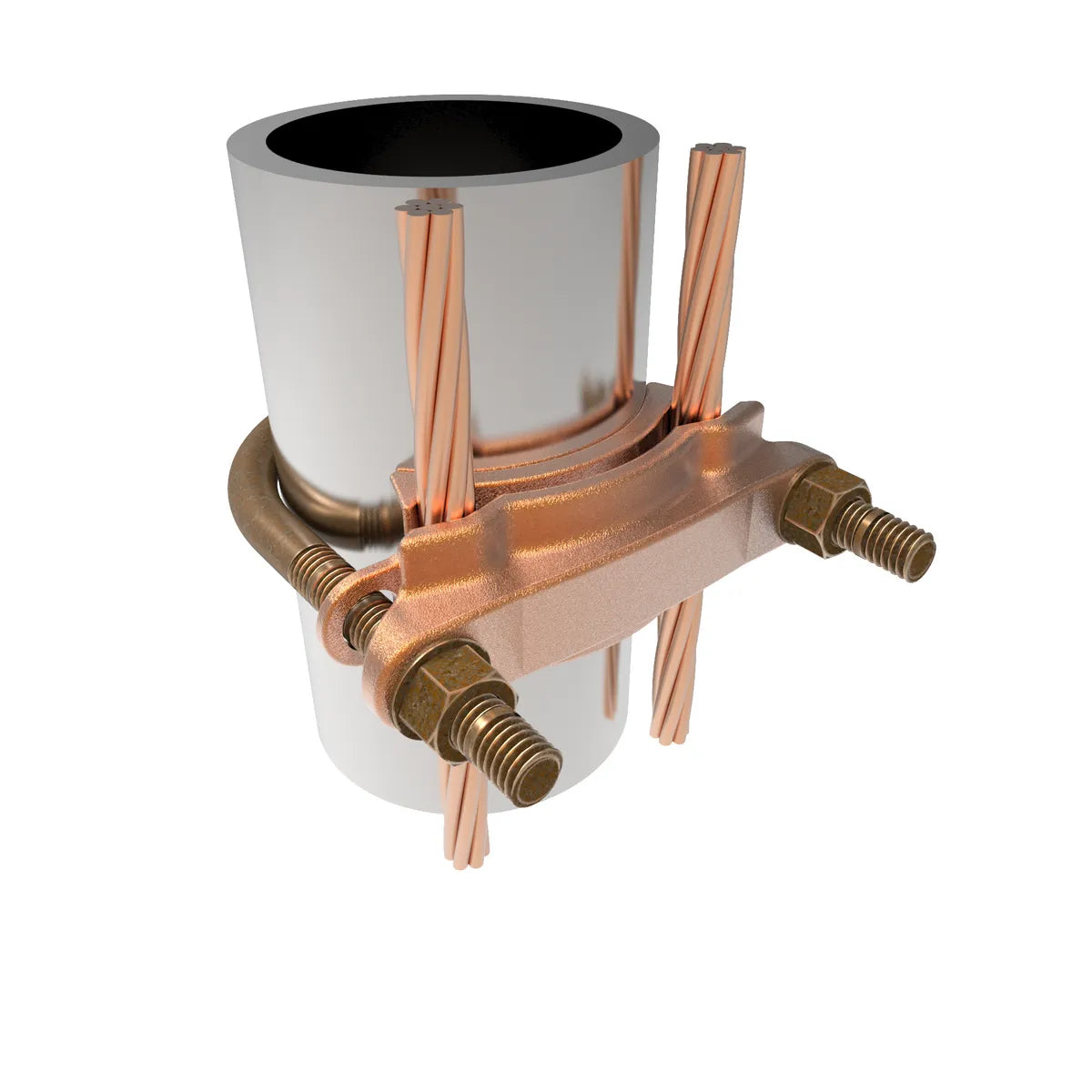

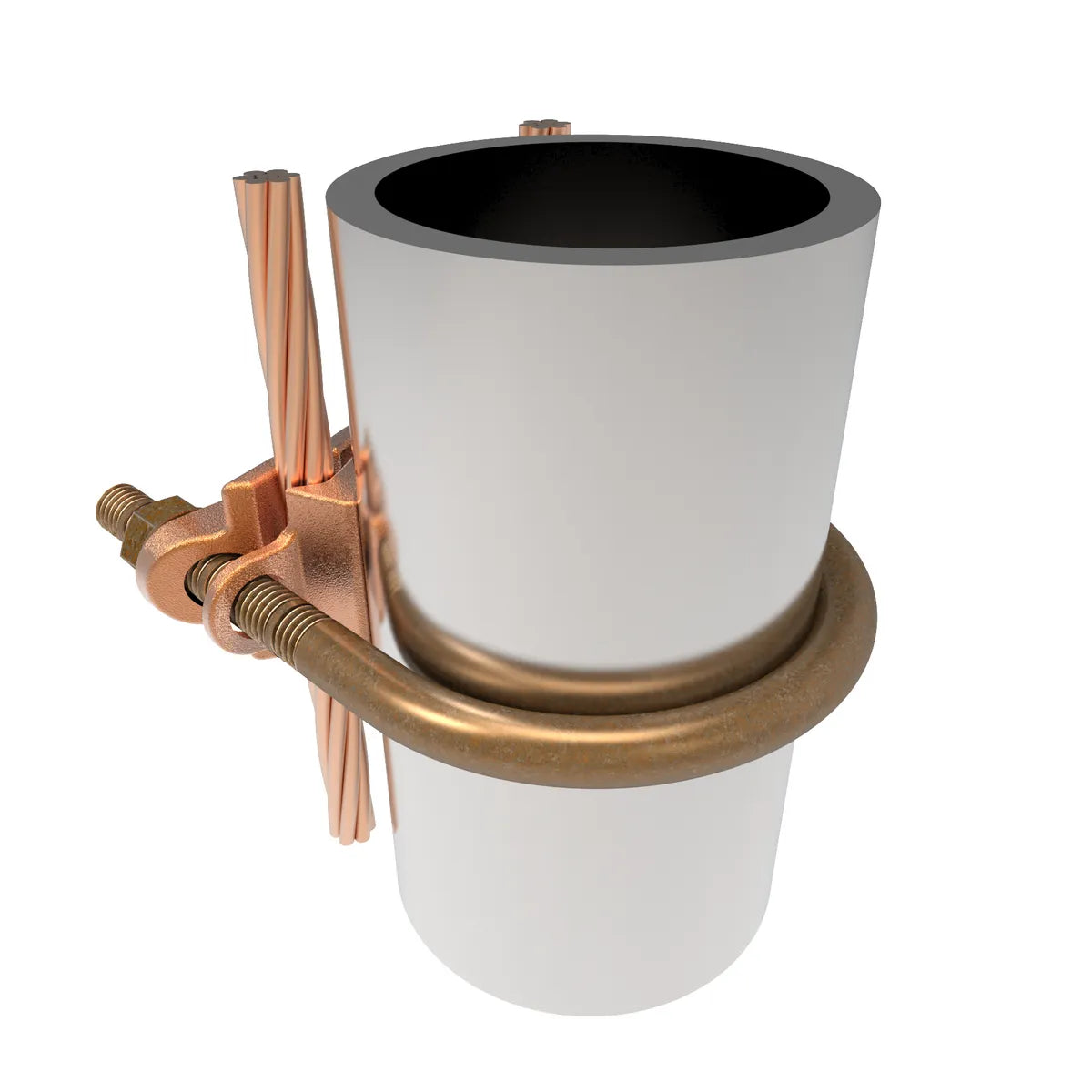

Mechanical Grounding Connector, 2 Parallel Cables to Rod or Pipe, 2/0 AWG (Sol.) - 250 kcmil, 2" to 2-3/8" Rod, 2" Pipe.
- Rated for Direct Burial in earth or concrete
- UL467 Listed for the US and Canadian Markets
- One-wrench installation
GENERAL SPECIFICATIONS
| Application |
For Joining A Range Of Two Parallel Copper Cables To Rod Or Pipe And Burial In Ground Or Concrete |
| Catalog Number |
GD1829 |
| EU RoHS Indicator |
Yes |
| Installation Torque Recommended in-lb |
240 LBS/in |
| Material |
Copper Alloy, Cast |
| Material - Hardware |
DURIUM™ Silicon Bronze |
| Plated |
N |
| Plating Type |
Unplated |
| Sub Brand |
MECHANICAL CONNECTOR |
| Type |
GD |
| U Bolt Type |
257 |
| UPC |
781810260333 |
| UPC 14 Digit GTIN |
00781810260333
|
Dimensions
| Dimension - B Length inch |
1.31 in |
| Dimension - Height fraction |
4-3/8 in |
| Dimension - Height inch |
4.38 in |
| Dimension - Height mm |
111.3 mm |
| Dimension - Width fraction |
3-3/4 in |
| Dimension - Width inch |
3.69 in |
| Dimension - Width mm |
94 mm |
Conductor Related
| Conductor - Copper Solid Size |
2/0;3/0;4/0 |
| Conductor - Copper Solid Size Range |
2/0-4/0 |
| Conductor - Copper Str Size |
2/0;3/0;4/0;250 |
| Conductor - Copper Str Size B Range |
2 |
| Conductor - Copper Str Size Range |
2/0 AWG - 250 kcmil |
| Conductor - Copper Tube Std Size |
2 |
| Conductor - Copper Tube Std Size Range |
2 |
| Conductor - Rod Size |
2 in |
| Conductor - Rod Size Range |
2 in |
Force Related
| Installation Torque Recommended in-lb |
240 LBS/in |
Logistics
| Carton Quantity |
25 |
| Minimum Pack Quantity |
1 |
| Pallet Quantity |
1500 |
PRODUCT DATASHEET
GD1829
