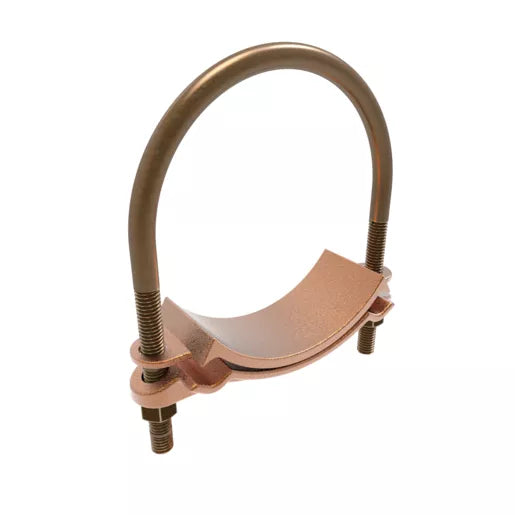

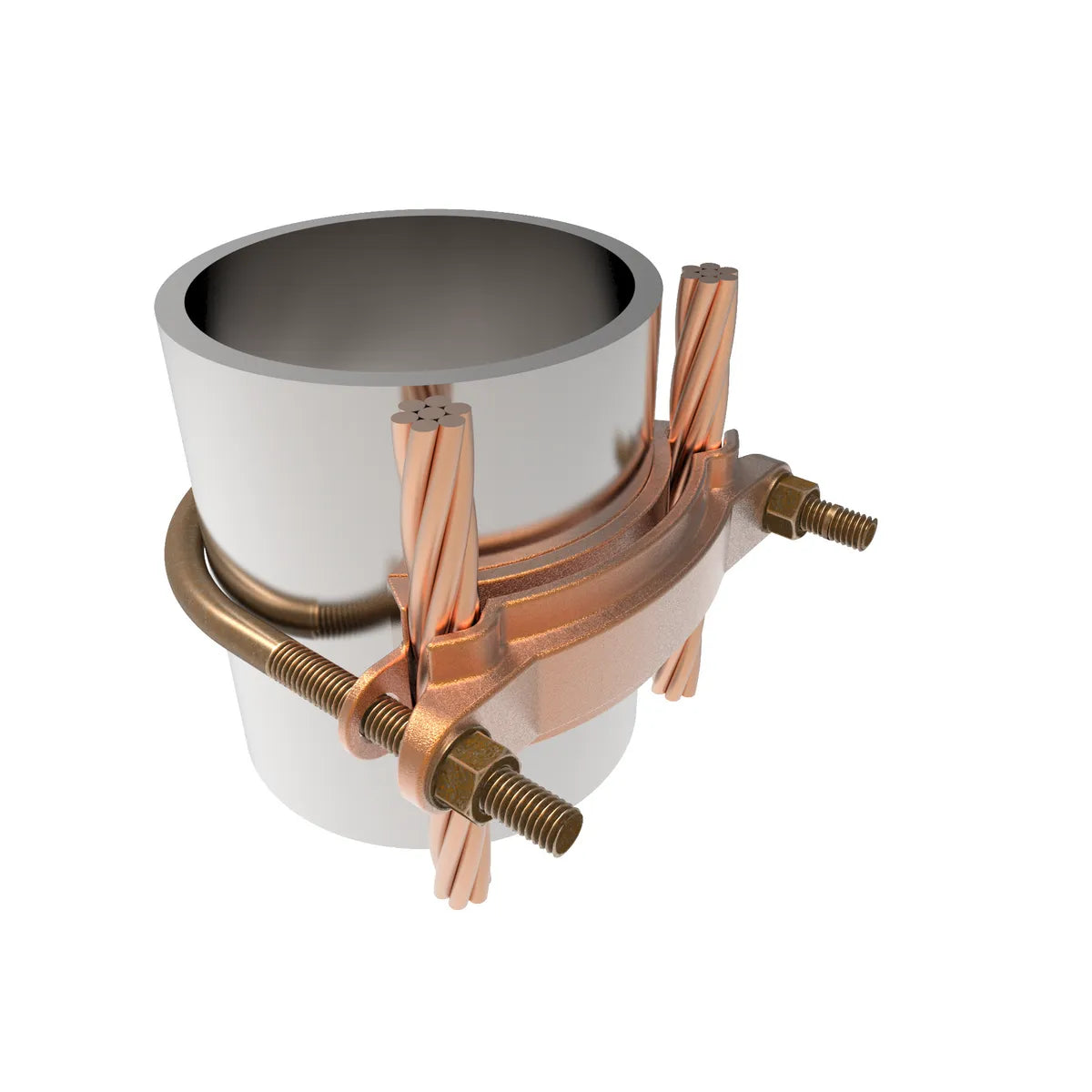

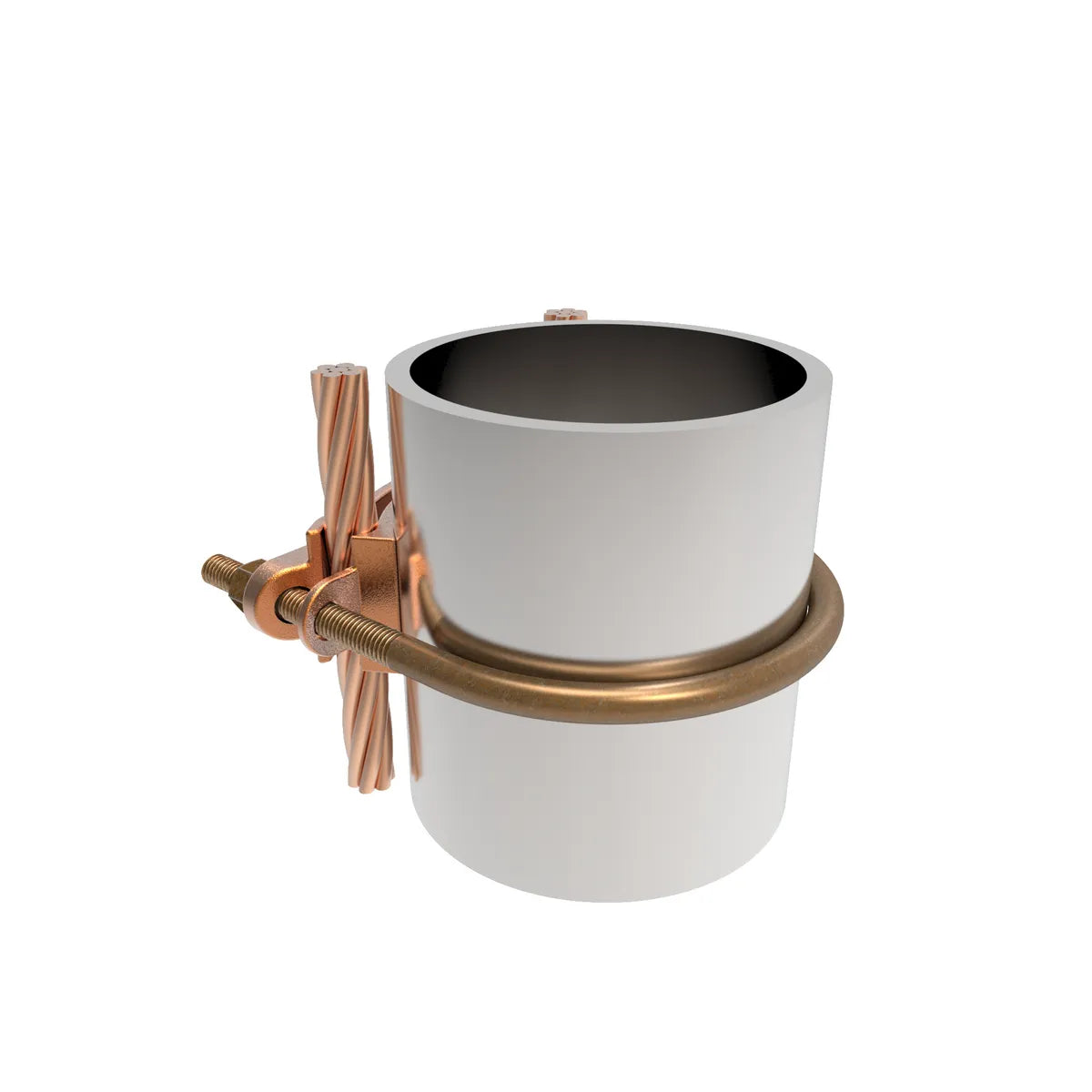

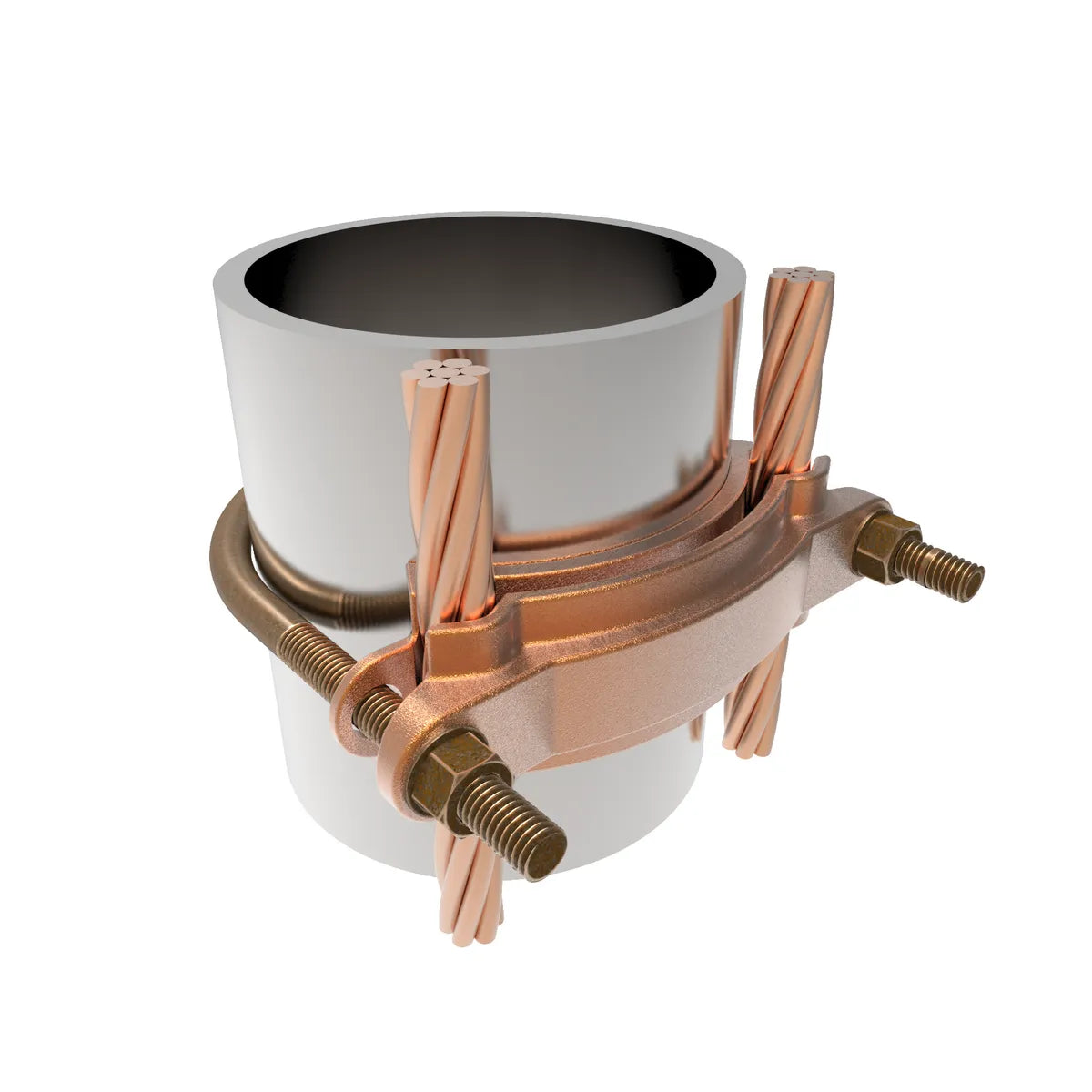

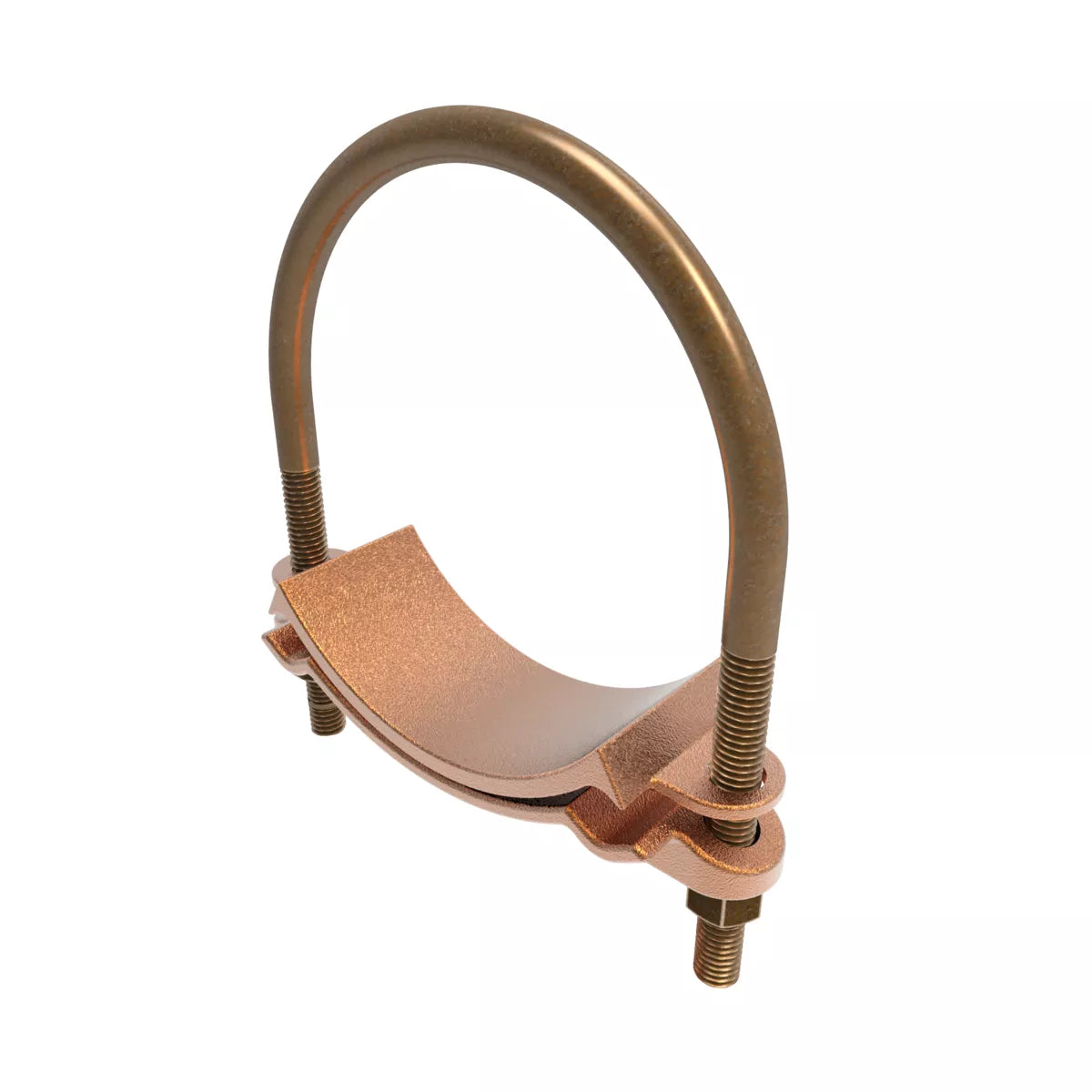

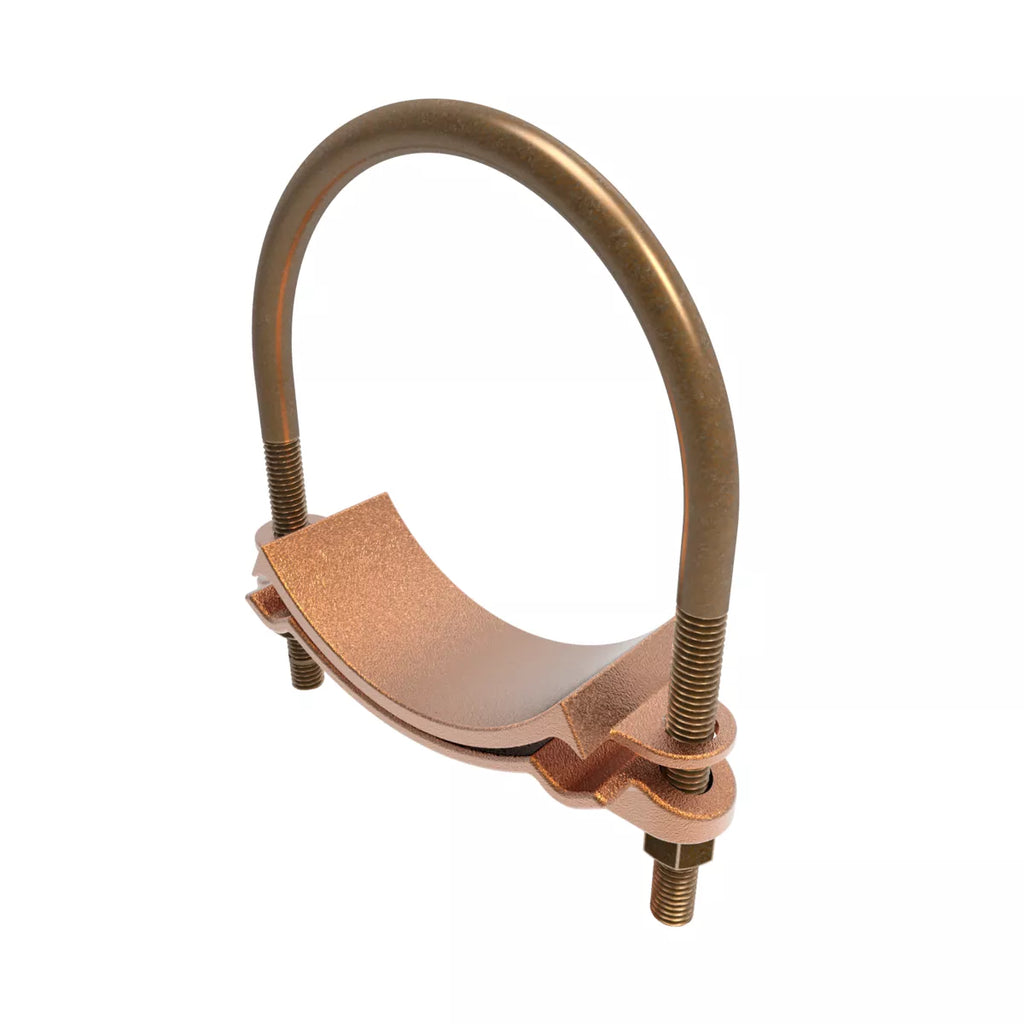

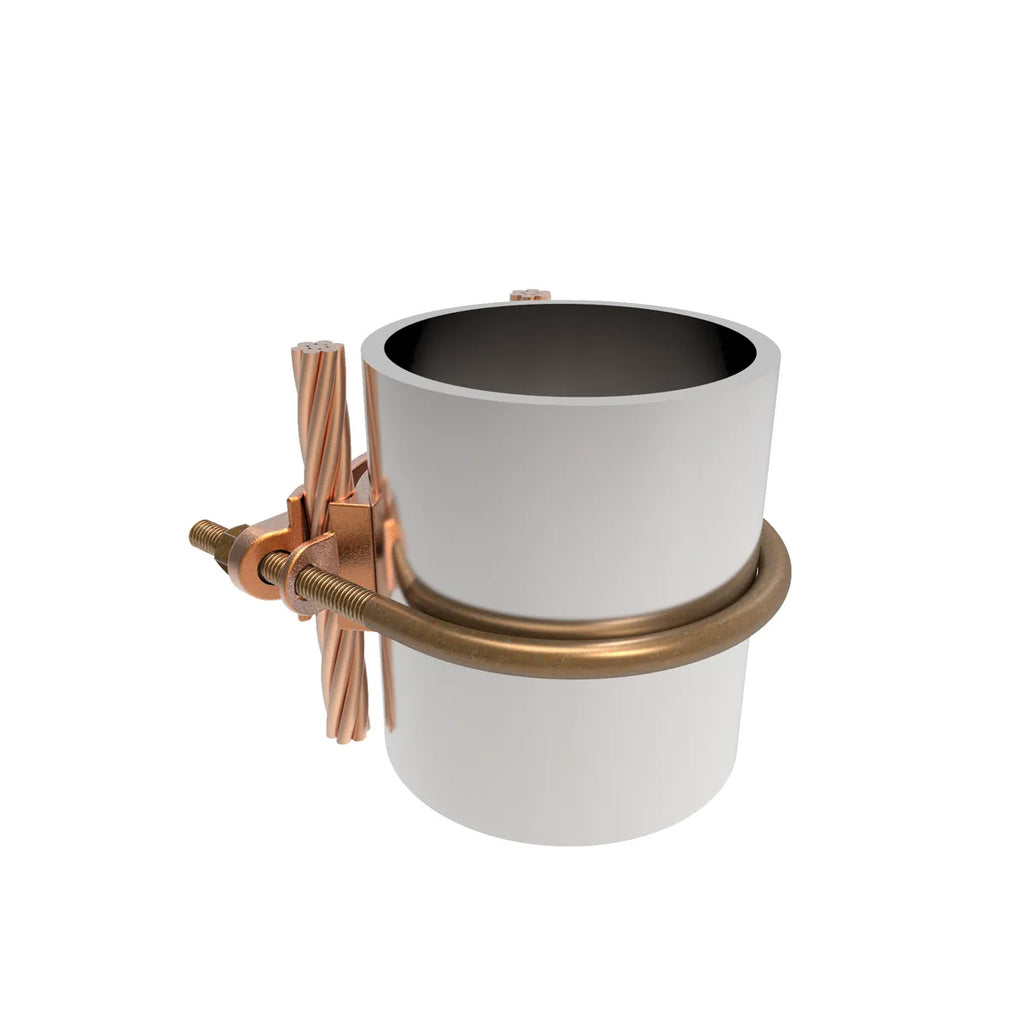

GD2226 - Burndy - 4" to 4-1/2" Rod Mechanical Grounding Connector
Mechanical Grounding Connector, 2 Parallel Cables to Rod or Pipe, 4 AWG ( Sol.) - 2/0 AWG (Str.), 4" to 4-1/2" Rod, 4" Pipe.
- Rated for Direct Burial in earth or concrete
- UL467 Listed for the US and Canadian Markets
- One-wrench installation
GENERAL SPECIFICATIONS
| Application |
For Joining A Range Of Two Parallel Copper Cables To Rod Or Pipe And Burial In Ground Or Concrete |
| Catalog Number |
GD2226 |
| EU RoHS Indicator |
Yes |
| Installation Torque Recommended in-lb |
240 LBS/in |
| Material |
Copper Alloy, Cast |
| Material Type - Screw |
DURIUM™ Silicon Bronze |
| Plated |
N |
| Plating Type |
Unplated |
| Sub Brand |
MECHANICAL CONNECTOR |
| Type |
GD |
| U Bolt Type |
261 |
| UPC |
781810260463 |
| UPC 14 Digit GTIN |
00781810260463
|
Dimensions
| Dimension - B Length inch |
1.63 in |
| Dimension - Height fraction |
6-3/8 in |
| Dimension - Height inch |
6.38 in |
| Dimension - Height mm |
162.1 mm |
| Dimension - Width fraction |
5-7/8 in |
| Dimension - Width inch |
5.81 in |
| Dimension - Width mm |
148 mm
|
Conductor Related
| Conductor - Copper Solid Size |
4;3;2;1;1/0;2/0 |
| Conductor - Copper Solid Size Range |
4-2/0 |
| Conductor - Copper Str Size |
4;3;2;1;1/0;2/0 |
| Conductor - Copper Str Size B Range |
4 |
| Conductor - Copper Str Size Range |
4 AWG - 2/0 AWG |
| Conductor - Copper Tube Std Size |
4 |
| Conductor - Copper Tube Std Size Range |
4 |
| Conductor Size |
#4 Sol AWG - 2/0 Str AWG |
Force Related
| Installation Torque Recommended in-lb |
240 LBS/in |
Logistics
| Carton Quantity |
15 |
| Minimum Pack Quantity |
1 |
| Pallet Quantity |
540 |
PRODUCT DATASHEET
GD2226
