Description
GENERAL

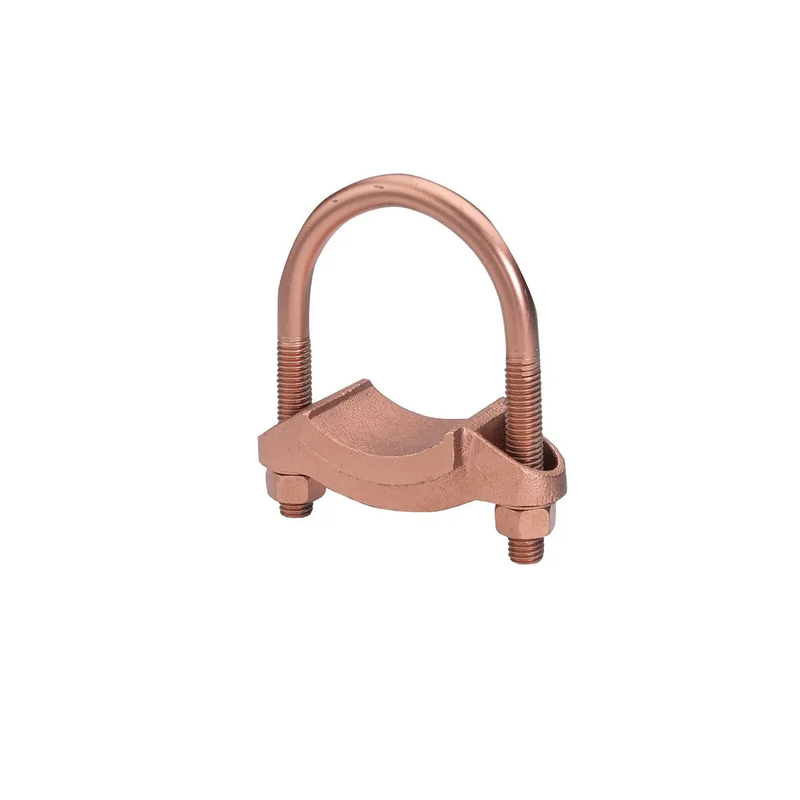

| Application | For Joining Copper Bar, Strap, Braid Or Cable To Rod Or Tube, Direct Burial Cables |
| Catalog Number | GG192 |
| Installation Torque Recommended in-lb | 480 LBS/in |
| Material | Copper Alloy, Cast |
| Material Type - Screw | DURIUM™ Silicon Bronze |
| Plated | No |
| Plating Type | Unplated |
| Product Type | Mechanical |
| Sub Brand | MECHANICAL CONNECTOR |
| Type | GG |
| U Bolt Type | 232 |
| UPC | 781810990056 |
| UPC 14 Digit GTIN | 00781810990056 |
DIMENSIONS
| Dimension - B Length inch | 1.75 in |
| Dimension - Height mm | 127 mm |
| Dimension - Width inch | 4.56 in |
| Dimension - Width mm | 116 mm |
| Package Height | 0 in |
| Package Length | 0 in |
| Package Weight | 0 lb |
| Package Width | 0 in |
CERTIFICATIONS AND COMPLIANCE
| Buy America(n) Qualified | Contact Manufacturer |
| Certification - CSA Approved | Yes |
| Certification - cULus | No |
| Certification - ETL | No |
| Certification - UL Listed Direct Burial | Yes |
| Certification - UL Recognized | No |
| Industry Standard(s) | UL467 |
| Standards - Industry Standards Met | UL467 |
| Standards - RoHS Compliance Status | EX |
| UL Listed | No |
FORCE RELATED
| Installation Torque Recommended in-lb | 480 LBS/in |
LOGISTICS
| Carton Quantity | 6 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 54 |
