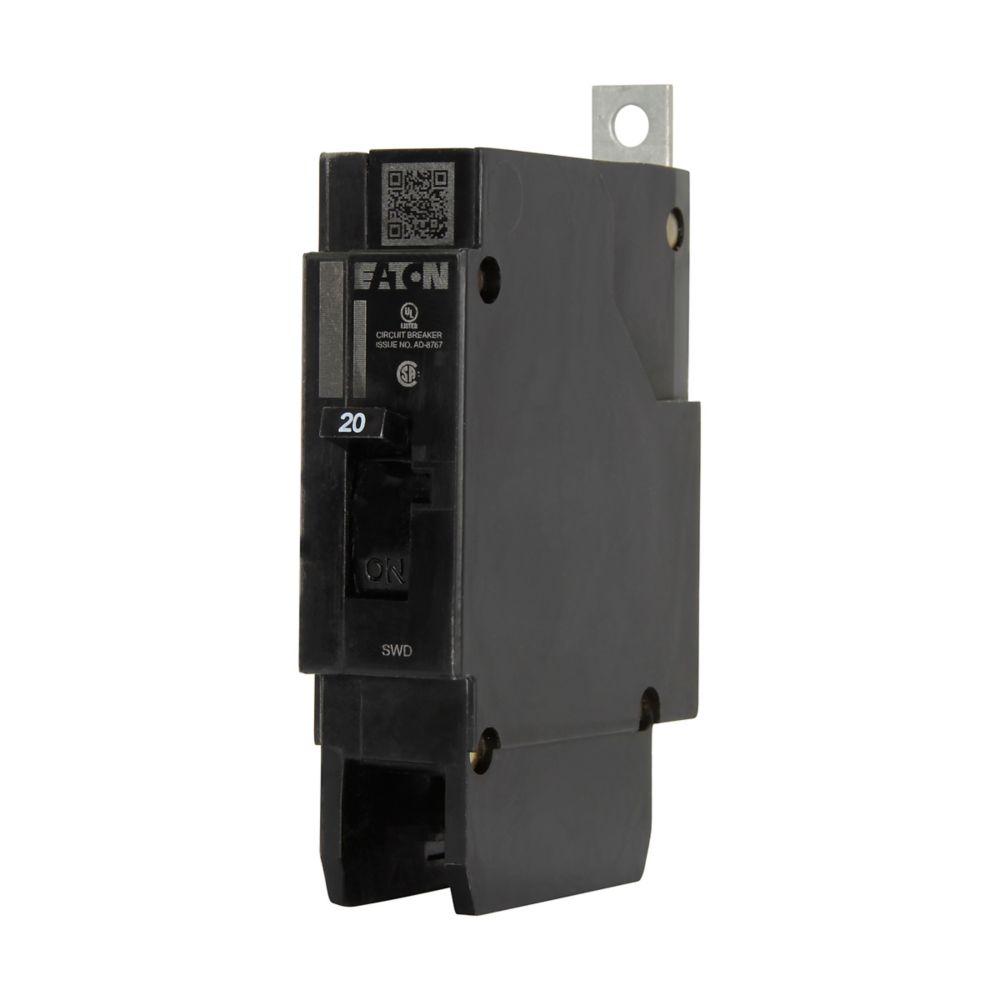

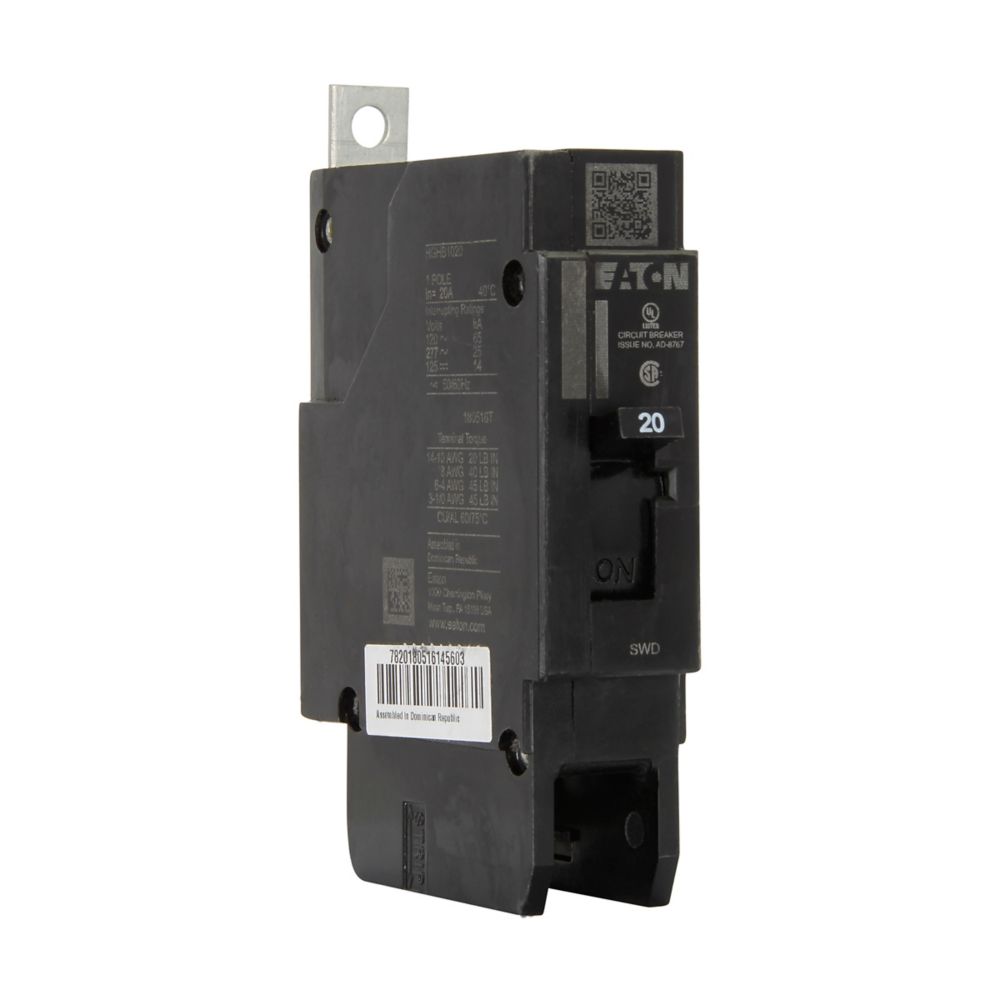

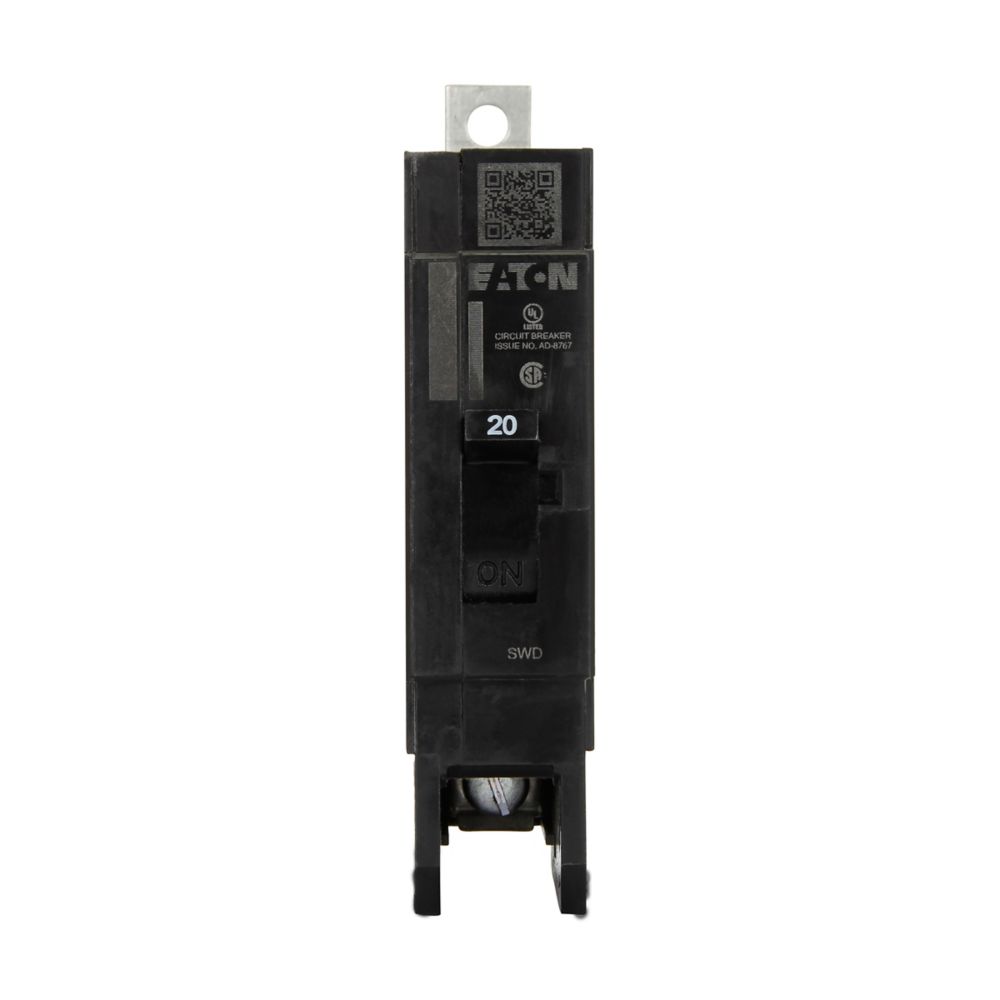

GHB1020 - Eaton Cutler Hammer - 20 A 277V Single-pole circuit breakers
Eaton Series C complete molded case circuit breaker, G-frame, GHB, Complete breaker, Fixed thermal, Fixed magnetic trip type, Single-pole, 20 A, 277 Vac, 125 Vdc, 14 kAIC at 277 Vac, 50/60 Hz.
GENERAL SPECIFICATIONS
| Product Name |
Eaton Series C complete molded case circuit breaker |
| Catalog Number |
GHB1020 |
| UPC |
786679023624 |
| Product Length/Depth |
2.63 in |
| Product Height |
4 in |
| Product Width |
1 in |
| Product Weight |
0.65 lb |
| Compliances |
Federal Specifications Classification W-C375B |
| Certifications |
UL Listed |
| Product Type |
Molded case circuit breaker |
PRODUCT SPECIFICATIONS
| Amperage Rating |
20 A |
| Voltage rating |
277 Vac, 125 Vdc |
| Trip Type |
T186 |
| Circuit breaker type |
GHB |
| Circuit breaker frame type |
Complete breaker |
| Series |
Series C |
| Frame |
G |
| Frequency rating |
50/60 Hz |
| Interrupt rating |
14 kAIC at 277 Vac |
| Number of poles |
Single-pole |
| Type |
Molded case circuit breaker |
PRODUCT DATASHEET
GHB1020
