Description

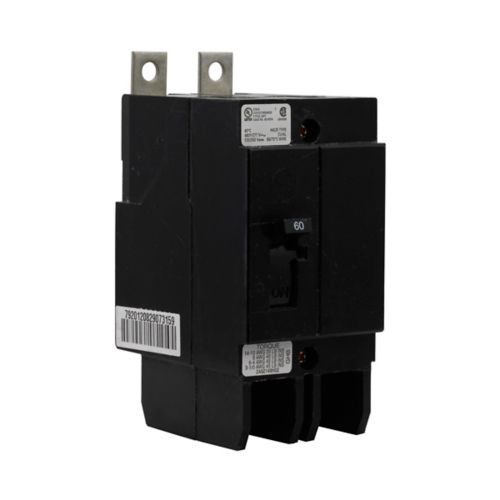

GHB2060 - Eaton - 60 A 480Y/277 Vac Series C Complete Molded Case Circuit Breakers
Eaton Series C complete molded case circuit breaker, G-frame, GHB, Complete breaker, Fixed thermal, Fixed magnetic trip type, Two-pole, 60 A, 480Y/277 Vac, 125/250 Vdc, 50/60 Hz
GENERAL SPECIFICATIONS
| Product Name | Eaton Series C complete molded case circuit breaker |
| Catalog Number | GHB2060 |
| UPC | 786679172407 |
| Product Length/Depth | 2.63 in |
| Product Height | 4 in |
| Product Width | 2 in |
| Product Weight | 1.15 lb |
| Compliances | Federal Specifications Classification W-C375B |
| Certifications | UL Listed |
| Product Type | Molded case circuit breaker |
PRODUCT SPECIFICATIONS
| Amperage Rating | 60 A |
| Voltage rating | 480Y/277 Vac, 125/250 Vdc |
| Trip Type | T186 |
| Circuit breaker type | GHB |
| Circuit breaker frame type | Complete breaker |
| Series | Series C |
| Frame | G |
| Frequency rating | 50/60 Hz |
| Interrupt rating | 65 kAIC at 240 Vac 14 kAIC at 480Y/277 Vac |
| Number of poles | Two-pole |
| Type | Molded case circuit breaker |
