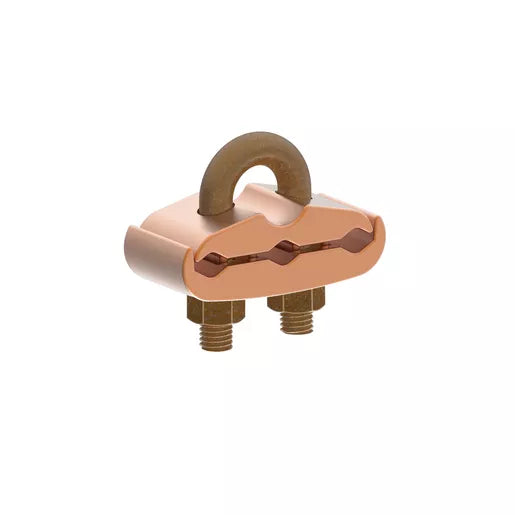

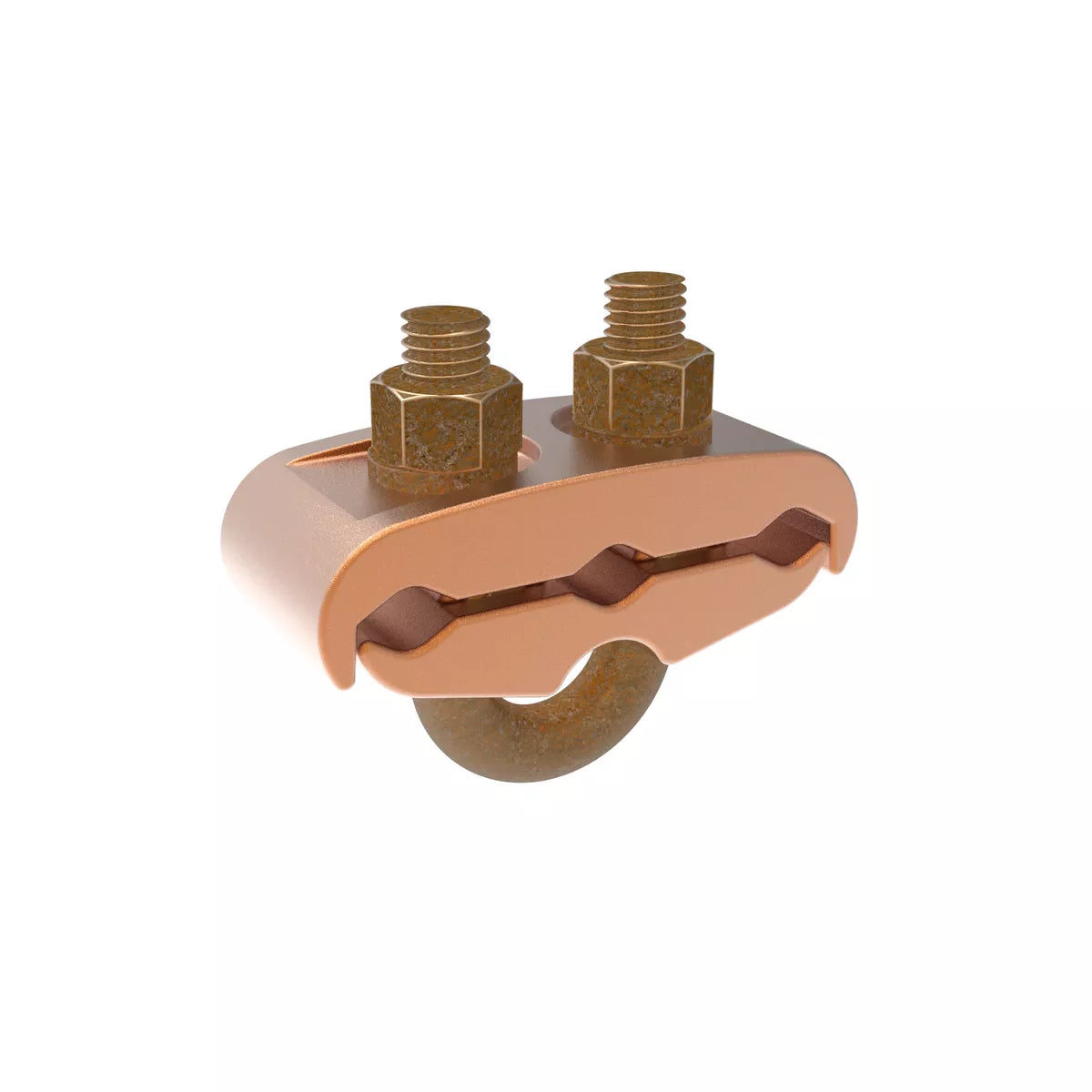

GK6429 - Burndy - 3/8" Pipe 5/8" to 3/4" Rod Copper Alloy Grounding Clamp

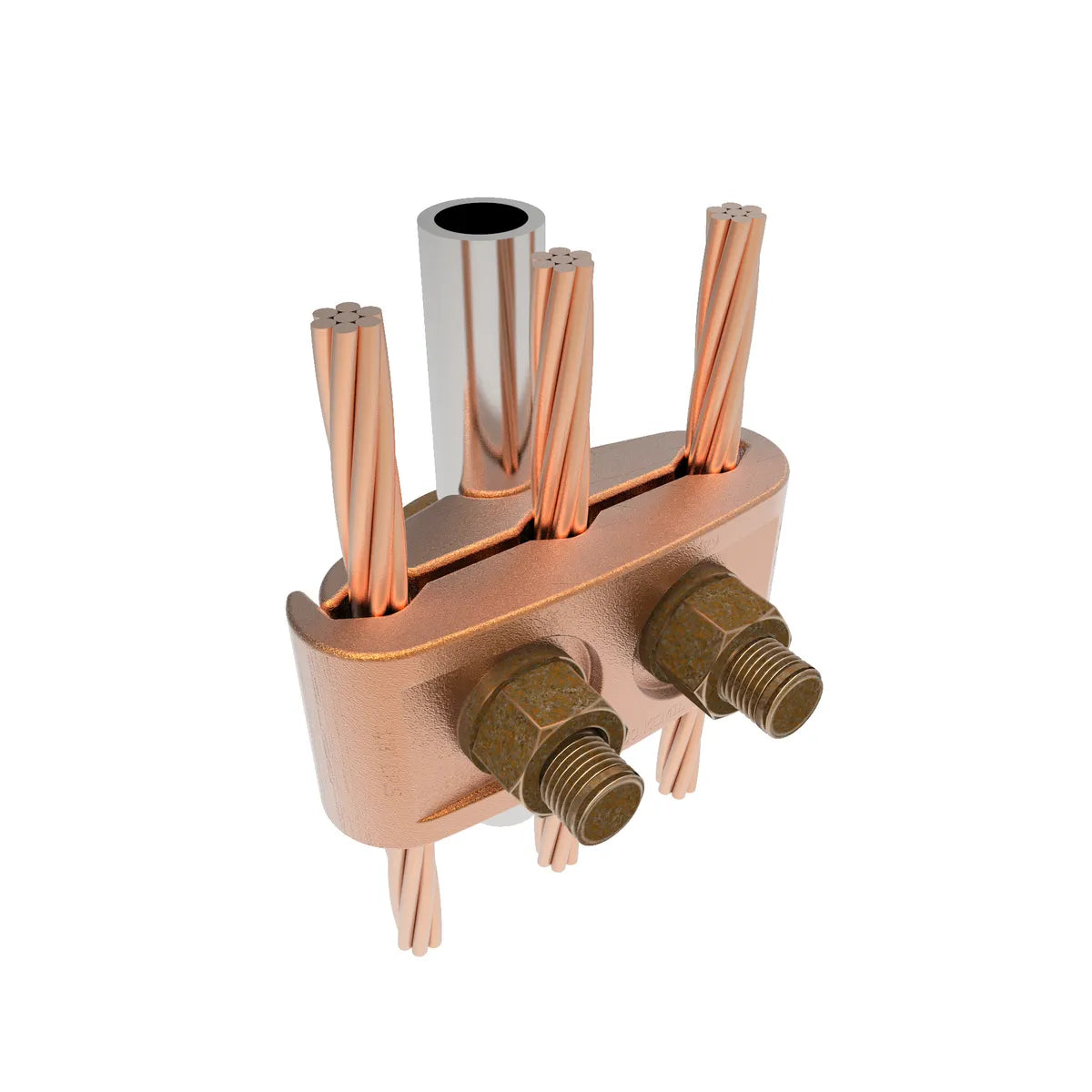

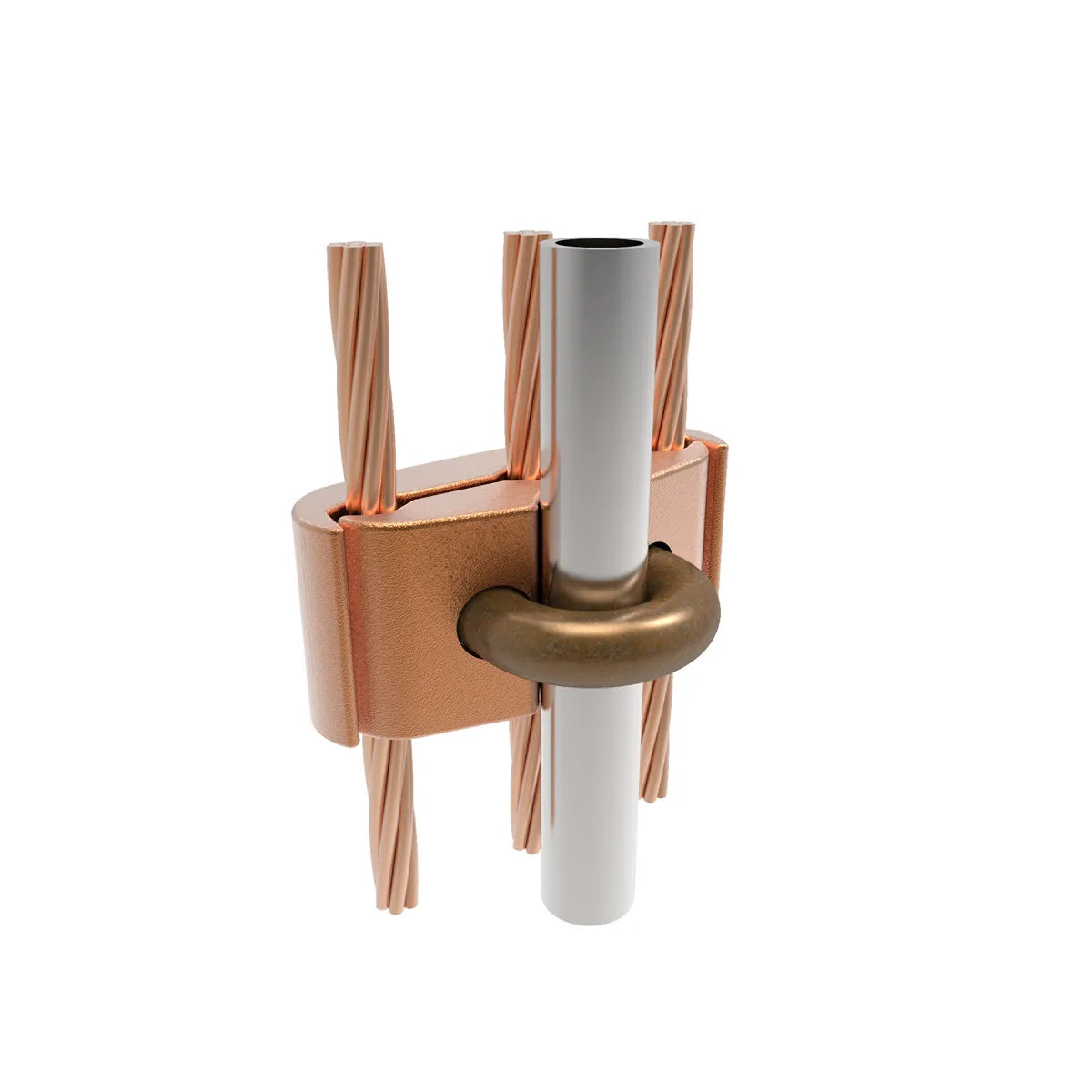

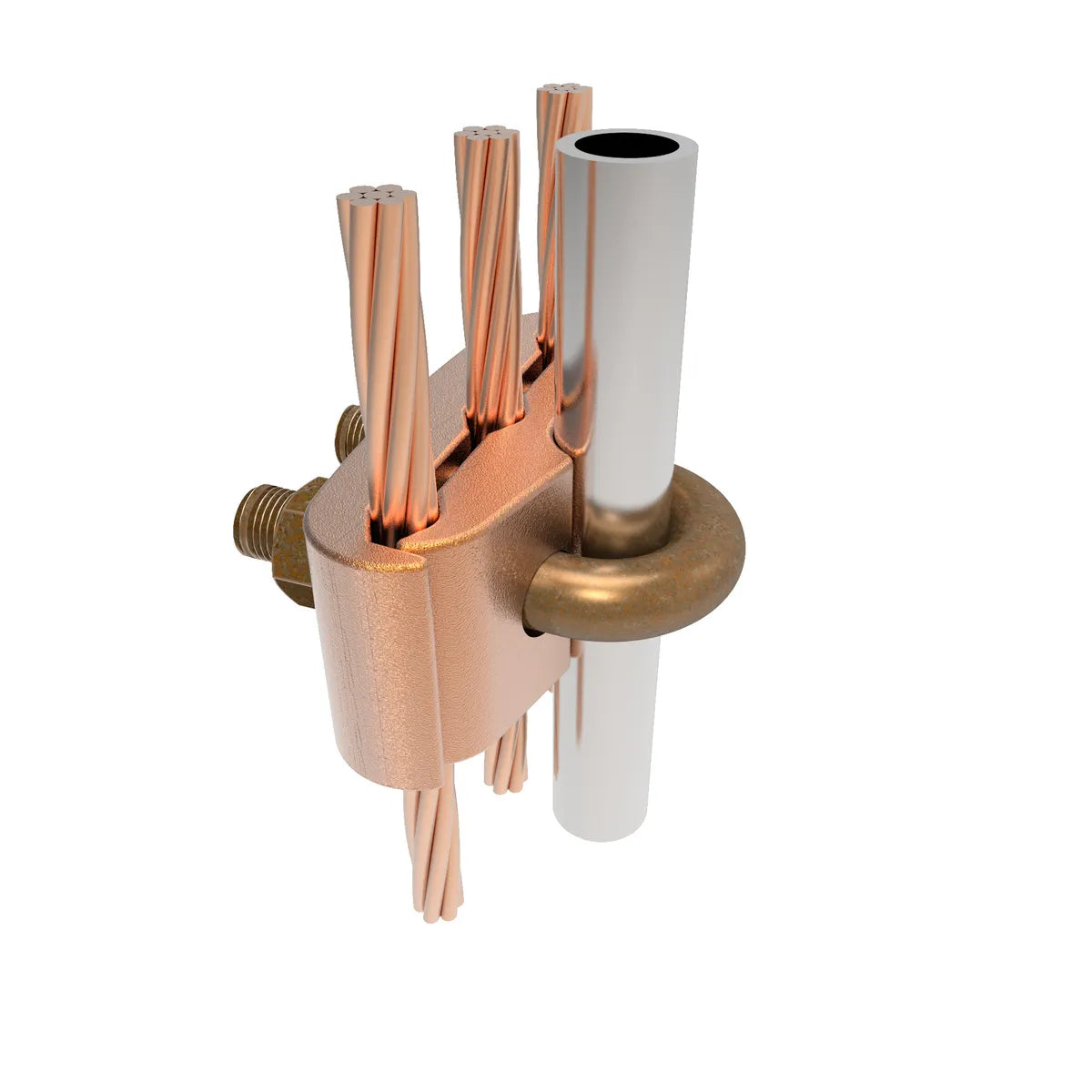

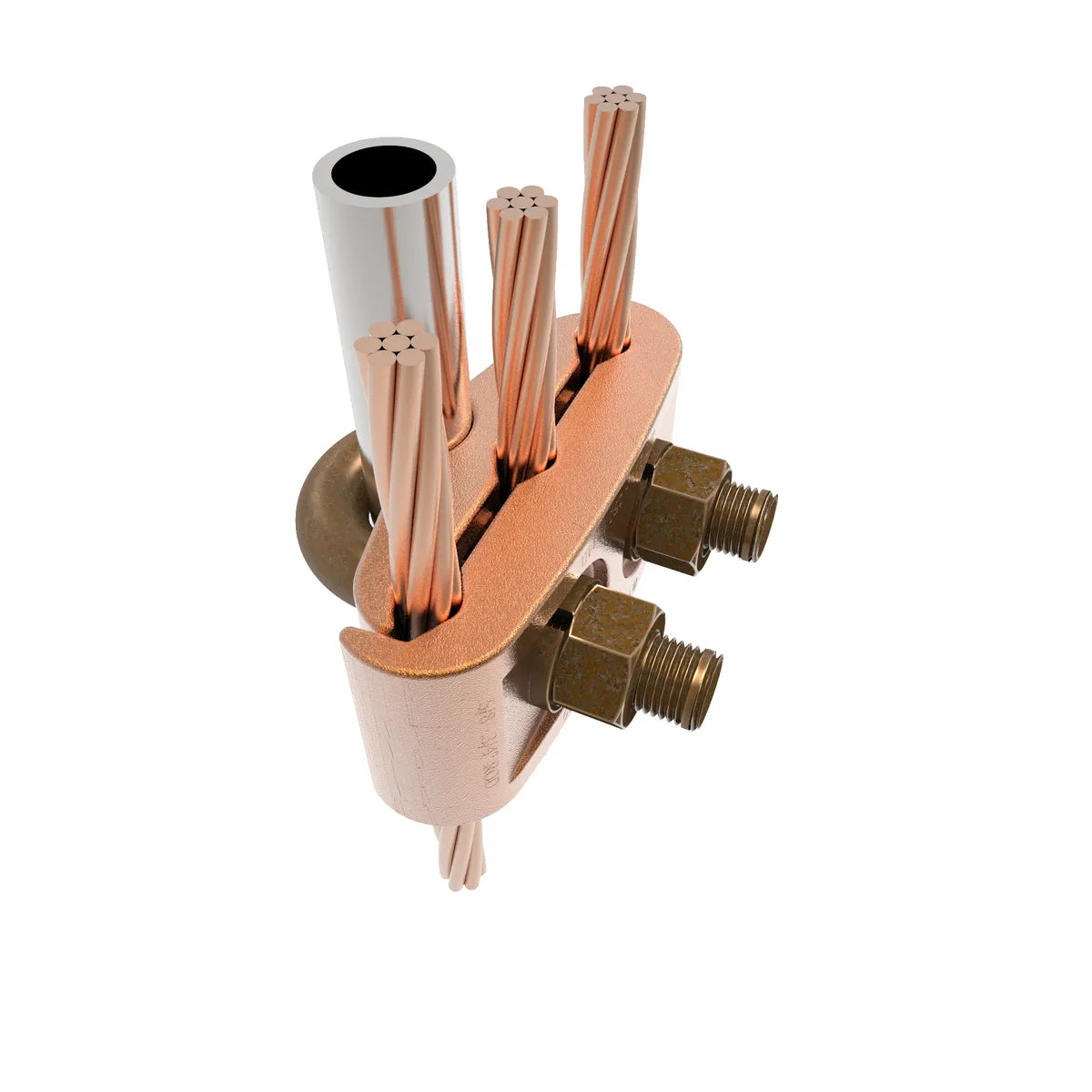

Mechanical Grounding Connector, 3 Cables to Rod or Pipe, 2/0 AWG (Sol) -250 kcmil, 3/8" Pipe, 5/8"-3/4" Rod.
- Rated for Direct Burial in earth or concrete
- UL467 Listed for the US and Canadian Markets
- One-wrench installation
GENERAL SPECIFICATIONS
| Application | For Joining Three Equal Copper Cables To Rod Or Tube, Direct Burial In Earth Or Concrete |
| Catalog Number | GK6429 |
| EU RoHS Indicator | Yes |
| Installation Torque Recommended in-lb | 480 LBS/in |
| Material | Copper Alloy, Cast |
| Material Type - Screw | DURIUM™ Silicon Bronze |
| Plated | N |
|
Plating Type
|
Unplated
|
| Sub Brand | MECHANICAL CONNECTOR |
| Type | Three Cables to Rod or Tube |
| UPC | 781810233535 |
| UPC 14 Digit GTIN | 00781810233535 |
Dimensions
| Bolt Size | 1/2 in |
| Dimension - B Length inch |
1.63 in |
| Dimension - Height inch | 2.88 in |
| Dimension - Height mm | 73.2 mm |
| Dimension - Width fraction | 3-1/2 in |
| Dimension - Width inch | 3.50 in |
| Dimension - Width mm | 89 mm |
Conductor Related
| Conductor - Rod Size | 5/8 in ; 3/4 in |
| Conductor Size | 2/0 AWG Sol - 250 kcmil |
Force Related
|
Installation Torque Recommended
|
480 in-lb
|
Logistics
| Carton Quantity | 6 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity |
864 |
