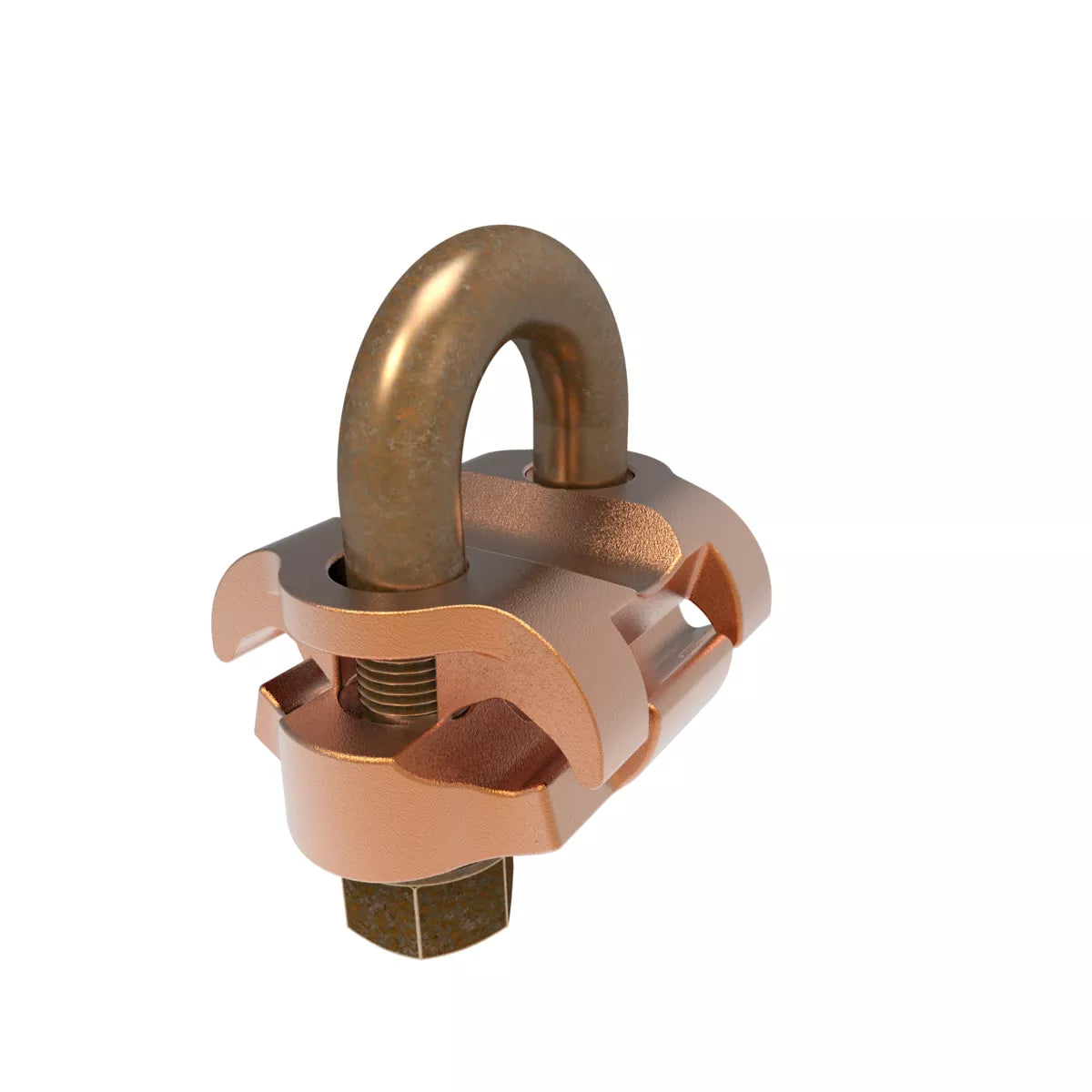

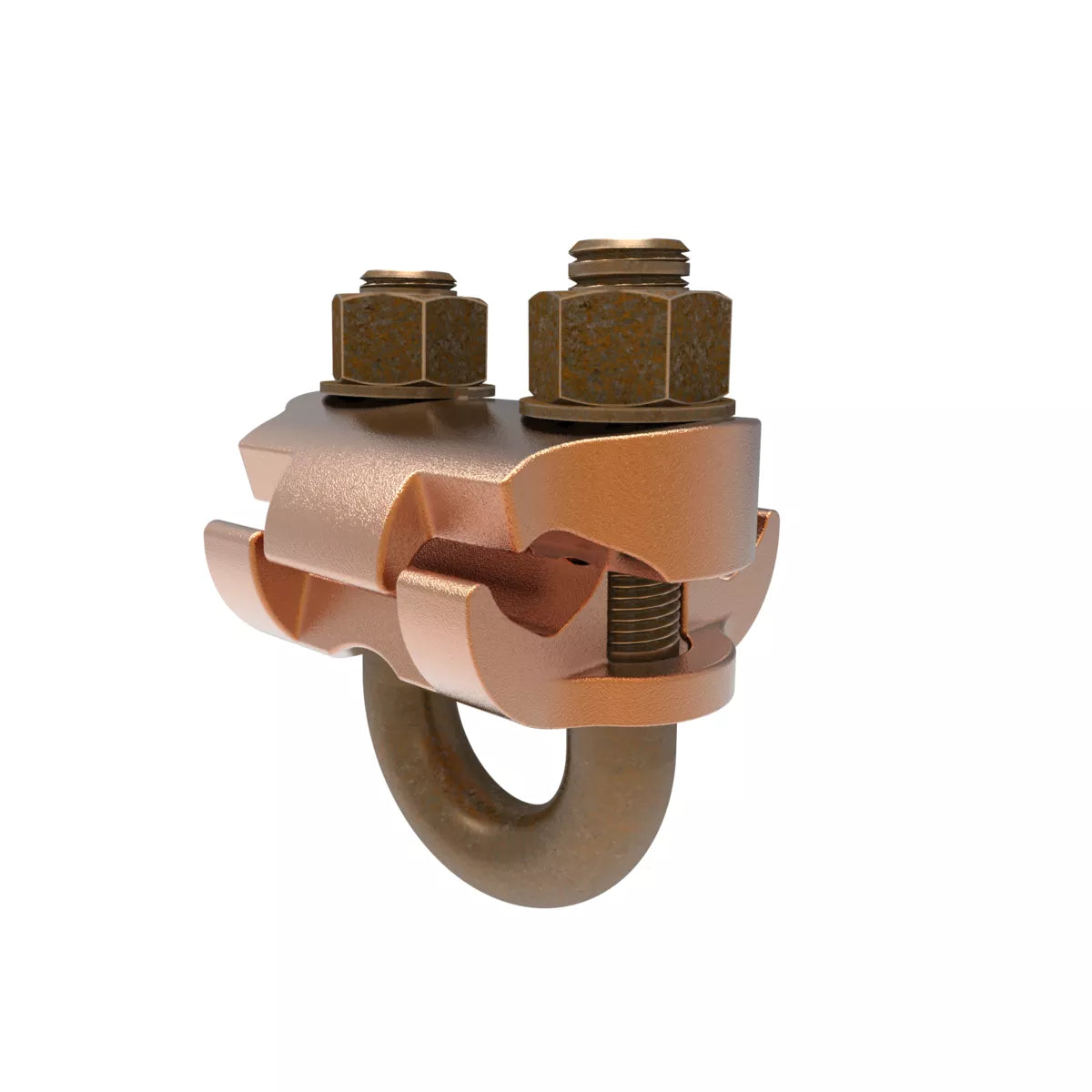

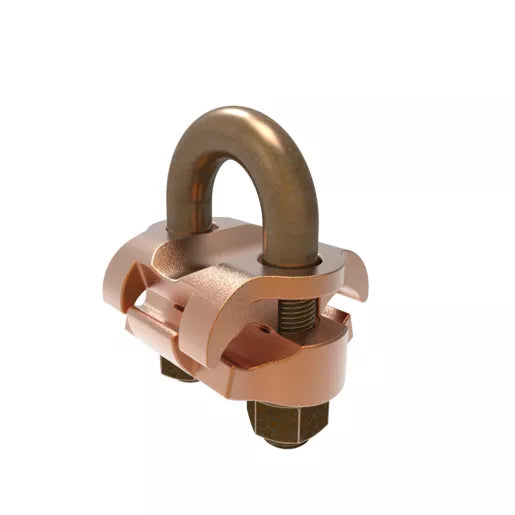

GP6426 - Burndy - 3/8" Pipe 5/8" to 3/4" Rod 3/8" Stud Mechanical Grounding Connector.

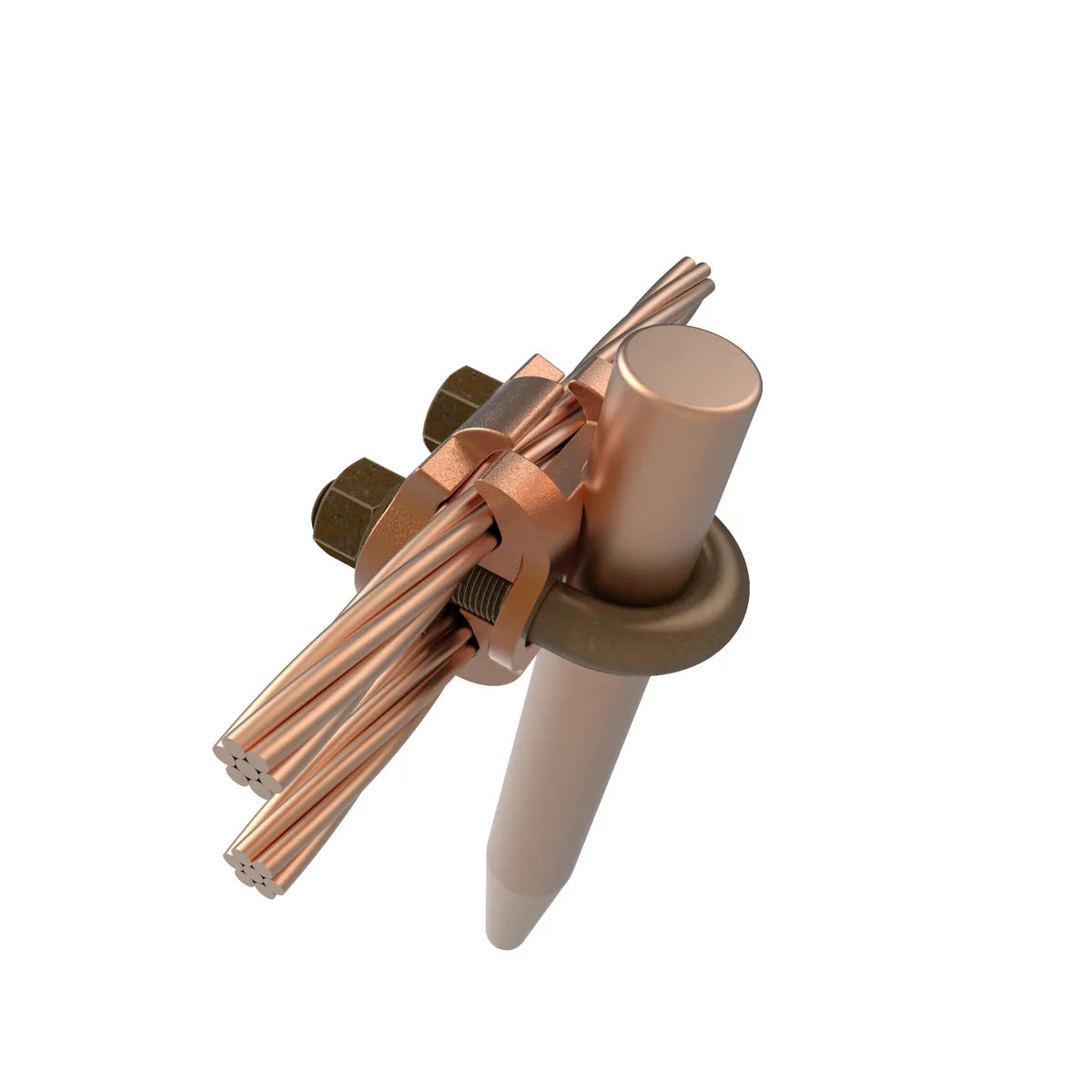

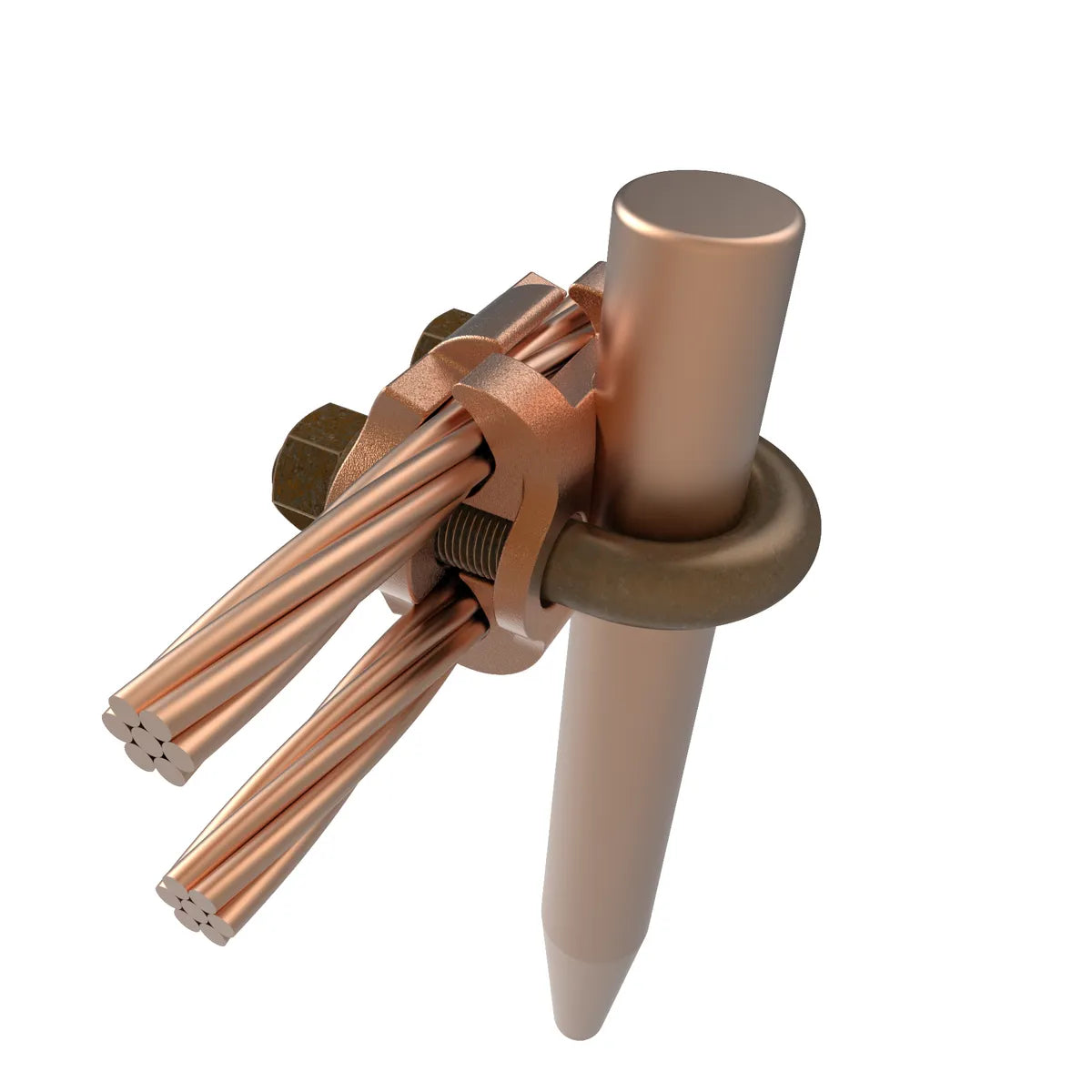

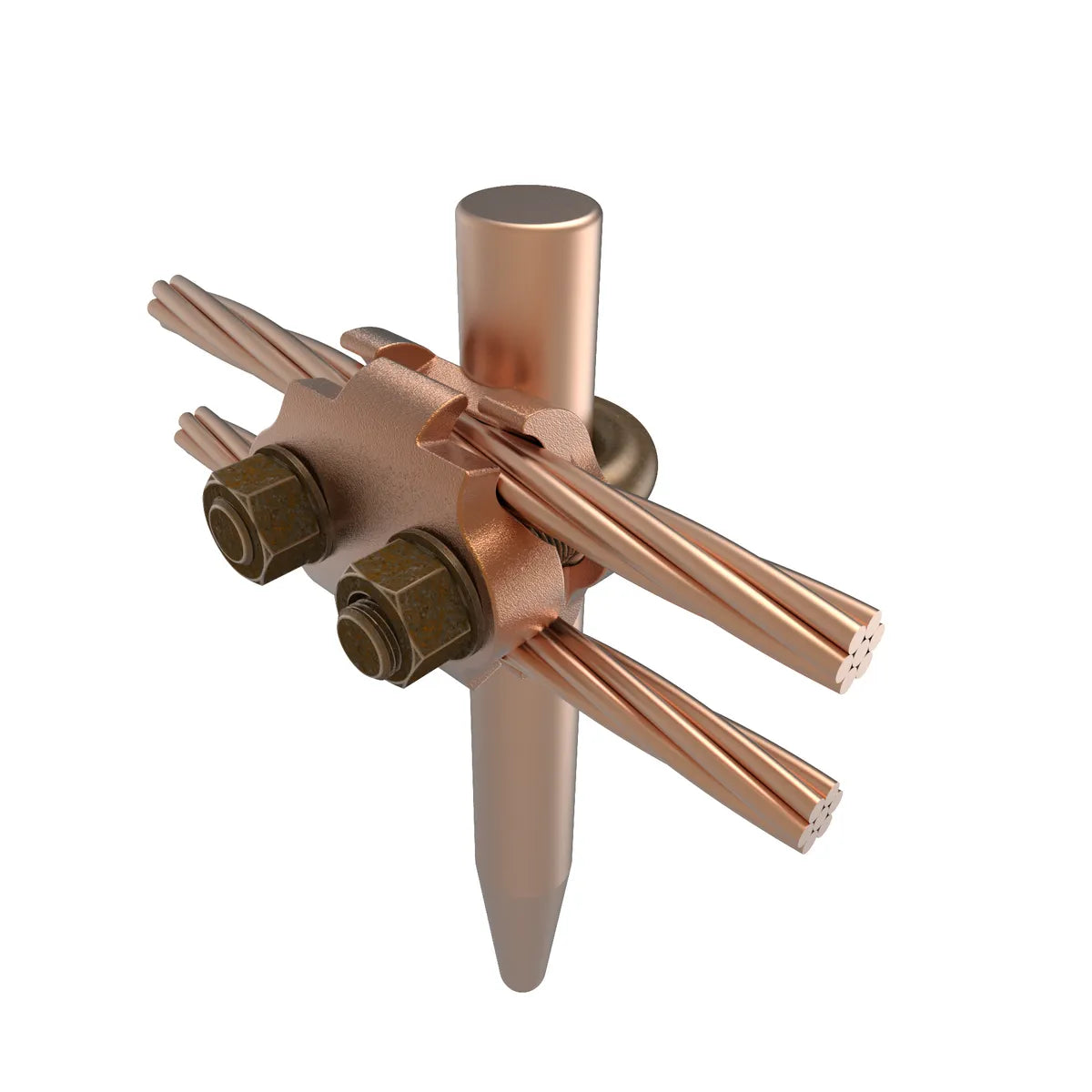

Mechanical Grounding Connector, 2 Cables to Rod or Pipe, 4 AWG (Sol.) - 2/0 AWG (Str.), 3/8" Pipe, 5/8" - 3/4" Rod, 3/8" Stud.
- Rated for Direct Burial in earth or concrete
- UL467 Listed for the US and Canadian Markets
- One-wrench installation
GENERAL SPECIFICATIONS
| Application |
For Joining A Range Of Parallel Copper Cables Perpendicular To Rod, Pipe Or Column, Direct Burial In Earth Or Concrete |
| Catalog Number |
GP6426 |
| EU RoHS Indicator |
Yes |
| Installation Torque Recommended in-lb |
240 LBS/in |
| Material |
Copper Alloy, Cast |
| Material Type - Screw |
DURIUM™ Silicon Bronze |
| Plated |
N |
| Plating Type |
Unplated |
| Sub Brand |
MECHANICAL CONNECTOR |
| Type |
GP |
| U Bolt Type |
187 |
| UPC |
781810260548 |
| UPC 14 Digit GTIN |
00781810260548
|
Dimensions
| Bolt Size |
3/8 in |
Dimension - B Length inch
|
1.50 in |
| Dimension - Height fraction |
2-1/2 in |
| Dimension - Height inch |
2.50 in |
| Dimension - Height mm |
63.5 mm |
| Dimension - Width fraction |
2-1/8 in |
| Dimension - Width inch |
2.12 in |
| Dimension - Width mm |
54 mm |
Conductor Related
| Conductor - Copper Solid Size Range |
4-3/0 |
| Conductor - Copper Str Size Range |
5 AWG - 2/0 AWG |
| Conductor - Rod Size |
1/2 in |
| Conductor - Rod Size Range |
5/8 in - 3/4 in |
| Conductor Size |
#4 AWG Sol - 2/0 AWG Str
|
Force Related
|
Installation Torque Recommended in-lb
|
240 LBS/in
|
Logistics
|
Carton Quantity
|
12 |
| Minimum Pack Quantity |
1 |
Pallet Quantity
|
2880 |
PRODUCT DATASHEET
GP6426
