Description

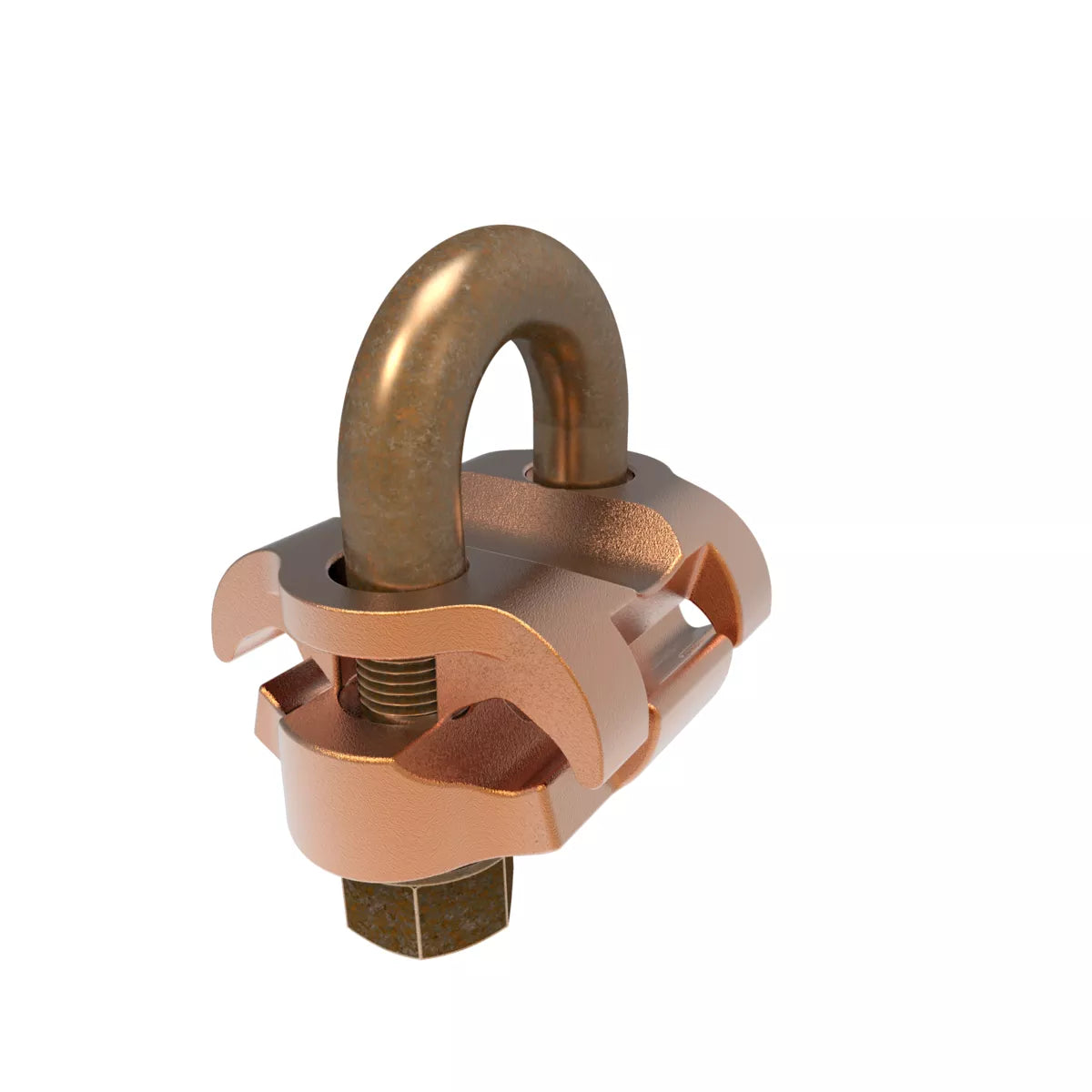

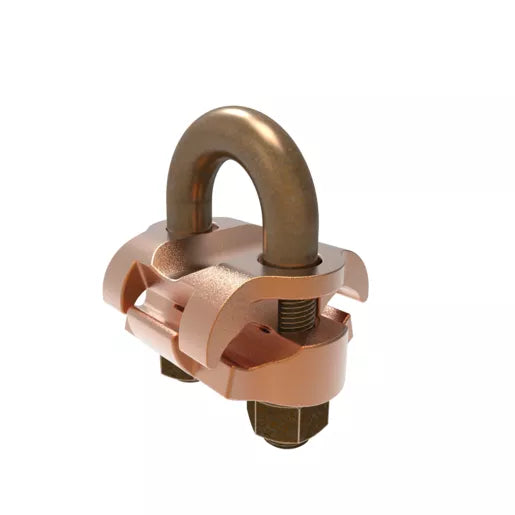

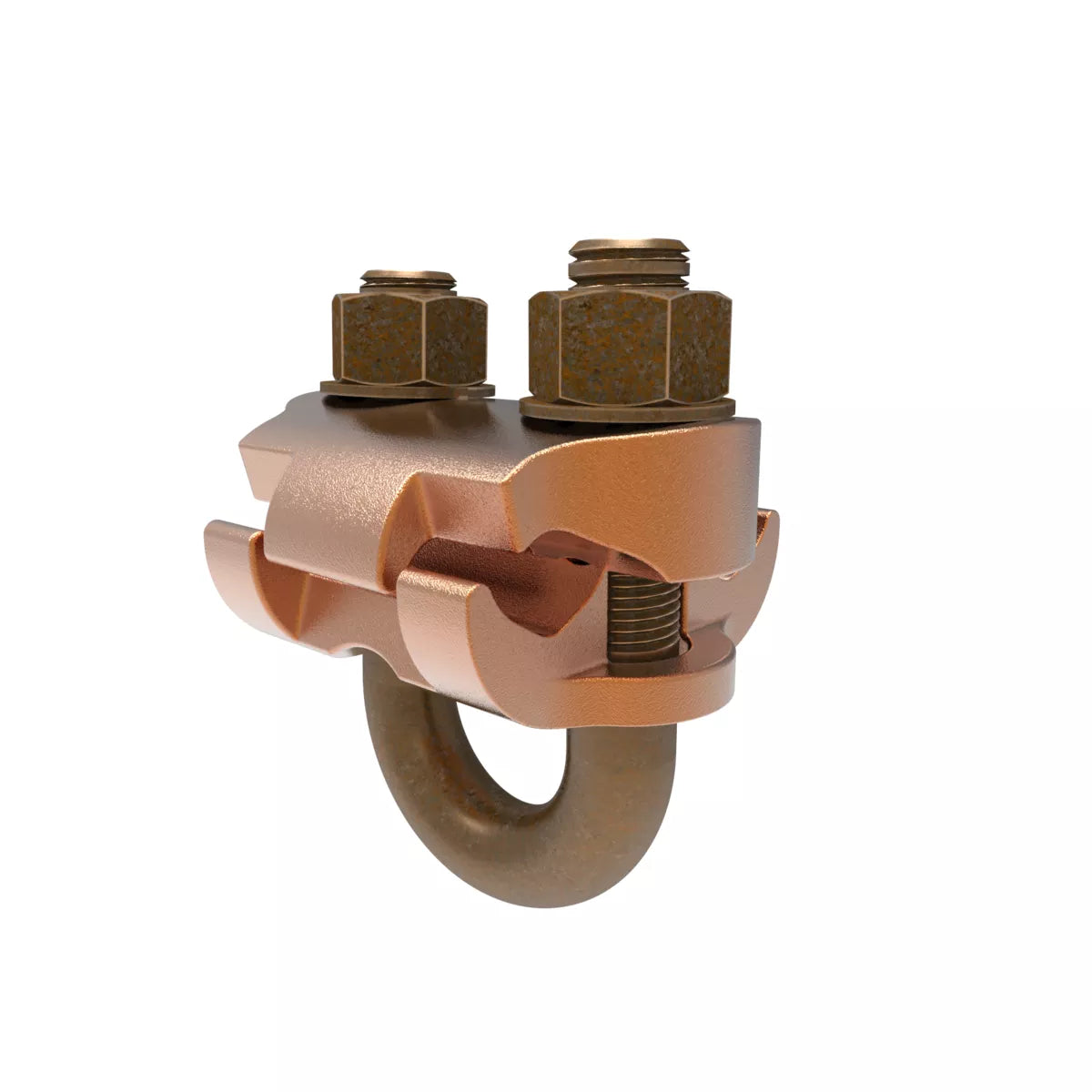

GP6429 - Burndy - 3/8" Pipe 5/8" to 3/4" Rod 3/8" Stud Mechanical Grounding Connector

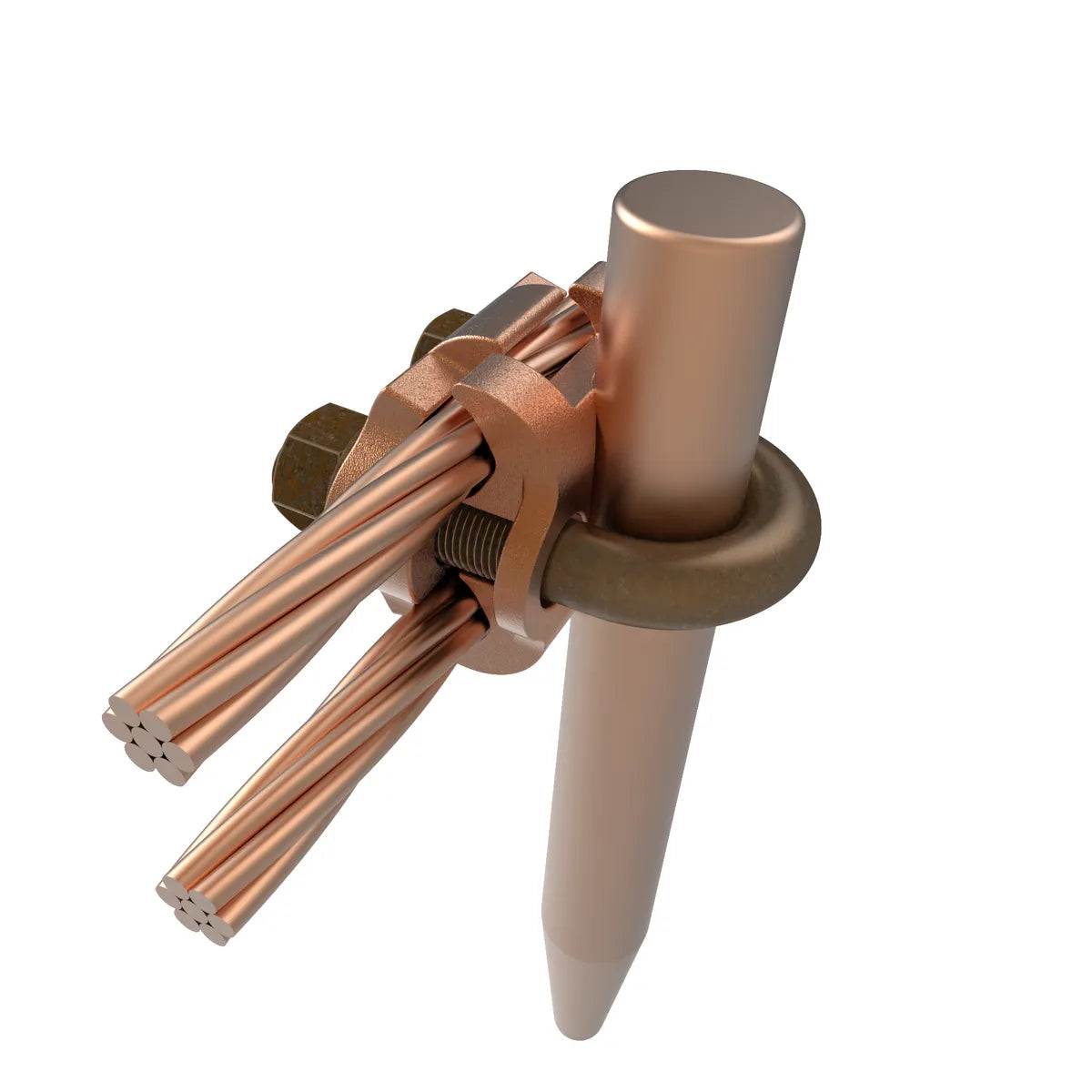

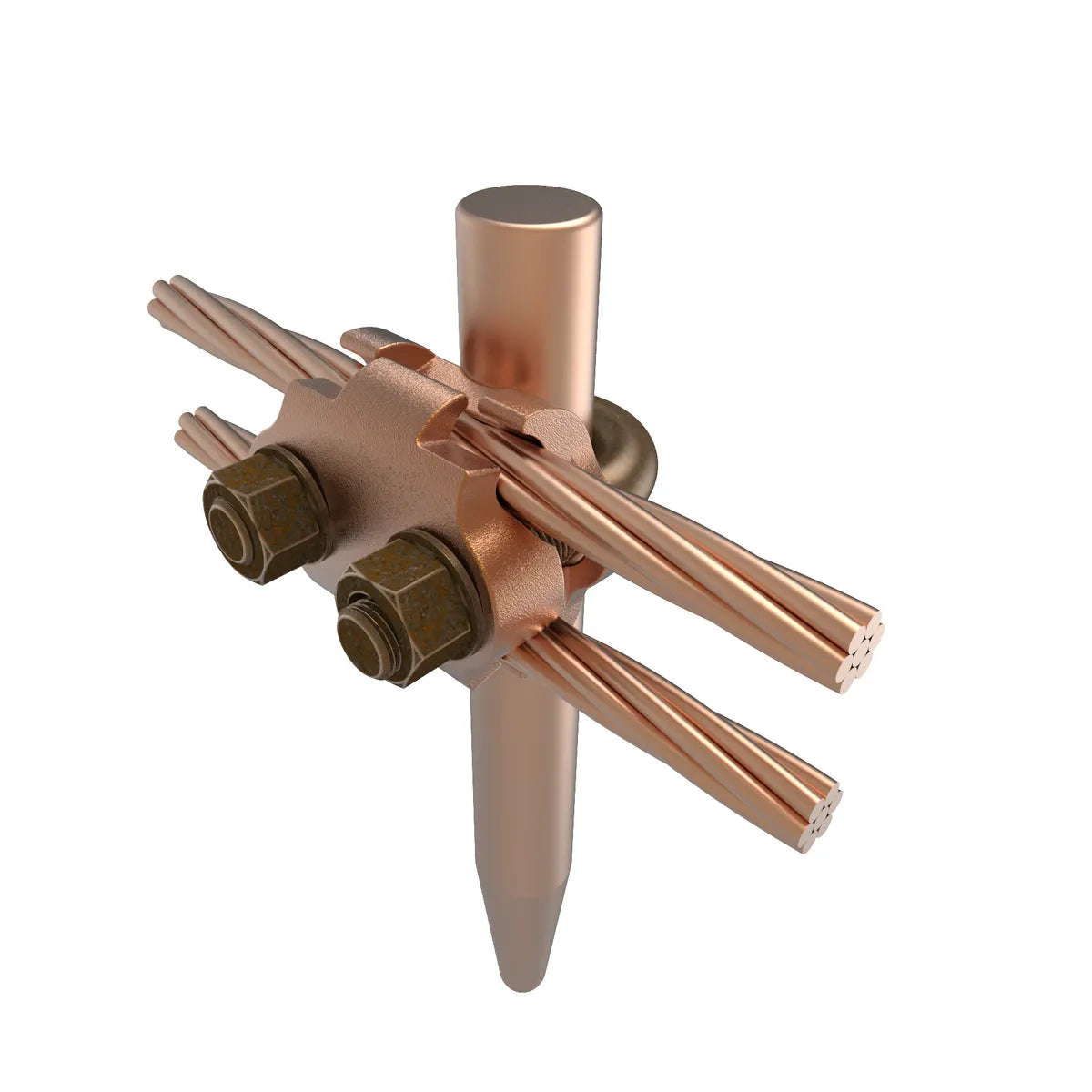

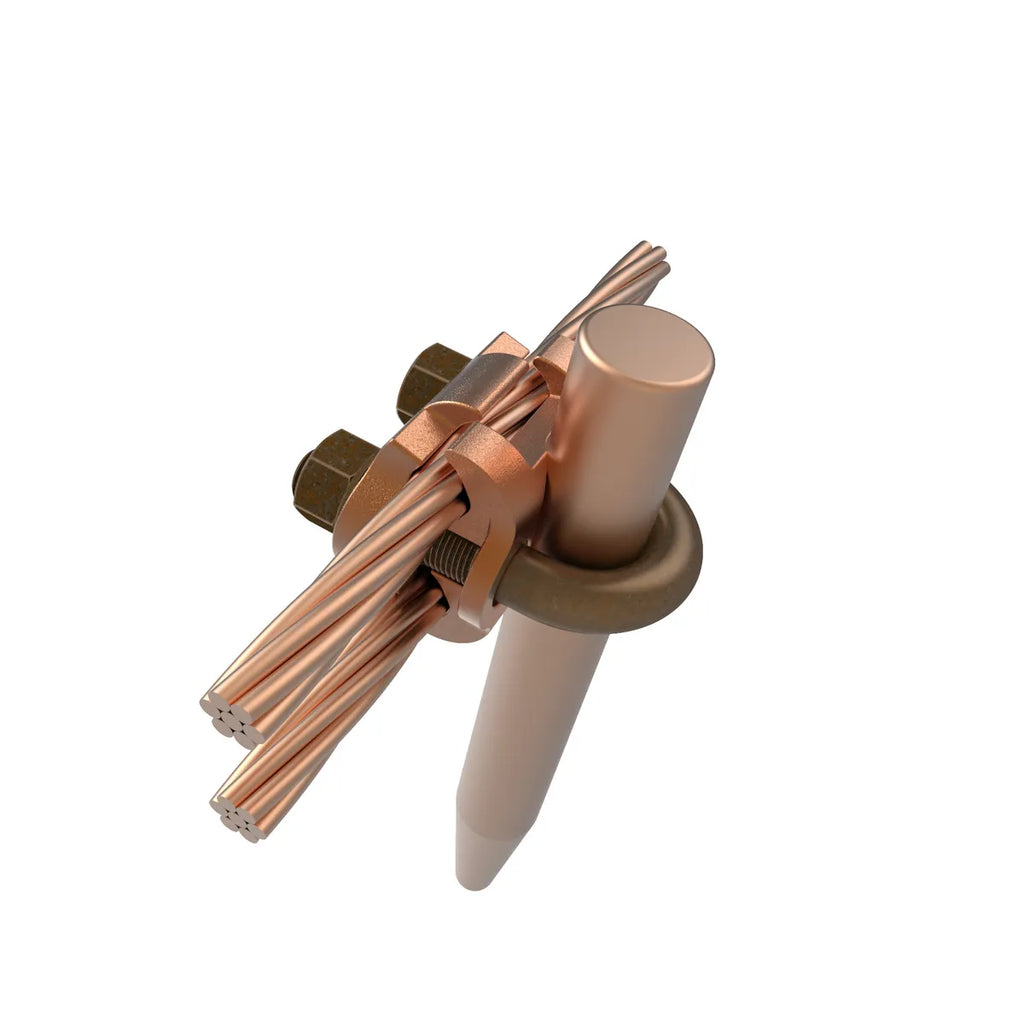

Mechanical Grounding Connector, 2 Cables to Rod or Pipe, 2/0 AWG (Sol) -250 kcmil, 3/8" Pipe, 5/8"-3/4" Rod, 3/8" Stud.
- Rated for Direct Burial in earth or concrete
- UL467 Listed for the US and Canadian Markets
- One-wrench installation
GENERAL SPECIFICATIONS
| Application | For Joining A Range Of Parallel Copper Cables Perpendicular To Rod, Pipe Or Column, Direct Burial In Earth Or Concrete |
| Catalog Number | GP6429 |
| EU RoHS Indicator | Yes |
| Installation Torque Recommended in-lb | 240 LBS/in |
| Material | Copper Alloy, Cast |
| Material Type - Screw | DURIUM™ Silicon Bronze |
| Plated | N |
|
Plating Type
|
Unplated
|
| Sub Brand | MECHANICAL CONNECTOR |
| Type | GP |
| U Bolt Type | 242 |
| UPC | 781810260555 |
| UPC 14 Digit GTIN | 00781810260555 |
Dimensions
| Dimension - B Length inch |
1.75 in |
| Dimension - Height fraction | 2-7/8 in |
| Dimension - Height inch | 2.88 in |
| Dimension - Height mm | 73.2 mm |
| Dimension - L Length Overall mm | 52 mm |
| Dimension - Length Overall INCH | 2.06 IN |
| Dimension - Width fraction | 2-1/8 in |
| Dimension - Width inch | 2.12 in |
| Dimension - Width mm | 54 mm |
Conductor Related
| Conductor - Copper Solid Size | 2/0;3/0;4/0 |
| Conductor - Copper Solid Size Range | 2/0-4/0 |
| Conductor - Copper Str Size | 1/0;2/0;3/0;4/0;250 |
| Conductor - Copper Str Size B Range | 0.375 |
| Conductor - Copper Str Size Range | 1/0-250 |
| Conductor - Copper Tube Std Size | 5/8;3/4 |
| Conductor - Copper Tube Std Size Range | 5/8-3/4 |
| Conductor - Rod Size | 5/8 in;3/4 in |
| Conductor - Rod Size Range | 5/8 in-3/4 in |
Force Related
|
Installation Torque Recommended in-lb
|
240 LBS/in
|
Logistics
| Carton Quantity | 12 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity |
1 |
