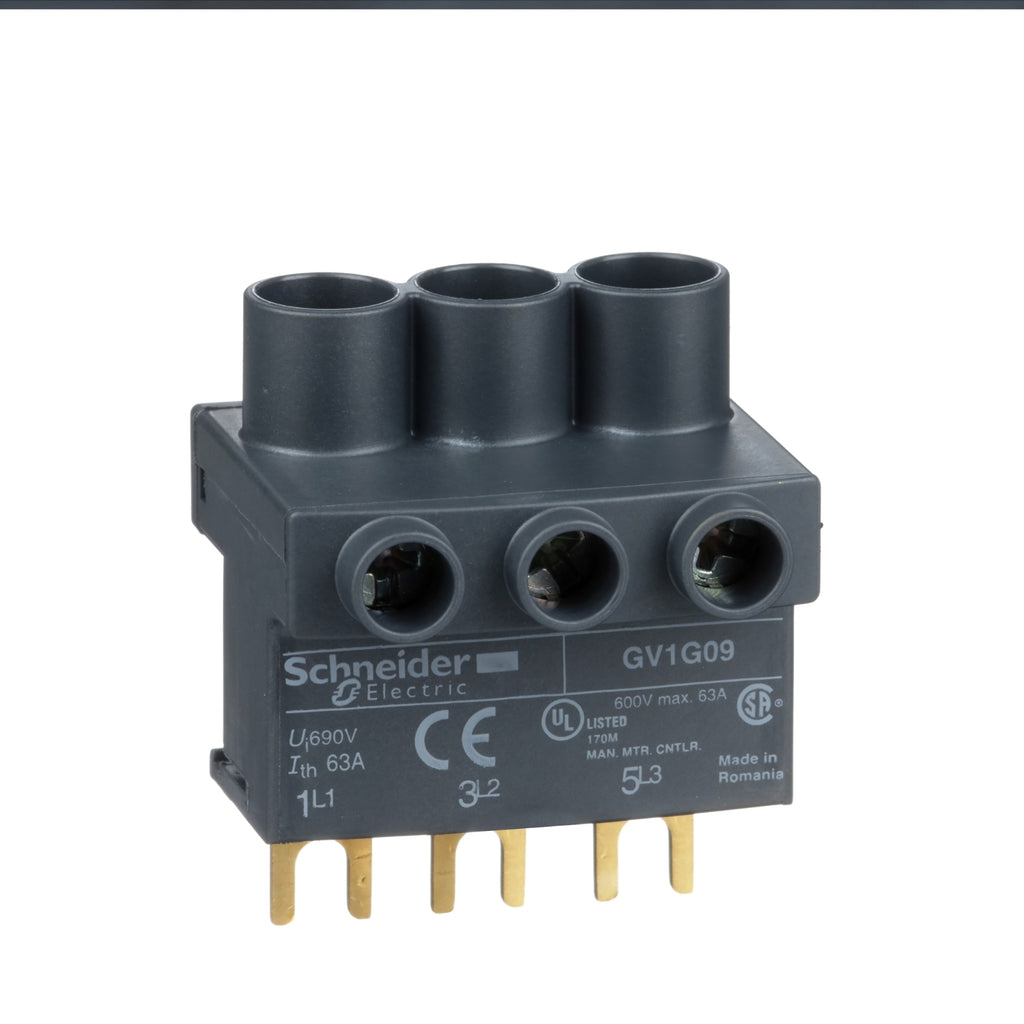

GV1G09 - Schneider Electric - Square D TeSys GV Terminal Block
TeSys GV terminal block, 3 phases, 63A/690V, to supply busbar sets GV2G. To be inserted directly on the top terminals of the devices connected by the busbar sets. Connection to the supply cable by screw connectors.
GENERAL SPECIFICATIONS
| Range | Linergy |
|---|---|
| Product name | FT |
| Device short name | GV1G |
| Product or Component Type | Terminal block |
| Accessory / separate part category | Connection accessory |
| Poles description | 3P |
| Range compatibility | TeSys GV2 TeSys Deca TeSys U TeSys LS1 |
| [Ie] rated operational current | 63 A |
|---|---|
| Mounting Location | Top |
| IP degree of protection | IP20 conforming to IEC 60529 |
| [Ui] rated insulation voltage | 690 V IEC 60947-1 |
| Connections - terminals | Screw clamp terminals 1 cable(s) (AWG 4) - solid Screw clamp terminals 1 cable(s) 0.002…0.02 in² (1.5…16 mm²) - flexible with cable end Screw clamp terminals 1 cable(s) 0.002…0.02 in² (1.5…16 mm²) - flexible without cable end Screw clamp terminals 1 cable(s) 0.002…0.04 in² (1.5…25 mm²) - solid Screw clamp terminals 2 cable(s) 0.002…0.006 in² (1.5…4 mm²) - flexible with cable end Screw clamp terminals 2 cable(s) 0.002…0.009 in² (1.5…6 mm²) - solid Screw clamp terminals 2 cable(s) 0.002…0.006 in² (1.5…4 mm²) - flexible without cable end Screw clamp terminals 1 cable(s) (AWG 4) - flexible |
| Tightening torque | 15.05 lbf.in (1.7 N.m) screw clamp terminals 19.5 lbf.in (2.2 N.m) connector |
| Product Weight | 0.09 lb(US) (0.04 kg) |
| Product Certifications | CE UKCA |
|---|
| Category | US10I1122366 |
|---|---|
| Discount Schedule | 0I11 |
| GTIN | 3389110212570 |
| Returnability | Yes |
| Country of origin | RO |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.772 in (4.500 cm) |
| Package 1 Width | 2.362 in (6.000 cm) |
| Package 1 Length | 2.756 in (7.000 cm) |
| Package weight(Lbs) | 1.728 oz (49.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 70 |
| Package 2 Height | 5.906 in (15.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 8.170 lb(US) (3.706 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 1120 |
| Package 3 Height | 29.528 in (75.000 cm) |
| Package 3 Width | 23.622 in (60.000 cm) |
| Package 3 Length | 31.496 in (80.000 cm) |
| Package 3 Weight | 153.310 lb(US) (69.540 kg) |
