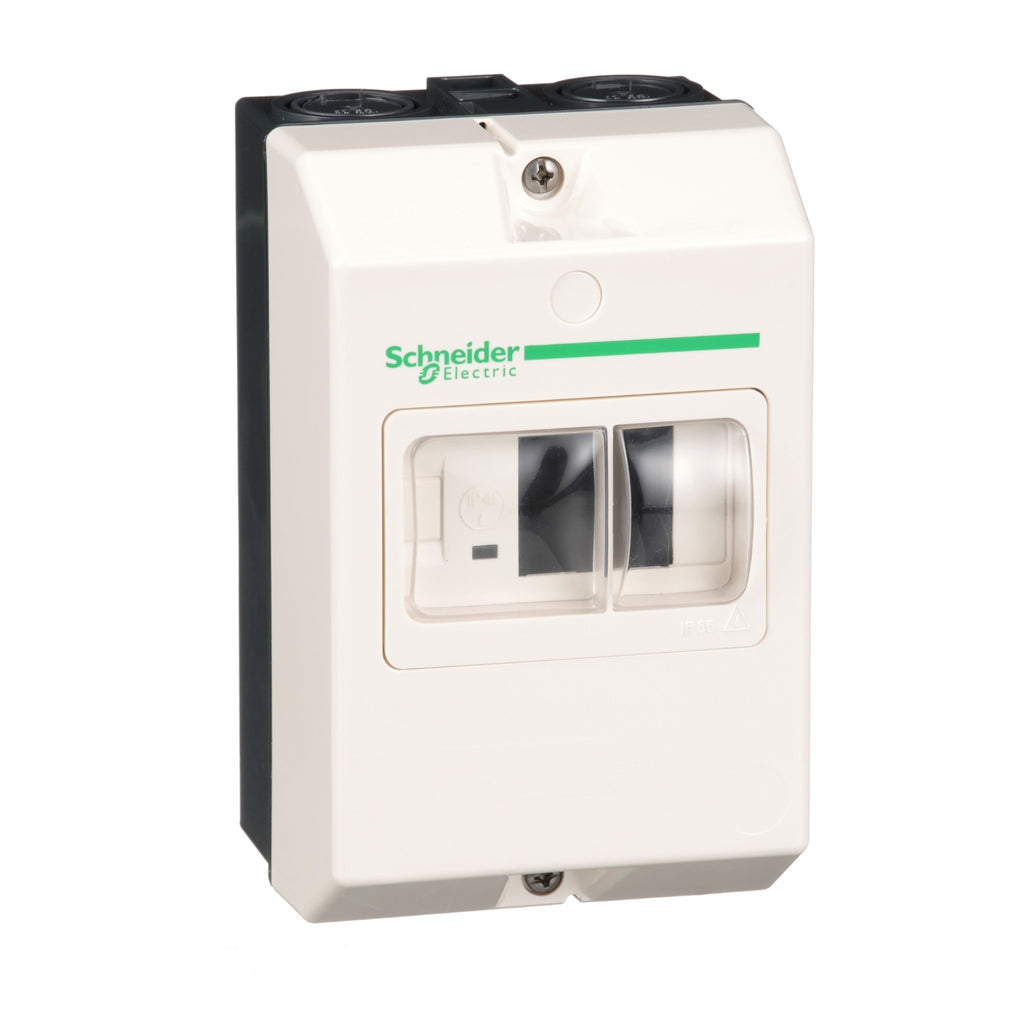

GV2MC02 - Schneider Electric - Square D Empty enclosure, for TeSys GV2ME, IP55
TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP55 protection. To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1.
GENERAL SPECIFICATIONS
Main
| Range |
TeSys |
| Product or Component Type |
Enclosure |
| Device short name |
GV2MC |
| Accessory / separate part category |
Mounting accessory |
| Product Compatibility |
GV2ME |
| enclosure type |
Surface mounting |
Complementary
| Auxiliary mounting location |
Left
Right |
| Height |
5.8 in (147 mm) |
| Width |
3.7 in (93 mm) |
| Depth |
3.3 in (84 mm) |
| Net Weight |
0.7 lb(US) (0.3 kg) |
Environment
| IP degree of protection |
IP55 |
| Environmental characteristic |
Standard environment |
| Product Certifications |
UKCA |
Ordering and shipping details
| Category |
US10I1122367 |
| Discount Schedule |
0I11 |
| GTIN |
3389110213652 |
| Returnability |
Yes |
| Country of origin |
CZ |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
3.94 in (10.000 cm) |
| Package 1 Width |
3.94 in (10.000 cm) |
| Package 1 Length |
6.10 in (15.500 cm) |
| Package 1 Weight |
10.335 oz (293.000 g) |
| Unit Type of Package 2 |
S04 |
| Number of Units in Package 2 |
27 |
| Package 2 Height |
11.81 in (30.000 cm) |
| Package 2 Width |
15.75 in (40.000 cm) |
| Package 2 Length |
23.62 in (60.000 cm) |
| Package 2 Weight |
19.096 lb(US) (8.662 kg) |
| Unit Type of Package 3 |
P06 |
| Number of Units in Package 3 |
108 |
| Package 3 Height |
29.53 in (75.000 cm) |
| Package 3 Width |
23.62 in (60.000 cm) |
| Package 3 Length |
31.50 in (80.000 cm) |
| Package 3 Weight |
100.972 lb(US) (45.800 kg) |
PRODUCT DATASHEET
