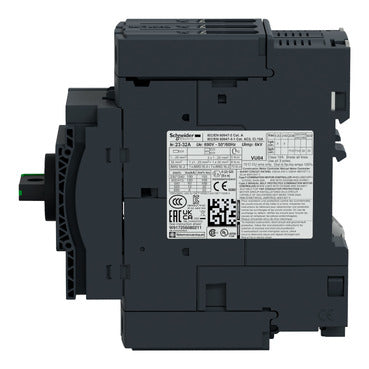

Description
| Main | |
|---|---|
| Range | TeSys Deca |
| Product name | TeSys GV3 |
| Product or Component Type | Motor circuit breaker |
| Device short name | GV3P |
| Device Application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| Complementary | |
| Poles description | 3P |
| Network type | AC |
| Utilisation category | Category A IEC 60947-2AC-3 IEC 60947-4-1 |
| Network frequency | 50/60 Hz IEC 60947-2 |
| Motor power kW | 15 kW 400/415 V AC 50/60 Hz18.5 kW 500 V AC 50/60 Hz22 kW 690 V AC 50/60 Hz |
| Breaking capacity | 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-250 kA Icu 440 V AC 50/60 Hz IEC 60947-212 kA Icu 500 V AC 50/60 Hz IEC 60947-26 kA Icu 690 V AC 50/60 Hz IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % 230/240 V AC 50/60 Hz IEC 60947-2100 % 400/415 V AC 50/60 Hz IEC 60947-2100 % 440 V AC 50/60 Hz IEC 60947-250 % 500 V AC 50/60 Hz IEC 60947-250 % 690 V AC 50/60 Hz IEC 60947-2 |
| Control Type | Rotary handle |
| Line Rated Current | 32 A |
| Thermal protection adjustment range | 23…32 A IEC 60947-2 |
| Magnetic tripping current | 448 A |
| [Ith] conventional free air thermal current | 32 A IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-2 |
| Phase failure sensitivity | Yes IEC 60947-4-1 |
| Suitability for isolation | Yes IEC 60947-1 |
| Power dissipation per pole | 8 W |
| Mechanical durability | 50000 cycles |
| Electrical durability | 50000 cycles AC-3 415 V In |
| Rated duty | Uninterrupted IEC 60947-4-1 |
| Tightening torque | 44.3 lbf.in (5 N.m) screw clamp terminal |
| Fixing mode | 35 mm symmetrical DIN rail clippedPanel screwed with 3 x M4 screws) |
| Mounting position | HorizontalVertical |
| Width | 2.2 in (55 mm) |
| Height | 5.2 in (132 mm) |
| Depth | 5.4 in (136 mm) |
| Product Weight | 2.12 lb(US) (0.96 kg) |
| color | Dark grey |
| Environment | |
| Standards | EN/IEC 60947-2EN/IEC 60947-4-1UL 60947-4-1CSA C22.2 No 60947-4-1IEC/EN 60335-1:Clause 30.2IEC/EN 60335-2-40:Annex JJ |
| Product Certifications | CCCULCSAEACATEXLROS (Lloyds register of shipping)BVABSDNV-GLUKCA |
| IK degree of protection | IK09 enclosure |
| IP degree of protection | IP20 IEC 60529 |
| Climatic withstand | IACS E10 |
| Ambient Air Temperature for Storage | -40…176 °F (-40…80 °C) |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-11 |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Mechanical robustness | Shocks 15 Gn for 11 ms contactor openShocks 30 Gn for 11 ms contactor closedVibrations 4 Gn, 5...300 Hz |
| Operating altitude | 9842.52 ft (3000 m) |
| Ordering and shipping details | |
| Category | US1CTR121253 |
| Discount Schedule | CTR1 |
| GTIN | 3389119405386 |
| Returnability | Yes |
| Country of origin | FR |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.480 in (6.300 cm) |
| Package 1 Width | 5.709 in (14.500 cm) |
| Package 1 Length | 6.299 in (16.000 cm) |
| Package weight(Lbs) | 35.203 oz (998.000 g) |
| Unit Type of Package 2 | S06 |
| Number of Units in Package 2 | 120 |
| Package 2 Height | 29.528 in (75.000 cm) |
| Package 2 Width | 23.622 in (60.000 cm) |
| Package 2 Length | 31.496 in (80.000 cm) |
| Package 2 Weight | 284.397 lb(US) (129.000 kg) |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet

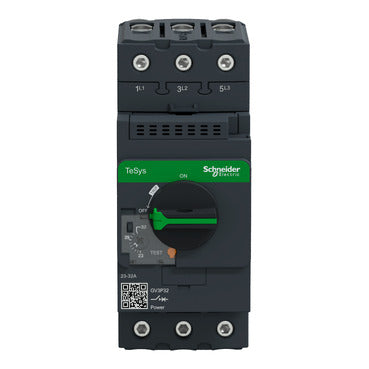

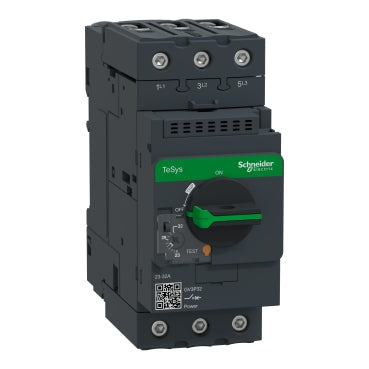

GV3P32
