Description

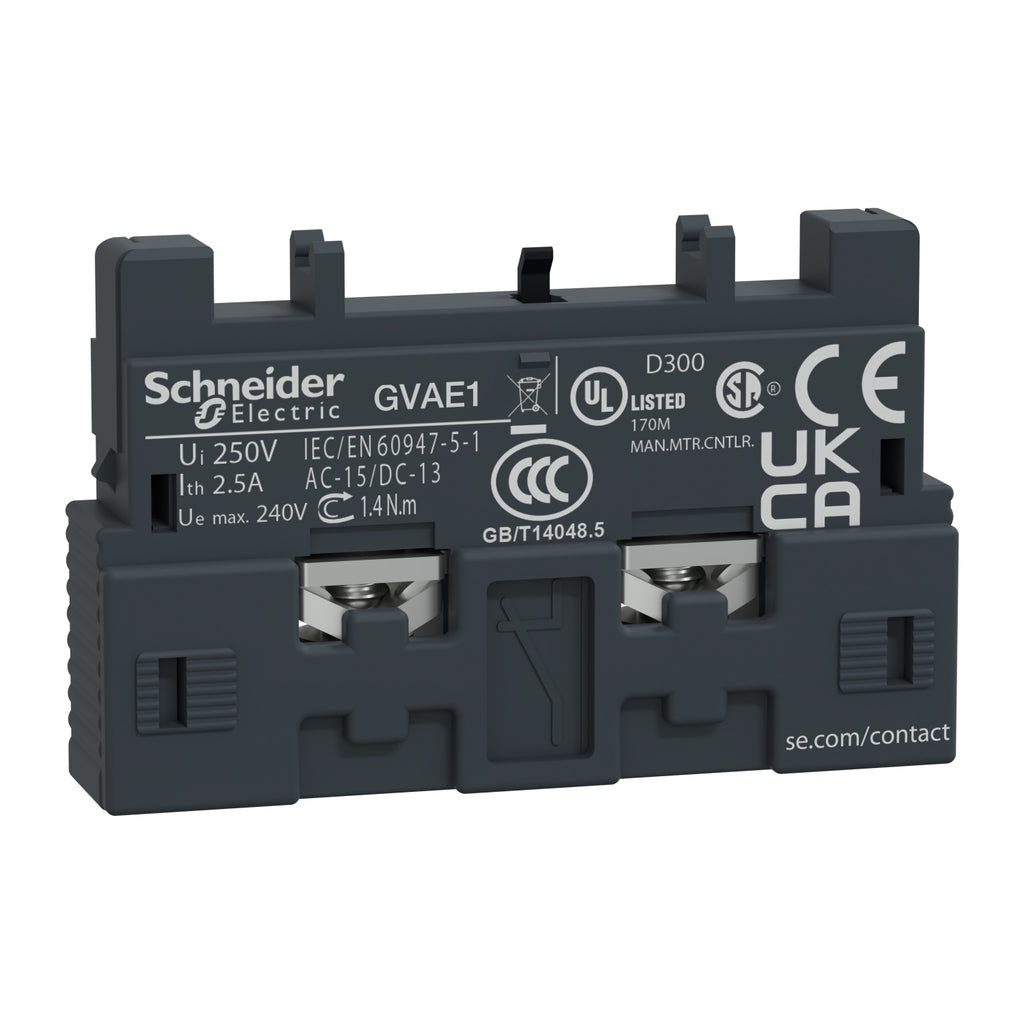

GVAE1 - Schneider Electric - Square D TeSys Deca Manual Starter and Protector
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO or 1NC instantaneous auxiliary contacts depending on the mounting orientation of the block. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on front side of the circuit breaker, connection by screw clamp terminals. Sold in lots of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC).
GENERAL SPECIFICATIONS
| Range | TeSys TeSys Deca |
|---|---|
| Device short name | GVAE |
| Product or Component Type | Auxiliary contact block |
| Product Compatibility | GV2P GV2L GV2ME GV2LE GV2RT GV2LM GV3P GV3L |
| Mounting Location | Front side |
| Pole contact composition | 1 NO/NC |
| Quantity per Set | Set of 10 |
| [Ui] rated insulation voltage | 300 V UL 508 300 V CSA C22.2 No 14 250 V IEC 60947-1 |
|---|---|
| [Ue] rated operational voltage | 24...240 V AC 24...60 V DC |
| [Ith] conventional free air thermal current | 2.5 A |
| Mechanical durability | 100000 cycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Protection type | GG fuse 10 A GB2CB06 circuit breaker 10 A maximum |
| Rated operational power in VA | 120 VA 110…120 V AC-15 100000 cycles 120 VA 230…240 V AC-15 100000 cycles 48 VA 24 V AC-15 100000 cycles 60 VA 48 V AC-15 100000 cycles |
| Rated operational power in W | 15 W 48 V DC-13 100000 cycles 24 W 24 V DC-13 100000 cycles 9 W 60 V DC-13 100000 cycles |
| Tightening torque | 15.05 lbf.in (1.7 N.m) screw clamp terminals |
| Height | 0.4 in (11 mm) |
| Width | 1.8 in (45 mm) |
| Depth | 1.1 in (29 mm) |
| Product Weight | 0.04 lb(US) (0.02 kg) |
| color | Dark grey |
| Environmental characteristic | Normal environment |
|---|---|
| Standards | EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-1:Clause 30.2 IEC/EN 60335-2-40:Annex JJ |
| Product Certifications | CB Scheme CE UKCA CCC cULus EAC |
| Category | US10I1122367 |
|---|---|
| Discount Schedule | 0I11 |
| GTIN | 3389110343427 |
| Returnability | Yes |
| Country of origin | CZ |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 0.4 in (1 cm) |
| Package 1 Width | 2.4 in (6 cm) |
| Package 1 Length | 2.8 in (7 cm) |
| Package weight(Lbs) | 0.4 oz (12 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 1.2 in (3 cm) |
| Package 2 Width | 8.0 in (20.2 cm) |
| Package 2 Length | 10.2 in (26 cm) |
| Package 2 Weight | 4.6 oz (130 g) |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 260 |
| Package 3 Height | 11.8 in (30 cm) |
| Package 3 Width | 11.8 in (30 cm) |
| Package 3 Length | 15.7 in (40 cm) |
| Package 3 Weight | 8.424 lb(US) (3.821 kg) |
PRODUCT DATASHEET
