Description

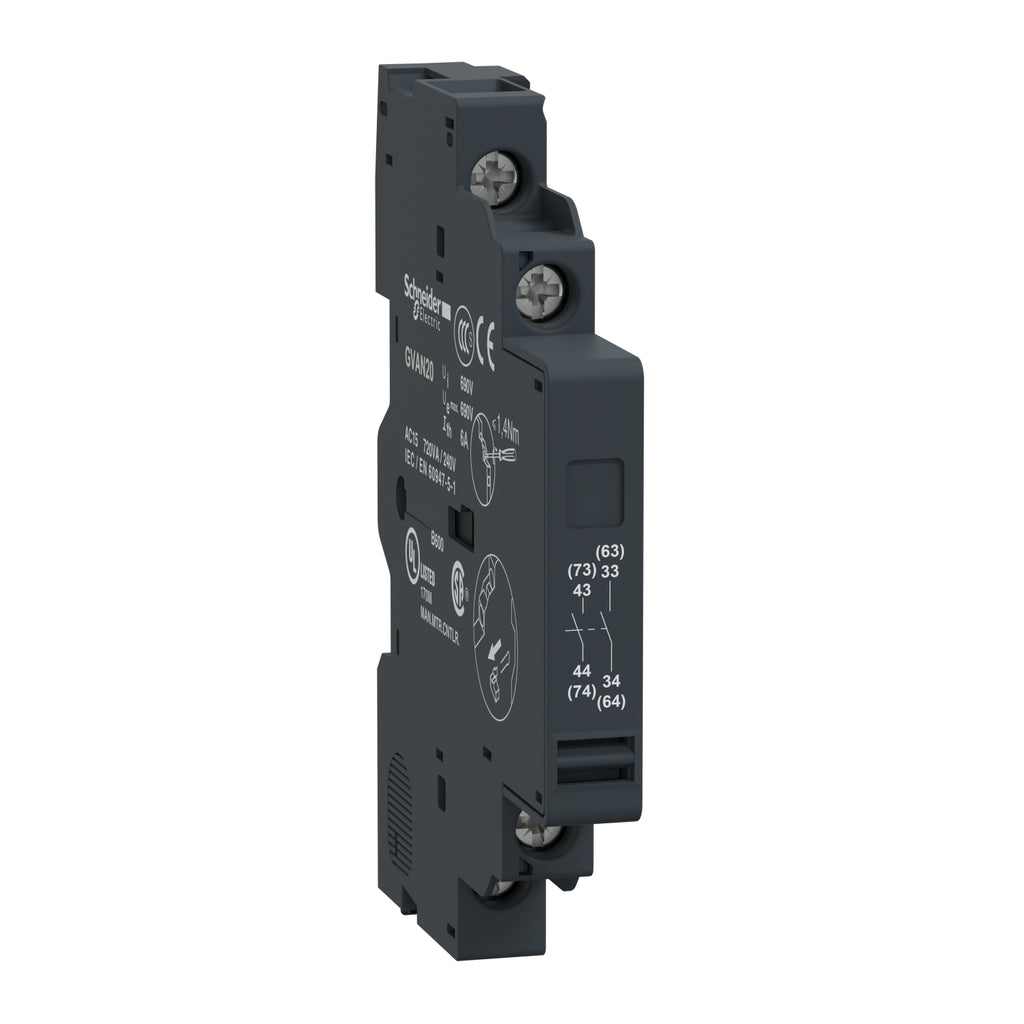

GVAN20 - Schneider Electric - Square D Contact Block Auxiliary
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 2NO instantaneous auxiliary contacts. Rated for operation up to 6A/690V AC and 6A/240V DC. To be installed on left-hand side of the circuit breaker (2 blocks mounting possible), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC).
GENERAL SPECIFICATIONS
| Range | TeSys TeSys Deca |
|---|---|
| Device short name | GVAN |
| Product or Component Type | Auxiliary contact block |
| Product Compatibility | GV2ME GV3P GV2RT GV2LE GV2L GV3L GV2P |
| Mounting Location | Left side |
| Pole contact composition | 2 NO |
| [Ui] rated insulation voltage | 600 V UL 508 690 V IEC 60947-1 600 V CSA C22.2 No 14 |
|---|---|
| [Ue] rated operational voltage | 48...690 V AC 24...240 V DC |
| [Ith] conventional free air thermal current | 6 A |
| Mechanical durability | 100000 cycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Protection type | GB2CB... circuit breaker GG fuse 10 A |
| Rated operational power in VA | 300 VA 48 V AC-15 100000 cycles 414 VA 690 V AC-15 100000 cycles 500 VA 110…127 V AC-15 100000 cycles 500 VA 500 V AC-15 100000 cycles 650 VA 440 V AC-15 100000 cycles 720 VA 230…240 V AC-15 100000 cycles 850 VA 380…415 V AC-15 100000 cycles |
| Rated operational power in W | 120 W 240 V DC-13 100000 cycles 140 W 110 V DC-13 100000 cycles 140 W 24 V DC-13 100000 cycles 180 W 60 V DC-13 100000 cycles 240 W 48 V DC-13 100000 cycles |
| Tightening torque | 12.4 lbf.in (1.4 N.m) screw clamp terminals |
| Height | 3.5 in (89 mm) |
| Width | 0.4 in (9.3 mm) |
| Depth | 2.6 in (66 mm) |
| Net Weight | 0.11 lb(US) (0.05 kg) |
| color | Dark grey |
| Environmental characteristic | Normal environment |
|---|---|
| Product Certifications | UKCA |
| Category | US10I1122367 |
|---|---|
| Discount Schedule | 0I11 |
| GTIN | 3389110343502 |
| Returnability | Yes |
| Country of origin | CZ |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.70 in (9.400 cm) |
| Package 1 Width | 3.86 in (9.800 cm) |
| Package 1 Length | 5.91 in (15.000 cm) |
| Package 1 Weight | 1.446 oz (41.000 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.74 in (9.500 cm) |
| Package 2 Width | 3.86 in (9.800 cm) |
| Package 2 Length | 5.91 in (15.000 cm) |
| Package 2 Weight | 16.261 oz (461.000 g) |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 5.91 in (15.000 cm) |
| Package 3 Width | 11.81 in (30.000 cm) |
| Package 3 Length | 15.75 in (40.000 cm) |
| Package 3 Weight | 6.724 lb(US) (3.050 kg) |
PRODUCT DATASHEET
