Description
GENERAL
| Application | For Cross Connecting A Wide Range Of Copper Cable, Direct Burial In Earth Or Concrete |

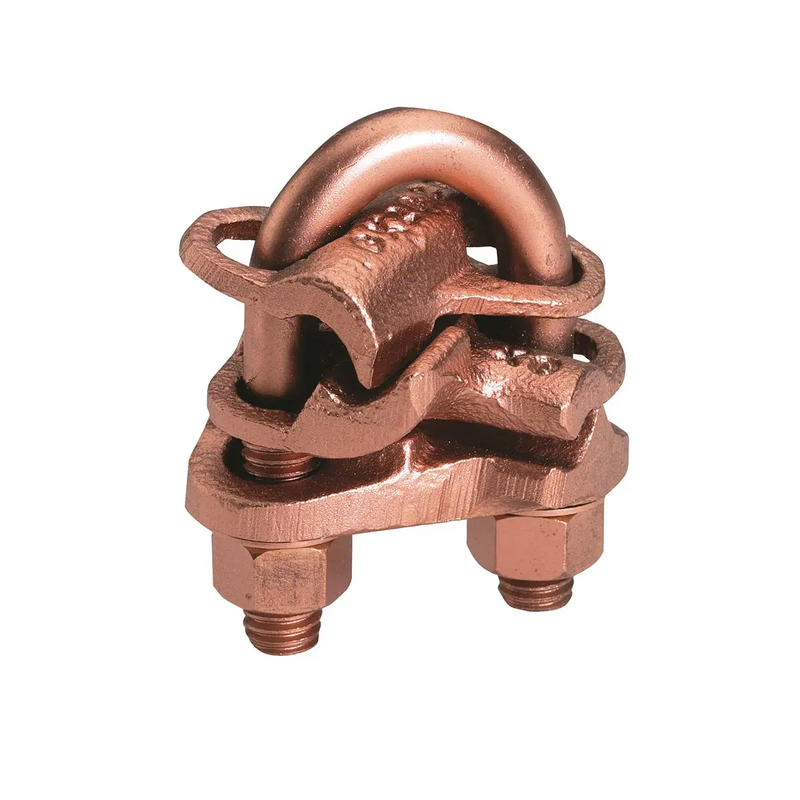

| Catalog Number | GX2929 |
| Installation Torque Recommended in-lb | 240 LBS/in |
| Material | Copper Alloy |
| Material Type - Screw | DURIUM™ Silicon Bronze |
| Plated | No |
| Plating Type | Unplated |
| Product Type | Mechanical |
| Sub Brand | MECHANICAL CONNECTOR |
| Type | GX |
| U Bolt Type | 222 |
| UPC | 781810260692 |
| UPC 14 Digit GTIN | 00781810260692 |
DIMENSIONS
| Dimension - Height fraction | 2-3/4 in |
| Dimension - Height inch | 2.75 in |
| Dimension - Height mm | 69.9 mm |
| Dimension - L Length Overall mm | 48 mm |
| Dimension - Length Overall inch | 1.88 in |
| Dimension - Width fraction | 1-7/8 in |
| Dimension - Width inch | 1.88 in |
| Dimension - Width mm | 48 mm |
| Package Height | 0 in |
| Package Length | 0 in |
| Package Weight | 0 lb |
| Package Width | 0 in |
CONDUCTOR RELATED
| Conductor - Copper Solid Size A | 2/0 AWG;3/0 AWG;4/0 AWG |
| Conductor - Copper Solid Size A Range | 2/0 AWG-4/0 AWG |
| Conductor - Copper Solid Size B | 2/0 AWG;3/0 AWG;4/0 AWG |
| Conductor - Copper Solid Size B Range | 2/0 AWG-4/0 AWG |
| Conductor - Copper Str Size A | 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Conductor - Copper Str Size A Range | 1/0 -250 kcmil |
| Conductor - Copper Str Size B | 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Conductor - Copper Str Size B Range | 1/0 -250 kcmil |
| Conductor - Copper Tube Std Size | 0.5 |
| Conductor - Rod Size | 1/2 in |
| Conductor - Rod Size Range | 1/2 in |
| Conductor Type | CU C Str-Size A CU C Solid-Size A CU C Str-Size B CU C Solid-Size B |
CERTIFICATIONS AND COMPLIANCE
| Buy America(n) Qualified | Contact Manufacturer |
| Certification - CSA Approved | No |
| Certification - cULus | No |
| Certification - ETL | No |
| Certification - UL Listed Direct Burial | Yes |
| Certification - UL Recognized | No |
| Industry Standard(s) | UL467 |
| Standards - Industry Standards Met | UL467 |
| Standards - RoHS Compliance Status | EX |
| UL Listed | Yes |
FORCE RELATED
| Installation Torque Recommended in-lb | 240 LBS/in |
LOGISTICS
| Carton Quantity | 50 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 2500 |
