Description

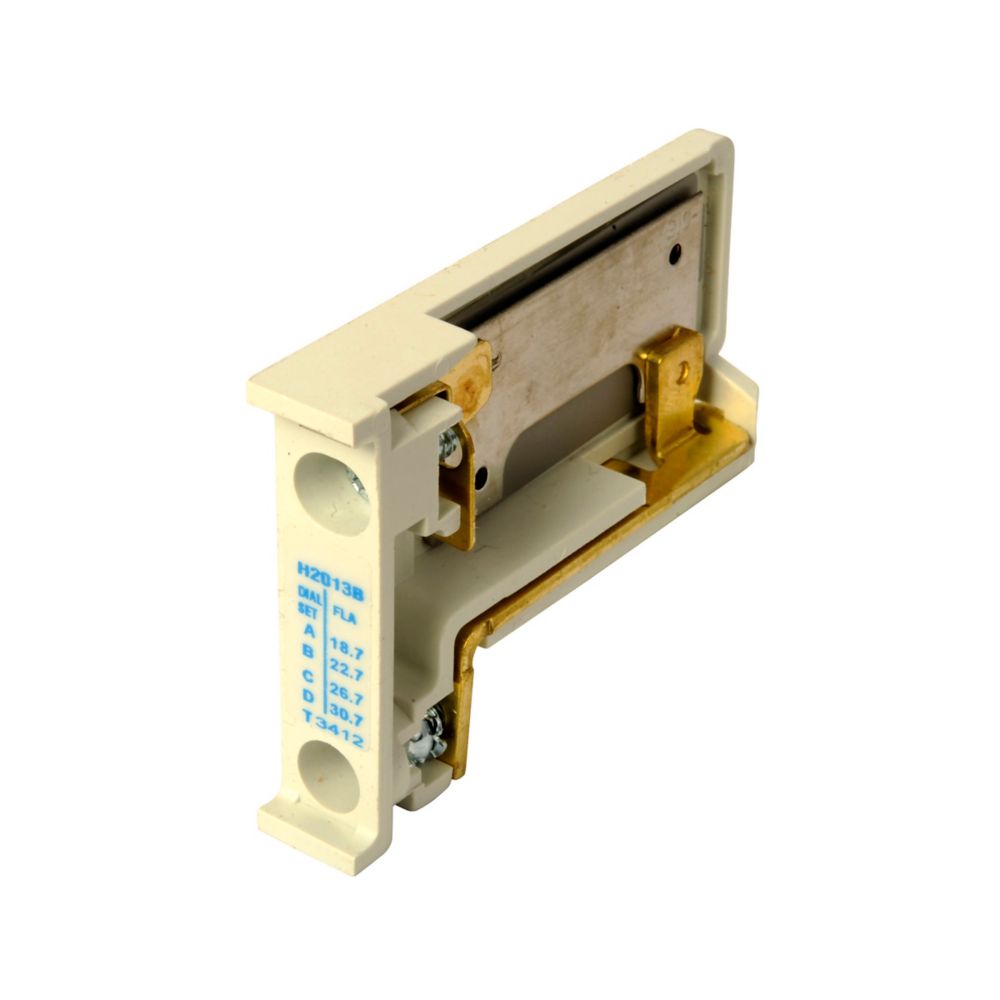

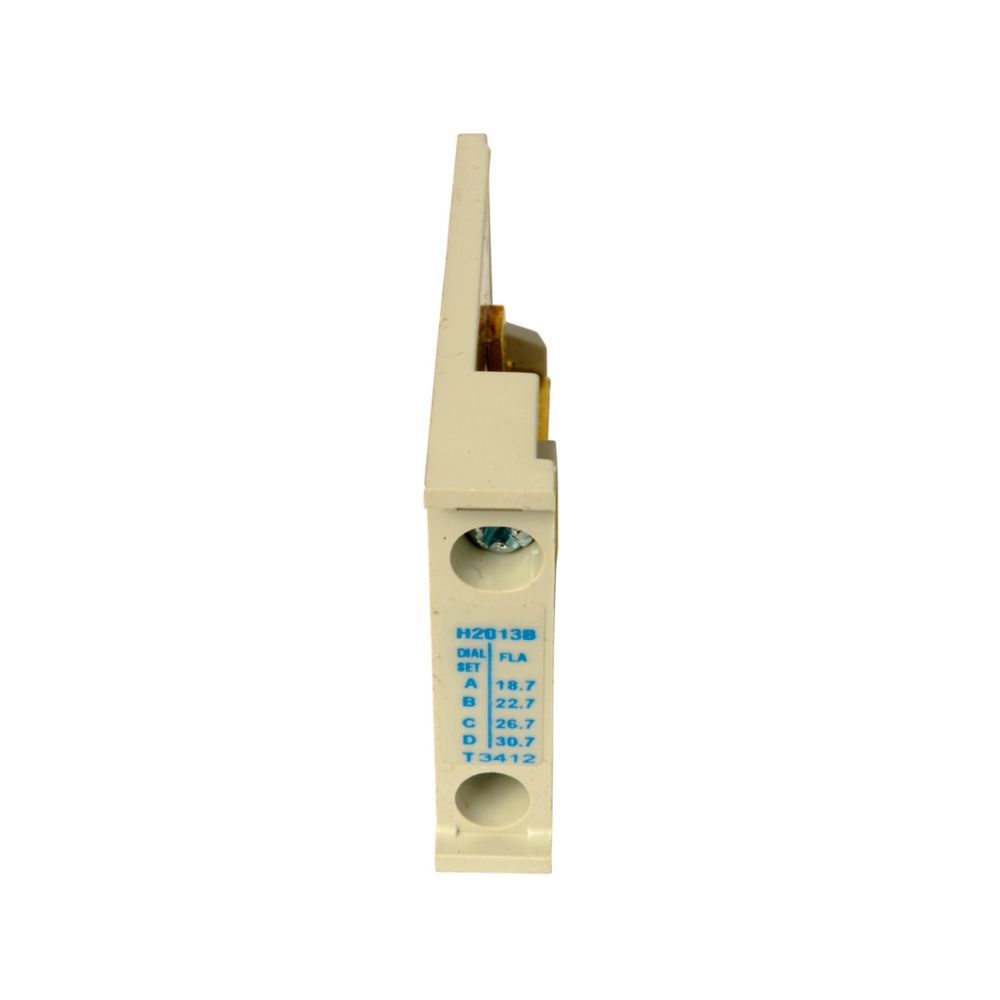

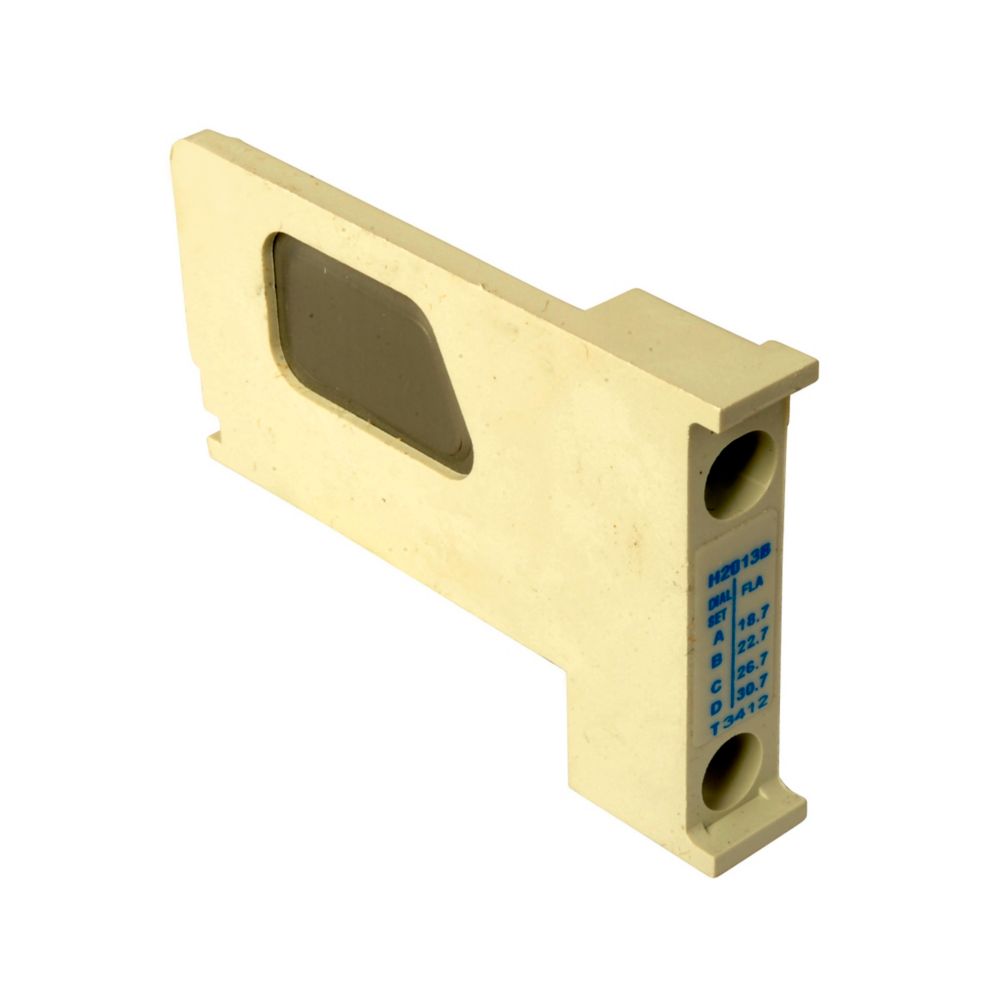

H2013B3 - Eaton Cutler Hammer - 1.8" Freedom NEMA Heater Coil
Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Standard Trip, Class 20, NEMA, IEC, full load range 18.7A 22.7A 26.7A 30.7A Dial positions A B C D respectively, overload relay 32 or 75A
GENERAL SPECIFICATIONS
| Product Name |
Eaton Freedom NEMA heater coil
|
| Catalog Number |
H2013B-3
|
| UPC |
782113967592
|
| Product Length/Depth |
1.8 in
|
| Product Height |
3.1 in
|
| Product Width |
1.8 in
|
| Product Weight |
0.2 lb
|
| Certifications |
CSA Certified
UL Listed |
| Catalog Notes |
Heater packs are shipped 3 to a carton. Catalog Numbers and prices are for 3 heater packs
|
| Product Type |
Heater coil
|
PRODUCT SPECIFICATIONS
| Design |
NEMA, IEC
|
| Full load current range |
18.7A 22.7A 26.7A 30.7A Dial positions A B C D respectively
|
| Overload relay |
32 or 75A
|
| Special features |
Used with starter sizes 00-0 (Series C), Sizes 1-2 (Series B), IEC Sizes A-F (Series C), IEC Sizes G-K (Series B)
|
| Trip Type |
Standard Trip, Class 20
|
| Type |
Freedom/Definite Purpose Heater Pack
|
| Used with |
Used with starter sizes 00-0 (Series C), Sizes 1-2 (Series B), IEC Sizes A-F (Series C), IEC Sizes G-K (Series B)
|
