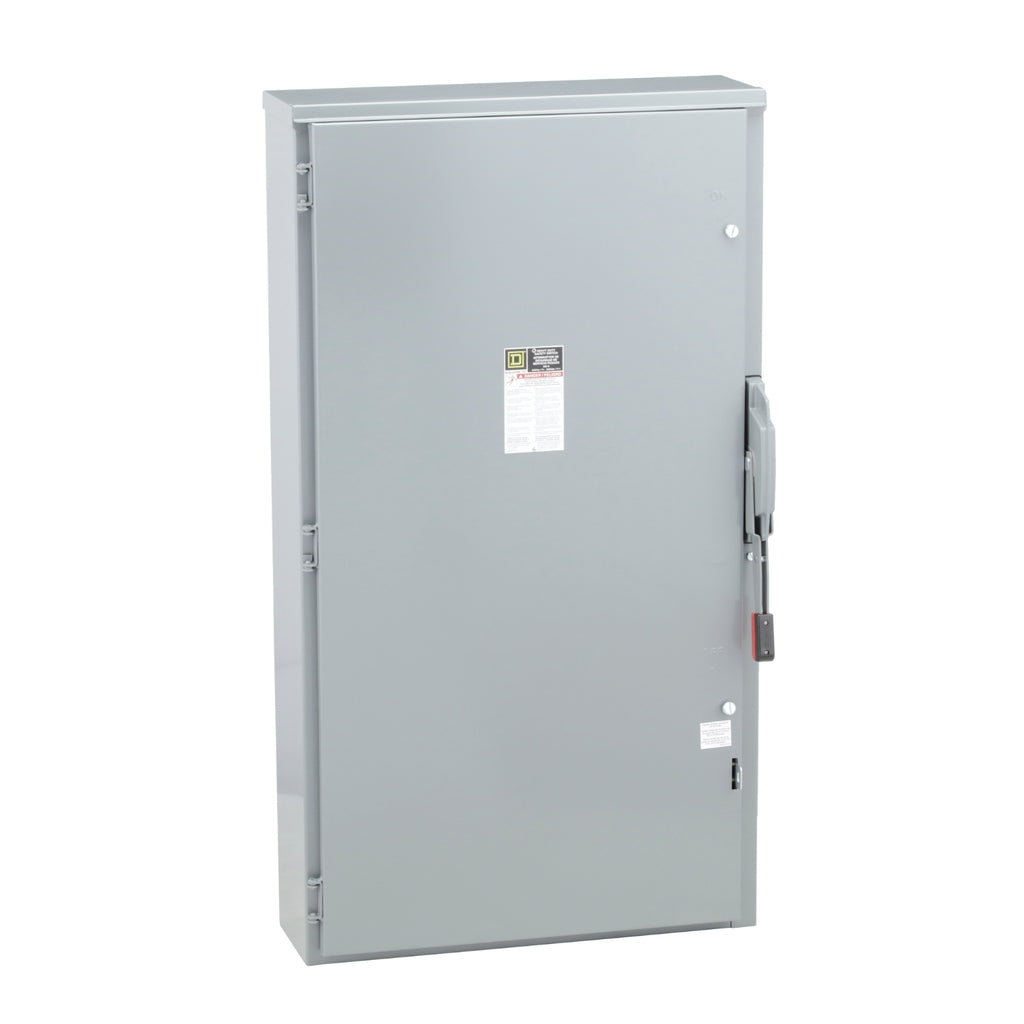

H225NR - Schneider Electric - Square D Safety Switch Heavy Duty Fusible 2 Pole 3 Wire 240VAC/250VDC 400A Type 3R with Neutral
The Square D(TM) by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. Heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a two pole fusible heavy duty safety switch that is rated at 400A with voltage of 240VAC and 250VDC. This switch is rated at 50hp for 3 phase with standard fuses. For time delay fuses, this switch is rated at 125hp at 3 phase. For 250VDC, it also is rated at 50hp This unit includes a factory installed neutral. It is UL listed with the file E2875.
GENERAL SPECIFICATIONS
| Product | Single Throw Safety Switch |
|---|---|
| Duty Rating | Heavy duty |
| Device Application | Heavy application |
| Disconnect Type | Fusible disconnect |
| Factory Installed Neutral | Neutral (factory installed) |
| Number of Poles | 2 |
| Current Rating | 400 A |
| Voltage Rating | 250 V DC 240 V AC |
| Enclosure Rating | NEMA 3R galvannealed steel |
| Standard Motor Power Rating | 50 hp at 240 V delta AC 50-60 Hz for 3 phase motors 125 hp at 240 V delta AC 50-60 Hz for 3 phase motors 50 hp at 250 V DC |
| Short-circuit current | 10 kA for H or K 200 kA for R or J |
|---|---|
| Fuse type | H or K R or J |
| Mounting Type | Surface |
| Electrical Connection | Lugs |
| Wiring configuration | 3-wire |
| Wire Size | AWG 1/0...750 kcmil copper or aluminium |
| Tightening torque | 550 lbf.in (62.1 N.m) (AWG 1/0...750 kcmil) |
| Depth | 10.13 in (257.30 mm) |
| Width | 27.88 in (708.15 mm) |
| Height | 50.31 in (1277.87 mm) |
| Product Weight | 175.05 lb(US) (79.4 kg) |
| Certifications | UL listed file E2875 |
|---|
| Category | US10DE100054 |
|---|---|
| Discount Schedule | 0DE1 |
| GTIN | 785901450405 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 14.02 in (35.6 cm) |
| Package 1 Width | 28.0 in (71.1 cm) |
| Package 1 Length | 51.50 in (130.8 cm) |
| Package 1 Weight | 175.0009 lb(US) (79.379 kg) |
