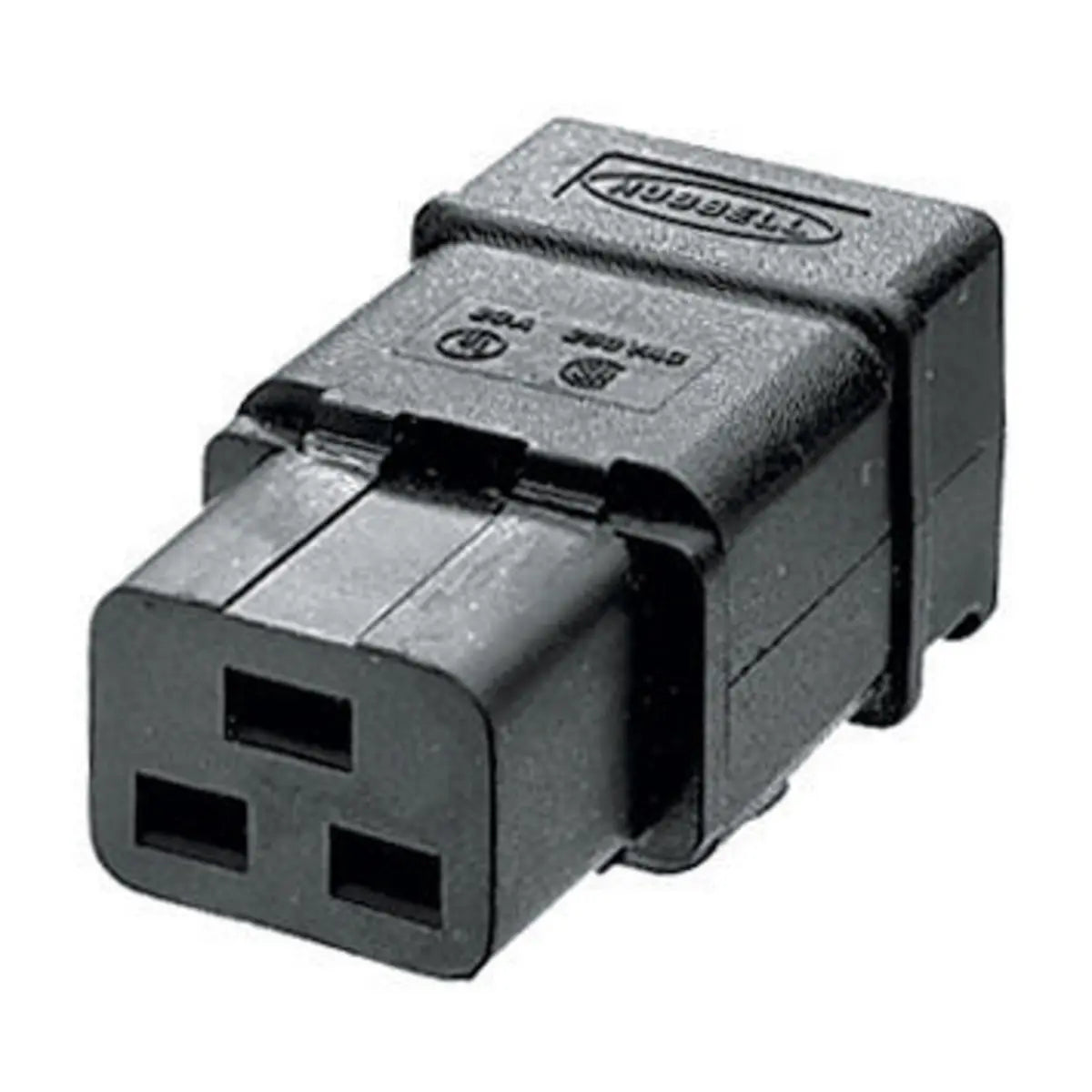

H320C - Hubbell Wiring Device-Kellems - 16A 250V Single Pack Female Connector
Roll over image to zoom in Click on image to zoom
H320C - Hubbell Wiring Device-Kellems - 16A 250V Single Pack Female Connector

H320C - Hubbell Wiring Device-Kellems - 16A 250V Single Pack Female Connector

HubbellSKU: HUBH320C
Price:
$16.82
Stock:
Sold out

Description

H320C - Hubbell Wiring Device-Kellems - 16A 250V Single Pack Female Connector

Straight Blade Devices, IEC 320 Devices, Female Connector, 16A 250V, International Rated, Pressure Screw Terminal, Black, Single Pack.

  • Compatible with IEC320
  • Hinged one piece body design for easy assembly
  • Two captive multiple drive assembly screws

Appliance Coupler

GENERAL SPECIFICATIONS

Catalog Number H320C
Color Black
Cord Range 0.325"-0.475" (8.0-12.0)
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator Yes
Insulation Insulated Body
Item Type Valise
Material Nylon
Material - Mounting Hardware Cord Mounted
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Electrical - Rating - 16A 250V AC for European service
  • 20A 250V AC for North American service
  • Environmental - Flammability - UL 94 HB or better
  • Environmental - IP Suitability - IP20
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  • Mechanical - Cord Accommodation - .325" - .475" (8.0-12.0)
  • Mechanical - Terminal Accommodation - North American – #16-12 AWG stranded or solid copper conductor only,International – 1.55mm²-2.5mm²,Terminal Identification Terminals identified in accordance with UL 498 and CSA
Specifications
  • Terminal Retainer - Nylon
  • Assembly Screws - Zinc plated steel
  • Configuration - IEC 60320-1 Style appliance coupler, C19
  • Device Type - 2 Pole + earth
  • Power Contacts -  .032" (.81) Brass
  • Terminal Clamp - Nickel plated steel
  • Terminal Screws - Stainless steel
Temperature Rating Max Continuous: 75°C, Minimum: -40°C (Without Impact)
UPC 783585777108



Dimensions

Dimensions 2.74 in x 1.42 in x 1.36 in
Display Size Standard Sized Product
Height 1.36 in
Length 2.74 in
Weight 0.2 lb
Width 1.42 in



Electrical Ratings

Amperage Rating 20/16 A
Connectivity Screw Terminals
Current / Amperage Rating 20/16 A
Current Rating 20/16 A
Dielectric Strength Withstands 2,000V minimum
Wattage 7500 W
Voltage Rating 250 VAC
Voltage Rating Description 250 VAC



Conductor Related

Conductor Range #14 AWG to #12 AWG
Number of Conductors 3-Wire Grounding
Number Of Poles 2-Pole
Number of Wires 3-Wire
Wire Size North American - #16 AWG to #12 AWG;International - 1.55 mm² to 2.5 mm²



Operational

 Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Electrical - Rating - 16A 250V AC for European service
  • 20A 250V AC for North American service
  • Environmental - Flammability - UL 94 HB or better
  • Environmental - IP Suitability - IP20
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  • Mechanical - Cord Accommodation - .325" - .475" (8.0-12.0)
  • Mechanical - Terminal Accommodation - North American – #16-12 AWG stranded or solid copper conductor only,International – 1.55mm²-2.5mm²,Terminal Identification Terminals identified in accordance with UL 498 and CSA

Logistics

Carton Quantity 10
Pallet Quantity 6000



PRODUCT DATASHEET

Wiring H320C Specification Sheet
