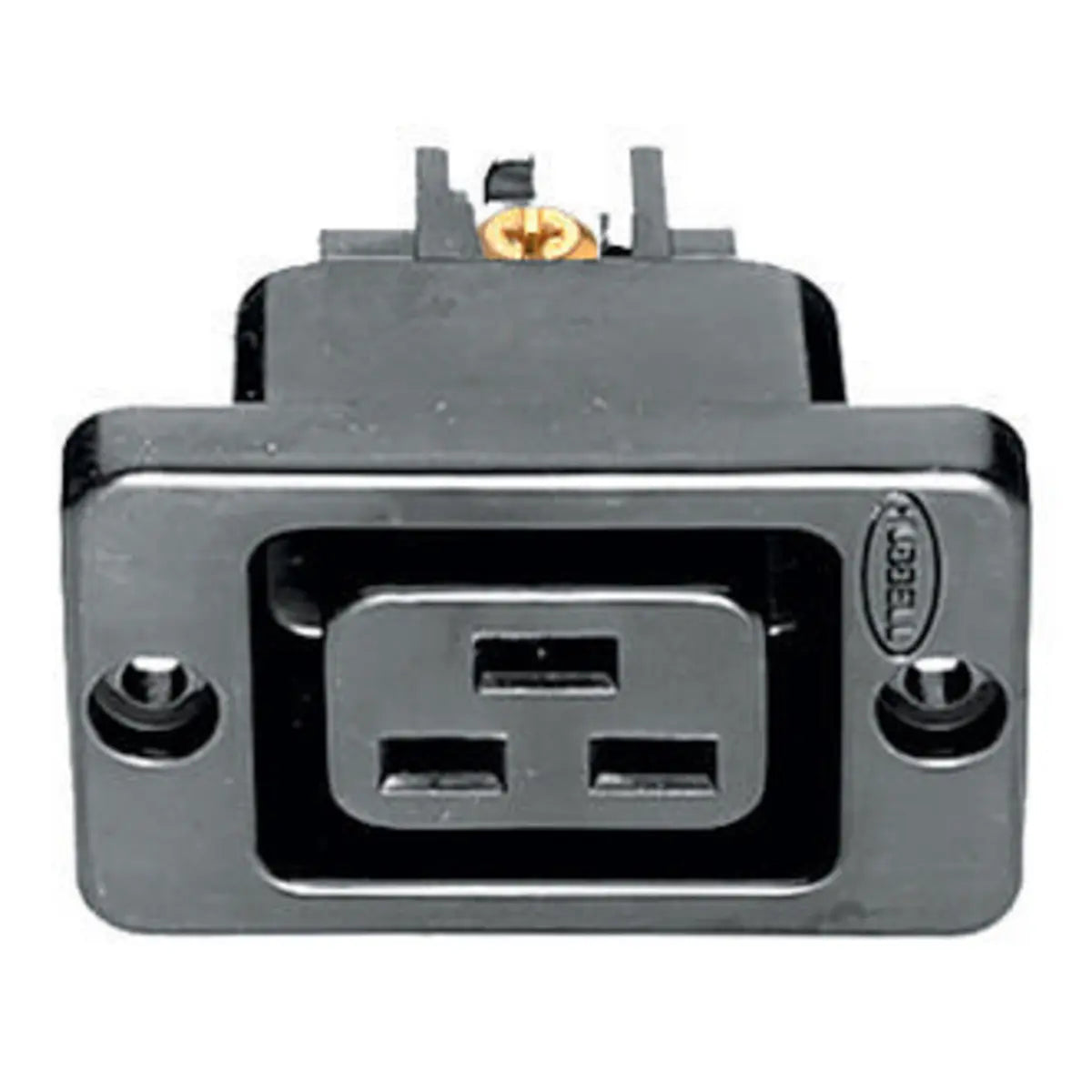

H320R - Hubbell Wiring Device-Kellems - 16A 250V Single Pack Female Receptacle
Roll over image to zoom in Click on image to zoom
H320R - Hubbell Wiring Device-Kellems - 16A 250V Single Pack Female Receptacle

H320R - Hubbell Wiring Device-Kellems - 16A 250V Single Pack Female Receptacle

HubbellSKU: HUBH320R
Price:
$29.29
Stock:
Sold out

Description

H320R - Hubbell Wiring Device-Kellems - 16A 250V Single Pack Female Receptacle

Straight Blade Devices, IEC 320 Devices, Female Receptacle, 16A 250V, International Rated, Pressure Screw Terminal, Black, Single Pack.

  • Compatible with IEC320
  • Low profile
  • Impact resistant

GENERAL SPECIFICATIONS

Application Heavy Duty
Catalog Number H320R
Color Black
Environmental Conditions Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator Yes
Item Type IEC Appliance Coupler Single
Material - Mounting Hardware Screw Mounting
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical:Dielectric Voltage Withstands 2,000V minimum,Rating 16A 250V AC for European service
  • 20A 250V AC for ,North American service
  • Mechanical:Terminal Accommodation North American – #16-12 AWG stranded or solid copper conductor only. International – 1.55mm²-2.5mm² ,Terminal Identification: Terminals identified in accordance with UL 498 and CSA
  • Environmental:Flammability UL 94 VO ,Operating Temperatures Maximum continuous 75°C
  • minimum -40°C (w/o impact)
Specifications
  • Assembly Screws - Zinc plated steel
  • Device Type - 2 Pole + earth
  • Housing - Nylon
  • Power Contacts -  .032" (.81) Brass
  • Terminal Clamp - Nickel plated steel
  • Terminal Retainer - Nylon
  • Terminal Screws - Stainless steel
UPC 783585777054



Dimensions

Dimensions 1.41 in x 1.89 in x 1.52 in
Display Size Standard Sized Product
Height 1.52 in
Length 1.41 in
Weight 0.1 lb
Width 1.89 in



Electrical Ratings

Amperage Rating 20/16 A
Connectivity Screw Terminals
Current / Amperage Rating 20/16 A
Current Rating 20/16 A
Dielectric Strength Withstands 2,000V minimum
Phase Single Phase
Voltage Rating 250 V
Voltage Rating Description 250 V
Wattage 7500 W



Conductor Related

Number Of Poles

 2-Pole
Number Of Wires 3-Wire
Wire Size

North American-#16AWG-#12AWG; International-1.55mm²-2.5mm².



Operational

 Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical:Dielectric Voltage Withstands 2,000V minimum,Rating 16A 250V AC for European service
  • 20A 250V AC for ,North American service
  • Mechanical:Terminal Accommodation North American – #16-12 AWG stranded or solid copper conductor only. International – 1.55mm²-2.5mm² ,Terminal Identification: Terminals identified in accordance with UL 498 and CSA
  • Environmental:Flammability UL 94 VO ,Operating Temperatures Maximum continuous 75°C
  • minimum -40°C (w/o impact)

Logistics

Carton Quantity 10
Pallet Quantity 2640



PRODUCT DATASHEET

Wiring H320R Specification Sheet
