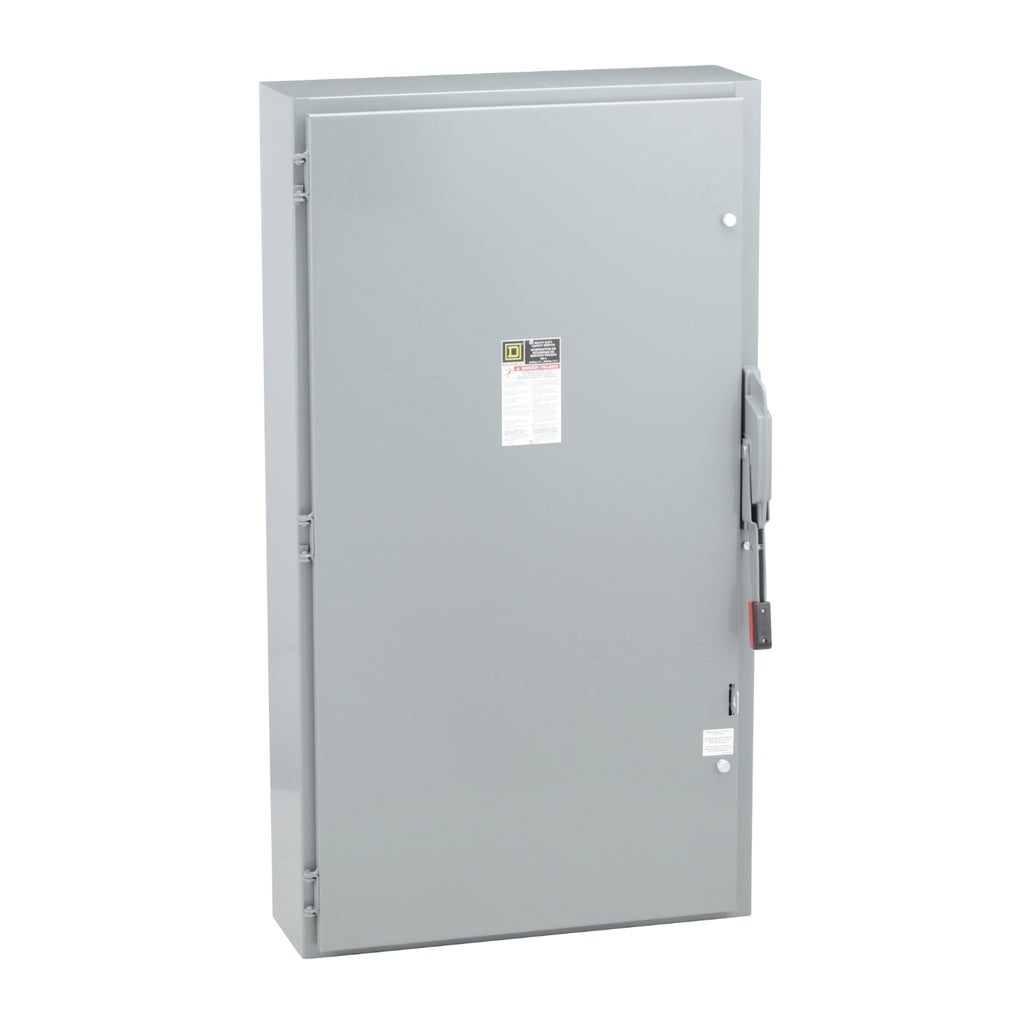

H325N - Schneider Electric - Square D Safety Switch Heavy Duty Fusible 400A 4 Wire 3 Pole 1 Neutral 125HP 240VAC/250VDC NEMA 1
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 400A and is UL listed with a NEMA 1 rating of protection. This 3-pole switch has operational voltage ratings of 240VAC & 250VDC. The enclosure is made of steel and has a neutral (factory installed). This fusible disconnect has a short circuit current rating of 10kA to 200kA. This safety switch accepts H,J,K,L,Rfuse types and is surface mounted. This switch comes with an 18 months warranty.
GENERAL SPECIFICATIONS
| Product | Single Throw Safety Switch |
|---|---|
| Duty Rating | Heavy duty |
| Device Application | Heavy application |
| Disconnect Type | Fusible disconnect |
| Factory Installed Neutral | Neutral (factory installed) |
| Number of Poles | 3 |
| Current Rating | 400 A |
| Voltage Rating | 250 V DC 240 V AC |
| Enclosure Rating | NEMA 1 steel |
| Motor power hp | 50 hp at 240 V AC 50-60 Hz for 3 phase motors 125 hp at 240 V AC 50-60 Hz for 3 phase motors 50 hp at 250 V DC |
| Short-circuit current | 10 kA for H or K 200 kA for R or J |
|---|---|
| Fuse type | H or K R or J |
| Mounting Type | Surface |
| Electrical Connection | Lugs |
| Wiring configuration | 4-wire (3PH + G) |
| Wire Size | AWG 1/0...750 kcmil copper or aluminium |
| Tightening torque | 550 lbf.in (62.1 N.m) (AWG 1/0...750 kcmil) |
| Depth | 10.13 in (257.30 mm) |
| Width | 27.63 in (701.80 mm) |
| Height | 50.25 in (1276.35 mm) |
| Net Weight | 173.06 lb(US) (78.5 kg) |
| Certifications | UL listed file E2875 |
|---|
| Category | US10DE100053 |
|---|---|
| Discount Schedule | 0DE1 |
| GTIN | 785901450368 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 14.21 in (36.1 cm) |
| Package 1 Width | 28.19 in (71.6 cm) |
| Package 1 Length | 52.09 in (132.3 cm) |
| Package 1 Weight | 167.999 lb(US) (76.203 kg) |
PRODUCT DATASHEET
