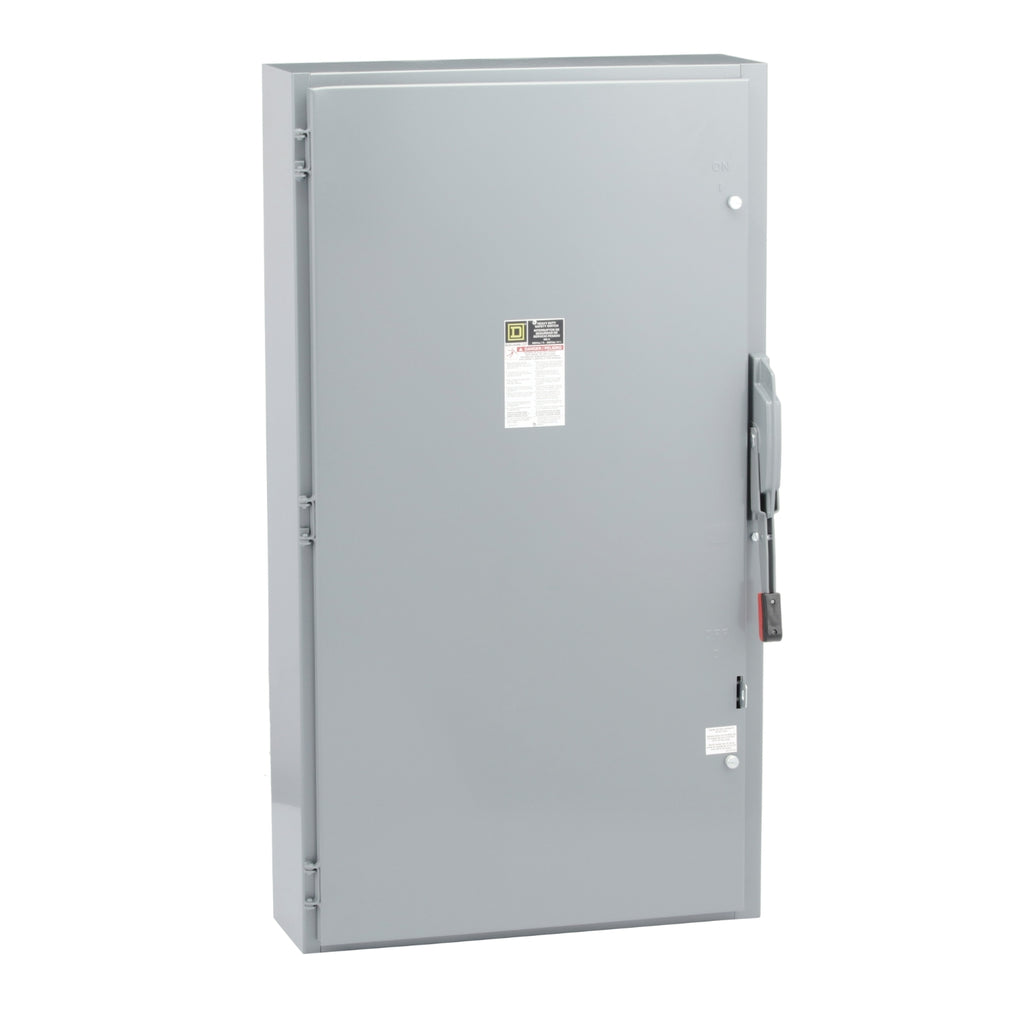

H365 - Schneider Electric - Square D Safety Switch Heavy Duty Fusible 400A 3 Wire 3 Pole 250HP 600VAC/DC NEMA 1
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 400A and is UL listed with a NEMA 1 rating of protection. This 3-pole switch has operational voltage ratings of & 600VAC/DC. The enclosure is made of steel and has no neutral installed. This fusible disconnect has a short circuit current rating of 10kA to 200kA. This safety switch accepts H,J,K,L,Rfuse types and is surface mounted. This switch comes with an 18 months warranty.
GENERAL SPECIFICATIONS
Main
| Product |
Single Throw Safety Switch |
| Duty Rating |
Heavy duty |
| Device Application |
Heavy application |
| Disconnect Type |
Fusible disconnect |
| Factory Installed Neutral |
None |
| Number of Poles |
3 |
| Current Rating |
400 A |
| Voltage Rating |
600 V AC/DC |
| Enclosure Rating |
NEMA 1 steel |
| Standard Motor Power Rating |
100 hp at 480 V AC 50-60 Hz for 3 phase motors
250 hp at 480 V AC 50-60 Hz for 3 phase motors
125 hp at 600 V AC 50-60 Hz for 3 phase motors
350 hp at 600 V AC 50-60 Hz for 3 phase motors
50 hp at 250 V DC
50 hp at 600 V DC |
Complementary
| Short-circuit current |
10 kA for H or K
200 kA for R or J |
| Fuse type |
H or K
R or J |
| Mounting Type |
Surface |
| Electrical Connection |
Lugs |
| Wiring configuration |
3-wire |
| Wire Size |
AWG 1/0...750 kcmil copper or aluminium |
| Tightening torque |
550 lbf.in (62.1 N.m) (AWG 1/0...750 kcmil) |
| Depth |
10.13 in (257.30 mm) |
| Width |
27.63 in (701.80 mm) |
| Height |
50.25 in (1276.35 mm) |
| Net Weight |
172.0 lb(US) (78 kg) |
Environment
| Certifications |
UL listed file E2875 |
Ordering and shipping details
| Category |
US10DE100053 |
| Discount Schedule |
0DE1 |
| GTIN |
785901482192 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
14.02 in (35.6 cm) |
| Package 1 Width |
28.5 in (72.4 cm) |
| Package 1 Length |
52.5 in (133.4 cm) |
| Package weight(Lbs) |
167.999 lb(US) (76.203 kg) |
PRODUCT DATASHEET
H365_Product Datasheet
