Description

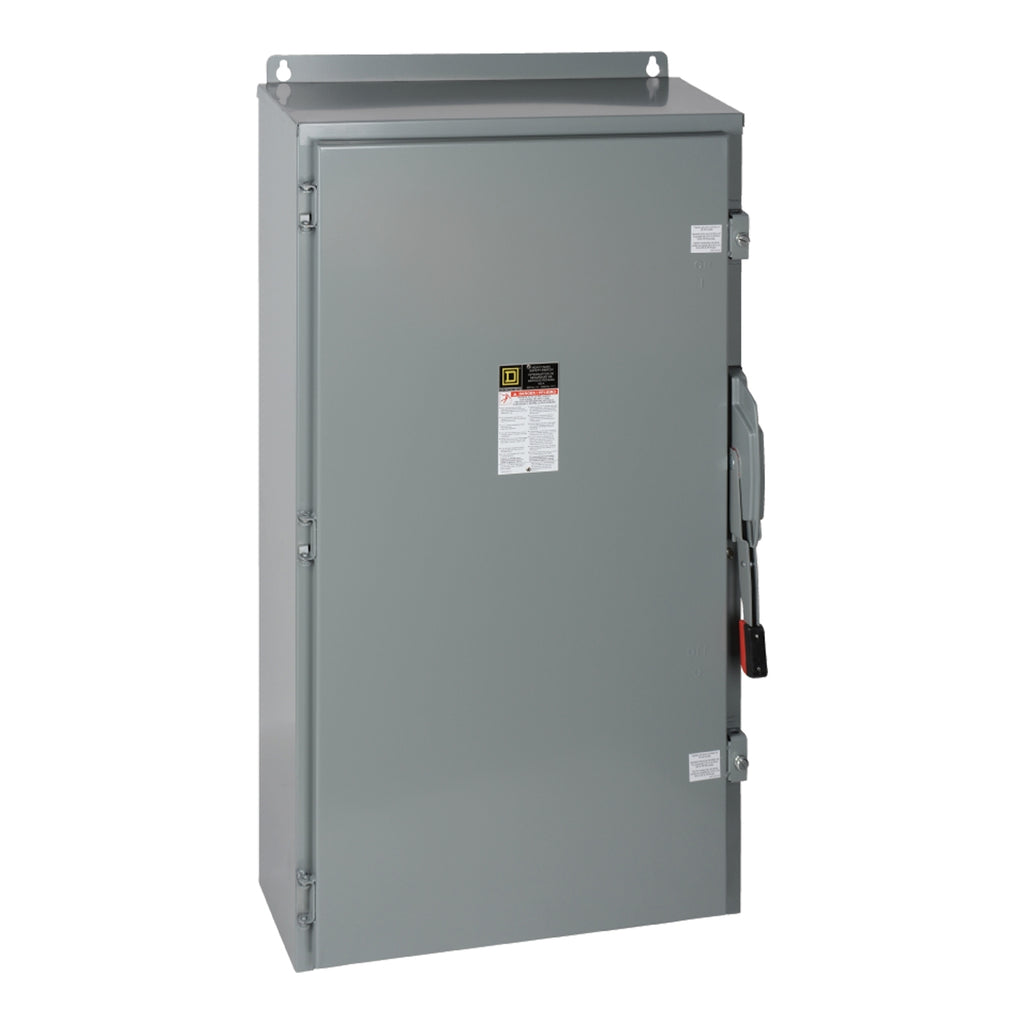

H365AWK - Schneider Electric - Square D Safety Switch Heavy Duty Fusible 400A 3 Pole 600VAC NEMA 4X
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy Duty Safety Switches are utized from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA Type KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric Heavy Duty Safety Switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. This heavy duty Single Throw Safety Switch has a rated current of 100A and has a NEMA 3R/12 degree of protection. This fusible disconnect has a short circuit rating of 200kA@600VAC. This safety switch has a galvannealed steel enclosure and is surface mounted. This product os compatable with H or K, R, J or L fuses. The acceptable AWG gauge for this product is AWG 12 / AWG 1/0, aluminiumand has a tightening torque of 50-50 lbf.in. This product complys to UL listed file E2875 standards and comes with an 18 month warranty. Dimensions for this product are 20.5 in (H), 10.5 in (W), 7 in (D).
GENERAL SPECIFICATIONS
| Product | Single Throw Safety Switch |
|---|---|
| Duty Rating | Heavy duty |
| Device Application | Heavy application |
| Disconnect Type | Fusible disconnect |
| Factory Installed Neutral | None |
| Number of Poles | 3 |
| Current Rating | 400 A |
| Voltage Rating | 600 V AC/DC |
| Enclosure Rating | NEMA 3R/12 galvannealed steel |
| Standard Motor Power Rating | 100 hp at 480 V AC 50-60 Hz for 3 phase motors 250 hp at 480 V AC 50-60 Hz for 3 phase motors 125 hp at 600 V AC 50-60 Hz for 3 phase motors 350 hp at 600 V AC 50-60 Hz for 3 phase motors 50 hp at 250 V DC 50 hp at 600 V DC |
| Short-circuit current | 10 kA for H or K 200 kA for R or J |
|---|---|
| Fuse type | H or K R or J |
| Mounting Type | Surface |
| Electrical Connection | Lugs |
| Wiring configuration | 3-wire |
| Wire Size | AWG 1/0...750 kcmil copper or aluminium |
| Tightening torque | 550 lbf.in (62.1 N.m) (AWG 1/0...750 kcmil) |
| Depth | 10.13 in (257.30 mm) |
| Width | 26.25 in (666.75 mm) |
| Height | 46.25 in (1174.75 mm) |
| Net Weight | 170.0 lb(US) (77.1 kg) |
| Certifications | UL listed file E2875 |
|---|
| Category | US10DE100155 |
|---|---|
| Discount Schedule | 0DE1 |
| GTIN | 785901451815 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 13.000 in (33.020 cm) |
| Package 1 Width | 26.800 in (68.072 cm) |
| Package 1 Length | 51.500 in (130.810 cm) |
| Package weight(Lbs) | 175.0009 lb(US) (79.379 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 30.500 in (77.470 cm) |
| Package 2 Width | 40.000 in (101.600 cm) |
| Package 2 Length | 56.000 in (142.240 cm) |
| Package 2 Weight | 350.000 lb(US) (158.757 kg) |
