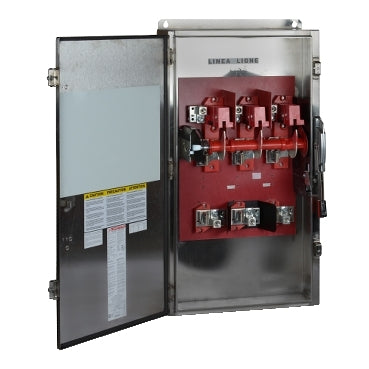

H366DS - Square D - 600A 600VAC DC Heavy Duty Fusible Safety Switch 3 Pole 500HP NEMA 4 4X 5 304 Steel
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade fusible heavy duty safety switch that is rated at 600 A with a voltage of 600 V AC/DC. This switch has a NEMA 4X stainless steel 304 enclosure. The device accepts class L fuse as standard. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.
GENERAL SPECIFICATIONS
| Product | Single Throw Safety Switch |
|---|---|
| Duty Rating | Heavy duty |
| Device Application | Heavy application |
| Disconnect Type | Fusible disconnect |
| Factory Installed Neutral | None |
| Number of Poles | 3 |
| Current Rating | 600 A |
| Voltage Rating | 600 V AC/DC |
| Enclosure Rating | NEMA 4X/5 stainless steel 304 |
| Standard Motor Power Rating | 150 hp at 480 V AC 50-60 Hz for 3 phase motors 400 hp at 480 V AC 50-60 Hz for 3 phase motors 200 hp at 600 V AC 50-60 Hz for 3 phase motors 500 hp at 600 V AC 50-60 Hz for 3 phase motors 50 hp at 250 V DC 50 hp at 600 V DC |
| Short-circuit current | 10 kA for H or K 200 kA for R or J |
|---|---|
| Fuse type | H or K R or J |
| Mounting Type | Surface |
| Electrical Connection | Lugs |
| Wiring configuration | 3-wire |
| Wire Size | AWG 3/0...500 kcmil copper or aluminium |
| Tightening torque | 375 lbf.in (42.4 N.m) (AWG 3/0...500 kcmil) |
| Depth | 10.13 in (257.30 mm) |
| Width | 26.25 in (666.75 mm) |
| Height | 46.25 in (1174.75 mm) |
| Net Weight | 166.008 lb(US) (75.3 kg) |
| Certifications | UL listed file E2875 |
|---|
| Category | US10DE100055 |
|---|---|
| Discount Schedule | 0DE1 |
| GTIN | 785901259435 |
| Returnability | No |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 13.0 in (33.0 cm) |
| Package 1 Width | 27.008 in (68.6 cm) |
| Package 1 Length | 52.008 in (132.1 cm) |
| Package weight(Lbs) | 165.999 lb(US) (75.296 kg) |
